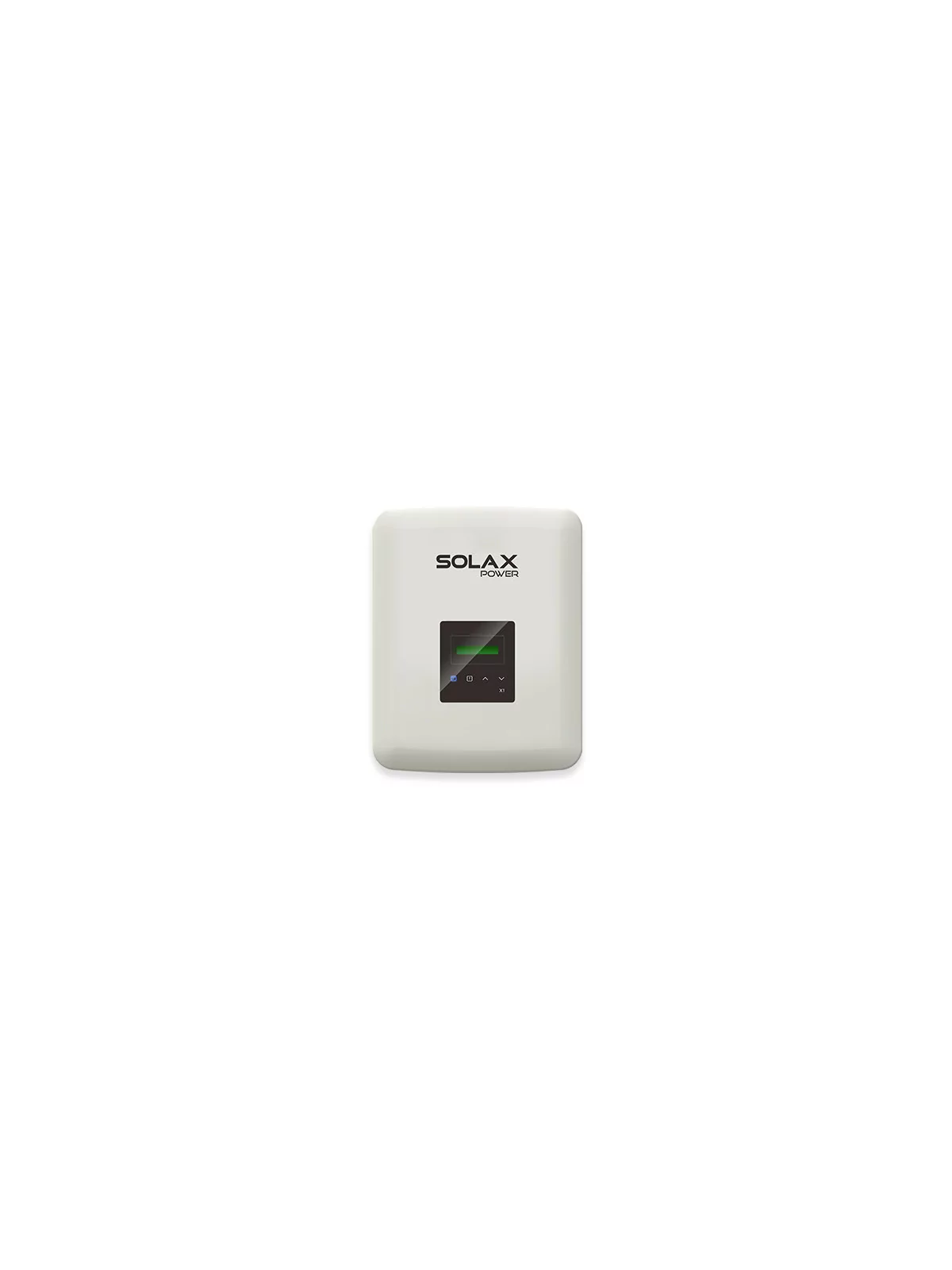

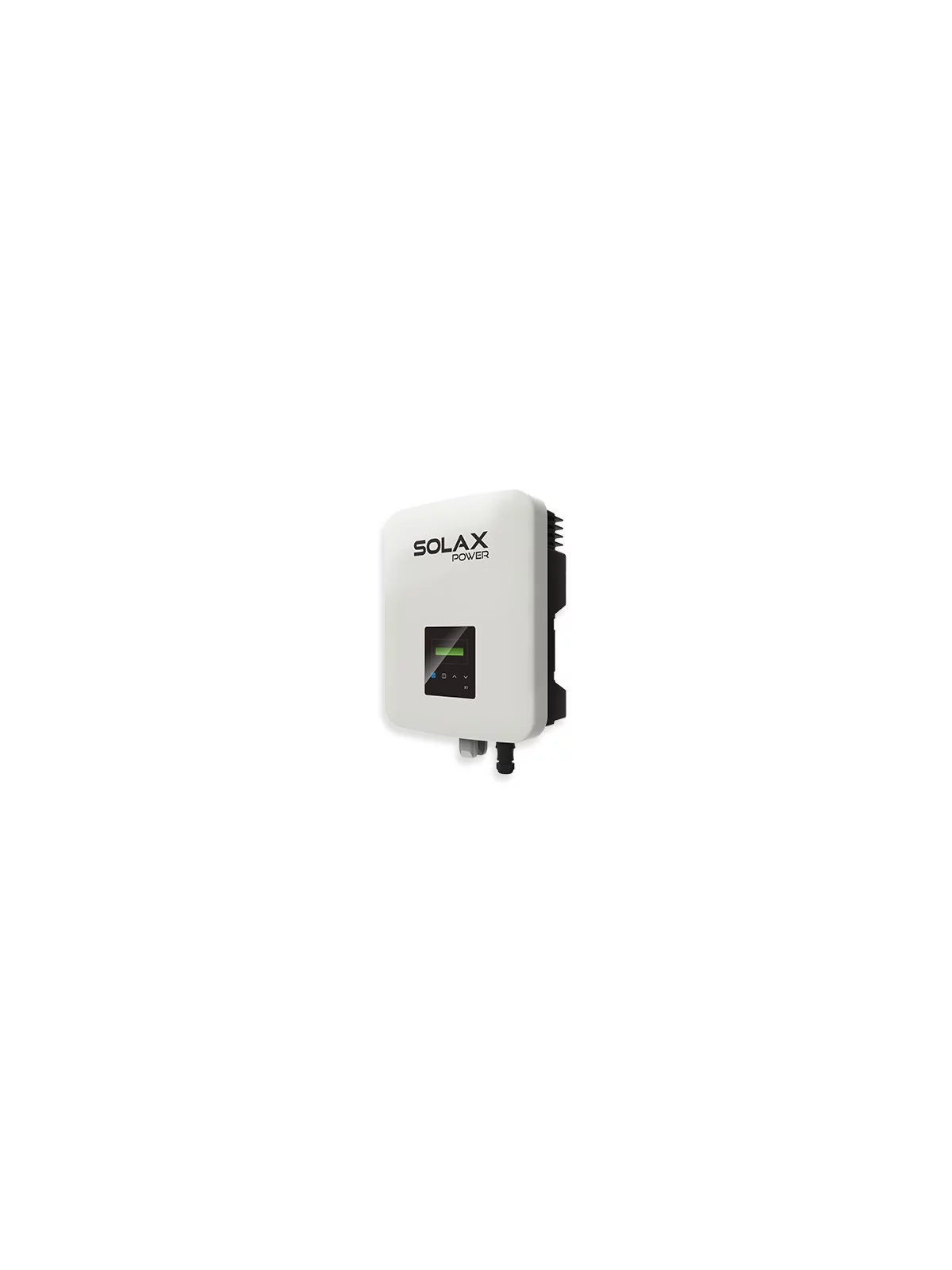

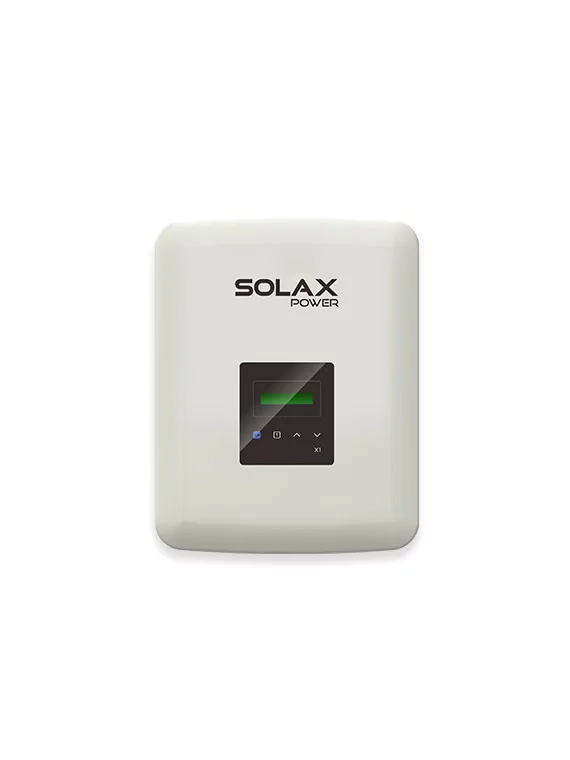

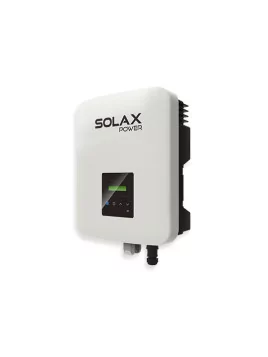

Single-phase inverter SolaX X1 Boost 3.3T X1-3.3-T-D
€863.60
Tax included
X1-3.3-T-D
0712971136502
Single-Phase Inverter SolaX X1 Boost 3.3 kVA: Optimize Your Solar Energy Production
The SolaX X1 Boost 3.3 kVA inverter is the ideal solution for residential photovoltaic installations. With its robust design and exceptional performance, it guarantees maximum solar electricity production and great operational flexibility.
Why Choose the SolaX X1 Boost 3.3 kVA Inverter?
- Maximum Efficiency: 97.8% efficiency, extended MPPT range.
- Total Flexibility: 2 MPPT trackers, suitable for all configurations.
- Easy Installation: Plug & Play, IP66.
- Connected Monitoring: Smart Plug compatible.
- Guaranteed Reliability: Fanless, long lifespan.
Key Benefits:
- Increase Your Energy Production: Maximize the performance of your solar panels.
- Simplify Your Installation: Easy and intuitive setup.
- Adaptability: Fits your needs and environment.
- Reliability: Robust design for long-lasting durability.
Ideal for:
- Individuals looking to optimize self-consumption.
- Residential photovoltaic installations with complex configurations.
- Users seeking a reliable and high-performance solution.
Discover the difference with the SolaX X1 Boost 3.3 kVA inverter.
Request your personalized quote now and choose excellence in solar energy.
Sorry, there are no more items in stock.
SolaX X1 Boost solar inverter: Efficiency for your solar energy needs
SolaX has developed a range of single-phase inverters unmatched in the industry for their quality, reliability and efficiency. SolaX single-phase inverters have a wide MPPT voltage range that allows for greater energy recovery and a maximum input voltage of 600 V, with a maximum efficiency of 97.8%. In addition, SolaX single-phase inverters comply with the IP66 standard, have no internal fan and are equipped with an optional "plug & play" WIFI system. The "Boost" range with dual MPPT is also compatible with the new "Smart Plug" from SolaX that allows remote control of devices.
Perfect for residential photovoltaic panels
The X1 Boost is the ultimate residential solar inverter, perfectly designed for homes with solar panels on different sides of the roof. With two MPPT trackers, the X1 Boost can be connected to two separate panel boards, our X1 Boost is also RATED IP66, which means it can be installed outdoors.
Installation PLUG & PLAY
The X1 Boost is the ultimate residential solar inverter, perfectly designed for homes equipped with solar panels on different sides of the roof. With two MPPT trackers, the X1 Boost can be connected to two separate panel boards. The X1 Boost is also IP66 compliant, which means it can be installed outdoors.
Simple, Reliable, Effective
The SolaX X1 Boost is one of the most efficient residential branch-up solar inverters available on the market today, with a massive efficiency of 97.8% and a maximum DC voltage of 600 V, you can be sure to get the most out of your solar energy.
Install indoors or outdoors
The X1 Boost is rated IP66, which means it can be installed indoors or outdoors, giving you the option to choose where to install the system.
Characteristics
Password to enter the settings: 2014
| ENTRANCE | |
| Max. power of photovoltaic panels (Wc) | 4950 |
| Max. Dc Power Recommended (W) | A: 3300 B: 3300 |
| Max DC voltage (V) | 600 |
| Nominal DC working voltage (V) | 360 |
| Input current max. (A) | 12/12 |
| Short circuit current max. (A) | 14/14 |
| MPPT voltage range (V) | 70-580 |
| Startup service voltage (V) | 100 |
| # of MPP/MPPT follow-ups / Channels by MPP/MPPT follow-up | 2(1/1) |
| AC OUTPUT | |
| Rated AC Power (VA) | 3300 |
| Max AC power (VA) | 3630 |
| Rated electrical network voltage (AC voltage range) (V) | 220/230/240; 180~280 |
| Frequency/Rated Range of the Power Grid (Hz) | 50/60; ±5 |
| Rated AC current (A) | 14,3 |
| Current AC max. (A) | 15,8 |
| Displacement power factor | 0.8 capacitive – 0.8 inductive |
| THDi, rated power(%) | <2 |
| YIELD | |
| MPPT Performance (%) | 99,9 |
| European yield (%) | 97,0 |
| Max yield (%) | 97,8 |
| POWER ABSORBED | |
| Standby (night) consumption (W) | <0.5 |
| STANDARDS | |
| Surge protection | Yes |
| Overcurrent protection | Yes |
| DC Insulation Resistance Monitoring | Yes |
| Ground Fault Current Monitoring | Yes |
| DC injection monitoring | Yes |
| Differential circuit breaker protection | Yes |
| Security | IEC 62109-1/-2 |
| EMC | EN 61000-6-1, EN 61000-6-2, EN 61000-6-3 |
| Certification | VDE4105, G98, G99, AS4777, EN50549, IEC 0-21 |
| ENVIRONMENTAL LIMITS | |
| Degree of protection (according to IEC 60529) | IP66 |
| Operating temperature range (°C) | -25 to + 60 (downgrading to 45) |
| Max operating altitude (m) | <2000 |
| Humidity(%) | 0 to 100 (condensation) |
| Storage temperature (°C) | -25~60 |
| Typical sound level (dB) | 25 |
| DIMENSIONS AND WEIGHT | |
| Dimensions (W x W x D) (mm) | 430 x 341.5 x 143 |
| Weight (kg) | 13,5 |
| Type of cooling | Natural |
| Topology | Non-isolated |
| Communication interfaces | Pocket Wi-Fi (optional) Pocket LAN (optional) Pocket GPRS (optional) Counter (optional) SR485 DRM USB for update |
| LCD | Yes |
| Standard warranty (years) | 10 |
X1-3.3-T-D
Data sheet
- Inverter power
- 3300VA
- MPPT/PWM
- MPPT
- Phase
- Monophasé
- Number of MPPT
- 2 MPPT
- Video Youtube 1 - ID
- Et8WfdYeiiA
- Video Youtube 2 - ID
- iwpoiiiMDOo
