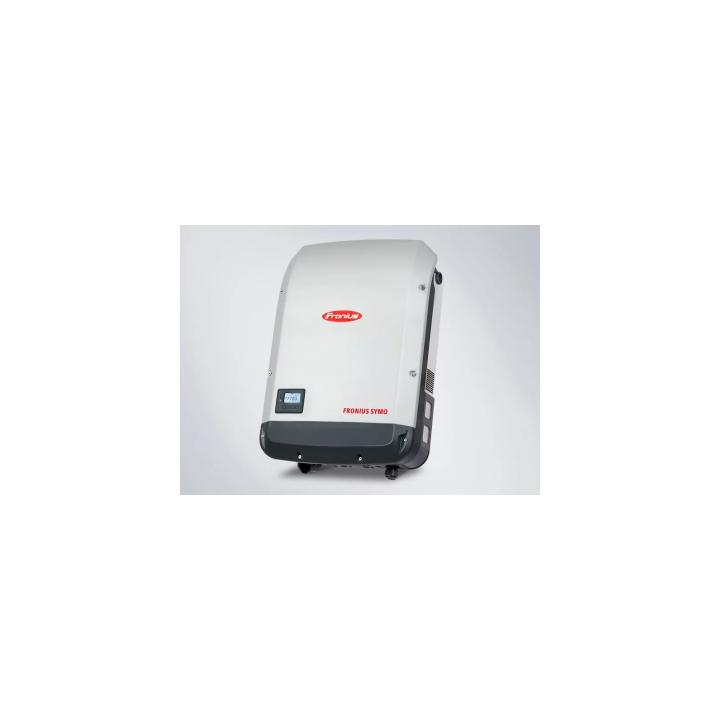

Fronius Symo Advanced three-phase inverter

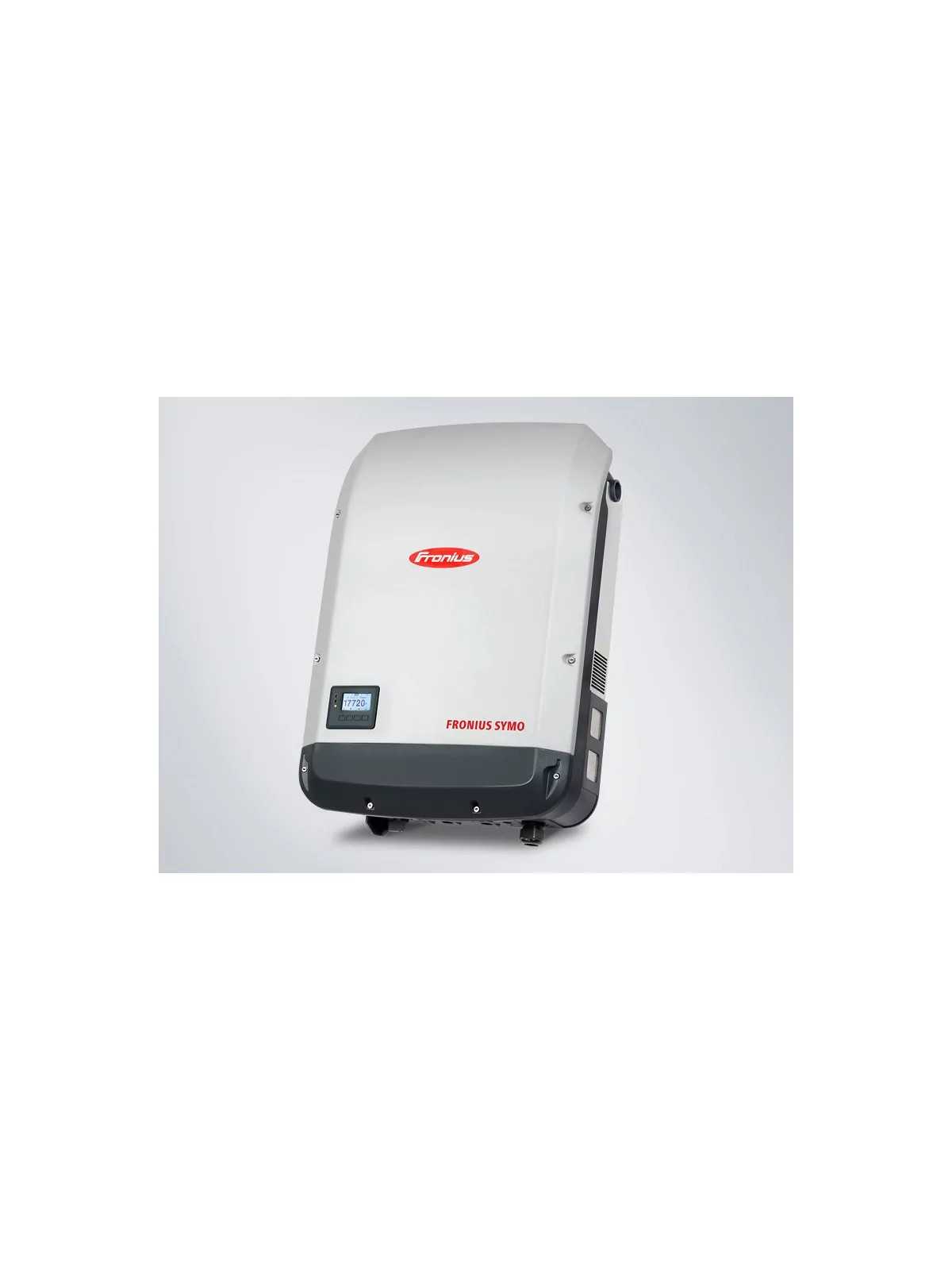

Three-phase inverter Fronius Symo Advanced 15 kVA - 15.0-3-M
Three-phase inverter Fronius Symo Advanced 15 kVA - 15.0-3-M
Three-phase inverter Fronius Symo Advanced 15 kVA - 15.0-3-M
Three-phase inverter Fronius Symo Advanced 15 kVA - 15.0-3-M

Three-phase inverter Fronius Symo Advanced 15 kVA - 15.0-3-M

€2,758.57
Tax included
Symo Advanced 15.0-3-M
0712971130098

Fronius Symo Advanced 15 kVA: The Intelligent Heart of Your Solar Installation

The Fronius Symo Advanced 15 kVA is much more than just an inverter. It is designed to optimize every ray of sunshine and transform your photovoltaic system into a powerful and reliable energy source. With its cutting-edge technologies, it offers a tailor-made solution for demanding professionals and individuals.

Why choose it?

  • Maximum safety: Protect your investment with Fronius Arc Guard, an intelligent safety system that detects and instantly neutralizes electrical arc risks.
  • Unmatched flexibility: Adapt your installation to any roof configuration with SuperFlex Design. No more constraints, more freedom.
  • Optimized performance: Maximize your energy production, even in shaded conditions, thanks to Dynamic Peak Manager.
  • Easy installation: Enjoy fast and easy installation with SnapINverter technology.

Key benefits:

  • Peace of mind: Sleep soundly with enhanced protection.
  • Energy autonomy: Reduce your dependence on the electrical grid and save on your bills.
  • Custom installation: Adapt your system to your specific needs and roof configuration.
  • Durability: Invest in a long-lasting solution for the future of your energy.

Fronius Symo Advanced: The future of solar energy, starting today.

Comments (0)

No customer reviews for the moment.

Fronius Symo Advanced 15: Increased safety, simplified installation



An evolution under the sign of safety

The Fronius Symo Advanced opens a new chapter in the Fronius SnapINverter range. Performance proven millions of times over, combined with new safety technology. This makes Fronius Symo Advanced more than ever a forward-looking choice for installers and their customers.


More safety included

Detect, intervene, learn: that's how the new Fronius Arc Guard technology protects against dangerous arcs. The algorithm developed by Fronius reliably detects arcs and switches off the photovoltaic system before a fire can break out. Fronius Arc Guard is continuously improved by the manufacturer to refine arc detection and optimize system protection.


Infinite freedom

Simple planning of complex roofs: it's possible with SuperFlex Design. Solar modules can be aligned and connected in a highly flexible way, as the Fronius Symo Advanced handles a wide range of input voltages and very high PV module currents.


Optimum performance right from the factory

Maximum yield, even when solar modules are partially shaded: that's what Fronius Symo Advanced achieves with Dynamic Peak Manager. The intelligent software-based shading management is factory-installed and requires no additional components.


Efficiency

Schémas de rendement des différents modèle Fronius Symo Advanced



Symo Advanced 15.0-3-M

Data sheet

Phase
Triphasé
Number of MPPT
2 MPPT
Width
510 mm
Height
725 mm
Thickness
225 mm
IP protection
IP 66
Type of cooling
Active cooling technology
Humidity
0 à 100 %
Weight
44.96 kg
Ambient temperature
-20°C~60°C
Max. input current (Idc max
33.0 (MPPT1) - 27 (MPPT2)
Max. useful input current (Idc max MPPT 1+2)
51,0
Max. short-circuit current of MPP1/MPP2 photovoltaic generator (Isc pv)
68 (MPPT1) - 55,7 (MPPT2)
DC input voltage range (Udc min - Udc max)
200 À 1 000
Injection start voltage (Udc start)
200
Useful MPP voltage range
200 À 800
MPP voltage range (at rated power) (Umpp min - Umpp max)
320 À 800
Number of DC connectors
3
Max. PV generator power (Pdc max)
22,500 Wp
Rated AC power (Pac,r)
15 000 W
Max. output power / apparent power
15 000 VA
AC output current (Iac nom)
22.7 A (380 VAC) - 21.7 (400 VAC)
Mains coupling (voltage range)
3-NPE 400 V / 230 V ou 3~NPE 380 V / 220 V (+20 % / -30 %)
Frequency (frequency range)
50 / 60 (45 - 65) Hz
Harmonic distortion rate
est inférieur à 1,5
Power factor (cos φac,r)
0 – 1 ind. / cap.
Protection class
1
Overvoltage category (DC / AC)
2/3
Night-time consumption
less than 1 W
Inverter concept
Transformerless
Assembly
Montage intérieur et extérieur
Max. height above sea level
2 000 / 3 400 m
DC connector technology
Bornes à vis 2,5 à 16 mm² 6x DC+ et 6x DC
AC connector technology
AC screw terminals 2.5 to 16 mm2 5-pole

Specific References

UPC
712971130098
EAN13
0712971130098
