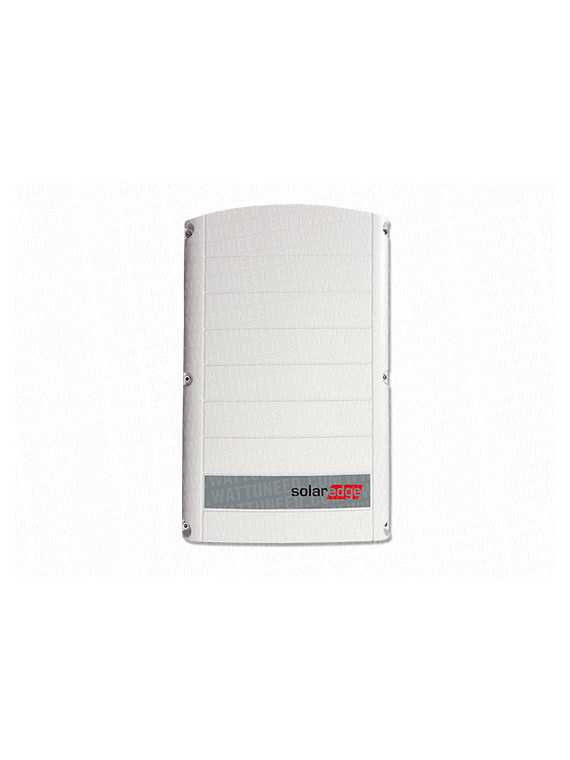

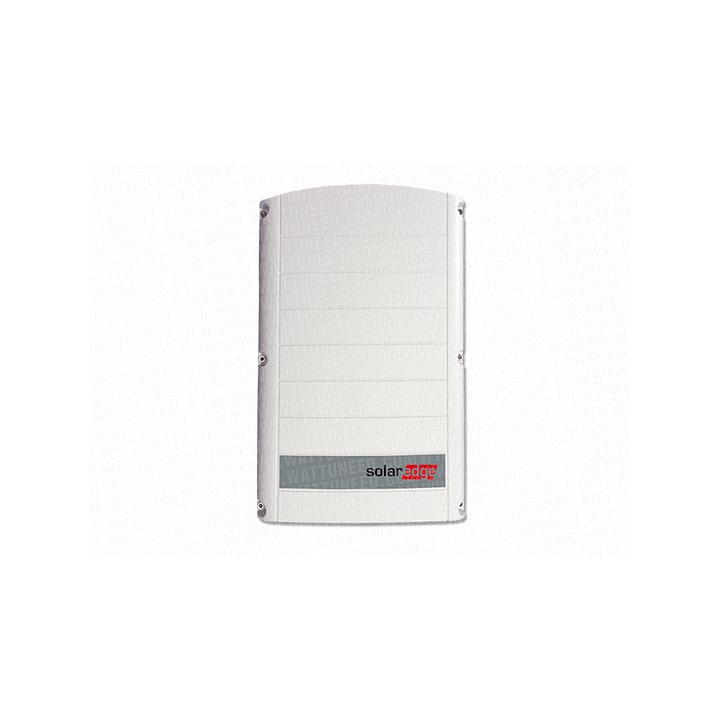

SolarEdge SE3K-RWB to SE5K-RWB three-phase inverter

€1,809.07
Tax included
SEXXK-RW0T0BNN4
0768563816970

The SolarEdge SE3K-RWB to SE5K-RWB Three-Phase Inverter is specially designed for small residential photovoltaic installations. With its innovative technology, it offers exceptional flexibility and optimizes solar energy production, even in conditions of shading or variable panel orientation.

Why Choose SolarEdge?

  • Optimal Flexibility: Perfectly adapts to complex roofs with shorter strings, allowing for customized installations.
  • Maximum Yield: Each PV module operates at its maximum potential, ensuring optimized electricity production.
  • Proven Reliability: Enjoy extended warranty coverage and a robust design for increased longevity.
  • Simplified Installation: Commissioning is made easy with the intuitive and fast SetApp mobile application.
  • Smart Monitoring: Monitor your system’s performance in real-time via the SolarEdge online portal.

Key Benefits:

  • All-in-One Solution: A single supplier for all your installation components, simplifying maintenance and monitoring.
  • Enhanced Safety: Protection against surges and grounding faults.
  • Connectivity: Remote monitoring via the SolarEdge mobile app and web portal.

SolarEdge: The smart solution for optimized residential solar energy production.

Sorry, there are no more items in stock.

Comments (0)

No customer reviews for the moment.

Onduleurs triphasés

SolarEdge SE3K-RWB to SE5K-RWB Inverter: Ideal for Small Residential Installations

Onduleur SolarEdge SE16 K à SE27,6K SETAPPThe SolarEdge three-phase inverter combines sophisticated digital control technology with efficient power conversion architecture for superior solar energy harvesting and unmatched reliability.

Fixed-voltage technology ensures that the solar inverter always operates at its optimum input voltage, regardless of the number of modules in a string or environmental conditions.

A proprietary monitoring system has been integrated into the inverter, gathering performance data from the power optimizer of each PV module. This data can be transmitted over the web and accessed via the SolarEdge supervision platform for performance analysis, fault detection and troubleshooting of PV systems.

Easy commissioning with the SetApp inverter


SolarEdge's new range of three-phase inverters features a new, intelligent commissioning method. Inverter commissioning is carried out directly via a smartphone using the intuitive SetApp mobile application. Take it to the next level. Find out more about SetApp.

Key features


- Inverters specifically designed to work with power optimizers
- 3 kW*-10 kW for residential systems, 12.5 kW-33.3 kW for commercial systems
- Superior efficiency
- Excellent reliability with a standard 12-year warranty (extendable to 20 or 25 years)
- Small size, light weight and easy installation
- Quick and easy inverter commissioning directly from your smartphone with SolarEdge SetApp
- Three-phase compatibility on 3x230V networks without neutral in Belgium, Norway, Taiwan and the Philippines
- Supervision receiver integrated into modules
- Internet connection via Ethernet or wireless (Wifi, ZigBee gateway, cellular network)
- IP65 - outdoor and indoor installation

Dimensions

Dimensions

Features

Model SE12.5K SE16K SE17K
Rated AC output power VA 1250 16000 17000
Maximum AC output power VA 1250 16000 17000
AC output voltage - phase to phase / phase to neutral (rated) Vac 380 / 220 ;
400 / 230
AC output voltage - phase-to-neutral range Vac 184 - 264.5
AC frequency Hz 50/60 ± 5
Maximum continuous output current (per phase)
20 25,5 26
networks - three-phase
/ N / PE (With Neutral)
Utility monitoring, islanding protection, configurable power factor, country-configurable thresholds
Yes
THD
= 3
INPUT
Maximum DC power (STC Module)
16850 21600 22950
Without transformer,
without ground
Yes
Maximum input voltage
1000
Nominal DC input voltage
750
Maximum input current Adc 21 23 23
reverse polarity
Yes
Ground fault detection
Sensitivity of 700kΩ
Maximum inverter efficiency
98
European weighted efficiency
97,6 97.7 97.7
Night-time power consumption
<
2.5
ADDITIONAL FEATURES
Communication Interfaces
RS485, Ethernet, Wi-Fi (requires antenna) (ZigBee (optional),
cellular (optional)
Standby mode commission
With the mobile app using SetApp integrated into the Wi-Fi access pointFi access point for local connection
Intelligent energy management Export limitation
Inverter commission
With the SetApp mobile app using integrated local Wi-Fi
CONFORMITIES
Safety
IEC-62103 (50178),
IEC-62109, AS3100
Network connection standards
, G59 / 3, AS-4777, EN 50438, CEI-021, VDE 0126-1-1, CEI-016,

B

DEW
Emissions
IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12
RoHS
Yes
SPECIFICATIONS
AC output mm 15-21mm / solid wire from 2,

5

to 16 mm
DC input
pairs of MC4
Dimensions (WxDxH) mm 540 x 315 x 191
Weight kg 33.2
Operating temperature range ˚C
- +60
Cooling
Fan (user-replaceable)
xml
50
Protection ratings
IP65 - Outdoor and indoor
Mounting
Mounting bracket supplied
SEXXK-RW0T0BNN4

Data sheet

Width
315 mm
Height
540 mm
Thickness
260 mm
IP protection
IP65 - outdoor and indoor
Standby consumption (night)
Inférieur à 4 W
Safety
IEC 62109-1/-2
Type of cooling
Fan (user-replaceable)
Communication interfaces
2 x RS485, Ethernet, Wi-Fi(2), ZigBee for Smart Energy (optional), Cellular (optional)
Operating temperature range
-40 à +60
Weight
24.5 kg
Maximum input voltage
450 Vdc
AC output
Cable gland diameter 15-21
Assembly
Supplied brackets
Rated AC output power
3000 VA
4000 VA
5000 VA
Maximum AC output power
3000 VA
4000 VA
5000 VA
AC output line connections
Triphasé, 4 fils / PE (L1-L2-L3-N), TN, TT
AC output voltage - Line to line / Line to neutral (nominal)
380/220 ; 400/230 Vac
AC output voltage - Line-to-neutral range
264.5 Vac
AC frequency
50/60 Hz ± 5
Maximum continuous output current (per phase)
5 A
6.5 A
8 A
Mains connection - three-phase
3 / N / PE (WYE with neutral)
Maximum DC power (STC module)
4050 W
5400 W
6750 W
Transformerless, groundless
Oui
Nominal DC input voltage
375 Vdc
Maximum voltage to earth
450 Vdc
Maximum input current
11.5 Adc
14 Adc
8.5 Adc
Reverse polarity protection
Oui
Earth fault insulation detection
350 kΩ sensitivity
Maximum inverter efficiency
97.8 %
European weighted efficiency
94.6 %
95.7 %
96.3 %
Commissioning the inverter
Avec l'application mobile SetApp en utilisant la station Wi-Fi intégrée pour la connexion locale
Intelligent energy management
Limitation des exportations, gestion de l'énergie domestique (contrôle des appareils)
Network connection standards
EN 50549-1
Emissions
IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12
RoHS
Yes
DC input
2 x MC4 pair
Noise
Below 50 dB
Number of power optimizers per string
8/9 à 25
Maximum power per string
5625 W
