Does the AGM Ultracell 12V 18Ah battery require special declaration or authorization?

No, this 12V 18Ah AGM battery requires no administrative declaration. Its intermediate capacity and sealed AGM technology make it perfectly suited for residential and commercial solar installations without particular regulatory constraints in France or Belgium.

Does this battery improve my photovoltaic energy autonomy?

Absolutely. This 18Ah AGM battery efficiently stores energy produced by your solar panels to power your 12V equipment for several hours without sunlight. It provides ideal autonomy for lighting, ventilation, alarm systems and photovoltaic monitoring equipment.

Which photovoltaic systems is the AGM Ultracell battery compatible with?

This 12V 18Ah battery is compatible with all 12V solar systems, including PWM and MPPT regulators, 12V inverters, solar pumping systems and monitoring installations. It accepts standard charging voltages (13.5V-13.8V) and supports charging current up to 5.4A.

Can multiple AGM Ultracell 18Ah batteries be installed in parallel?

Yes, these AGM batteries can be connected in parallel to multiply storage capacity. With their low internal resistance (16mΩ) and homogeneous technology, they are perfectly suited for parallel configurations for larger photovoltaic systems.

Is the AGM Ultracell 18Ah battery suitable for off-grid installations?

Perfectly. This AGM battery is ideal for off-grid sites thanks to its sealed, maintenance-free and shock-resistant technology. Its low self-discharge (1-3% per month), 5-year lifespan and 500-1200 cycles make it an excellent choice for cabins, RVs or off-grid installations.

What solar panel power is needed to charge this battery?

For a 12V 18Ah battery, a 50 to 100W solar panel is optimal depending on usage. With a 75W panel, you get a full charge in one sunny day. This combination is perfect for autonomously powering LED lighting, ventilation, pumps or surveillance systems.

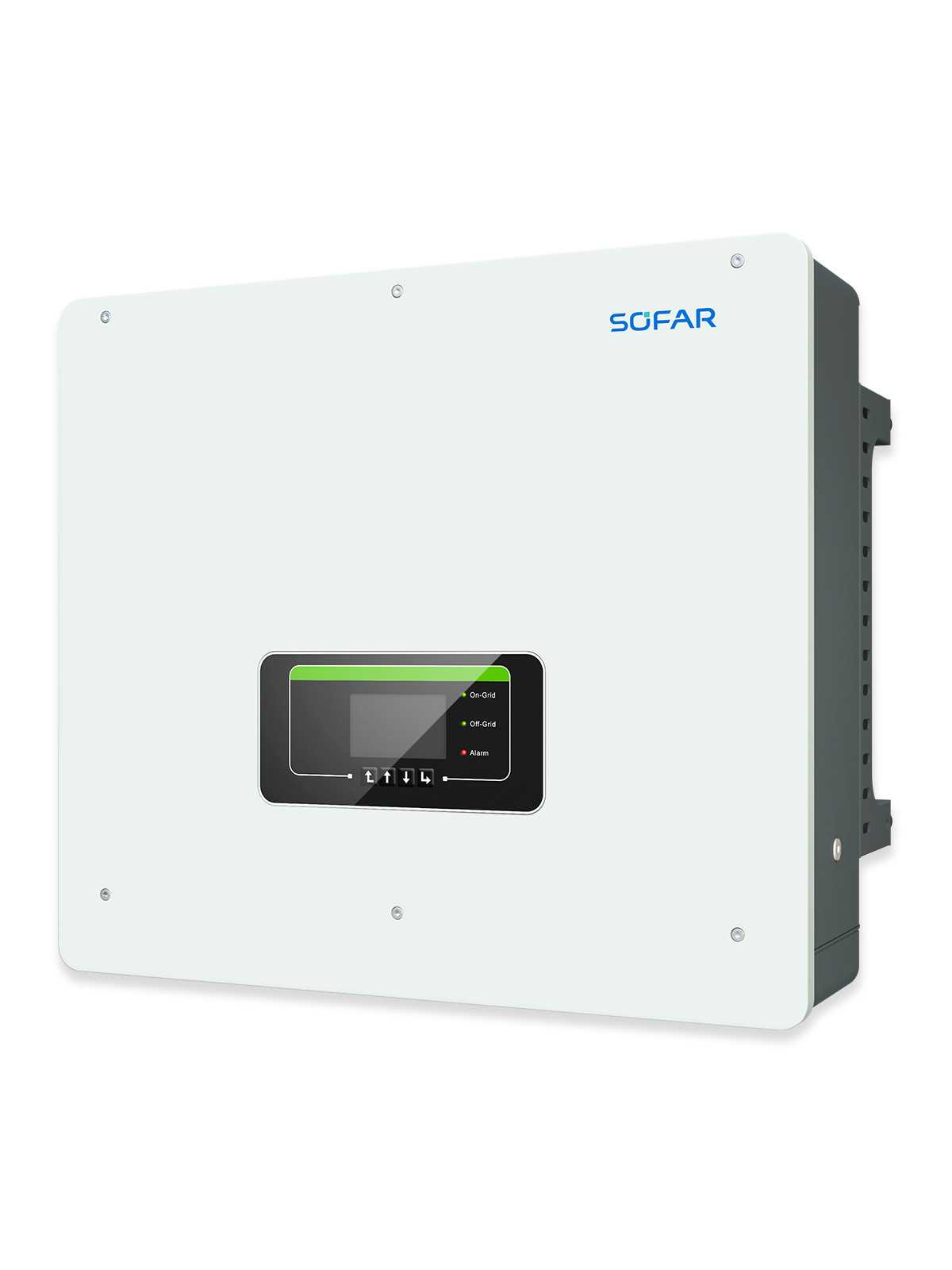

Sofar Solar 20 kVA three-phase inverter - ME 20KTL-3PH

€3,065.33

Tax included

Reference: ME 20KTL-3PH

EAN13: 0768563819896

Sofar Solar 20 kVA Three-Phase Hybrid Inverter: Guaranteed Energy Autonomy and Efficiency

The Sofar Solar 20 kVA ME 20KTL-3PH is the ideal ally for optimizing your solar energy production and ensuring your energy independence. This hybrid inverter, designed for photovoltaic installations, allows you to store excess solar production and use it at your convenience, even in the event of a grid outage.

Why choose this inverter?

Flexibility: Adapts to different configurations with its 2 MPPTs and wide battery voltage range.
Autonomy: Provides backup power in case of grid failure.
Smart management: Optimizes your consumption with its advanced management system.
Easy installation: Compact design and intuitive configuration.

Key advantages:

Maximum self-consumption: Maximize the use of your produced solar energy.
Energy independence: Reduce your reliance on the electrical grid.
Reliability and durability: Benefit from a high-quality product designed to last.
Simplified installation: Quick and easy installation thanks to its compact design.

Sofar Solar 20 kVA: Invest in the future of energy.

Sorry, there are no more items in stock.

Sofar Solar ME 20KTL-3PH: Energy autonomy within reach

- Compact design with LCD display

- Flexible switching between grid-connected and energy storage mode

- Wide battery voltage range (180 - 800 V)

- One or two battery input channels supporting a maximum charge and discharge current of 50 A (depending on model)

- Off-grid and on-grid outputs can supply an unbalanced load

- Maximum battery charge/discharge efficiency 97.8%.

Three-phase battery inverter

The perfect solution for integrating energy storage into your PV system, whether on- or off-grid.

The ME 5K...20KTL-3PH is a high-voltage, three-phase battery inverter designed for integrating storage into existing PV systems, or systems with a high demand for battery charging. In the event of a grid failure, it can provide up to 20 kW of unbalanced three-phase emergency power supply (EPS) in just 10 ms, thanks to its integrated EPS port.

Equipped with two MPPTs and two independent battery ports (available on models 10K to 20KTL), this UPS allows different battery capacity configurations. In particular, it is compatible with SOFARSOLAR's HT (high voltage) battery series (GTX 3000-H and BTS battery storage system).

Up to 10 inverters can be connected in parallel on the EPS and AC ports, making it an ideal choice for both on-grid and off-grid microgrid installations.

The integrated energy management system offers a variety of user-friendly modes, optimizing the user experience, including an automatic self-use mode. Users can also define different time slots and/or dates, as well as rules for each day of the week.

All modes are easily configured via the large LCD display. What's more, a Wi-Fi key is supplied with the UPS, enabling easy connection to the SOFAR View monitoring portal.

Operating diagram

Schéma d'utilisation

Standard display

The display shows all relevant inverter information.

affichage écran onduleur Sofar Solar

Wiring and connection

- 1 Battery input terminals

- 2 Charging connection port

- 3 Network connection port

- 4 USB/WiFi port

- 5 Distributed resource managers (DRMs)

- 6 COM port (serial port)

- 7 Link port 1

- 8 Link port 0

- 9 Current transformer (CT)

- 10 LCD display

Reference ME 20KTL-3PH

Data sheet

Inverter power: 20000VA
Phase: Triphasé
Width: 586.6 mm
Height: 515 mm
Thickness: 261.2 mm
Nominal mains voltage: 3/N/PE, 230/400Vac
Rated mains frequency: 50/60 Hz
Type of cooling: Forced air flow
THDi (Nominal power): inférieur à 3 %
Battery Type: Lithium-ion & lead-acid
Battery Voltage Range: 180V-800V
Protection Degree: IP65
Operating temperature range: -30°C~60°C
Weight: 34 kg
Rated output power: 20 000 W
Rated output current: 8,7 A
Communication: RS485/CAN/WiFi, en option : Ethernet/4G
Power factor: 1 par défaut (+/- 0,8 réglable)
Max. Apparent output power: 22000 VA
Max. Output current: 32 A
Number of battery input channels: 1
Maximum charge/discharge power: 20000 W
Maximum apparent output power, time: 9000 VA, 60s
Max. output current: 32 A
Switching time: less than 10 ms
DC switch: Yes
Protection against reversal of PV connection: Yes
Reverse battery connection protection: Oui
Output short-circuit protection: Yes
Output overcurrent protection: Yes
Output overvoltage protection: Yes
Insulation impedance detection: Yes
Residual current detection: Oui
Anti-islanding protection: Oui
Overvoltage protection: Yes
Relative humidity range: 5%~95%
Maximum operating altitude: below 4000 m
Self-consumption in standby mode: less than 20W
Topology: Transformerless
Installation method: Wall mounting

Specific References

Condition New
