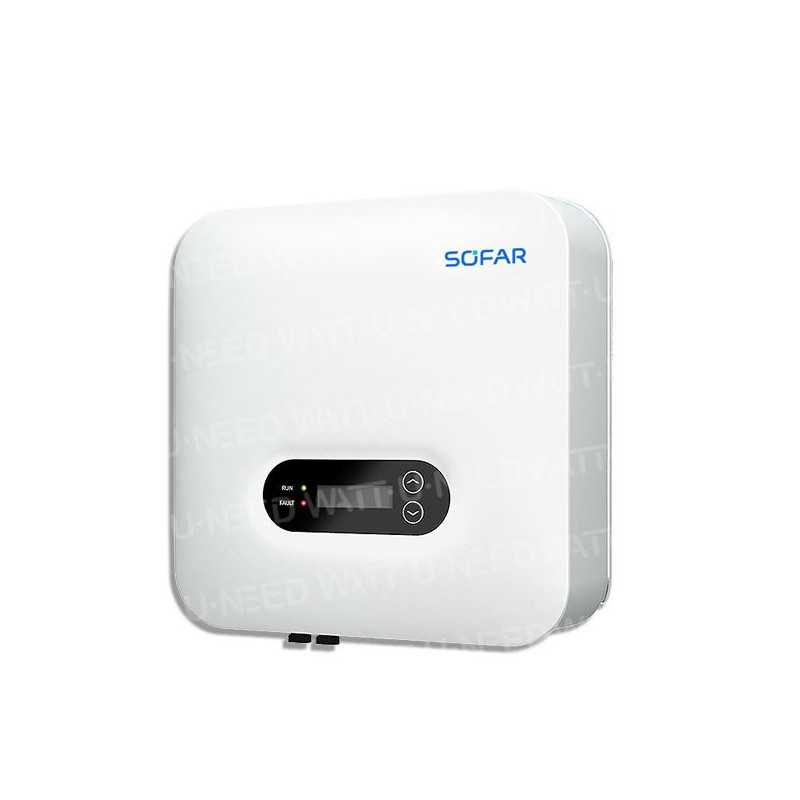

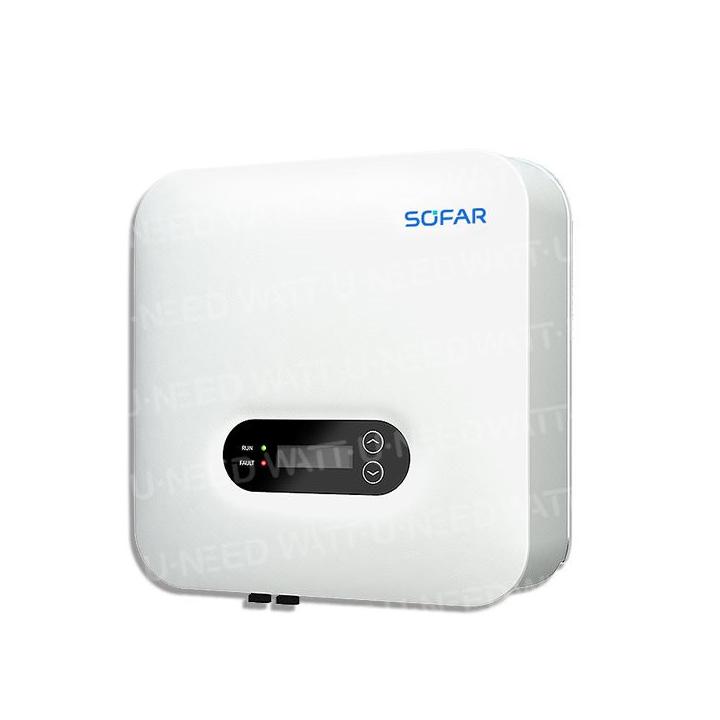

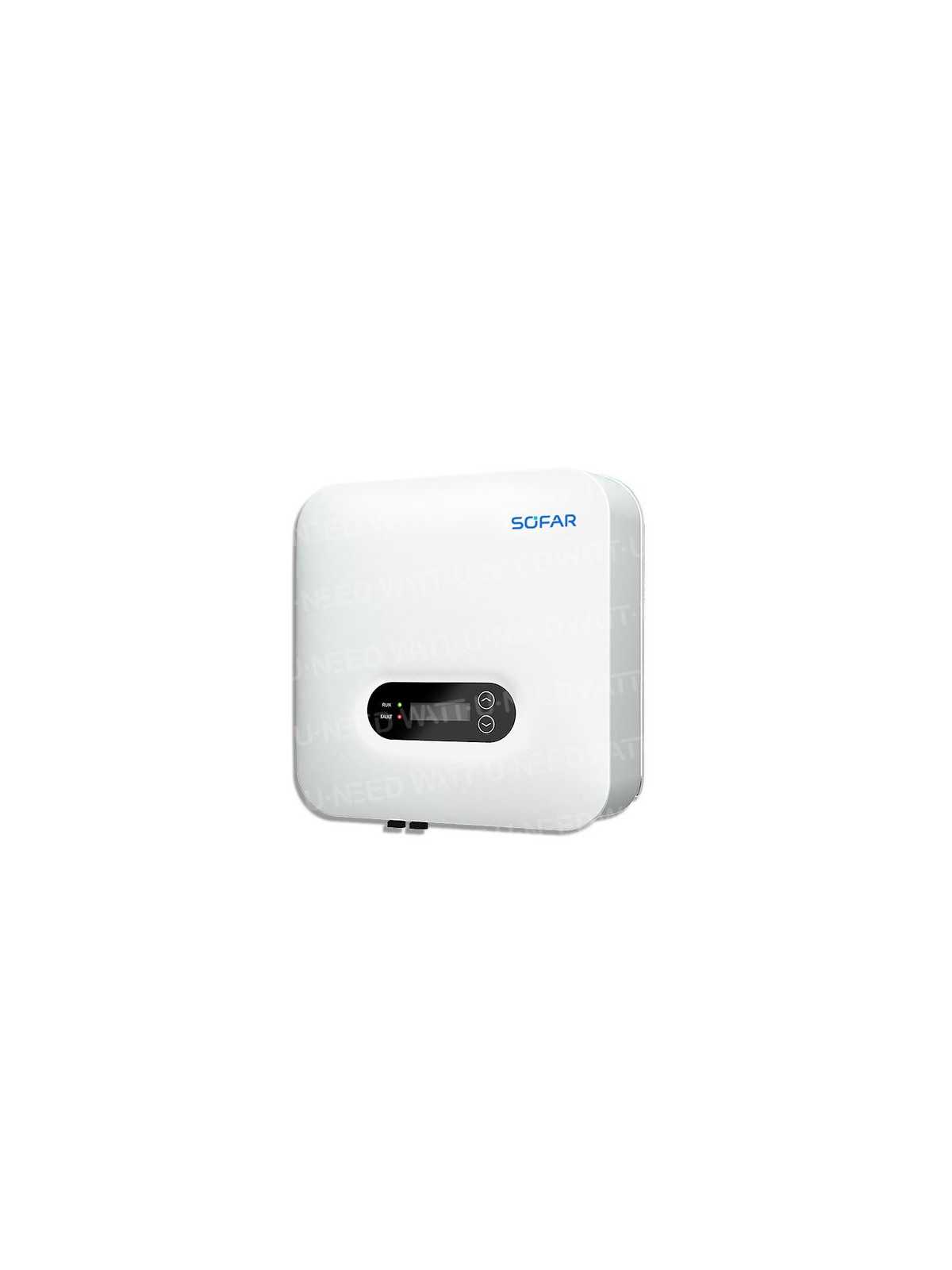

Single-phase inverter Sofar Solar 5KTLM-G3

Single-phase inverter Sofar Solar 5KTLM-G3-A

€707.40
Tax included
Sofar-5KTLM-G3-A
0768563819841

Single-Phase Inverter Sofar Solar 5KTLM-G3-A: Optimize Your Solar Energy Production

The Sofar Solar 5KTLM-G3-A inverter is designed for demanding residential photovoltaic installations. With its dual MPPT trackers, it maximizes energy production even in variable shading conditions. Its compact and silent design, combined with simplified installation, makes it an ideal choice for individuals concerned about their energy consumption.

Why Choose the Sofar Solar 5KTLM-G3-A Inverter?

  • Maximum Efficiency: 98.4% efficiency.
  • Total Flexibility: Adapts to all configurations.
  • Easy Installation: Plug & Play, IP65.
  • Connected Monitoring: Track your production in real-time.
  • Enhanced Safety: Optimal protection with optional AFCI.

Key Advantages:

  • Optimized Self-Consumption: Maximize the use of produced solar energy.
  • Reliability: Robust and durable design.
  • Silent and Discreet: Discreet installation with natural cooling.

Ideal for:

  • Residential photovoltaic installations with complex configurations (shading, different orientations).
  • Individuals looking to maximize their solar energy production.

Simplify your solar installation with the Sofar Solar 5KTLM-G3-A inverter.

Request your personalized quote today and choose a high-performance, durable solar energy solution.

Sorry, there are no more items in stock.

Single-phase inverter Sofar...

€707.40

Sofar 5KTLM-G3-A solar inverter: Silence, performance and durability

The new G3 single-phase inverter with 2 MPPT trackers for residential PV systems

SOFAR 3K...6KTLM-G3 is the upgraded version of SofarSolar's residential inverter series. With its elegant IP65 design and natural cooling for silent operation, the inverter is perfectly suited to small residential installations.

The inverter is also equipped with two MPPT trackers and an integrated I-V curve scanning function, making it possible to realize more complex installations, for example those with shading problems or different roof orientations.

A WiFi key is supplied with the inverter, for easy connection to the SofarSolar monitoring portal.


High efficiency

- Maximum efficiency of 98.4%.
- Precise real-time MPPT algorithm for maximum utilization
- Wide input voltage operating range


All in one. Flexible, cost-effective system solution

- Free choice of location thanks to IP65 rating
- Plug & Play" connection for easy installation and maintenance
- Interface selection - Wi-Fi / RS485
- LCD + LED display
- Integrated zero export function (optional)


Low maintenance costs

- Detachable lid for easy installation
- Stainless aluminum covers
- A flexible control solution


Intelligent grid management

- Reactive power capacity
- Automatic power reduction in the event of overfrequency
- Remote control of active/reactive power limit


Specifications

DC INPUT
PV input power max.
Recommended 7500 Wp
Max. power.
DC power per MPPT 3750 W
Number of MPP trackers
Number of DC inputs
for each MPPT
Max. input voltage 600
Starting voltage 90 V
Nominal input voltage 380 V
MPPT operating voltage range 80 - 550 V
Max. input MPPT current 15 / 15 A
Max. input short-circuit current.
er MPPT 22.5 / 22.5 A
AC output
Rated power 5000 W
Max. power.
In AC 5000 VA
Max. output current 21.7
A
Nominal mains voltage
/ N / PE,
230 Vac
Mains voltage range 180 - 276 Vac (according to local standards)
Nominal mains frequency 50 Hz / 60 Hz
Mains frequency range 45 - 55 Hz / 55 - 65 Hz (according to local standards)
Adjustable active power range
- 100 %
THDi <
3%
Power factor
default (adjustable +/-0.8)
PERFORMANCE
Max. efficiency. 98,40%
Weighted European efficiency 97.50%
PROTECTION
Protection against polarity reversal in direct current Yes
DC switch Yes
Safety protection Anti-islanding,
leakage current detection, earth fault monitoring
Surge arrester PV: Type III, AC :
Type III
COMMUNICATION
Standard communication mode RS485 / Wi-fi
GENERAL
Ambient temperature range
30°C to 60°C
Night-time power consumption <1 W
Topology Transformerless
Degree of protection IP65
Permissible relative humidity range
- 100%
Max. altitude.
Operating
4000 m
<
5 dB
Weight 10 kg
Cooling Natural
Dimensions 349 x 344 x 164 mm
Display LCD,
App via Bluetooth
Warranty 10 years
Standards
(electromagnetic compatibility) EN 61000-6-2, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3,
EN 61000-3-11, EN 61000-3-12
Safety standards IEC 62109-1/2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1,2,14,30)
Network standards
4105, VDE V 0126-1-1, V 0124-100, IEC 0-21, G98 / G99, C10/11, EN 50549, RD1699
Sofar-5KTLM-G3-A

Data sheet

Inverter power
5000VA
MPPT/PWM
MPPT
Phase
Monophasé
Number of MPPT
2 MPPT

Specific References

New

Download

Sofar 3-6 KTLM-G3 Fiche Tech-FR

Download (773.58KB)

Sofar 3-6 KTLM-G3 Datasheet-EN

Download (741.41KB)

Sofar 3-6 KTLM-G3 Ficha Tec.-ES

Download (619.81KB)

Sofar 3-6 KTLM-G3 Certificado-ES

Download (540.17KB)

Sofar 3-6 KTLM-G3 Certif. TUV-EN

Download (678.36KB)

Sofar 3-6 KTLM-G3 Conformite

Download (883.96KB)

Sofar 3-6 KTLM-G3 Manual EN

Download (3.66MB)

Sofar 3-6 KTLM-G3 Manuel FR

Download (3.76MB)

Modif. Normes pays Sofar - FR

Download (493.72KB)

Connexion Wi-Fi SOFAR Solar

Download (628.17KB)

Sofar Warranty Extension Price

Download (123.13KB)

Config. réseau Solarman PC-FR

Download (407.58KB)
