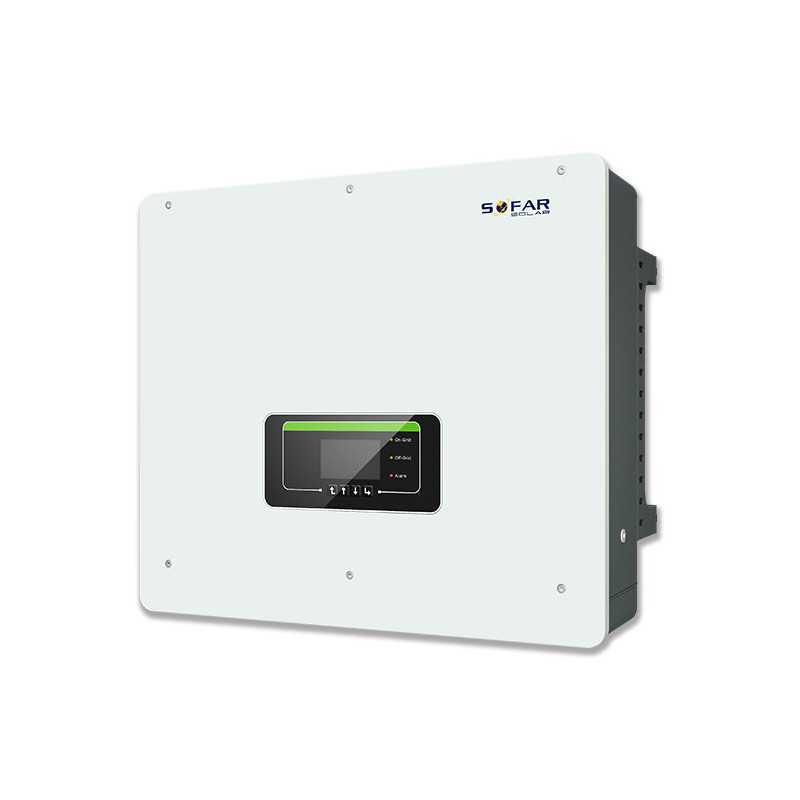

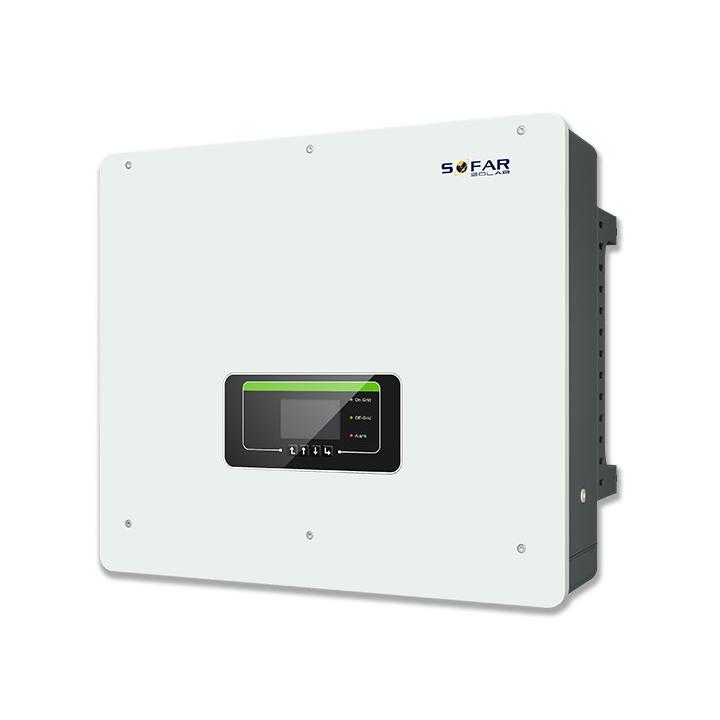

Three-phase hybrid inverter Sofar Solar 5 kVA - HYD 5KTL-3PH

€1,653.00
Tax included
Sofar-HYD 5KTL-3PH
0768563820274

Sofar Solar 5 kVA: Solar Power Within Reach

Discover the Sofar Solar 5 kVA three-phase hybrid inverter, the ideal solution to optimize your solar energy production and reduce your reliance on the grid. Thanks to its many functions and ease of use, it offers you a degree of energy autonomy and significant savings.

Why Choose Sofar Solar 5 kVA?

  • Maximum Flexibility: Adapts to all solar system configurations.
  • High Performance: Maximizes solar energy production and optimizes storage.
  • Reliability: Ensures continuous power during grid outages.
  • Simplified Installation: Quick and intuitive setup with a user-friendly interface.

Key Benefits:

  • Hybrid Mode: Combines solar energy, the grid, and storage for optimized management.
  • Remote Monitoring: Control your installation in real-time with a dedicated app.
  • UPS Function: Provides continuous power to your essential devices during outages.
  • Scalability: Ability to connect multiple inverters in parallel to increase power.

Ideal For:

  • Individual homes
  • Small businesses
  • Agricultural installations

Ready to Achieve Energy Independence?

Contact us to discuss your project and receive personalized advice.

Sorry, there are no more items in stock.

Comments (0)

No customer reviews for the moment.

Sofar high-performance hybrid inverter : Maximise your yield

THREE-PHASE INVERTER WITH ENERGY STORAGE

Three-phase hybrid inverter

the perfect solution to enable energy storage in your PV installation with on-grid and off-grid functions.

The HYD 5K...20KTL-3PH is a versatile three-phase hybrid inverter for solar and storage applications. During grid failures, it can provide up to 20 kW of unbalanced three-phase emergency power supply (EPS) in 10 ms thanks to its integrated EPS port.

Two MPPTs and two independent battery ports (on models 10K to 20KTL) enable multiple battery capacity configurations in 2.5 kWh steps.

Up to 10 inverters can be connected in parallel on the EPS and AC port, making this device ideal for microgrid installations (on or off-grid).

The integrated energy management system features several user-friendly modes, optimizing the user experience, including an automatic self-use mode. Users can also define different time and/or date ranges, or rules for the day of the week.

All modes can be easily configured on the large LCD display. In particular, this inverter is compatible with SofarSolar's AMASS Store high-voltage battery unit (GTX 3000-H). A WiFi stick is supplied with the inverter, for easy connection to the Sofar monitoring portal.



Features

Model HYD 5KTL-3PH
Battery input data

ion,

Battery type Lithium
lead acid

1

Number of batteries
Battery voltage range (V) 200 -
800
Nominal charging/dischargi
ng power (W) 5000

Max. charging/discharging current (A) 25

(A) 25
Peak charge/discharge current, duration (A, s) 40,
60
Battery charging strategy Self-adaptation to BMS (battery management system)
Communication interfaces CAN (RS485)
PV string input data
PV input power max.
(Wp) 7500
(6000 / 6000)

(V)

Max. DC voltage
(V) 1000
Start-up operating voltage (V) 200
MPPT voltage range (V) 180 - 960
Nominal DC voltage (V) 600
Full MPPT power in vol
tage range (V)
250
- 850

Max. input current (A) 12.5 / A

(A) 12.5 / 12.5
Max. short current (A) 15 / 15

2

Number of MPP trackers

1

Number of strings per MPP tracker
AC output data (to grid)
Rated AC power (W) 5000
Max. power.
AC output to mains (VA) 5500
Max. power from mains (VA) 10000

8

Max. AC current output to mains (A)
Max. AC current.
from mains (A) 15

3

Rated mains voltage
/ N / PE,
230 / 400
Mains voltage range 184 - 276 Vac
Nominal mains frequency 50 / 60 Hz
Mains frequency range 45 - 55 Hz / 55 - 65 Hz

1

Output power factor
default (+/-0.8 adjustable)
THDi output (at nominal output) < 3%
Available backup power
Nominal output power (W) 5000
Max. output power.
(VA) 5500
Peak output power, duration (VA, s) 10000, 60

7

Rated output current (A)
.2

8

Max. output current.
(A)
Peak output current, duration (A, s) 15.6

3

Rated output voltage
/ N / PE, 230 / 400
Rated output frequency 50 / 60 Hz

3

THDv output (at rated output) <
%
Switching time < 10 ms
MPPT efficiency
99.9%
Euro efficiency 97.5%
Max. efficiency 98.0%
Max. battery charge/discharge efficiency 97.6%
Protection
DC switch Optional
Reverse polarity protection for PV modules yes
Output overcurrent protection yes

Output overvoltage protection yesprotection

overvoltage
yes
Islanding protection yes
Residual current detection yes
Insulation resistance detection yes
Overvoltage protection PV:
Type II standard, AC: Type II standard
Reverse battery protection yes
General data
Dimensions (mm) 571.4*515*264.1
Weight (kg) 33
UPS topology Transformerless
Standby power consumption (W) <
15 W

-30℃

Operating temperature range
- 60℃

0

Relative humidity
- 100%

Noise

< 45 dB
Operating altitude <
4000 m
Cooling Natural
Degree of protection IP65
Features
DC terminal MC4
AC network terminal Connector
5P
Backup AC terminal 5P connector
Display LCD
Control interfaces Yes
Parallel operation

5

Standard warranty
years, optional :
up to 20 years
Certifications &
Standards

EMC

(electromagnetic compatibility) EN 61000-6-1, EN 61000-6-3
Safety IEC 62109-1, IEC 62109-2,
IEC 62040 - 1
Grid

VDE

V 0124-100, V0126-1-1, VDE-AR-N 4105, CEI 0-16 / CEI 0-21, EN 50549, G98 / G99, UTE C15-712-1
Sofar-HYD 5KTL-3PH

Data sheet

Inverter power
5000VA
Voltage
48V
MPPT/PWM
MPPT
Phase
Triphasé
Number of MPPT
2 MPPT
Inverter type
Hybrid

Specific References

UPC
768563820274
EAN13
0768563820274
