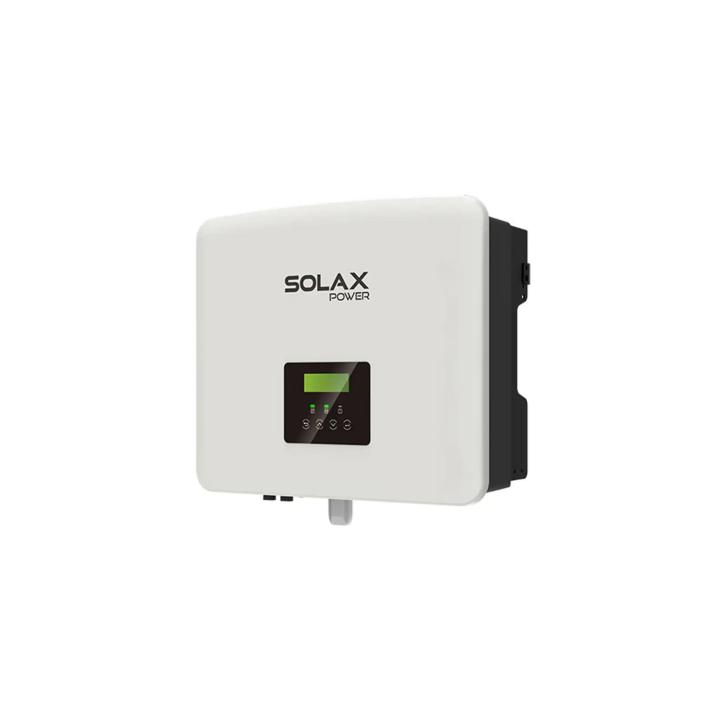

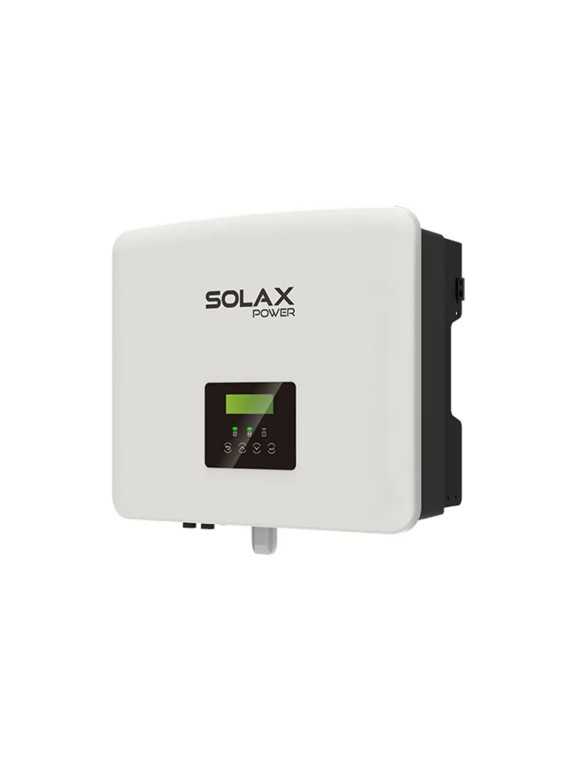

Single-phase hybrid inverter SolaX X1-HYBRIDE-5.0-D G4.1
Single-phase hybrid inverter SolaX X1-HYBRIDE-5.0-D G4.1

Single-phase hybrid inverter SolaX X1 - 6 kVA X1-HYBRIDE-6.0-D G4.1

€2,388.72
Tax included
X1-HYBRIDE-6.0-D G4.1
0768563820212

6kW Hybrid Inverter: Energy Independence and Optimized Performance

Discover our 6kW hybrid inverter, an innovative solution for producing and storing your own electricity. With its advanced design and multiple features, it allows you to reduce your reliance on the electrical grid and achieve substantial savings on your energy bill.

Why Choose This Hybrid Inverter?

  • Free yourself from energy constraints: consume the solar energy you produce and store the surplus for use at any time.
  • Reduce Your Electricity Bill: Significantly lower your energy expenses with an efficient and cost-effective solution.
  • Simplified Installation: Enjoy a quick and intuitive installation, even for beginners.
  • Unmatched Reliability: Designed to last, this inverter withstands external conditions and delivers optimal performance.

Benefits of This Inverter:

  • Optimal Efficiency: 97% solar conversion.
  • Versatility: Compatible with many batteries and panels.
  • Intelligence: Smart energy management.
  • Robustness: IP65 protection, enhanced durability.

Key Features:

  • Power: 6000 VA
  • Max PV Input Power: 9000 Wp
  • Battery Voltage Range: 80-480 V
  • Integrated Shadow Tracking

Ready to Invest in Solar Energy?

Contact us for a personalized quote and discover how this hybrid inverter can meet your needs.

Sorry, there are no more items in stock.

Comments (0)

No customer reviews for the moment.

Présentation série onduleur Solax Hybride G4

6kW hybrid inverter: Easy installation and online tracking

High efficiency



200% oversized PV, up to 110% AC overload output

Superior charging and discharging efficiency, up to 97.0

Integrated shadow tracking function



Economical



16 A DC input current, compatible with high-power solar panels

Up to 150% PV input

Store excess PV energy in the battery

Low starting output voltage for longer operating time



Safety



IP65 protection

Integrated SPD



Intelligent



- Up to 150% EPS output for 10 s

- Switching time < 10 ms

- Quick configuration with USB key

- Compatible with lithium-ion and lead-acid batteries

- CT-compatible, loads respond in 0.3 s

- Intelligent load management (e.g. heat pump)

- On-grid and off-grid parallel operation, up to 15 kW

- 5 operating modes, 2 charging periods available

- Ready for VPP, auxiliary service on the electricity market



Why



Fourth-generation SolaX inverter

Discover the unrivalled power of our advanced hybrid inverter, combining efficiency, safety and intelligence, with a simplified design for easy one-person installation. Benefit from exceptional features such as PV oversizing up to 200%, high charge and discharge efficiency and integrated shadow tracking. The inverter guarantees durability and compatibility, even in low-temperature environments, with IP65 protection and support for high-power solar panels. Store surplus energy effortlessly and benefit from intelligent load management. Enjoy seamless integration of solar power and storage with smart chargers for electric vehicles. Choose from versatile operating modes, including parallel on/off-grid and VPP preparation, opening up unlimited opportunities in the electricity market. Unleash the full potential of our local energy solution for a smarter, greener future.

X1-HYBRIDE-6.0-D G4.1

Data sheet

Inverter power
6000 VA
Max.PV Input Power
9000 Wp
Storage temperature
-40 °C ~+65 °C
Voltage
48V
Phase
Monophasé
Number of MPPT
2 MPPT
Width
482 mm
Height
417 mm
Thickness
181 mm
IP protection
IP65
Inverter type
Hybrid
Rated mains frequency
50/60 Hz
Safety
IEC 62109-1/-2
EMC
EN 61000-6-1/2/3/4, EN 61000-3-2/3/11/12
Certification
IEC61727, EN50549, G98/G99, AS 4777.2, VDE4105, CEI 0-21, RD1699, UNE 206007-1, VFR
Type of cooling
Natural
Communication interfaces
CT/ Counter (optional)/ Rs485 external control/(optional: Pocket WiFi/Lan/4G)/ DRM/ USB upgrade/ NTC
THDi (Nominal power)
Less than 2
Battery Type
Li-ion battery / Lead-acid battery (under development)
Battery Voltage Range
80-480 V
Operating temperature range
-35~+60 °C (derating above 45°C)
Weight
24 kg
Rated output power
6000 W
Relative humidity range
0~100 %
Maximum operating altitude
Inférieur à 3000 m
Max. PV input voltage
600 V
Start-up output voltage
90 V
Nominal input voltage
360 V
MPP voltage range
70~550 V
Number of MPP trackers / strings per MPP tracker
2(1/1)
Maximum input current (input A/input B)
16/16 A
Maximum short-circuit current (input A/input B)
20/20 A
Rated AC output power
6000 W
Maximum apparent power of AC output
6600 VA
Maximum apparent AC input power
9200 VA
Maximum AC input current
40 A
Rated voltage AC
230/240 V
Displacement power factor
0.8 ahead~0.8 behind
Maximum continuous charge/discharge current
30 A
Apparent peak power
7200 VA, 10min
Max. continuous current
26.1 A
Rated voltage; Frequency
230 V; 50/60 Hz
Switching time [ms]
Less than 10
Parallel operation
Yes
Maximum efficiency
97.6 %
Euro. efficiency
97.0 %
Battery charge/discharge efficiency
97.0/97.0 %
Standby consumption @Night
Inférieur à 3 W
Maximum AC output current
28.6 A
Typical noise emission
Below 30 dB

Specific References

UPC
768563820212
EAN13
0768563820212
