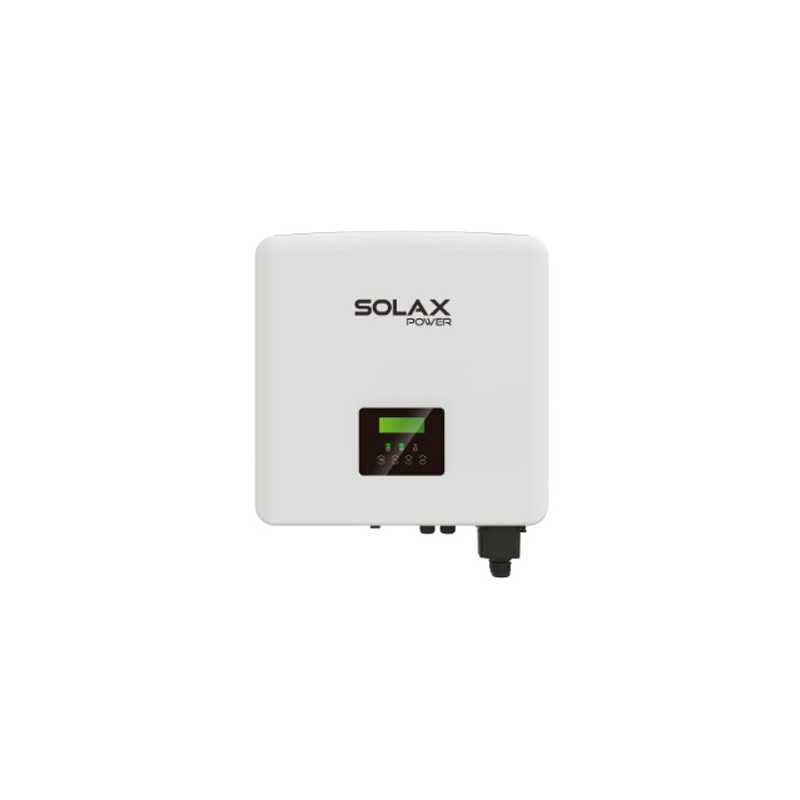

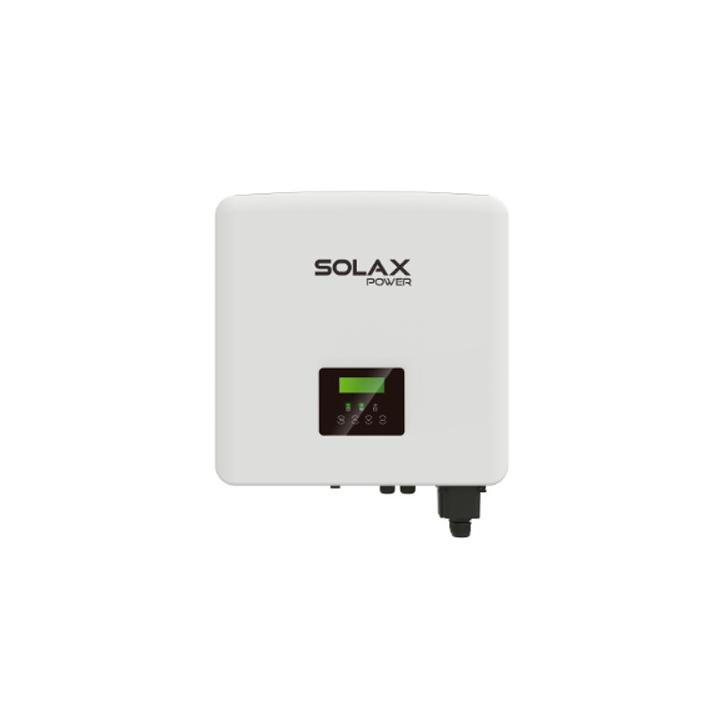

Three-phase inverter Solax X3-HYBRID -15.0-D G4
Three-phase inverter Solax X3-HYBRID -15.0-D G4

Three-phase inverter Solax X3-HYBRID -15.0-D G4

€3,929.18
Tax included
X3-HYBRID-15.0-D
0768563815966

The SolaX X3-HYBRID -15.0-D G4 three-phase hybrid inverter is the ideal solution for optimising your solar energy production. This smart inverter combines exceptional energy efficiency with flexible storage, allowing you to maximize the use of your solar energy while reducing your reliance on the grid.

Why choose the SolaX X3-HYBRID?

  • High performance: Equipped with a maximum efficiency of 98.5%, it guarantees optimized energy production and reduces losses.
  • Flexibility: Adapts to different configurations of solar systems and batteries, providing a tailored solution.
  • Reliability: Designed for professional use, it offers great durability and stable performance.
  • Autonomy: Thanks to its energy storage function, it allows you to consume your solar production even in the absence of sunlight.
  • Intelligence: Intelligent load management, quick setup, and compatibility with many types of batteries.

Key advantages:

  • Energy savings: Significantly reduce your electricity bill by self-consuming your solar production.
  • Safety: EPS function for backup power in case of a grid outage.
  • Connectivity: Remote monitoring and control via a mobile app or web portal.

SolaX X3-HYBRID: The smart solution for clean and independent energy.

Sorry, there are no more items in stock.

Comments (0)

No customer reviews for the moment.

SolaX X3-HYBRID 15 kVA : Commercial solar energy storage, high performance

SolaX Power is pleased to announce the launch of the X-Hybrid commercial three-phase inverter for battery storage. The three-phase range includes inverters from 5 to 10 kW and, thanks to the possibility of installing several inverters in parallel, scalable battery storage for commercial applications is now a reality. The inverter is equipped with EPS (Emergency Power Supply) function only when supported by additional inverters, has several communication options and can be remotely controlled.

High efficiency

- 110% overload output in grid conditions

- Maximum 150% overload output in off-grid conditions for one hour.

- Superior charging and discharging efficiency, up to 98.5%.

Economical

- Storage of excess energy in the battery

- Less energy loss from battery to inverter

Intelligent

- Switchover time <10ms

- Quick setup with U-disk

- Compatible with lithium and lead batteries

- Compatible with CTs, charges respond in 0.3s

- Intelligent load management (e.g. heat pumps)

- On-grid and off-grid parallel operation, up to 150kW

- 5 operating modes, 2 charging periods available

- Ready for VPP, auxiliary service on the electricity market.

Safety

- IP65 protection level

- Integrated SPD

Features

Password to enter parameters: 2014

Model
.0-D
INPUT
Max. power of photovoltaic panels (Wp) 18000
Max. DC voltage.
(V) 1000
Starting voltage (V) 200
Nominal DC operating voltage (V) 640
MPPT voltage range (V) 180 -
950
Number of MPP trackers/strings per MPP tracker
(2/1)
Maximum input current per MPPT (A) 26/16
short-circuit current
circuit per MPPT (A) 30/20
AC
AND INPUT
Nominal AC power (VA) 15000
Max. AC power
(VA) 15000
Max. AC current (A) 24.1
Max.
AC input ap
parent power (V
A) 20000
(A) 32
Nominal mains voltage (AC voltage range) (V) 415/240; 400/230; 380/220
Nominal mains frequency/range (Hz
50/60
Displacement power factor
.8 capacitive - 0.8 inductive
THDi, nominal power (%) <3
BATTERY
Battery type
Li-ion battery/Lead-acid battery (under development)
Battery voltage range (V) 180 -
650
Maximum continuous charge/discharge current (A) 30
EPS
(OFF-GRADE OR EMERGENCY) (WITH BATTERY)
Nominal output power (W) 15000
Peak apparent power (VA) 16000,60s
Maximum continuous current (A) 21.8
Rated voltage (V); Frequency (Hz) 400/230; 50/60
Switching time (ms) <10
Parallel operation Yes
SYSTEM
MPPT efficiency (%) 98
European efficiency (%) 97,7
Battery charge/discharge efficiency (%)*1 98.5 / 97.5
Standby power consumption (night) (W) <5
Degree of protection (to IEC 60529) IP65
Operating temperature range (°C)
to + 60 (derating to 45)
Max. operating altitude.
(m
< 3000
Humidity(%)
to 100
Typical noise level (dB) <
45
Storage temperature (°C)
-+ 70
Dimensions (L x W x D) (mm) 503 x 503 x 199
Weight (kg) 30
Cooling type Intelligent cooling
Communication interfaces
CT/ Counter (optional) / RS485/ External control (optional :
Pocket WiFi/Lan/4G)/ DRM/ USB Upgrade/NTC (optional)
STANDARD
Safety EN/IEC62109-1/-2
IEC/EN 61000,
NB/T 32004
Certification
/ G99 / G98 / AS4777 / EN50549 / CEI 0-21 / IEC61727 / PEA / MEA / NRS-097-2-1/ RD1699 / TOR
X3-HYBRID-15.0-D

Data sheet

Length
503 mm
Power
150000 VA
Phase
Triphasé
Width
199 mm
Height
503 mm
Weight
30 kg

Specific References

UPC
768563815966
EAN13
0768563815966
