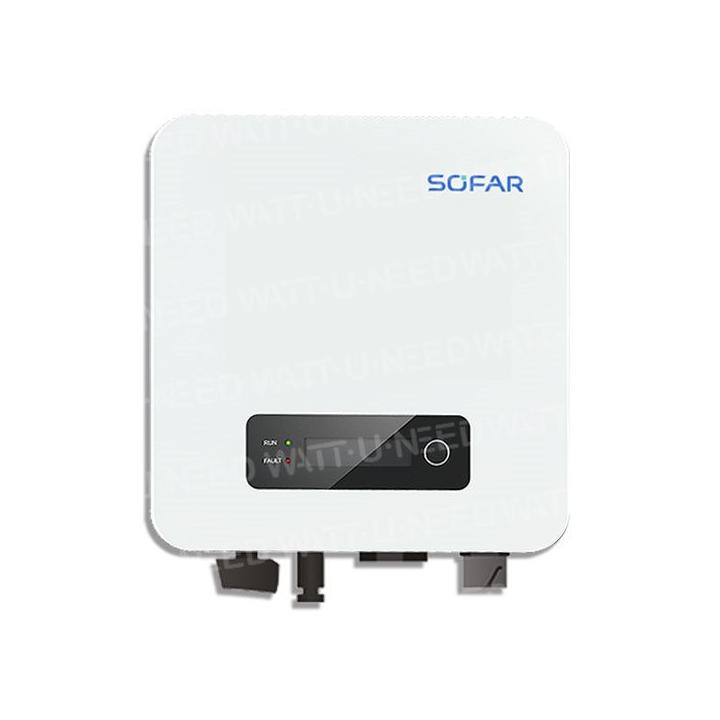

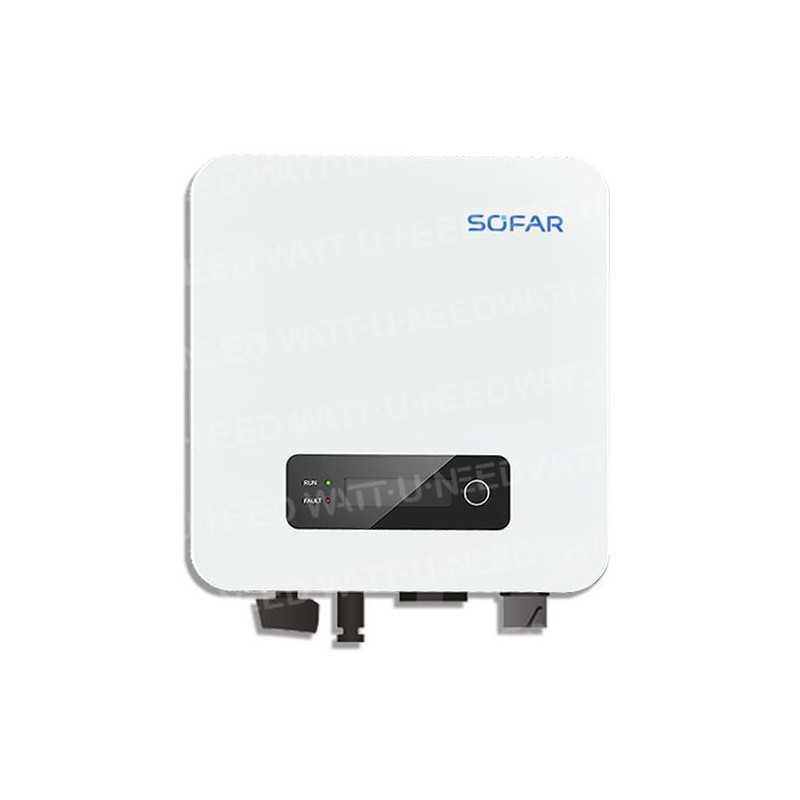

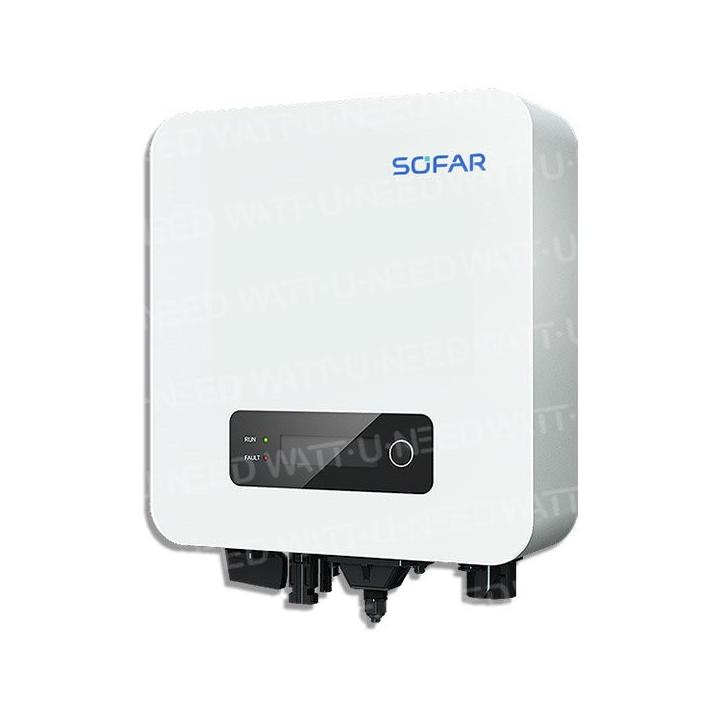

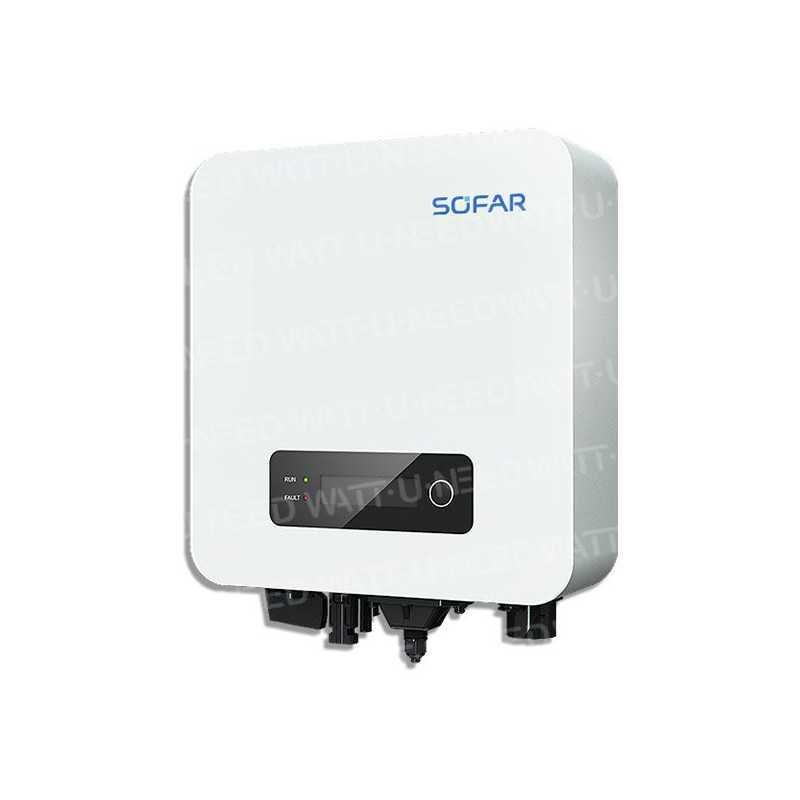

Sofar Solar Mono 3 kW Grid Inverter – 3000TL-G3
€344.40
Tax included
Sofar-3000TL-G3
0768563817380
The SOFAR SOLAR SOFAR-3000TL-G3 grid-connected inverter is designed for small single-phase residential photovoltaic installations, optimising production and simplifying monitoring with a compact and scalable solution.
- Technical specifications: power 3 kVA (3000 W), 1 MPPT (50–550 V), max. efficiency 97.7% (European 97.20%), max. input voltage 550 V, recommended PV power 4100 Wp, IP65 protection rating.
- Compatibility: single-phase 230 VAC network, MC4 DC connectors, RS485/Wi-Fi/Bluetooth communication (Ethernet optional), LCD + LED display, anti-islanding protection.
- Benefits: It allows you to make efficient use of a small roof, limit losses via MPPT tracking and upgrade the monitoring system according to your needs.
Sofar 3000TL-G3: The connected, intelligent solar inverter
Compact single-phase inverters for small grid-connected PV systems
SofarSolar 1.1K...3.3KTL-G3 is a polished, compact and lightweight solar inverter for smaller single-phase PV systems.
With an efficiency of up to 97.7%, it maximizes the energy yield of your PV system. The integrated zero export function allows the user to limit the power supplied to the grid by simply adding a current transformer to the system.
The inverter also comes with a WiFi key for easy connection to the SofarSolar monitoring portal.
High efficiency
- Maximum efficiency of 97.5%.
- Precise real-time MPPT algorithm for maximum utilization
- Wide input voltage operating range
All in one. Flexible, cost-effective system solution
- Free choice of location thanks to IP65 rating
- Plug & Play" connection for easy installation and maintenance
- Interface selection - Wi-Fi / RS485 /GPRS
- LCD + LED display
- Integrated zero export function (optional)
Low maintenance costs
- Detachable lid for easy installation
- Stainless aluminum covers
- A flexible control solution
Intelligent grid management
- Reactive power capacity
- Automatic power reduction in the event of overfrequency
- Remote control of active/reactive power limit
Features
| DC INPUT |
| PV input power max. | |
| Recommended | 4100 Wp |
| Max. input voltage | 550 |
| V |
| Starting voltage | 70 V |
| Nominal input voltage | 360 V |
| MPPT operating voltage range | 50 - 550 V |
| Full MPPT power in voltage range | 275 - 500 V |
| Max. MPPT input current | 12 |
| A |
| Max. DC input short-circuit current. |
P
| er MPPT | 15 A |
| Number of MPPT / string per MPPT |
| / I |
| Type of input terminal | Type MC4 |
| AC output |
| Rated power |
| Max. power. | |
| In AC | 3000 W |
| Max. output current | 14.5 A |
| Nominal mains voltage |
| / N / PE, |
| 230 Vac |
| Mains voltage range | 180 - 276 Vac (according to local standards) |
| Nominal mains frequency | 50 Hz / 60 Hz |
| Mains frequency range | 45 - 55 Hz / 54 - 66 Hz (according to local standards) |
| THDi | < |
| 3% |
| Power factor |
| default (adjustable +/-0.8) |
| PERFORMANCE |
| Max. efficiency | 97,7% |
| Weighted European efficiency | 97,20% |
| PROTECTION |
| Anti-islanding protectionislanding |
| Yes |
| DC reverse polarity protection | Yes |
| DC switch | Optional |
| protection |
| Yes |
| Leakage current protection | Yes |
| Earth fault protection | Yes |
| Surge arrester | Varistor : |
| Type III standard |
| COMMUNICATION |
| Standard communication mode | RS485 / Wi-fi / Bluetooth, optional : |
E
| thernet |
| GENERAL |
| Topology |
| Transformerless |
| Ambient temperature range |
| 30°C to 60°C |
| Night-time power consumption | <1 W |
| Permissible relative humidity range |
| - 100% |
| < 25 dB |
| Cooling | Natural |
| Max. altitude. | |
| Operating | 2000 m |
| Dimensions | 321 x 260, 131.5 mm |
| Bracket | Wall mounting |
| Weight |
| ,3 kg |
| Display | LCD + LED |
| Degree of protection | IP65 |
| Warranty | 10 years |
| Standards |
| (electro-magnetic compatibility) | EN 61000-6-1, EN 61000-6-3, |
| EN 61000-3-2, EN 61000-3-3 |
| Safety standards | IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1,2,14,30), IEC 62109-1/2 |
| Mains standards |
| V 0124-100, VDE V 0126-1-1, VDE-AR-N 4105, G83/2, C10/11, RD1699 |
Sofar-3000TL-G3
Data sheet
- Inverter power in VA
- 3000 VA
- MPPT/PWM
- MPPT
- Phase
- Monophasé
- Number of MPPT
- 1 MPPT
- Inverter type
- Grid
- Max. recommended PV input power
- 3700 Wc
4100 Wc - Starting voltage
- 70 V
- Nominal mains voltage
- L / N / PE, 230 Vac
- Rated mains frequency
- 50/60 Hz
- Type of cooling
- Natural
- THDi (Nominal power)
- less than 3%
- Protection Degree
- IP65
- Maximum input voltage
- 550 V
- Power factor
- 1 par défaut (+/- 0,8 réglable)
- Max. output current
- 14,5 A
- Anti-islanding protection
- Oui
- Relative humidity range
- 0~100 %
- Maximum operating altitude
- 2000 m
- Topology
- Transformerless
- Noise
- inférieur 25 dBA
- Nominal input voltage
- 360 V
- Maximum efficiency
- 97,7 %
- Number of MPPT / strings per MPPT
- 1 / 1
- Max. MPPT input current
- 12
- Protection against reversed DC polarity
- Oui
- Ambient temperature range
- -30℃ – 60℃
- MPPT operating voltage range
- 50 - 550 V
- Mains voltage range
- 180 - 276 Vac (according to local standards)
- Max. photovoltaic generator short-circuit current per MPPT (Isc pv, MPPT)
- 15
Specific References
- UPC
- 768563817380
- EAN13
- 0768563817380
