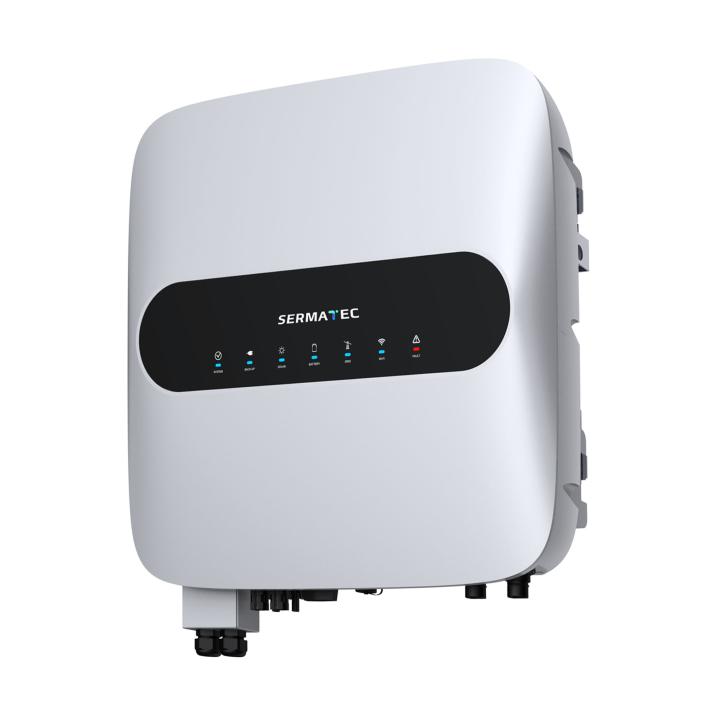

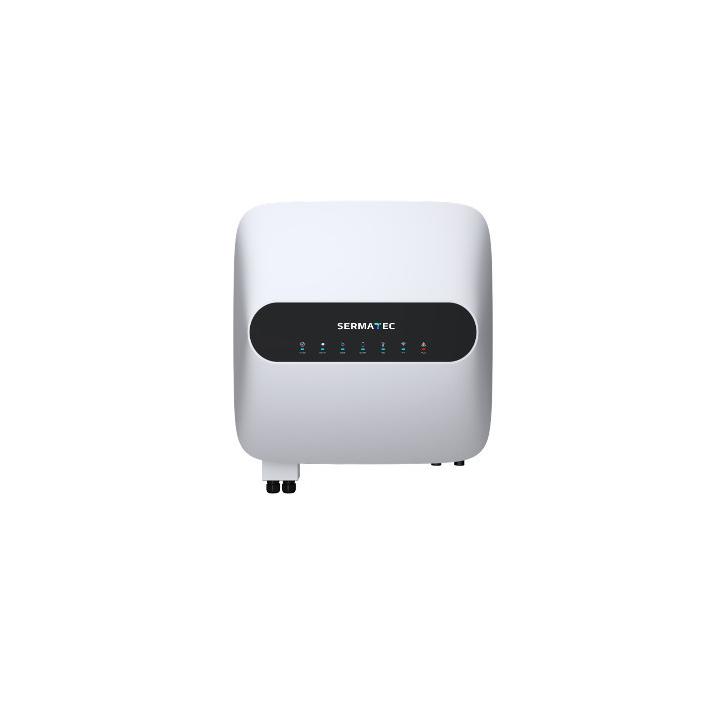

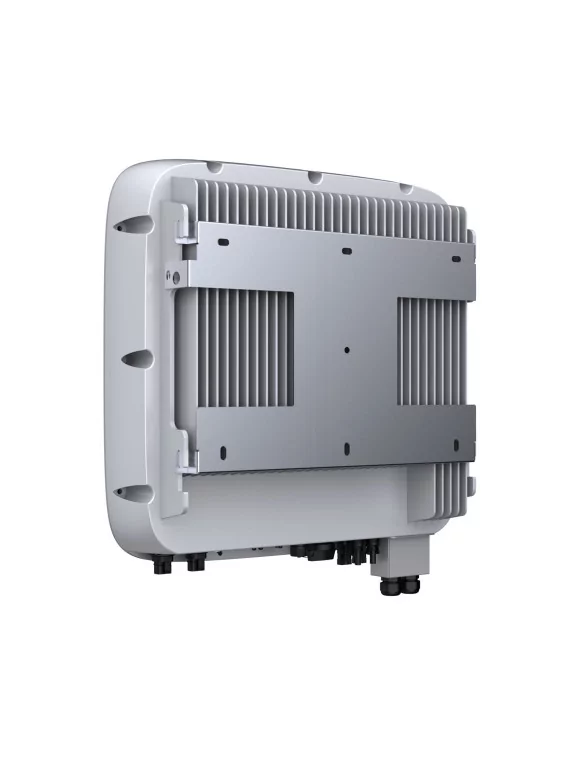

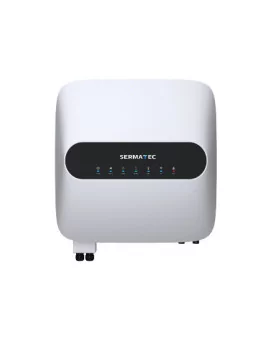

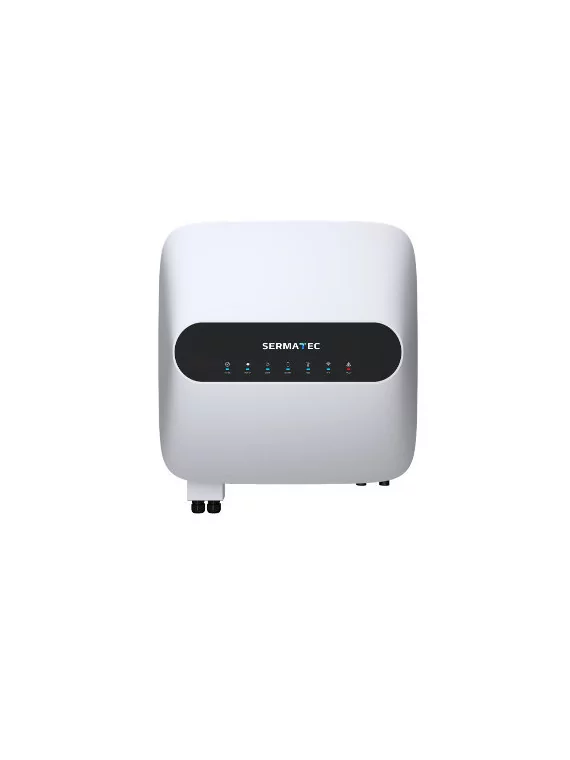

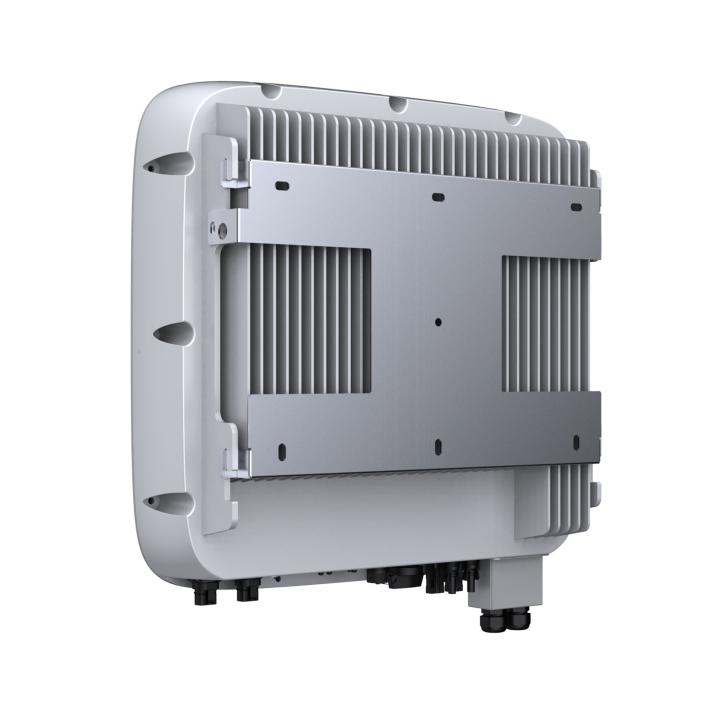

Multifunction Sermatec 5kVA : Produce, store and consume your energy
Sermatec application. Parameterizable ONLY VIA ANDROID!
/!\ Updates to be carried out exclusively at WATTUNEED's request .
With the development of the energy storage market, traditional grid-connected inverters have been unable to meet customer needs.
Depending on the different application scenarios, there is a need for both grid-connected and off-grid functions, particularly in the domestic energy storage market. In both grid-connected and off-grid states, the inverter must supply energy to the load.
It enables users to generate their own energy, to achieve certain economic benefits.
When solar energy is sufficient, the inverter draws power from the PV station to supply the consumers, and the remaining power will charge the batteries. The inverter automatically feeds the battery charge.
When the battery's energy is depleted, the inverter draws power from the grid, supplies the consumers and recharges the battery.
This on/off grid inverter can be installed indoors or outdoors.
- Automatic matching
- Multiple languages
- Self-diagnosis, maintenance-free
Simple installation
- User manual and installation video
- Modular installation
- International standard cables
Variety
- Compatible with various input sources
- Pylontech compatible
- Solar, grid and generator access
- Parallel operation of multiple inverters coming soon (under development)
- On & Off-grid switching time less than 10 ms, can be used as UPS
- Single-phase and three-phase output for residential and commercial applications
Efficiency
- 99% high efficiency
- Advanced tracking technology to improve PV station efficiency
- High-precision MPPT control algorithm and INV algorithm for high-efficiency grid connection and autonomous energy conversion.
Safety
- Self-protection technology
- Wide voltage and frequency input
- IP65 protection
- Automatic air cooling
- Stable operation at altitude, at high temperatures and in very humid environments
Intelligence
- Intelligent management system enforces self-operation
- WIFI, CAN, RS485, USB (optional), GPRS (optional) Multiple monitoring modes
New from Sermatec: AC Coupling
Maximize self-consumption, even with older systems
The Sermatec hybrid inverter is connected in parallel to the grid inverter. Photovoltaic energy is first used to power loads, then to charge the battery, and any excess photovoltaic energy can be fed back into the grid.
View daily and total consumption status
You can view consumption from your system
There's an asymmetry between our electricity needs and the output of our solar system.
As you can see, thehybrid inverter uses batteries to store unused production during the day (red line down).
This means you can benefit in the morning and evening from the energy produced throughout the day (red line up).
The yellow highlight indicates energy production via solar panels.
Electricity consumption from the grid is shown in blue (blue line down).
Electricity generated by the panels is fed back into the grid (blue line up).
We'll look at consumption over a full day
At 04:00 we use the public grid for our energy needs.
At 10:00 am: the panels produce 3002 W and the batteries recharge.
At 14:35: We produce (3170 W), the battery consumes 10.60 W and we inject 2665 W into the public grid.
At 9:00 p.m.: The battery is used to meet our energy needs.
View the charge level of your batteries
Customizable battery recharge range
At 8 a.m. on 20/09, the battery is at 30% of its charge capacity, and the inverter will start recharging the battery. Recharging takes place at times that can be set from the inverter, so you can choose the time slots when you decide to recharge the batteries; once at 100%, the inverter no longer sends energy to the battery, but sends unused energy to the public grid. From 7pm onwards, the battery begins to discharge. We then use the energy from the battery to meet our energy needs.
Software
Sermatec application to download first. Configurable ONLY VIA ANDROID! (exists on Appel store but not usable)
Download the application directly by clicking here!
You can find the installation steps in the data sheets & documents. "Parameter manual Sermatec-EN
Connection to Pylontech US-2000 C
WARNING: When connecting your Sermatec UPS to the Pylontech US-2000C battery, cut the white/orange, orange and white/green cables.
Connect the cable to the RS485 port of the battery master.
Example of current and voltage wiring
Features
| Max. recommended DC power supply |
6000 |
| Nominal DC power (W) |
5000 |
580
| MPPT voltage range (V) |
125~550 V |
| Max. input current |
| (A) |
11 A |
| Overcurrent protection (A) |
15 |
2
Li-
| Battery type |
| Ion or Lead-acid |
| Nominal battery voltage (V) |
48 |
| Battery voltage range (V) |
40-58 |
| Battery capacity (Ah) |
Programmable as required |
3
| Max. |
| Charging voltage (V) |
60 |
.
| Max |
| Charging current (A) |
70 |
| Overcurrent protection (A) |
100 |
| Max. charging power (W) |
4600 configurable |
Max. charging(%)
| Max. discharge current (A) |
100 |
| Max. discharge power (W) |
4600 |
| Max. discharge efficiency (%) |
96 |
| Mains voltage range (V) |
170V~280V AC |
| Mains frequency (Hz) |
50Hz/60Hz |
| Nominal grid power (W) |
5000 |
| Peak power (off-grid) |
110% load : |
| 30 minutes load 120%: 5 minutes 150% load: 5S |
| Rated output |
50/60Hz; 230Vac |
| Output range |
45~55Hz/55~65Hz; 180~270Vac |
| Max. output current (A) |
22.8 |
| Overcurrent protection (A) |
32 |
)
| Total harmonic distortion (THD, power rating) (% |
| Displacement power factor |
-0.9 - 0.9 |
| Backup output (with battery) |
)
| Rated output |
50/60Hz; 230Vac |
| Output range |
45~55Hz/55~65Hz ; |
| 180~270Vac |
| Max. output current (A) |
15 |
| Peak output power (W) |
4800W 5Mins 6000W 5S |
)
| Total harmonic distortion (THD, rated power) (% |
| Displacement power factor |
-0.9 - 0.9 |
| Instantaneous recovery time |
<=20ms |
| UPS Switching time (MS) |
<10ms |
| Effi |
| ciency of Europ |
| e (%) |
97 |
Max. efficiency (%)
| Battery charge/discharge efficiency (%) |
>95 |
| Anti-islanding protection |
Integrated |
| Output overcurrent protection |
Integrated |
Output short-circuit protection Integrated
| Output overvoltage protection |
Integrated |
| Certifications and standards |
VDE
| Network regulation |
| 0126/VDE-AR-N4105/G83-2/ AS 4777.2/EN50438/CEI 0 -21 |
| Safety regulations |
IEC/EN 62109-1, IEC/EN62109-2 |
EMC
| IEC/EN 61000-6-2, |
| IEC/EN 61000-6-3 |
495*516*152
| Size (Width*Height*Depth mm) |
-25~60°C
| Ambient temperature range |
0~95%
kg)
| Max. operation ( |
| Altitude (m) |
4000(>3000m derating) |
| Degree of protection |
IP65 |
| Environmental category |
Outdoor and indoor |
| Degree of environmental pollution |
Degree1,2,3 |
| Cooling |
Natural convection |
Noise
Display
| Communication style |
Wi-Fi, RS485, CAN |
5ans
