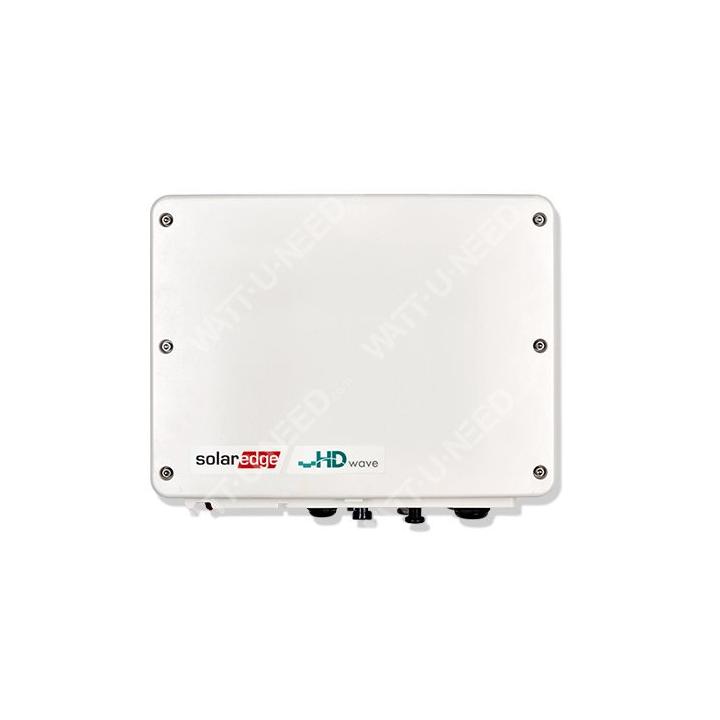

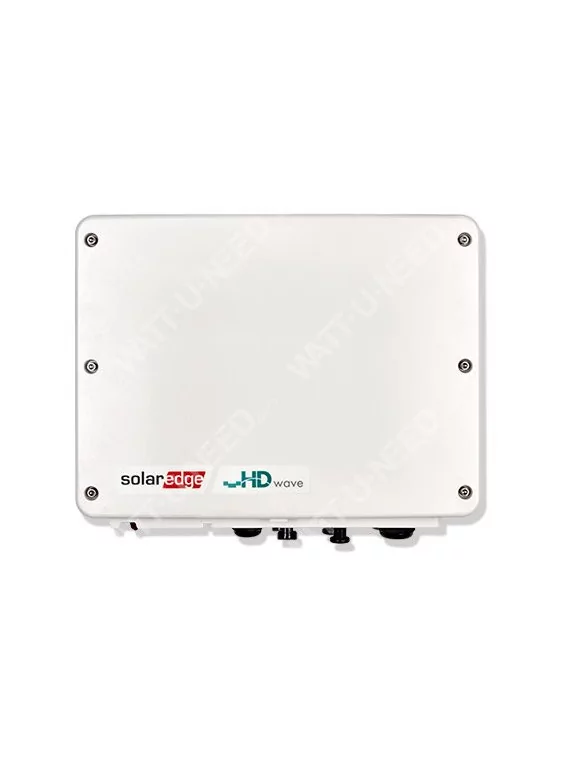

SolarEdge SE2200 to SE6000H HD Wave inverters
SolarEdge SE2200 to SE6000H HD Wave inverters

SolarEdge SE2200 to SE6000H HD Wave inverters

€1,056.79
Tax included
SEXXXXH-RW000BNN4
0768563816918

SolarEdge SE2200H to SE6000H HD Wave: Revolutionize Your Solar Energy Production

Discover the SolarEdge HD-Wave single-phase inverter, a cutting-edge technology honored with Intersolar and Edison Awards. Specially designed to work with SolarEdge power optimizers, this inverter offers optimized solar energy production and simplified installation.

Why choose the SolarEdge HD-Wave inverter?

  • Exceptional Performance: Enjoy a record efficiency of 99% and maximized energy production, even in shading conditions.
  • Easy Installation: Compact, lightweight, and simple to install, thanks to the SetApp application.
  • Flexibility: Adapts to different solar panel configurations and can be paired with a storage battery.
  • Reliability: Benefit from a standard 12-year warranty and robust design.
  • Connected Monitoring: Track your installation's performance in real-time via the SolarEdge portal.

Advantages of HD-Wave Technology:

  • Maximum Efficiency: Record efficiency of 99% for optimized energy production.
  • Simplified Installation: Compact, lightweight, and easy to install.
  • Flexibility: Adapts to various types of installations.
  • Reliability: Robust design and extended warranty.
  • Connected Monitoring: Monitor your production in real-time.

Revolutionize your solar energy production with the SolarEdge HD-Wave inverter.

Onduleur monophasé HD-Wave

High-efficiency solar inverter: Maximise your energy production

SolarEdge's innovative inverter topology


Because MPPT and voltage management are managed separately for each module, the inverter only manages DC/AC conversion. This makes the SolarEdge inverter simpler, more economical and more reliable. Fixed string tension ensures optimum operation at all times, regardless of string length or temperature.
In addition to its DC-optimized inverter functionality, the single-phase inverter also manages battery and system energy as part of SolarEdge's StorEdge solution.

HD-Wave technology: a new era for PV inverters


SolarEdge's latest generation of single-phase inverters is designed to use a new power conversion technology based on distributed switching and powerful DSP processing. The single-phase inverter is capable of synthesizing a clean sine wave, leading to a dramatic reduction in magnetic components and heavy cooling elements. As a result, only one person is needed to install this compact, lightweight inverter, which is also easy to transport and store. The record 99% energy production efficiency ensures a better return on investment.

Easy commissioning with SetApp


SolarEdge single-phase inverters now feature a new, intelligent commissioning method. Inverter commissioning is carried out directly via a smartphone using the intuitive SetApp mobile application. Switch to the new standard for inverter commissioning.

Inverter features


- Solar inverters specially designed to work with SolarEdge power optimizers
- Inverter range from 2.2 kW to 6 kW
- 99% weighted efficiency (33% - 50% less losses than the market standard)
- Small, lightweight and easy to install
- Up to 155% oversizing permitted
- Advanced safety features including arc fault protection
- Standard 12-year warranty (extendable to 20 or 25 years)
- Integrated supervision receiver at module level
- Internet communication via Ethernet or wireless connection (using optional Wi-Fi, ZigBee® or cellular plug-ins)
- Manages PV production, battery storage and smart energy products
- IP65 - outdoor and indoor installation

Dimensions

Dimensions

Technical data

Model SE2200H SE3000H SE3500H SE3680H SE4000H SE5000H SE6000H Value
Output
Rated AC output power 2200 3000 3500 3680 4000 5000 6000 VA
Maximum AC output
2200 3000 3500 3680 4000 5000 6000 VA
AC output voltage (nominal) 220/230 AC
AC output voltage range 184 to 264,5 VAC
AC frequency (nominal) 50/60 +- 5
Maximum continuous output current 10 14 16 16 18.5 23 27.5
Harmonic distortion (THD) <3
Power factor
, adaptable from -0.9 à 0.9
Power generation control, islanding protection, configurable national thresholds Yes
Input
Maximum DC power 3400 4650 5425 5700 6200 7750 9300
Without trasnformer,
without
Yes
Max. input voltage 480
DC
Nominal DC input voltage 380
DC
Max. input current 6.5 10 10.5 11.5 13.5 16.5 A DC
Reverse polarity protection Yes
Ground fault insulation detection 600 kΩ sensitivity
Max. efficiency.
Inverter 99.2
Weighted European efficiency 98.3 98.8 99
Night-time power consumption <2.5
Additional functions
communication interfaces RS485, Ethernet, Wi-Fi (optional), cellular (optional),
Zigbee (optional)
Intelligent energy management Export limitation
Inverter
With the SetApp mobile app via an integrated local Wi-Fi connection
Electrical arx detection Integrated,
user-configurable (according to UL1699B)
Standards compliance
Safety IEC-62109-1/2
Grid connection standards IEC61727, IEC62116, EN 50438, VDE-AR-N-4105, VDE 0126-1-1, UTE_C_15-712, G83/2, G59/3, CEI-021, ÖNORM, TF3.2.1, C10-11, NRS 097-2-1
Emissions CEI61000-6-2, CEI61000-6-3, CEI61000-3-11, CEI61000-3-12,
FCC Part 15 Class B
Installation specification
AC output - Supported cable diameter
16 mm
AC - Supported cable cross-section
mm²
DC input
x MC4
Dimensions (HxWxD) 280 x 370 x 142 mm
Weight
,8
kg
<
25
Cooling Natural convection
Operating temperature range
to + 60 °C
Protection class IP - Indoor and outdoor
SEXXXXH-RW000BNN4

Data sheet

Phase
Monophasé
Width
370 mm
Height
280 mm
Thickness
142 mm
Rated AC output power
2 200VA; 3 000VA; 3 500VA; 3 680VA; 4 000VA; 5 000VA; 6 000VA
Maximum DC power
3400W; 4650W; 5425W; 5700W; 6200W; 7750W; 9300W
Weight
10,6 kg
