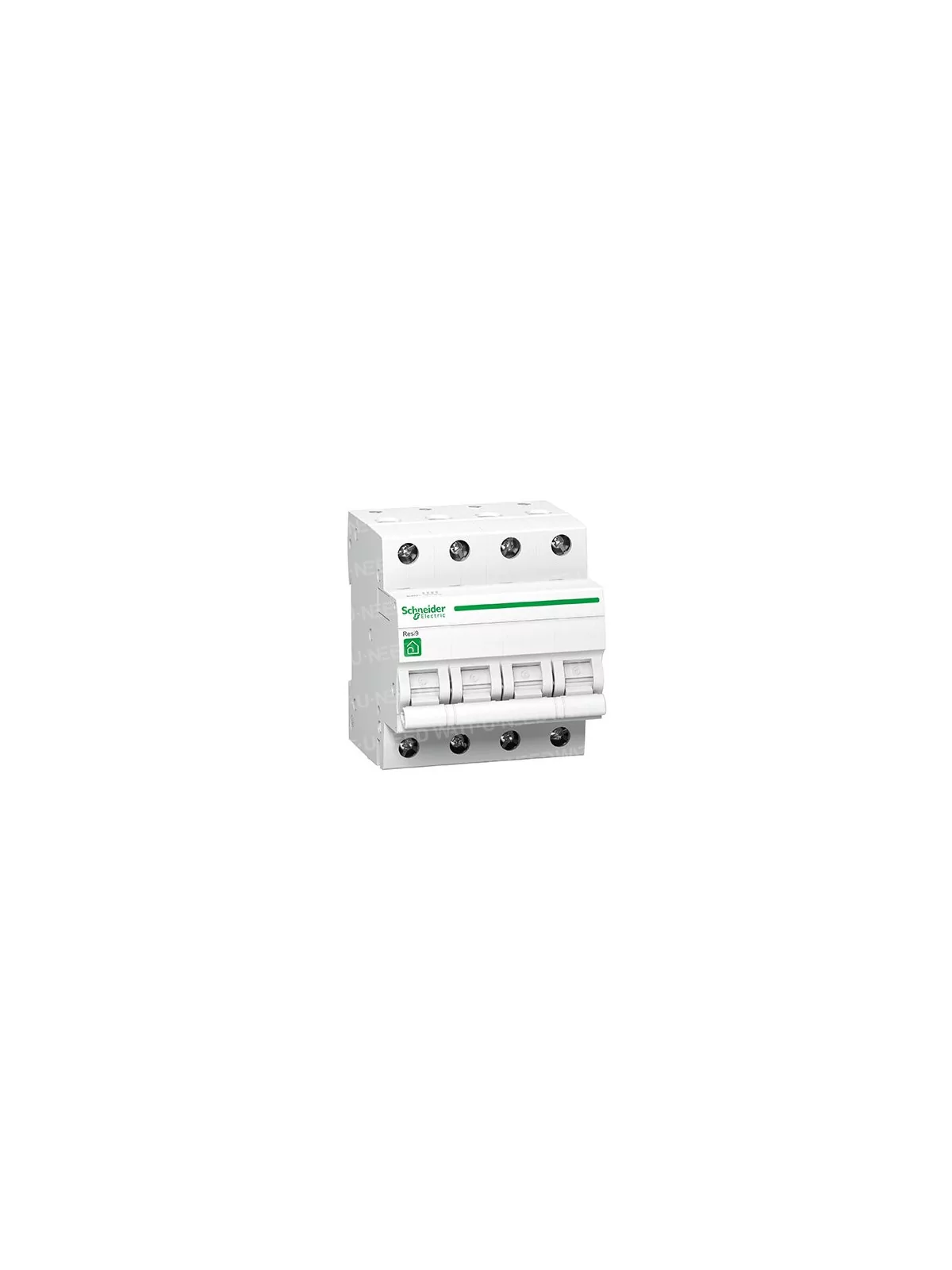

Schneider 20A tetra circuit breaker View full size

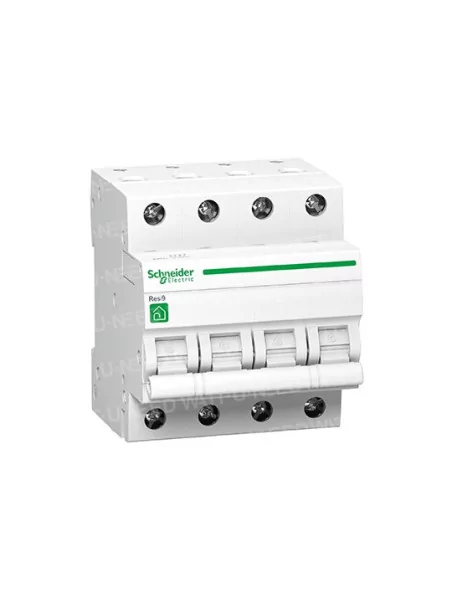

Schneider 20A tetra circuit breaker

Schneider Electric

46,40 € tax incl.

Schneider 20A Circuit Breaker

RESI9

4 poles



More details

More info



Main
rangeResi9
Product nameResi9 MCB
Product or component typeMiniature circuit breaker
Application of the devicedistribution
Description of the poles4P
Number of poles protected4
[In] assigned current job20 A to 30 degrees Celsius
Type of networkAc.
Trigger technologyThermal-magnetic
Trigger curvec
Cutting power3000 A Icn at 400 V c.a. 50/60 Hz compliant with EN/IEC 60898-1
StandardsEN/IEC 60898-1
Product certificationsCEBEC
Complementary
Frequency of network50/60 Hz
[Ue] assigned job tension400 V AC 50/60 Hz
Magnetic trigger limit5...10 x In
Limitation class3 according to EN/IEC 60898-1
[Ui] assigned isolated tension440 V AC 50/60 Hz
[Uimp] assigned tension of holding to shocks4 kV
Type of commandRocking key
Local signageIndicationACTIVE/DEACTIVE
How to installIn clips
Mounting supportRail DIN
Distribution block and comb compatibilityBottom: bi-connect
No 9 mm8
height85 mm
width72 mm
depth75 mm
Depth of recess44 mm
Product weight0.43 kg
colourWhite
Mechanical lifespan20,000 cycle
Electric lifespan10000 cycle c.a. 50/60 Hz compliant with EN/IEC 60898-1
Description of optional locksCadenas on OFF position
Connection modeTunnel-type terminals (bottom) - < 16 mm2 - flexible
Tunnel-type terminals (bottom) - < 25 mm2 - rigid
Tunnel-type terminals (top) - < 25 mm2 - rigid
Tunnel-type terminals (top) - < 16 mm2 - flexible
Tightening torque2 N.m
environment
Degree of IP protectionIP20 compliant with IEC 60529
IP40 (modular box) compliant with IEC 60529
Pollution level2 EN/IEC 60898-1
Surge categoryIii
Operating temperature-20 to 60 degrees Celsius
Room temperature for storage-40 to 80 degrees Celsius

Data sheets and documentation

Specifications

Type de matériel électriqueDisjoncteur
