Waterproof legrand 4 modules box


35,00 € tax incl.

Waterproof legrand 4 modules box

More details

More info

Waterproof legrand 4 modules box

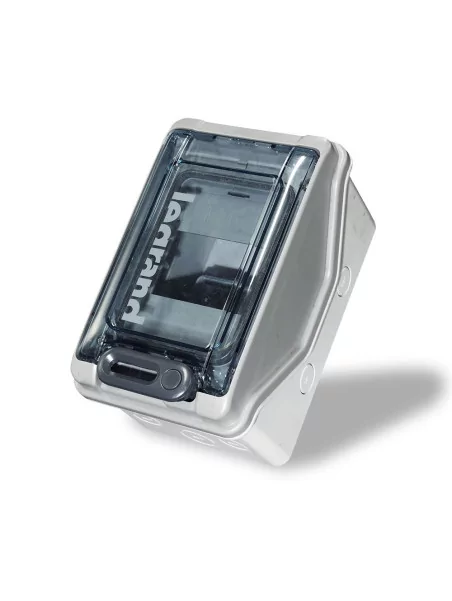

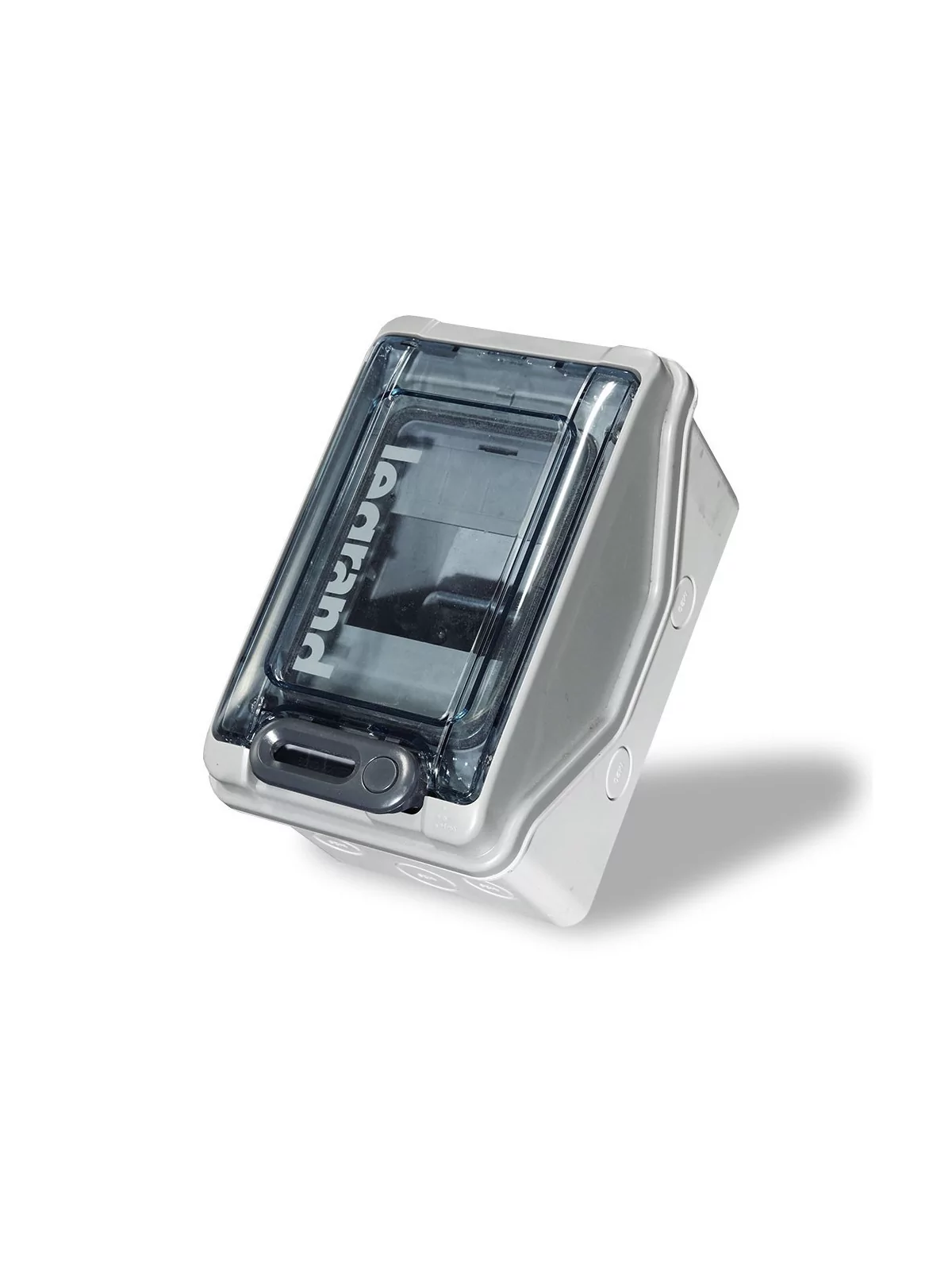

The sealed box Plexo³ apparent Legrand has a transparent door opening left or right. It is possible to set a lock. The cabinet has plenty of room behind the channel adjustable-height (45 mm) for wiring. This also allows the installation of automatic circuit breakers and disconnectors in modular office. Furthermore, the box has two pre-knockouts for two different modes of attachment. More question to ask, wiring can be done from above or from below without distinction.

Box 4 modules - 1 row
Dimensions H x l x P :  200 x 128 x 115,6 mm
Interior depth : 48,5mm



  • Complete reversibility door and cabinet
  • Chassis and removable faceplates from 2 rows
  • Rail 2 positions for modular products and molded case
  • Distance between rails 150 mm
  • Handle lockable door, bonnet and bib sealable
  • Material reinforced polystyrene shock. Light gray box L750A, R746A dark gray hood
  • Tips direct perforation preassembled
  • Protection class IP65 - IK09


Type de matériel électriqueCoffret
