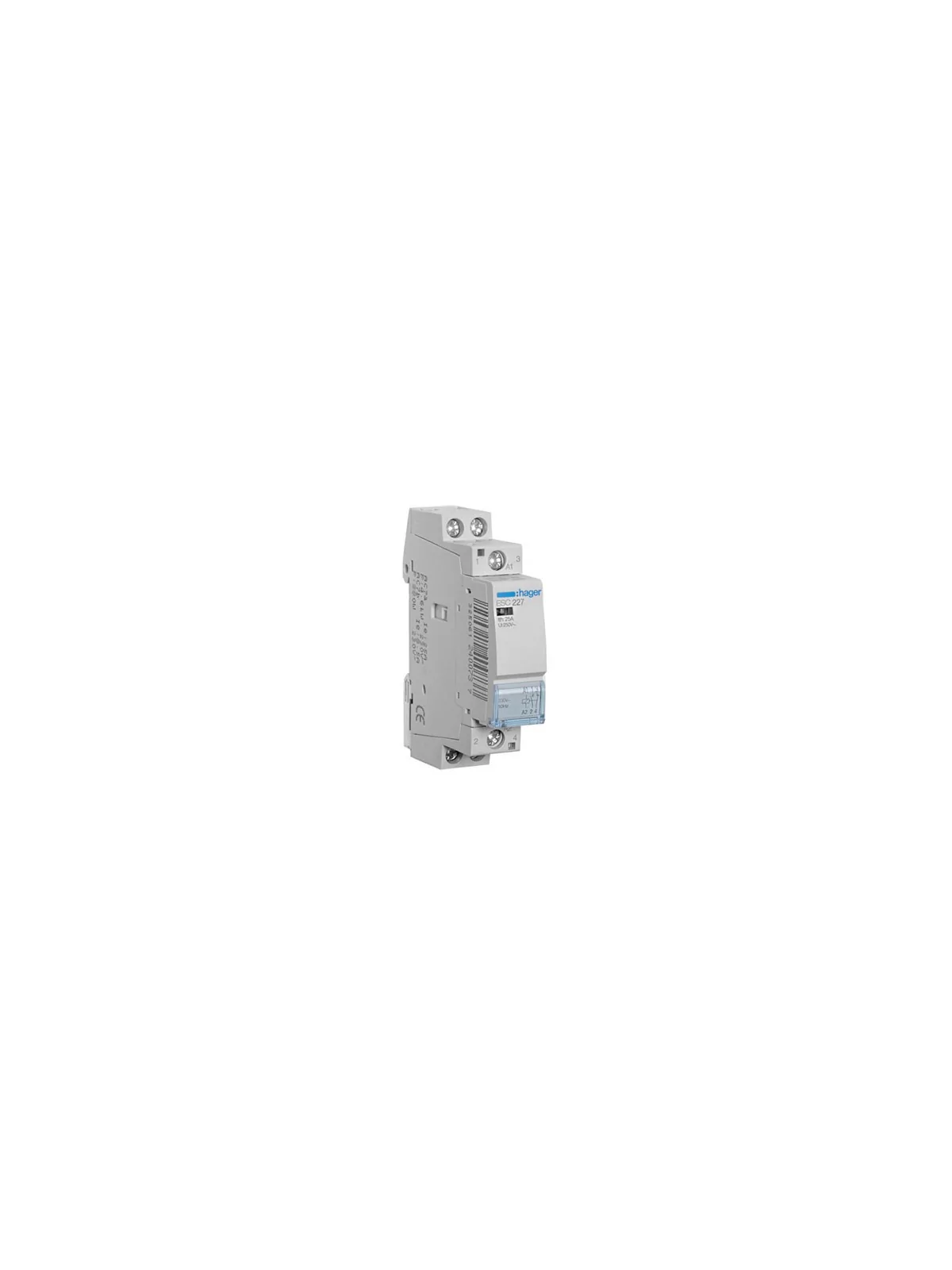

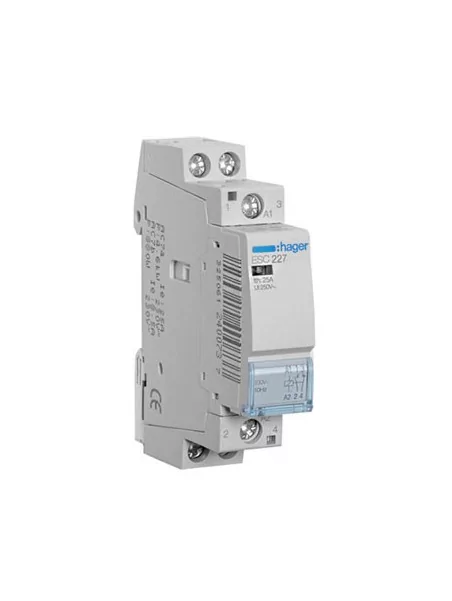

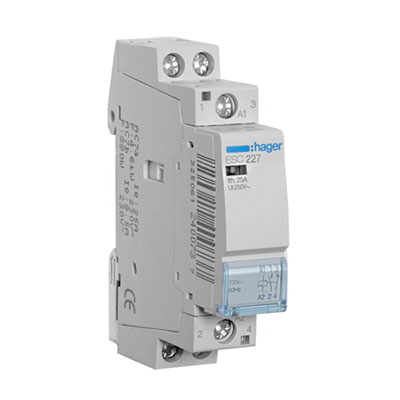

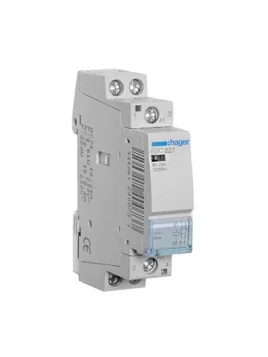

Contactor 25A 230V

€77.37
Tax included
HAGERC225
0712971129641

Contacter 25A, 1F-1O, 230V

Comments (0)

No customer reviews for the moment.

" Contacter 25A 230V "

The contactor allows the flow of the current to be established or interrupted, starting with an electrical control in 230V AC. The contactor is equipped with a normally open contact and a normally closed contact. This contactor therefore allows power aircraft to fly up to 25A in monophase with a signal no 230V AC.



Contacter 25A 230V

Technical features



Manual control: No
Type of contact: 1O-1F
Open-air thermal current: 25 A
Nominal assigned current: 25 A
Assigned alternative employment tension: 230 V
Assigned frequency: 50/60 Hz
Type of connection: screw cage
Rigid cable connection section: 1/ 10 mm2
Flexible cable connection section: 1/ 6mm2
Rigid cable connection section for control: 1 to 10 mm2
Flexible cable connection section for control: 1 to 6 mm2
Consumption on call: 10.7 VA
Maintenance consumption: 2.9 VA
Mechanical endurance number of maneuvers: 100000
Electric endurance in number of cycles: 30000
Operating temperature: -10 to 50 degrees Celsius
Storage temperature: -40 to 80 degrees Celsius
IP Protection Index: IP20
Number of modules: 1
European RoHs Directive: compliant
WEEE European Directive: not concerned
HAGERC225

Data sheet

Type of electrical equipment
Contacteur

Specific References

UPC
712971129641
EAN13
0712971129641
New
