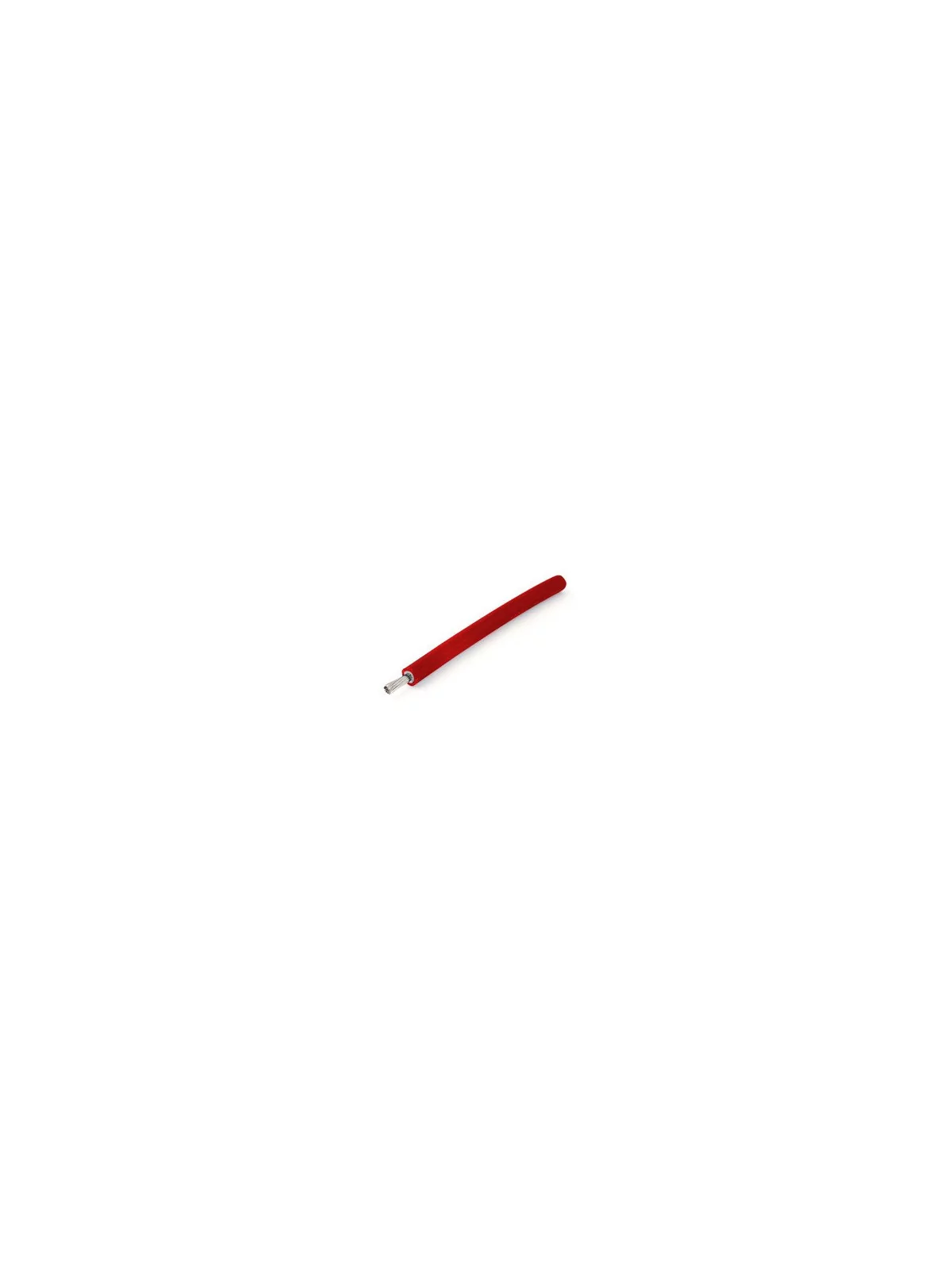

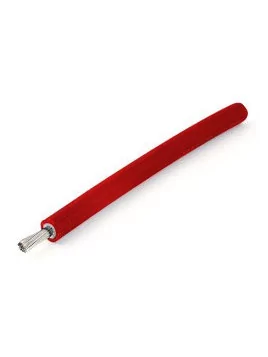

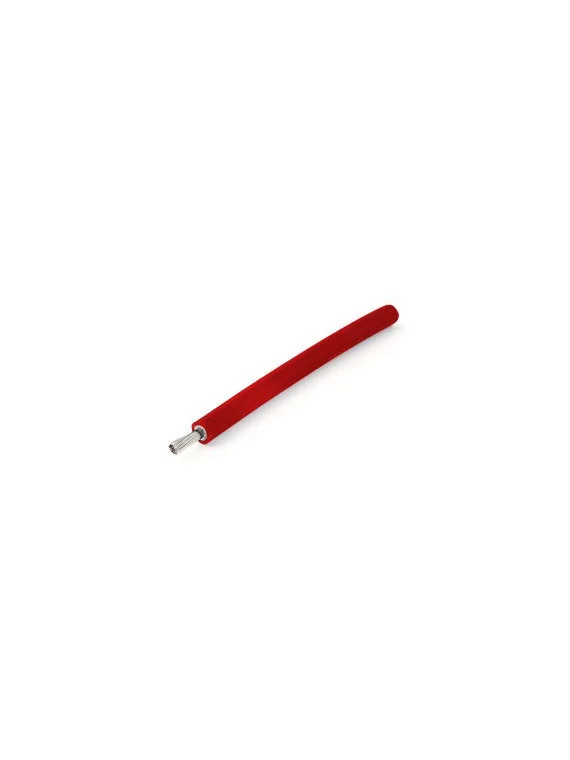

    Solar cable 1X6mm2 red - 1m

    1X6mm red solar cable (sold per metre)

    $2.4
    0191-RED
    0712971137677

    1x6 mm2 solar red cable for photovoltaic system.
    Sold by the meter.

    Cable length: 1m

    1X6mm red solar cable (sold...

    $2.4

    Red 1x6 mm2 solar cable

    1x6 mm2 solar red cable for photovoltaic system.

    Sold by the meter.
    Red 1x6 mm2 solar cable
    This quality cable is intended for indoor and outdoor photovoltaic applications for flexible or fixed installations, according to 2 Pfg 1169/08.2007 and UTE C32-502.



    Key features:

     1. Driver:
       - Edus soft copper Class 5 following CEI 60228.
     2. Isolation:
       - Polyolefine
     3. Gaine:
       - Polyolefine
       - Black color

    Technical features:

    1. Building characteristics:
       - Flexibility of the soul: Flexible Class 5
       - Halogen-free: IEC 60754-1
    2. Electrical features:
       - Uo/U rated service voltage (Um): 0.6 / 1 kV
    3. Use features:
       - Low smoke: IEC 61034-2
       - Ozone hold: yes
       - Smoke corrosiveness: IEC 60754-2
       - Maximum temperature on the soul: 120oC
       - Ambient temperature of use, range: -40 to 90 degrees Celsius
       - Weather resistance: excellent
       - Non-flame propagator: IEC 60332-1

    0191-RED
