AC charging cables

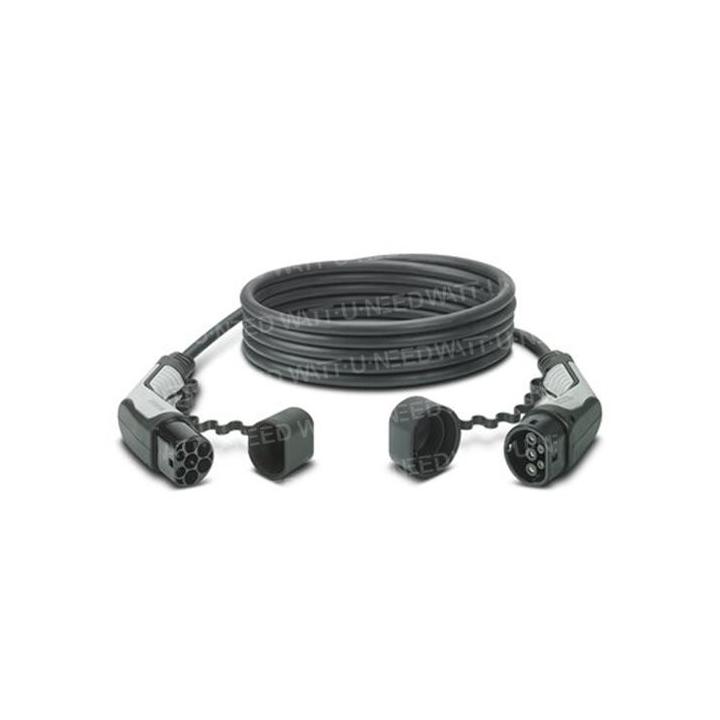

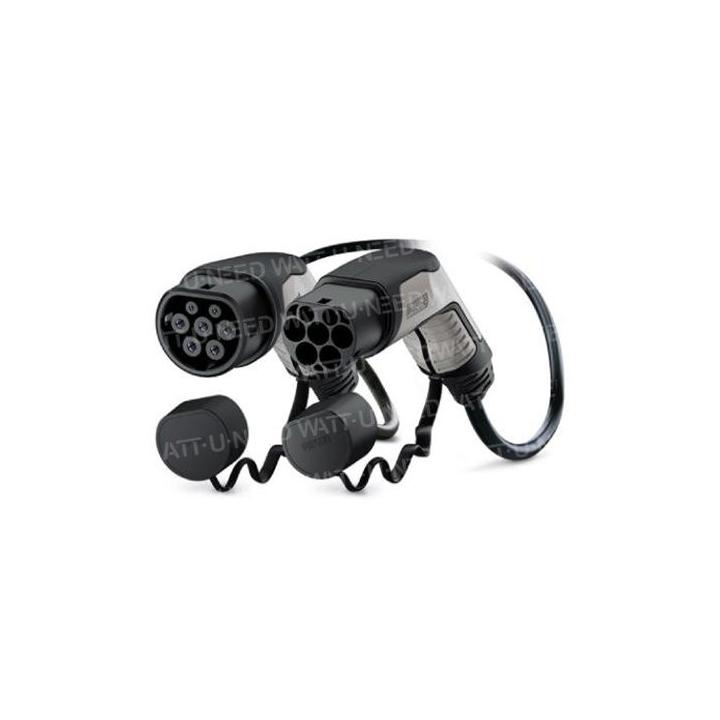

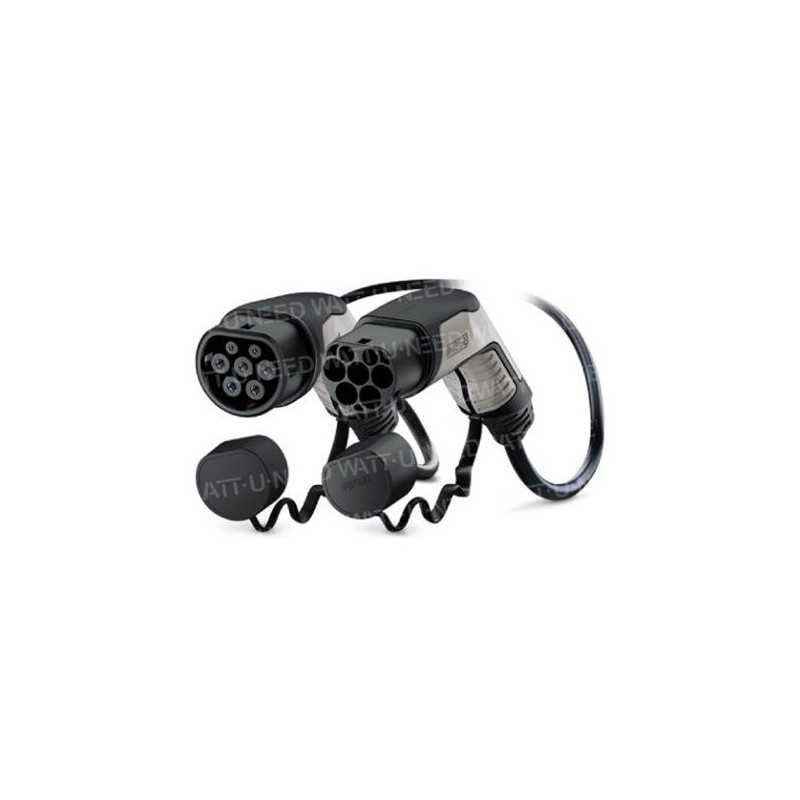

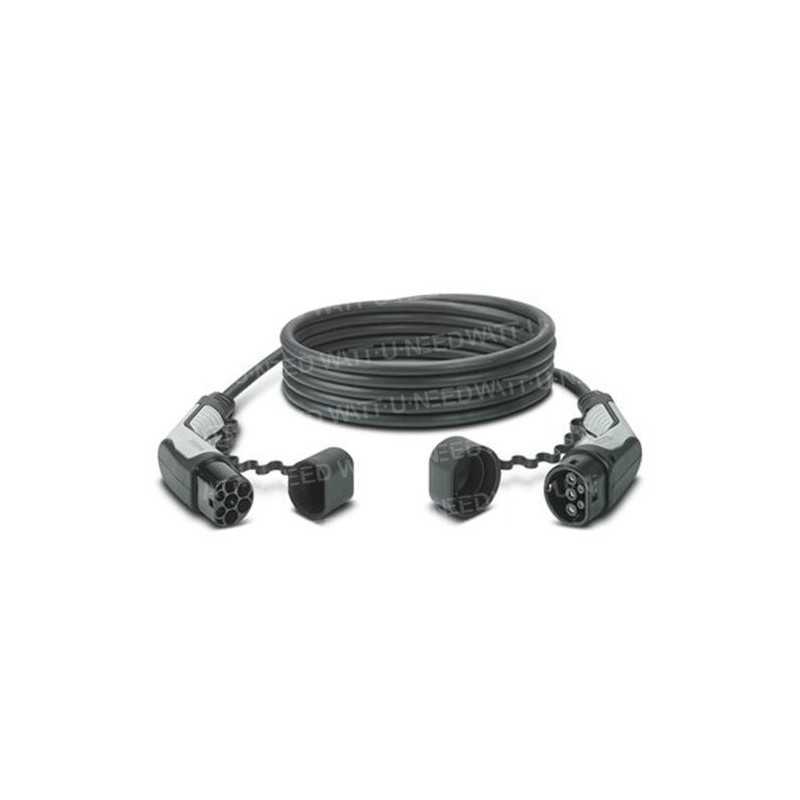

Mobile AC charging cable with vehicle and infrastructure charging connector for alternating current (AC) charging of electric vehicles (EV) with type 2 vehicle inputs, compatible with type 2 infrastructure charging sockets installed on electromobility charging stations (EVSE).

benefits

• Uniform design of all Phoenix Contact vehicle charging connectors and infrastructure charging connectors
• Silver surface of power and signaling contacts
• Design and production in accordance with iatf 16949 and iso 9001 automotive industry standards
• Data on materials available in the IMDS (International Material Data System)
• Easy handling thanks to the ergonomic handle and additional rubber handle component
• Check carried out in accordance with the selected tests of automotive standards LV124, LV214, LV215-2
• Controlled according to EV Ready 37 requirements
• Laser-marked snapping model that complies with DIN EN 17186
• Permanent longitudinal sealing against any water penetration into the cable

schematics

Assigning infrastructure charging connector pins

Assigning vehicle charging connector pins

Definition of terminology

Instructions for use

size

Vehicle charging connector

Infrastructure load connector

Characteristics
