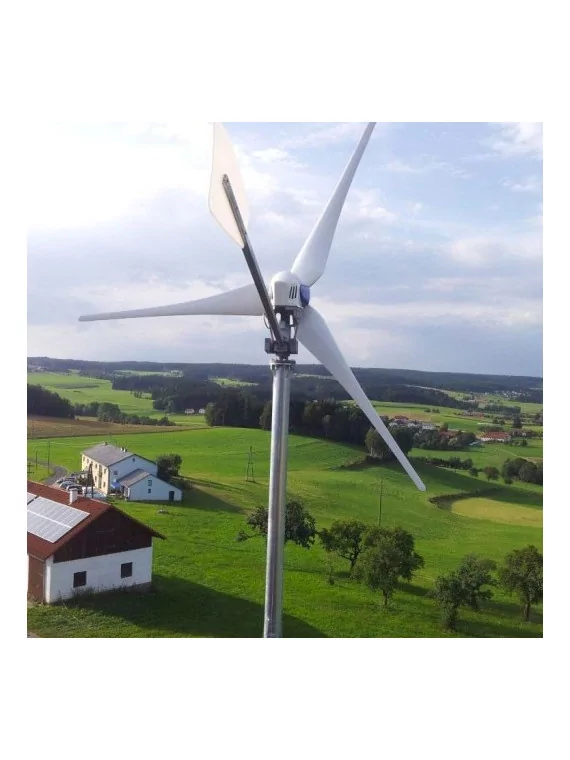

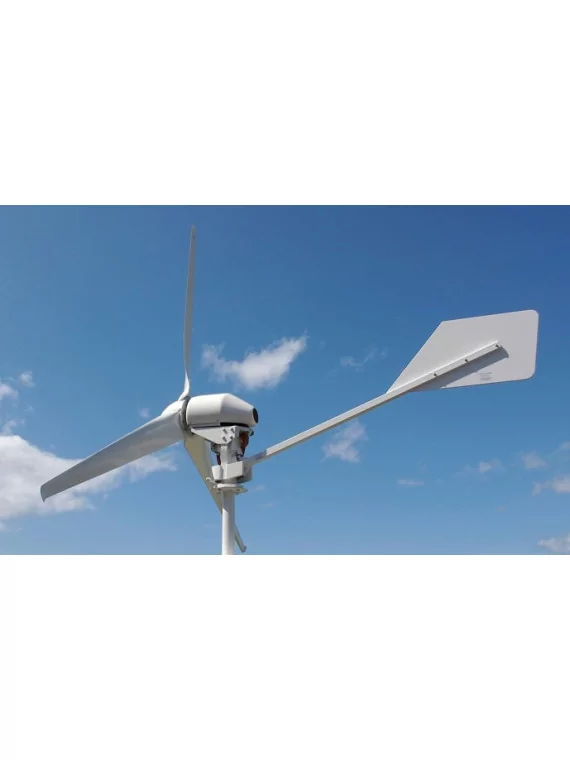

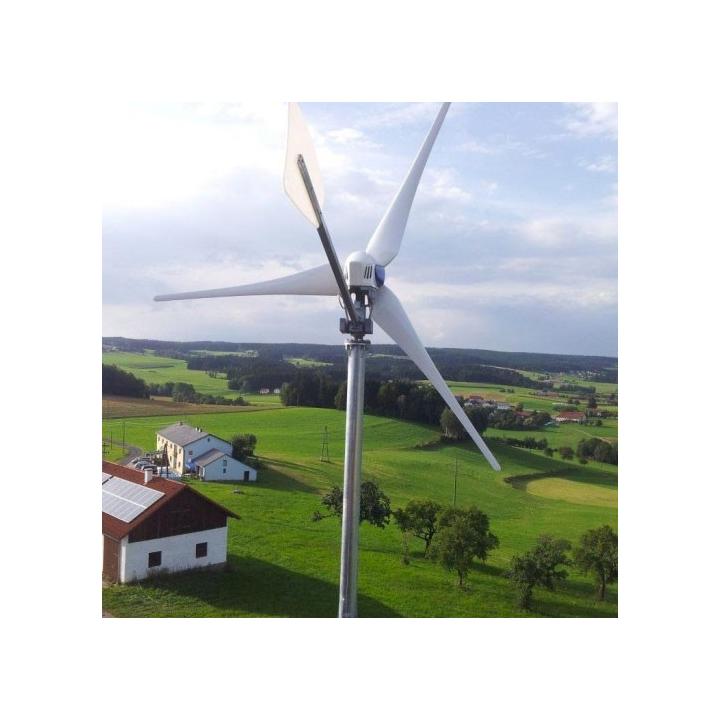

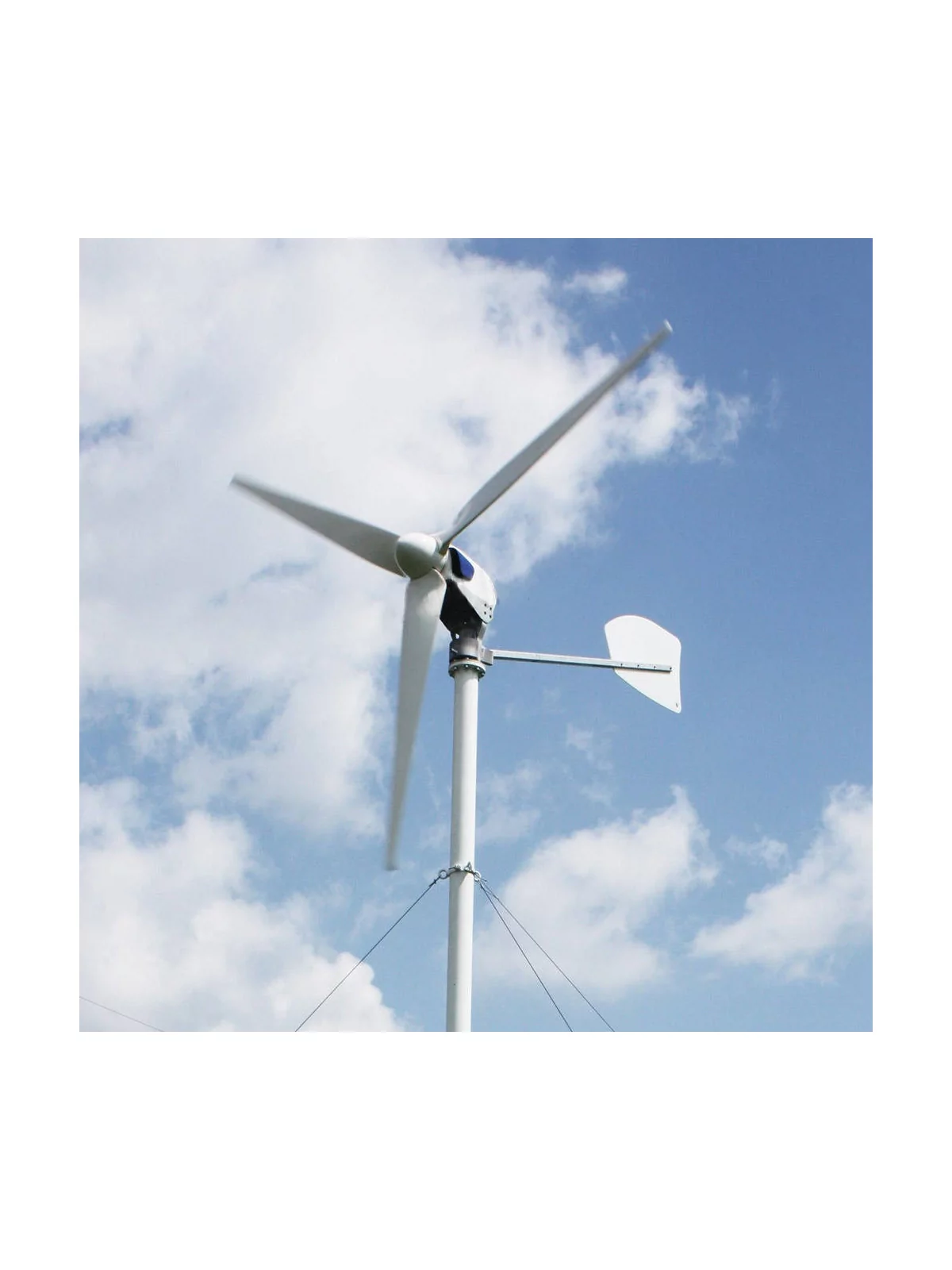

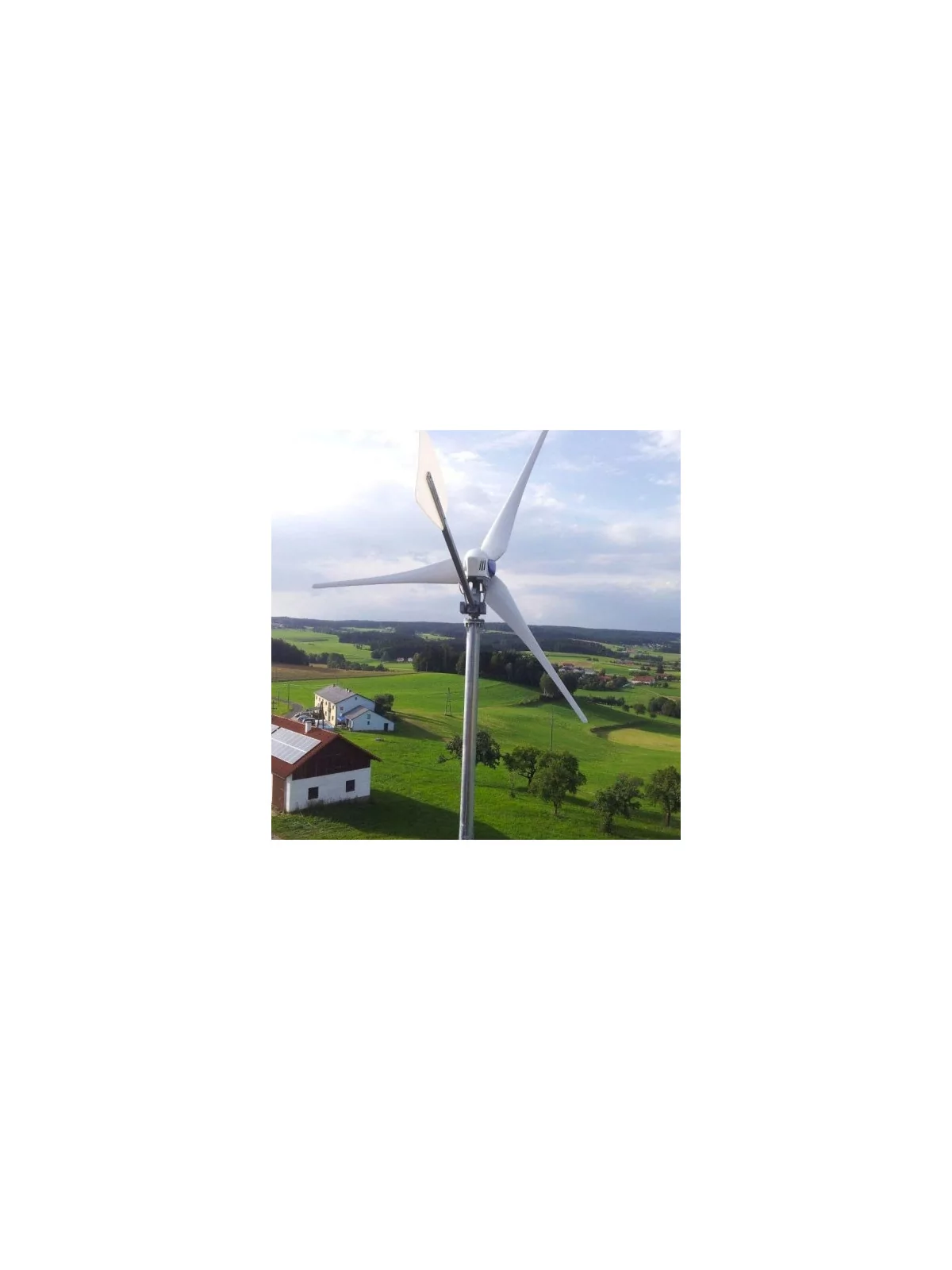

    Wind turbine ANTARIS 3.5 kW connected to the grid
    Wind turbine ANTARIS 3.5 kW connected to the grid
    Wind turbine ANTARIS 3.5 kW connected to the grid
    Wind turbine ANTARIS 3.5 kW connected to the grid
    Wind turbine ANTARIS 3.5 kW connected to the grid
    Wind turbine ANTARIS 3.5 kW connected to the grid
    Wind turbine ANTARIS 3.5 kW connected to the grid

    Wind turbine ANTARIS 3.5 kW connected to the grid

    $15,596.7
    0289
    0768563821486

    The high-performance Antaris 3.5Kw wind turbine is designed in Germany.

    It's perfect for a home installation

    Inverter: basic

    Wind turbine ANTARIS 3.5 kW...

    $15,596.7

    Antaris 3.5 kW: Wind energy at your fingertips

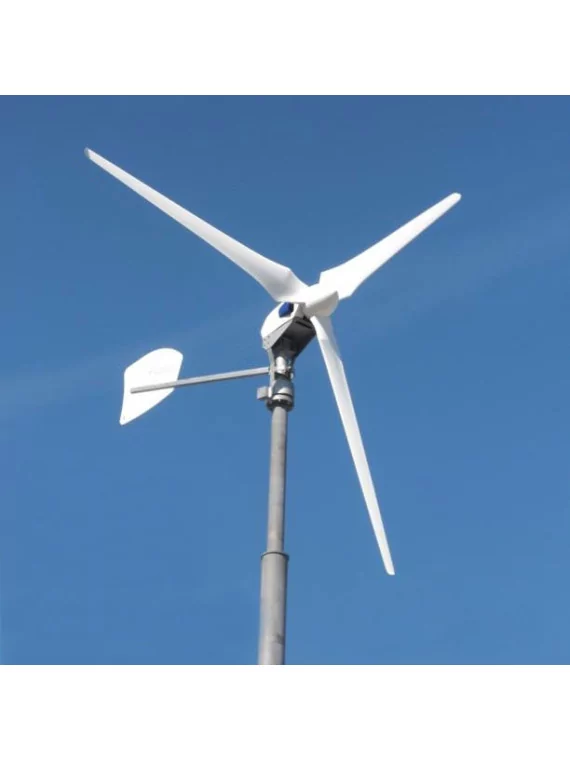

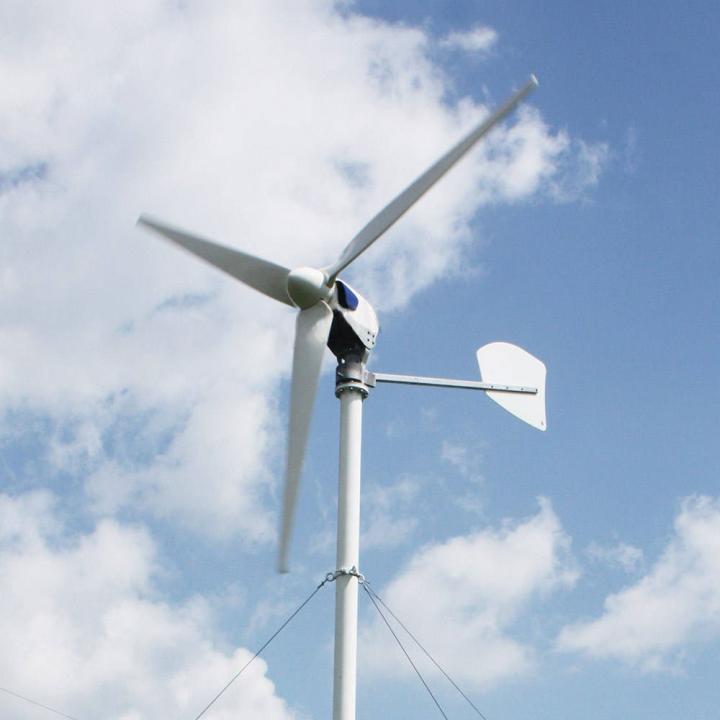

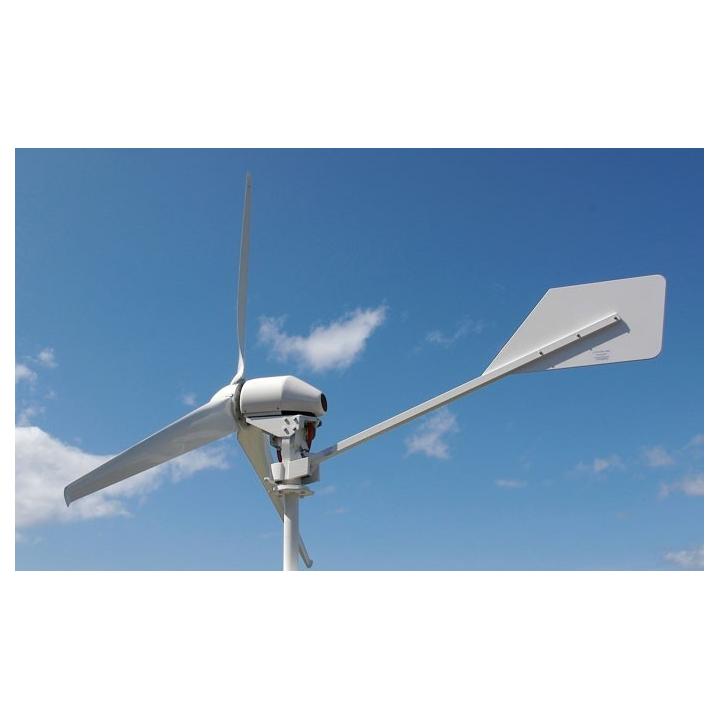

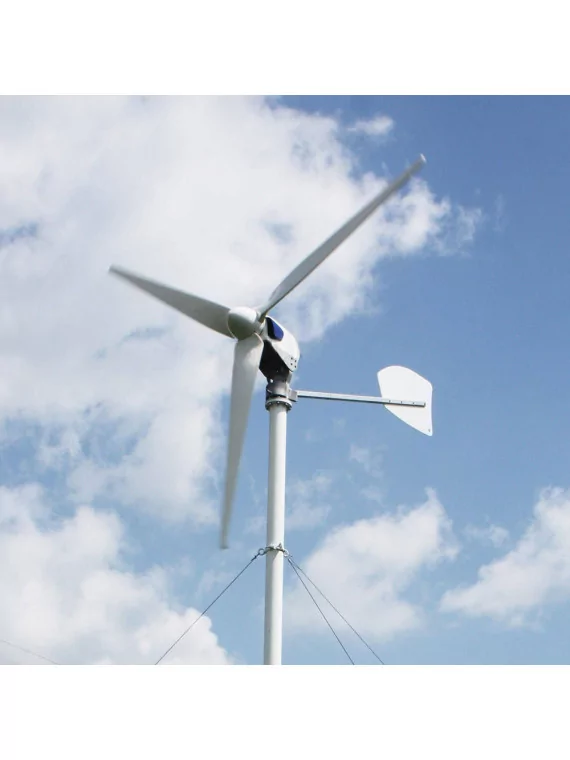

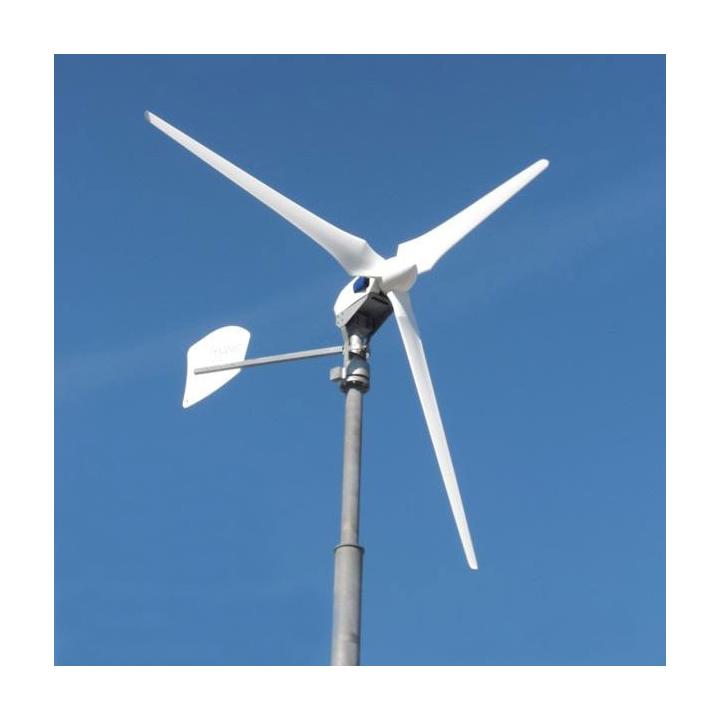

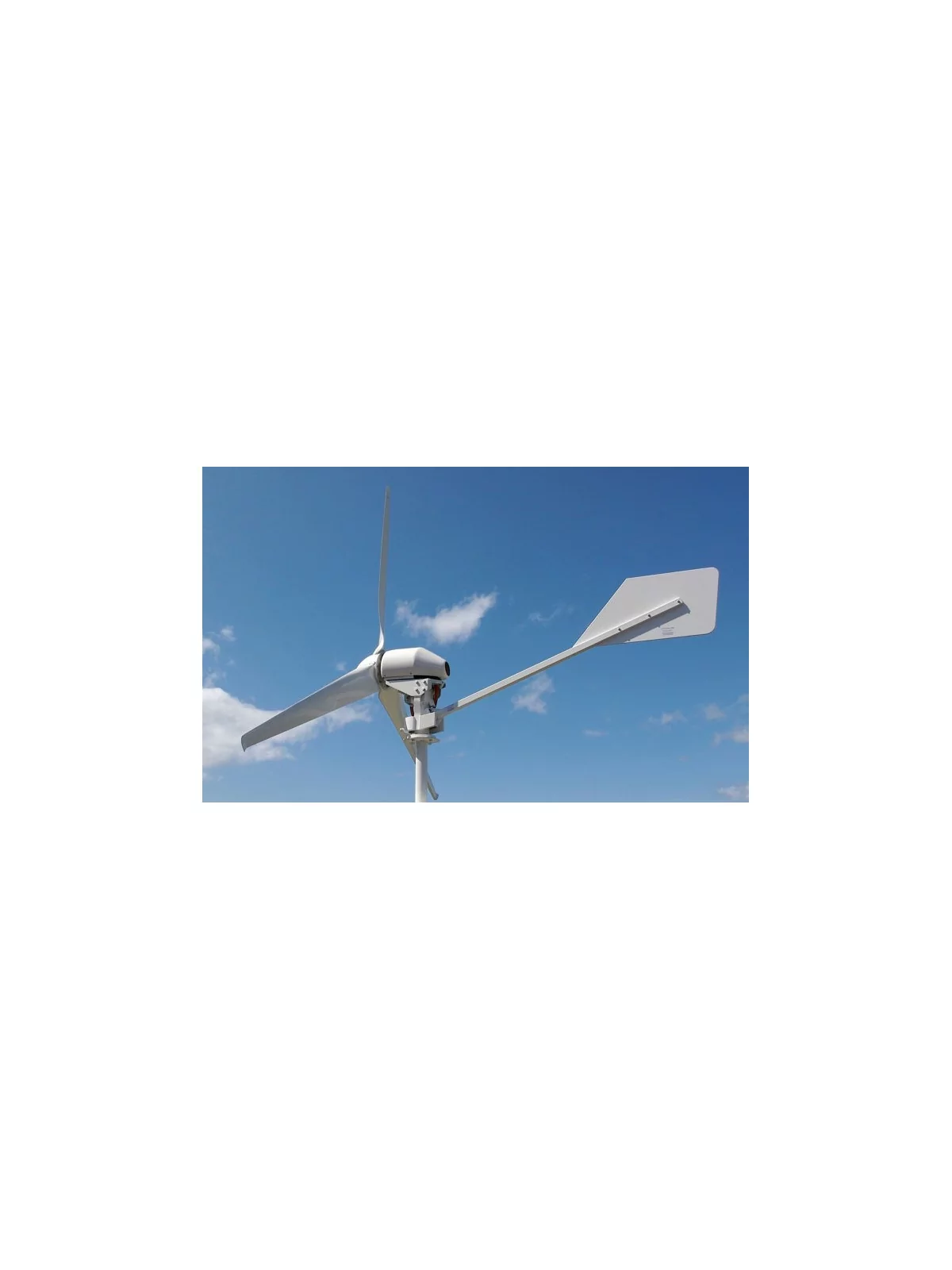

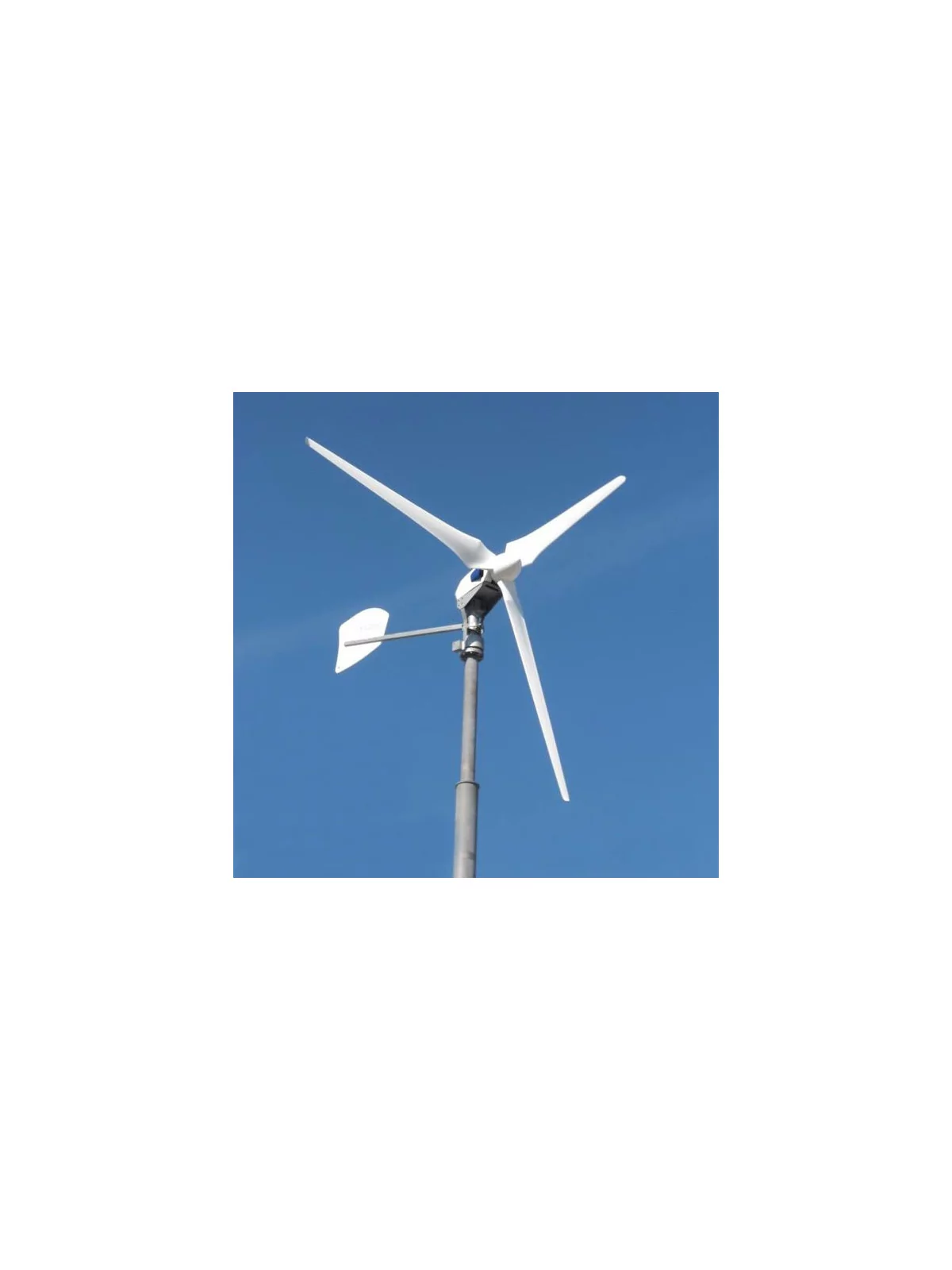

    Domestic wind turbine ANTARIS 3.5 kW

    The Antaris wind turbine is specially adapted to sites inland. It is specially designed for network connection, charging batteries (24VDC / 48 VDC etc.) and powering heating systems. Because of its robust design, the Antaris wind turbine is also suitable for storm-prone locations.



    The rotor blades are laminated by hand and benefit from a computer-designed aerodynamic profile, they are also balanced statically and dynamically. Each blade has an identification number and comes with its appropriate documentation. The highest importance has been to ensure the speed and simplicity of installation of this wind turbine.





    Thanks to its robust and careful design, the Antaris wind turbine has excellent efficiency and is offered at a highly attractive price.  It starts very quickly (starting already at a wind speed of 2.2 m/s) and operates silently (43 dB). This wind turbine can therefore be installed in residential areas.





    The connection to the network requires the use of two inverters programmed specifically to operate with Antaris wind turbines as well as according to local wind conditions. In less windy areas, it is possible to connect the wind turbine to the grid via a single inverter. The inverters come with a declaration of compliance. The ENS (Electronic grid guard system) is integrated into the inverter.







    Technical features



    Generator

    Generator



    • Permanent magnet rotor without brooms and gears. Doesn't require maintenance!
    • NdFeBo permanent magnets very powerful for great efficiency, resists up to 150oC
    • Phase
    • Separate lifter
    • Rotation in both directions
    • Tension 0-1000 VDC
    • Starts production at about 100 t/mn
    • Power: 6000 watts at 380 t/mn and 400V
    • Linear power curve
    • Weight: 31kg
    • Carter aluminum, cooling of the surface and the fastening base
    • Protection IP56

    Rotor



    Rotor
    • Connection hubs with aluminum strap and overpressure plate
    • Stainless steel fitting screws and counter-nuts
    • 3 Carbon rotor blades
    • Computer-designed aerodynamic profile
    • Noise reduction on the end of the blades
    • 4m in diameter
    • Blade weight: 3.3 kg
    • Dynamically balanced
    • Anti-clockwise rotational sense
    • Rotation speed up to 300 t/min
    • GRP spinner cap
    • The colour of the rotor of your choice

    Chassis



    • Weather-resistant HDPE Girouette
    • Support element: stainless steel square tube
    • All threaded fittings are made of stainless steel and equipped with nuts
    • Steel support for the generator, configured for plug-in in the azimut bearing frame, fully galvanized
    • Protected by a patented rotor-blade positioning system
    • Mast adapter with bridle connector (114.3 mm tube)



    Storm protection



    • Switching the pale rotor to the "helicopter" position
    • Electronic control of turbines

    Control cabinet



    • Control system with voltage monitor
    • Electronic control of turbines with regulator
    • Connector protections against polarity inversions
    • Controlling the phases of the alternator during the turbine mode
    • Emergency shutdown switch
    • Key switch re-initializer (removable)
    • 2x 3 kW braking resistance







    Power Curvewind turbine operating diagram



    Inverter Smart wind 5kWInverter Smart wind 5kW



    Three-phase power converter for small wind turbines



    MODERN - FLEXIBLE - POWERFUL



    Max. 20 kW wind turbine charge (SW-10)
    Three-phase network coupling with 10 kW (SW-10)
    Flexible and intelligent management of clean power, heating, battery and discharge charges through 4 separate CC energy outlets
    Energy meter for power and heating
    Reactive power control
    Battery buffer interface - optional



    Compact



    Direct connection of the particle generator without additional equipment
    Wide range of input voltage for particle generators
    Compact case design with separate aperture connection area
    Passive convection cooling on a wide range of performance
    Integrated network/system protection (NA protection according to VDE AR-N 4105)



    PROFITABLE - SURE



    Built-in control features for a wind turbine Intelligent and finely tuned characteristic curve for optimal wind use
    Characteristic curve freely selectable depending on voltage or speed
    Many monitoring functions, such as wind speed or speed
    Switch to stop the KWEA with other safety features



    Communicative



    Built-in graphics display
    Built-in web server
    Smart!wind Explorer PC's convenient use and setting interface



    APPLICATION AREAS



    Small wind turbines
    Small hydroelectric plants
    Mini-cogeneration




    Characteristics



    General dataSW-5.5
    Size656 x 472 x 234 mm
    Weight42 kg
    Protective classIP54
    CoolingPassive air/fan controlled according to demand
    How it works in the temperature range-25 degrees Celsius ... -40 degrees Fahrenheit - automatic decommissioning
    Global efficiencyNo more than 94%.
    Clean consumption18 W - Waiting
    83 W - Active offer
    Entry generator side
    Generator typeexcited constantly / 3 phases
    Generator-side lifterB6
    Entry voltage range (driver-driver)60...500 VLL
    Entry current (nominal value)180 ... 500 VLL - for a total power of 5.5 kW
    Entry power600 VLL - maximum
    Maximum value limited by load resistance20 A - face value
    Frequency of entry40 A - max. 5 s
    Monitoring generators12 kW - face value
    24 kW - max. 5 s
    Exit sector side0 Hz ... 150 Hz
    Inverter sector sideIsolation control
    Number of phasesTemperature control
    Output power (nominal value)Speed control
    Exit tension
    Inverter sector sideIGBT B6
    Number of phases3
    Output power (nominal value)5.5 kW
    Exit tension400 VLL - face value
     318 ... 460 VLL - eligible reach
    Outfed current (nominal value)0 ... 8 A
    Exit frequency0 Hz ... 150 Hz
    Separation conceptwithout transformer - no galvanic insulation
    Current distortion factor3%
    Power factor - cosregulated to 1 - regulation according to VDE AR-N 4105
    Resistance to short circuitsCurrent control
    Network/system protection - ENSVDE AR-N 4105
