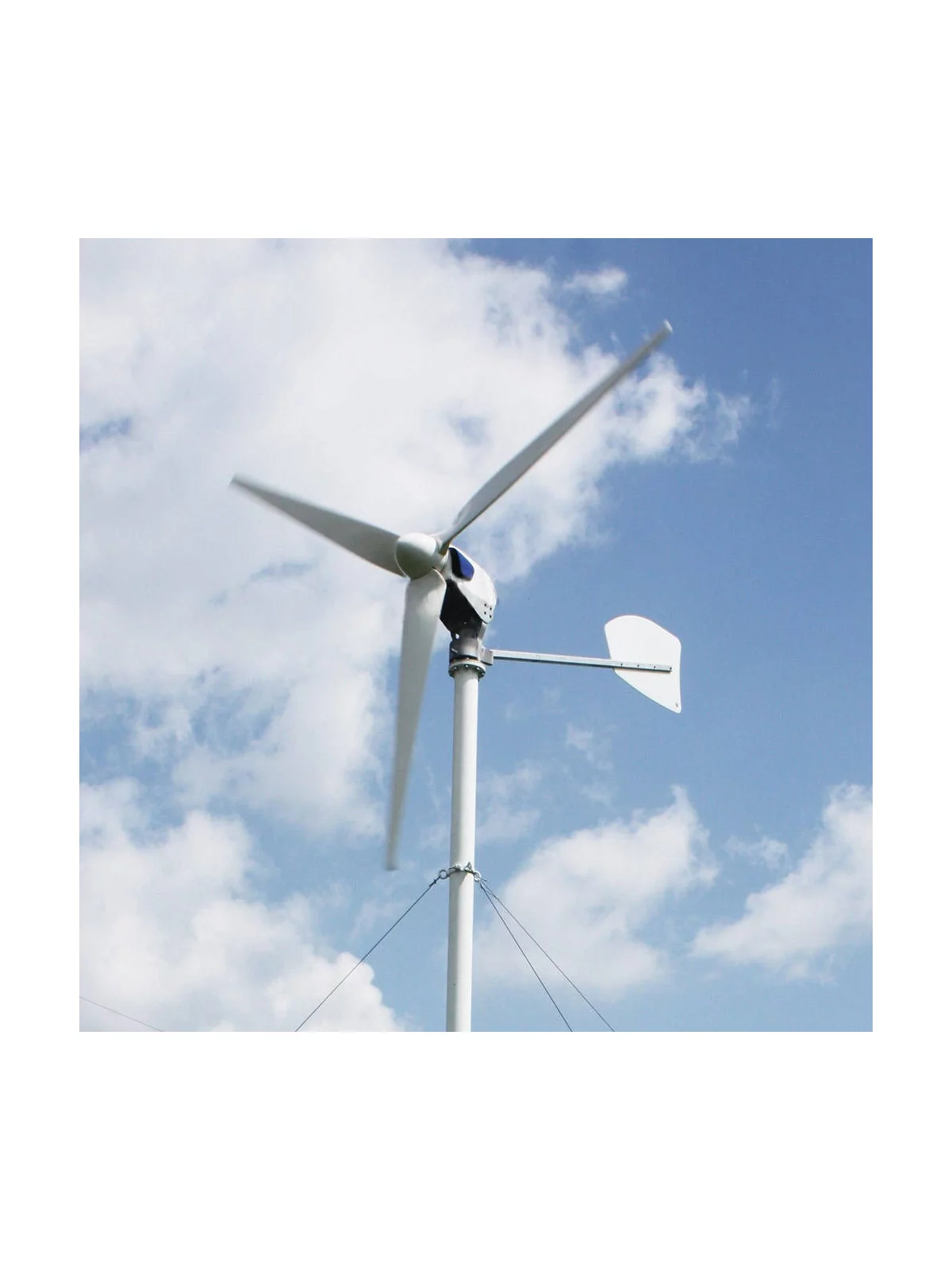

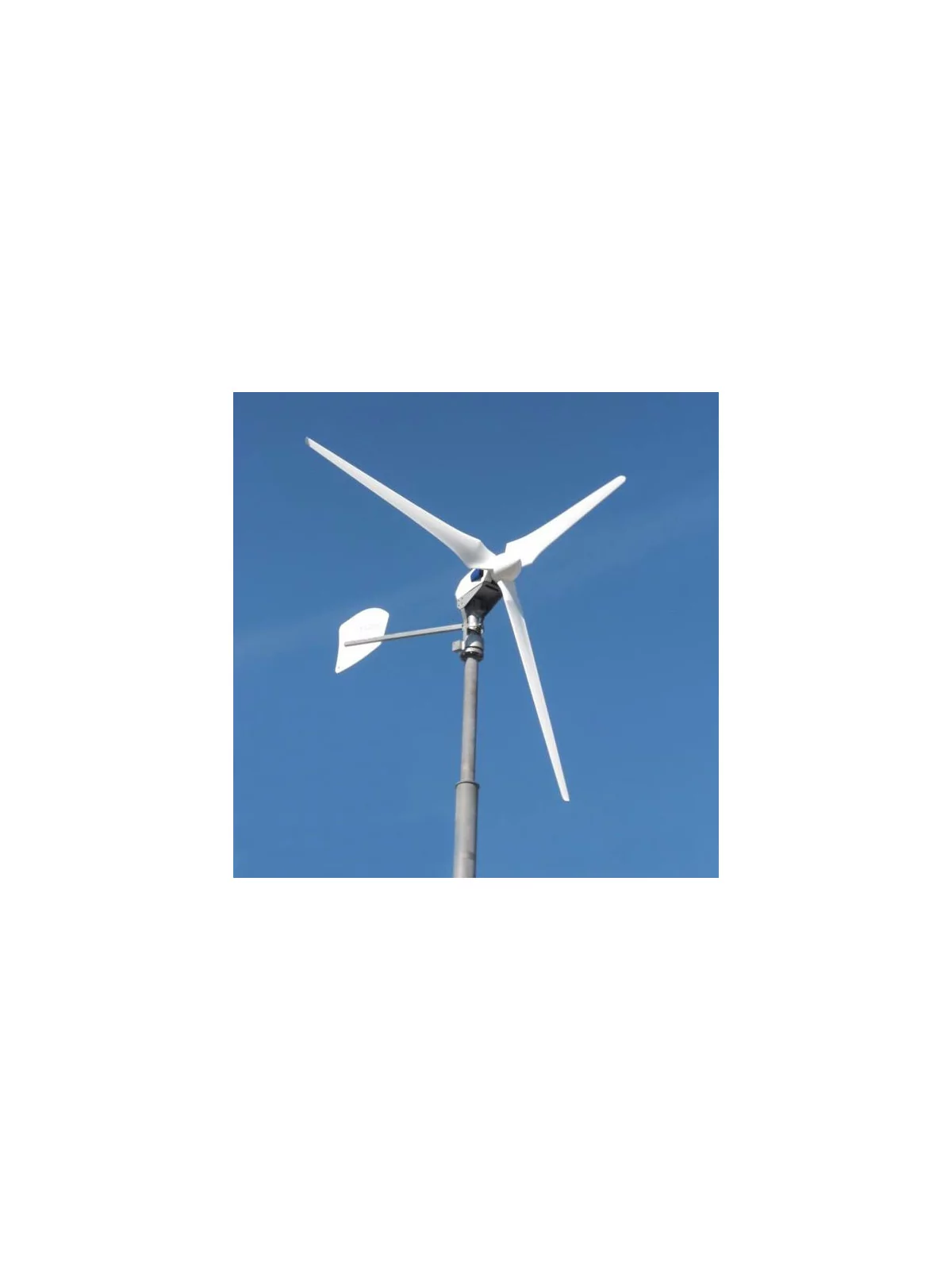

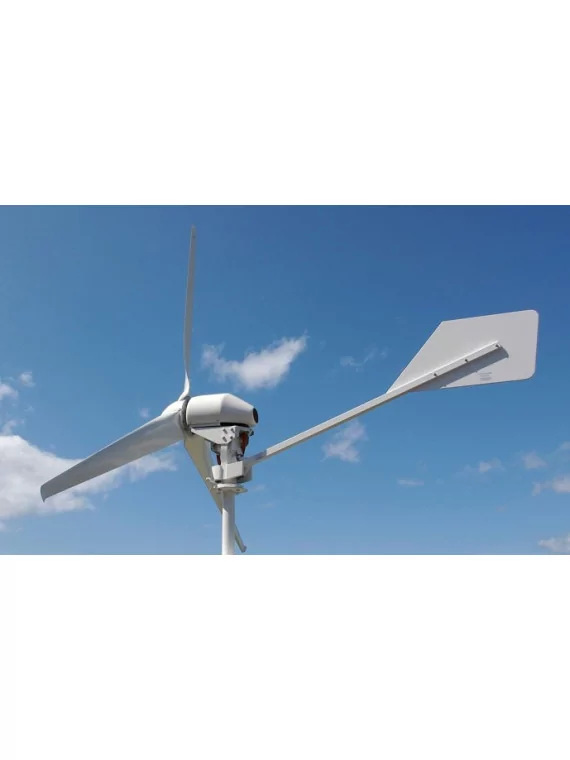

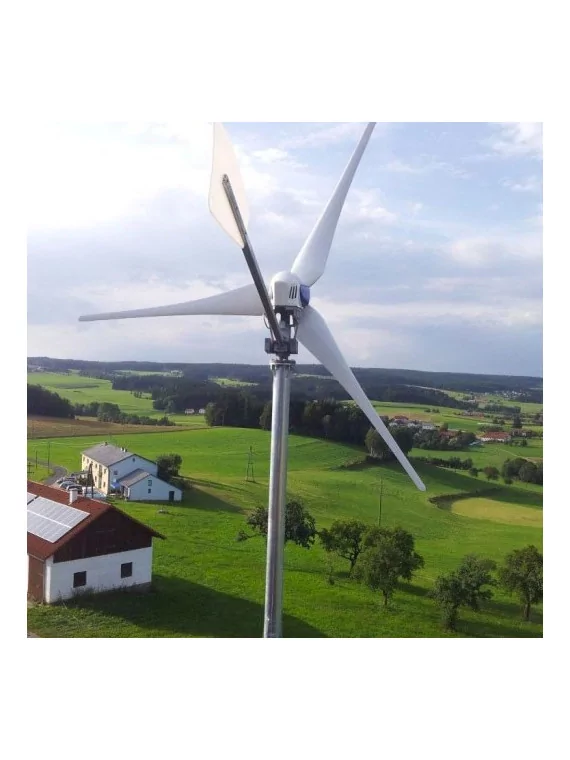

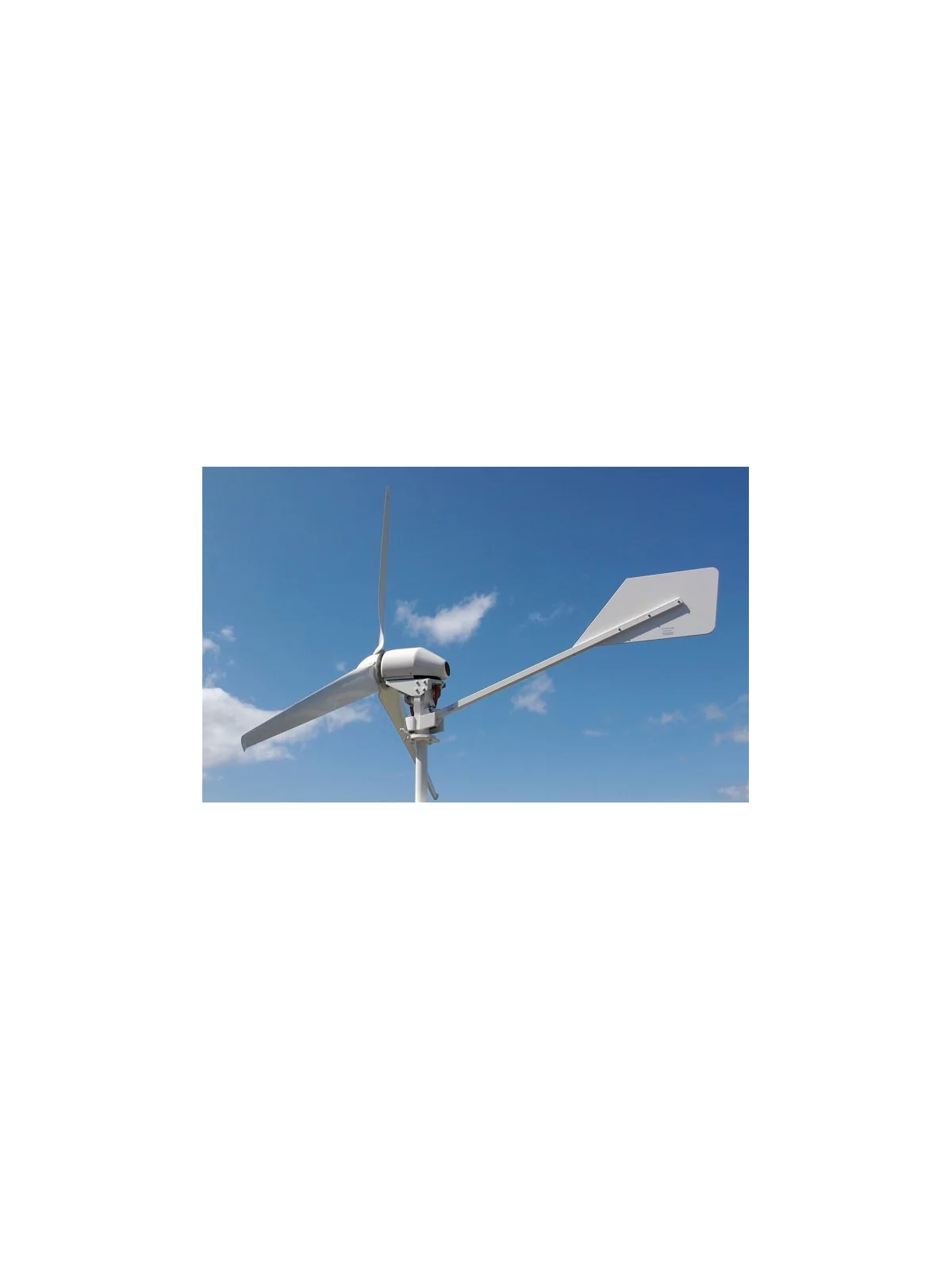

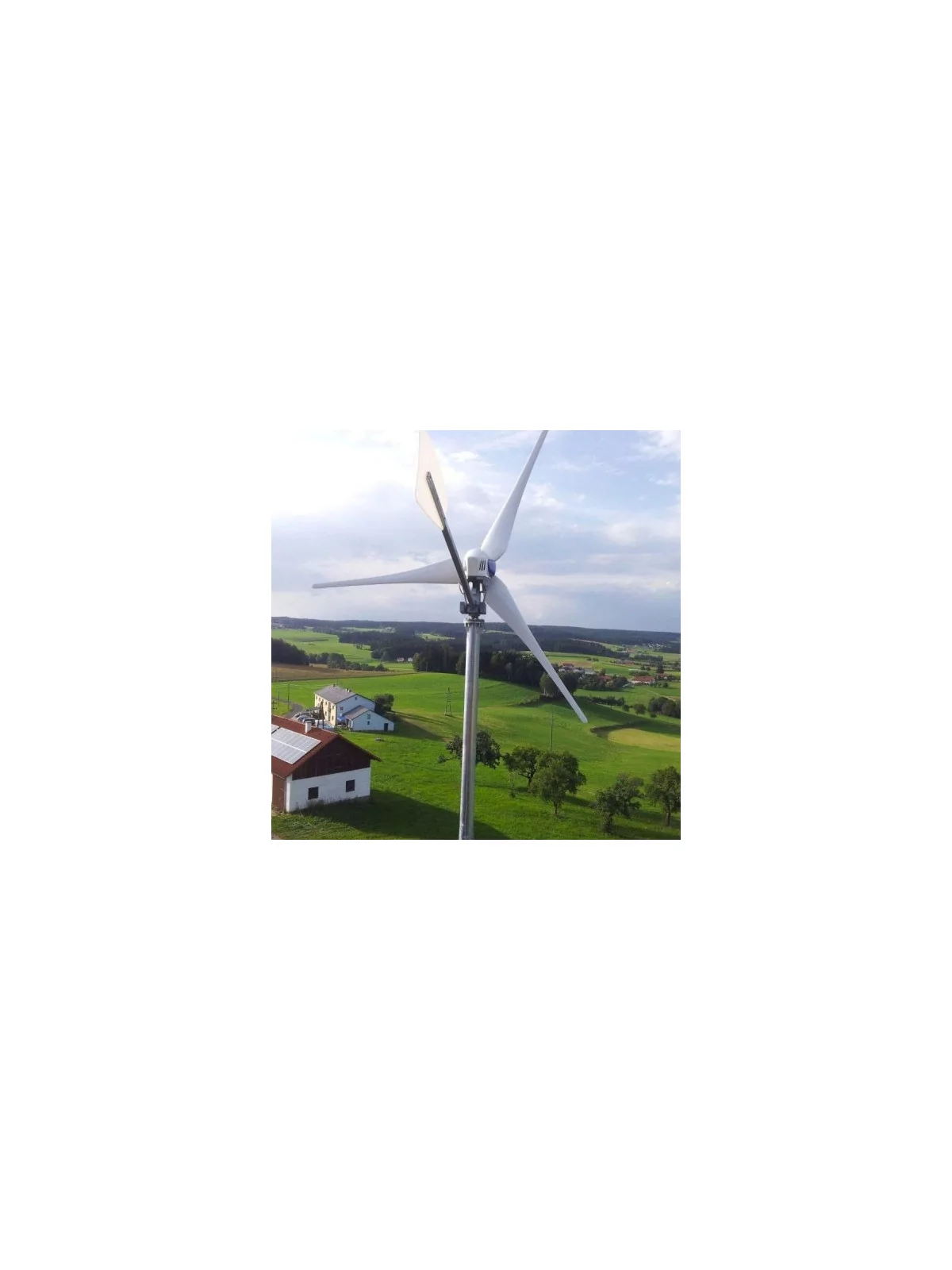

    Wind turbine ANTARIS 2.5 kW connected to the grid

    €16,513.48
    Tax included
    0288
    0712971126039

    The high-performance Antaris 2.5Kw wind turbine is designed in Germany.

    It's perfect for a home installation

    100% secure payments
    Inverter: basic

    Wind turbine ANTARIS 2.5 kW...

    €16,513.48

    Wind turbine ANTARIS 2.5 kW connected to the grid



    Wind turbine ANTARIS 2.5 kW

    The Antaris wind turbine is specially adapted to sites inland. It is specially designed for network connection, charging batteries (24VDC / 48 VDC etc.) and powering heating systems. Because of its robust design, the Antaris wind turbine is also suitable for storm-prone locations.

    The rotor blades are laminated by hand and benefit from a computer-designed aerodynamic profile, they are also balanced statically and dynamically. Each blade has an identification number and comes with its appropriate documentation. The highest importance has been to ensure the speed and simplicity of installation of this wind turbine.

    Thanks to its robust and careful design, the Antaris wind turbine has excellent efficiency and is offered at a highly attractive price.  It starts very quickly (starting already at a wind speed of 2.2 m/s) and operates silently (43 dB). This wind turbine can therefore be installed in residential areas.

    Connection to the grid requires the use of two inverters programmed specifically to operate with Antaris wind turbines as well as according to local wind conditions. In less windy areas, it is possible to connect the wind turbine to the grid via a single inverter. The inverters come with a declaration of compliance. The ENS (Electronic grid guard system) is integrated into the inverter.


    Technical features



    Generic

    Generic



    • Permanent magnet rotor without brooms and gears. Doesn't require maintenance!
    • NdFeBo permanent magnets very powerful for great efficiency, resists up to 150°C
    • Phase
    • Separate lifter
    • Rotation in both directions
    • Tension 0-400 V
    • Starts production at about 145 t/mn
    • Power: 2,700 watts at 450 t/mn and 330V
    • Linear power curve
    • Weight: 30kg
    • Carter aluminum, cooling of the surface and the fastening base
    • Protection IP56

    Rotor



    Rotor
    • Connection hubs with aluminum strap and overpressure plate
    • Stainless steel fitting screws and counter-nuts
    • Fiberglass rotor blades and laminated carbon fiber
    • Computer-designed aerodynamic profile
    • Noise reduction on the end of the blades
    • 3m in diameter (2.35m optional)
    • Blade weight: 3.2 kg
    • Dynamically balanced
    • Anti-clockwise rotational sense
    • Rotation speed up to 450 t/mn
    • GRP spinner cap
    • The colour of the rotor of your choice

    Chassis



    • Weather-resistant HDPE Girouette
    • Support Element: Stainless Steel Square Tube
    • All threaded fittings are made of stainless steel and equipped with nuts
    • Steel support for the generator, configured for plug-in in the azimut bearing frame, fully galvanized
    • Protected by a patented rotor-blade positioning system
    • Mast adapter with bridle connector (114.3 mm tube)

    Storm protection



    • Switching the pale rotor to the "helicopter" position
    • Electronic control of turbines

    Control cabinet



    • Control system with voltage monitor
    • Electronic control of turbines with regulator
    • Connector protections against polarity inversions
    • Controlling the phases of the alternator during the turbine mode
    • Emergency shutdown switch
    • Key switch re-initializer (removable)
    • 3 kW braking resistance



    Power curvewind turbine operating diagram

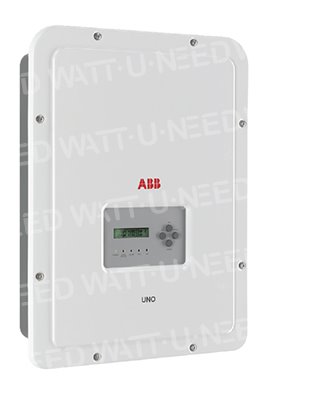

    ABB chain inverters - UNO-DM-3.3kWABB chain inverters - UNO-DM-3.3kW


    Unique format


    This lightweight and compact new solution, based on ABB's engineering and quality principles, is based on technological choices optimized for facilities characterized by different orientations.
    Regardless of their power, all models have the same dimensions, record maximum performance in a small space, and have a dual MPPT (Maximum Power Point Tracker) system.




    Easy to install, quick to put into service


    With wireless communication features and plug-and-play connectors on the DC and AC side, the inverter installs easily, quickly and safely without being
    necessary to open its front face. The simplified commissioning routine frees you from the long configuration processes and thus reduces installation costs and times.
    The user experience is total thanks to the built-in interface that allows access to features (setting up the advanced configuration of the inverter, dynamic control of the injection of electricity into the network, charge management ...) from all WLAN devices (smartphone, tablet or PC).




    Smart features


    Integrated data recording and real-time data transfer over the Internet (via Ethernet or WLAN) enable customers to optimize their use of the Aurora Vision remote monitoring system®
    . The comprehensive communication interface (WLAN, Ethernet, RS485) combined with SunSpec (TCP/RTU) compliance ensures simplified and immediate integration with other manufacturers' devices within buildings and smart grids.
    The inverter is ready for the self-consumption market thanks to a dynamic control of the injection of electricity into the grid allowing the "Zero injection".



    Key features


    WiFi communication
    Simplified commissioning
    Zero injection mode for self-consumption (with optional meter)
    WebUI user interface
    Ready for integration with buildings and smart grids
    Modbus SunSpec Protocol (TCP/RTU)
    Remote monitoring and update via Aurora Vision®
    Two DC entries (2 MPPT)



    ModelUNO-DM-3.3-TL-PLUS
    As a starter
    Absolute maximum DC input voltage (Vmax,abs)600v
    Start-up DC input voltage (Vstart)200V (aj.120.... 350V)
    DC operating input voltage range (Vdcmin... Vdcmax)0.7 x Vstart ... 580V (min90V)
    DC rated input voltage (Vdcr)360V
    Nominal DC Input Power (Pdcr)3500W
    Number of independent MPPT200V (aj.120.... 350V)
    Maximum DC input power for each MPPT (PMPPTmax)2000W
    Maximum entry DC voltage with parallel MPPT configuration at Pacr170...530V
    DC power limitation with parallel MPPT configurationLinear decommissioning of the maxi. At Zero [530V-VMPPT-580V]
    DC power limitation for each MPPT with independent MPPT configuration at Pacr, example of maximum imbalance2,000 W [200 V-V-VMPPT-530 V]
    The other channel:
    Pdcr-2000 W
    [112 V-V-VMPPT-530 V
    Maximum DC Input Intensity (Idcmax) / for each MPPT (IMPPTmax)20.0 / 10.0
    Maximum intensity of short-circuit entry for each MPPT12.5 / 25.0 A
    Number of pairs of DC entries for each MPPT12.5 / 25.0 A
    Dc Connection Type 1)Fast photovoltaic connector
