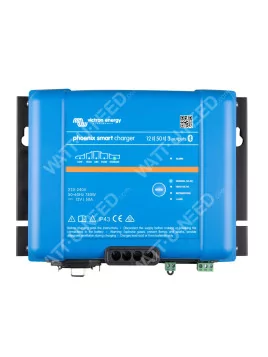

"Victron Phoenix Smart IP43 charger
Bluetooth Smart enabled
Any smartphone, tablet or other device with Bluetooth enabled can be used to monitor the ch argeur, change settings and update it if new software features are available.

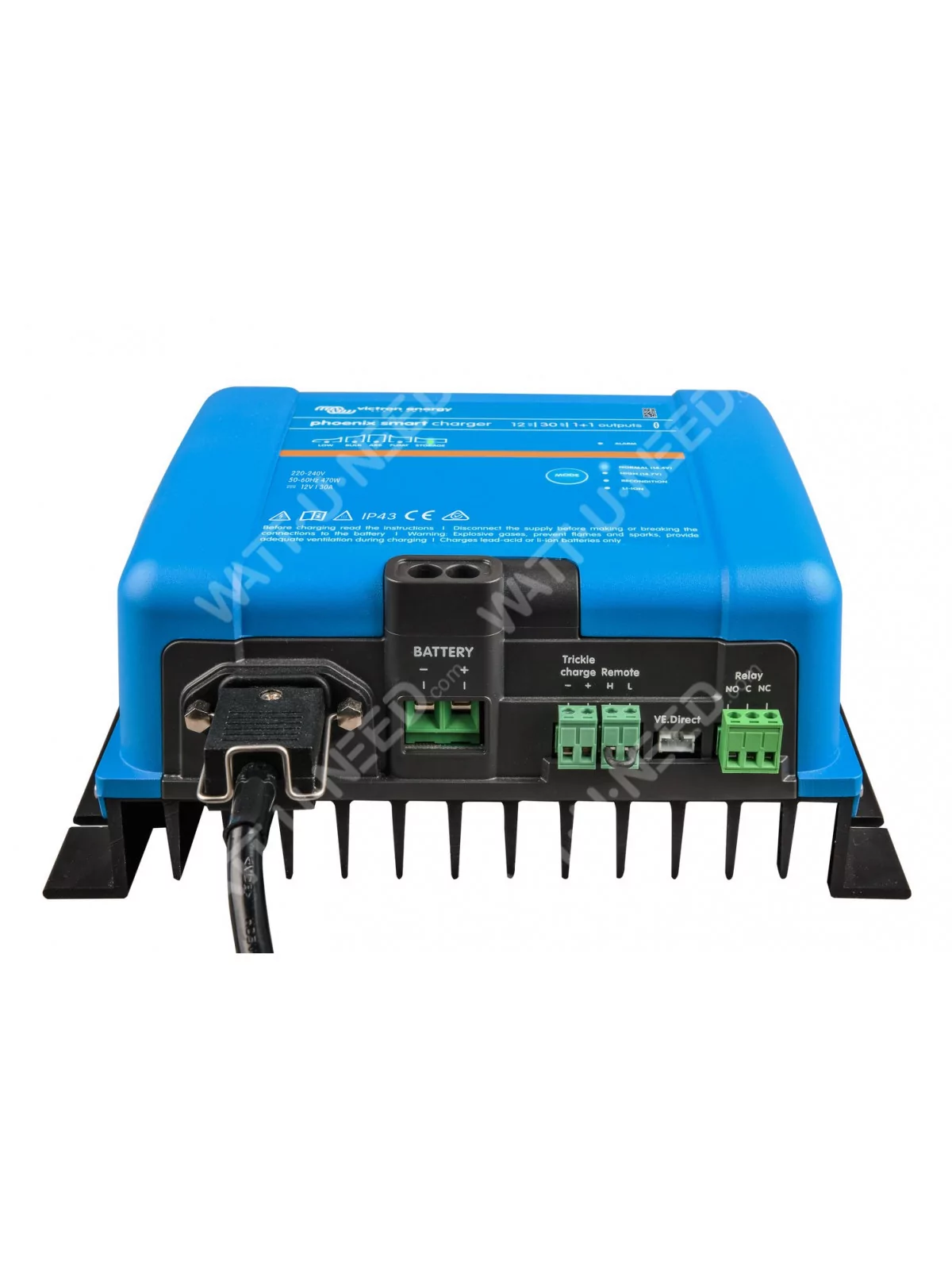

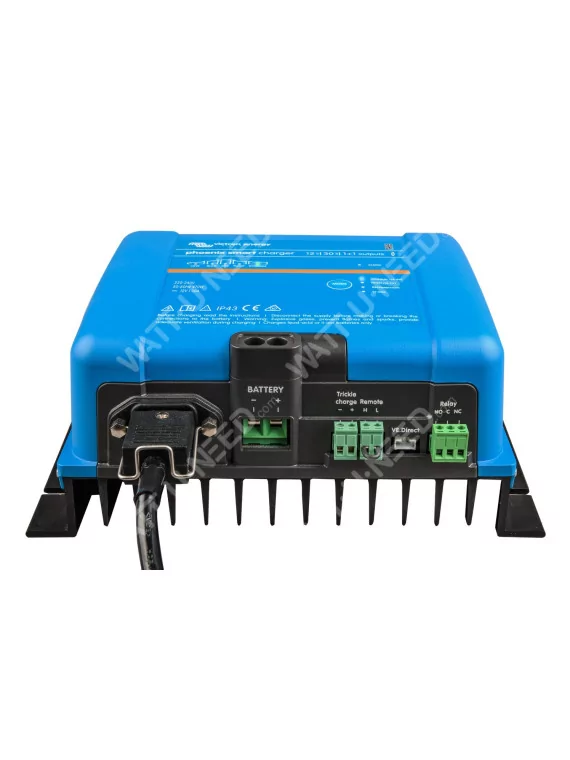

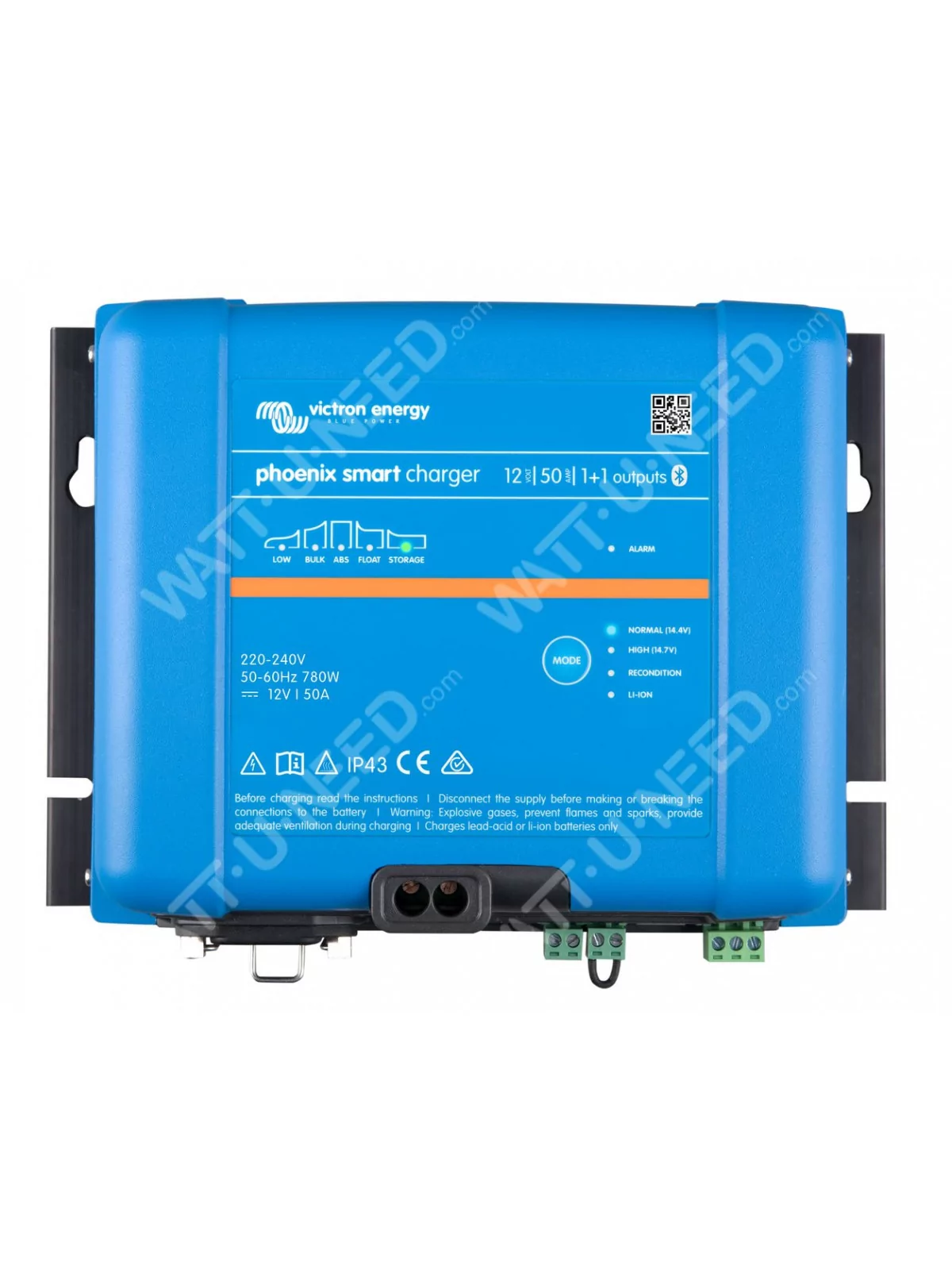

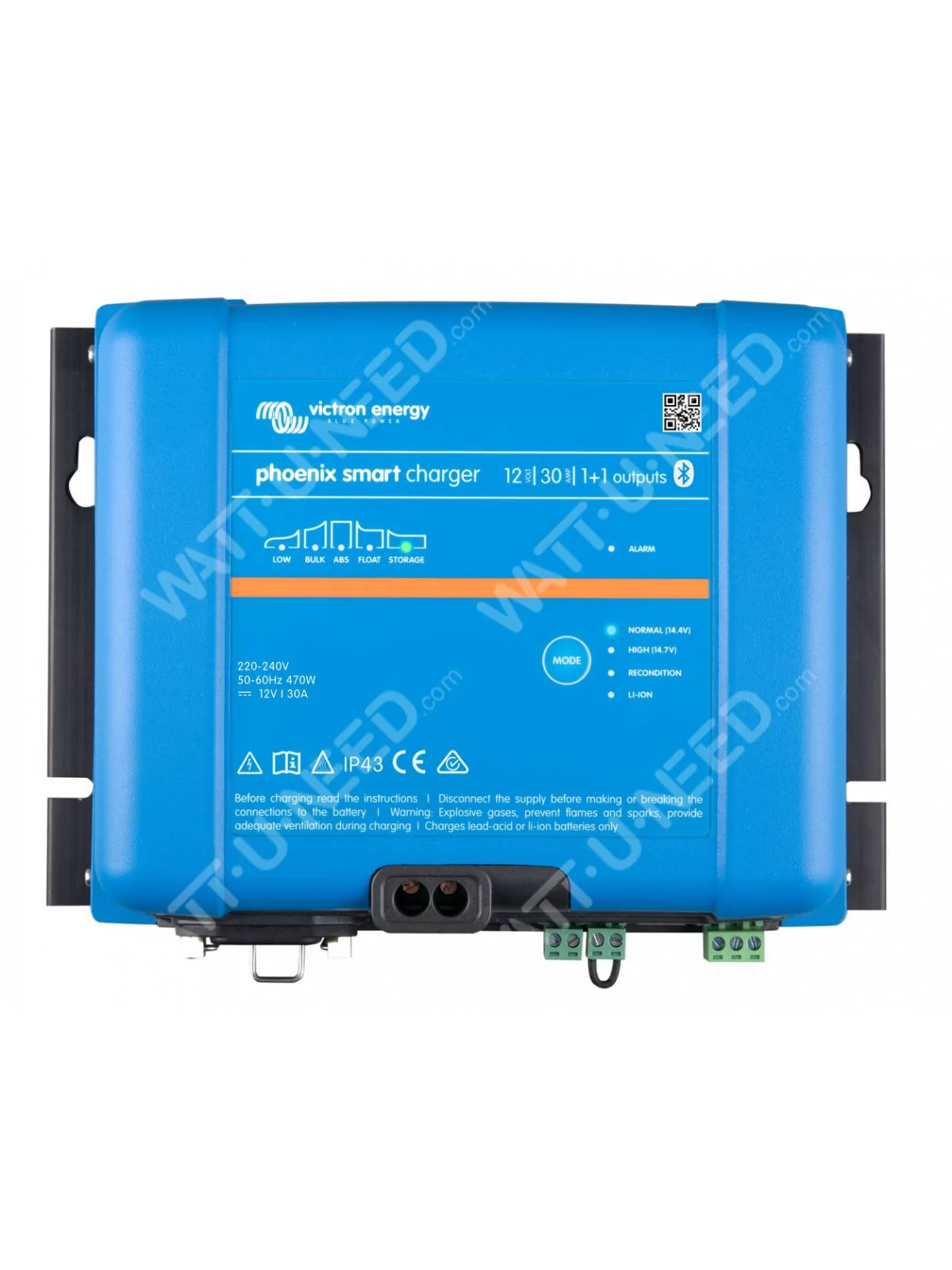

Phoenix Smart (1+1): two outputs for charging 2 battery banks
Designed for maintenance of a starter battery, the second output is limited to around 3 amps at a slightly lower voltage.

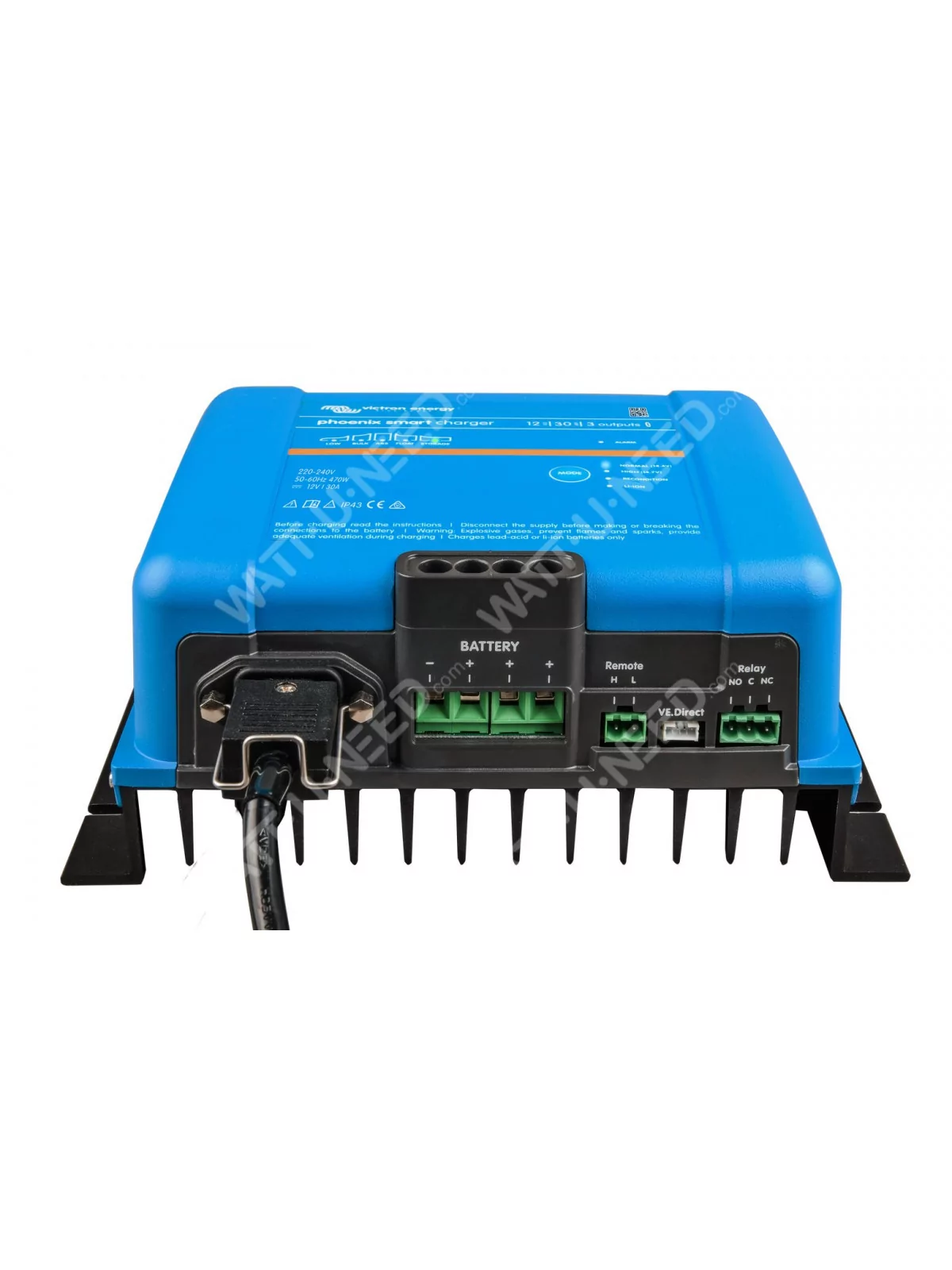

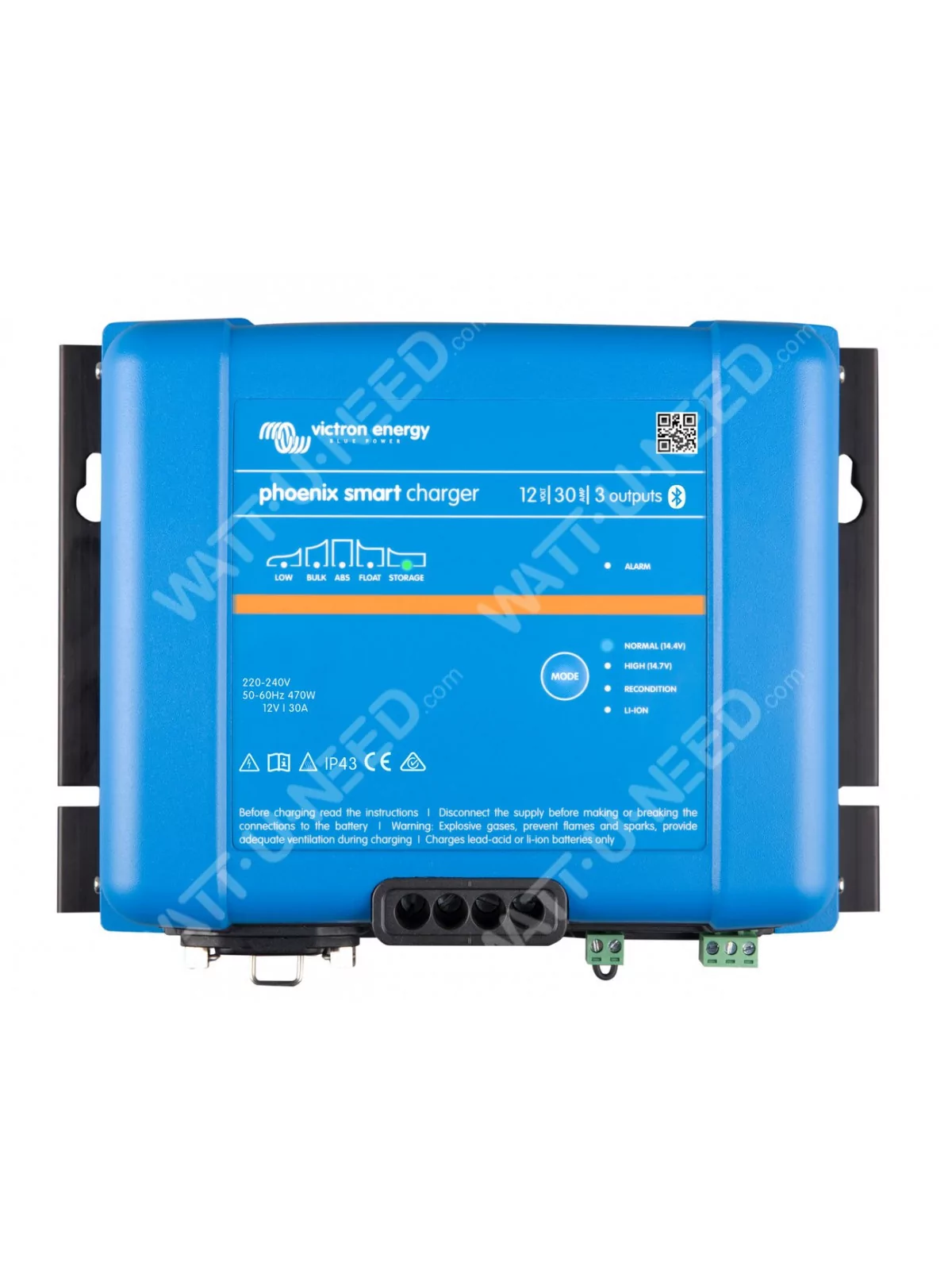

Phoenix Smart (3): three complete current outputs to charge 3 battery banks
All outputs can supply the full rated output current.
Automatic voltage compensation
The charger compensates for voltage drops on the DC wiring by slightly increasing the output voltage if the DC current increases. Please refer to the manual for further details.
The right amount of charge: variable absorption time
When the battery is under little load (e.g. on a boat connected to the quay), the absorption charge phase is shortened to avoid overcharging. After a deep discharge, the absorption time is automatically increased to ensure that the battery is fully recharged.
Preventing damage due to gassing: BatterySafe mode
If, to recharge a battery quickly, a high charging power is combined with a high absorption voltage, the Phoenix charger will prevent deterioration due to excessive gassing by automatically limiting voltage progression, as soon as the gassing voltage has been reached.
Less maintenance and ageing when the battery is not in use: Storage Mode
Storage mode is activated when the battery has not been used for 24 hours. In standby mode, float voltage is reduced to 2.2 V/cell (13.2 V for a 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week, the voltage is raised to absorption level to "equalize" the battery. This function prevents electrolyte stratification and sulfation, major causes of premature battery ageing.
Can also charge lithium-ion batteries (LiFePO4)
An On-Off charger control function can be implemented by connecting a relay or an open-collector optocoupler output from a lithium-ion BMS to the remote control port. Alternatively, full voltage and current control can be performed via Bluetooth.
Remote On/Off
The system's remote on/off has two terminals: the remote H terminal, and the remote L terminal. A remote on/off switch or relay contact can be connected between terminals H and L. Alternatively, terminal H can be pulled up, or terminal L pulled down. For further details, please refer to the manual.
VE.Direct interface
For wired data connection to a Color Control panel, PC or other devices. Please refer to the VictronConnect application in the Downloads/Software section of our website).
Load curves
Specifications
| Charger Phoenix Smart IP43 |
12 V, 2 outputs - 12/30(1+1) / 12/50(1+1) |
12 V, 3 outputs - 12/30(3) / 12/50(3 |
| 24 V, 2 outputs - / 24/25(1+1) |
24 V, 3 outputs - 24/16(3) / 24/25(3 |
| Input voltage |
230 VAC (range: |
| 210-250V) |
| DC supply voltage range |
290 - 575 VDC |
| Absorbed return current |
AC disconnected: <0.1 mA AC connected and remote charger switch-off: <6 mA |
| No-load power consumption |
| Efficiency |
12/30 : |
| 94% - 12/50 : 92% |
12/30:94% - 12/50 : 92% |
94,00% |
94,00% |
| "Absorption" charging voltage |
Normal: 14.4 V High: 14.7 V Lithium-ion: 14.2 V |
Normal: 28.8 V High: |
| 29.4 V Lithium-ion: 28.4 V |
| Float charge voltage |
Normal: 13.8 V High: 13.8 V Lithium-ion: 13.5 V |
Normal: 27.6 V High: 27.6 V Lithium-ion: |
| 27.0 V |
| Storage mode |
Normal: 13.2 V High: 13.2 V Lithium-ion: 13.5 V |
Normal: 26.4 V High: 26.4 V Lithium-ion: 27.0 V |
| Fully programmable |
Yes, with Bluetooth and/or VE.Direct |
| Service battery charging current |
30 / 50 A |
16 / 25 A |
| Low current mode |
15 / 25 A |
| / 12,5 A |
| Starter battery charging current |
| A (1+1 output models only) |
| 5-step adaptive |
charging algorithm |
| Protection |
Reverse battery polarity (fuse, |
| not user-accessible) / Output short circuit / Overheating |
| Can be used as a power supply |
Yes, output voltage can be programmed via Bluetooth and/or VE.Direct |
| Operating temperature range |
to 60°C (0 - 140°F)
Nominal output current up to 40 ºC, 20% linear decrease at 60 ºC |
| Humidity (non-condensing) |
max. 95% |
| Relay (programmable) |
DC output : |
| 5 A up to 28 VDC |
| Material and color |
aluminum (RAL 5012 blue) |
| Screw terminals 16 mm² (AWG6) |
| AC connection |
IEC 320 C14 input with retaining ring |
| (AC cables for countries with specific plugs must be ordered separately) |
| IP43 (electronic components), |
|
I
| Dimensions (H x W x D) |
180 x 249 x 100 mm (7.1 x 9.8 x 4.0 inches) |
|
Safety |
EN 60335-1, EN 60335-2-29 |
| Emission |
EN 55014-1, |
| EN 61000-6-3, EN 61000-3-2 |
| Immunity |
EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 |
| Vibration |
IEC68-2-6:10-150Hz/1.0G |
