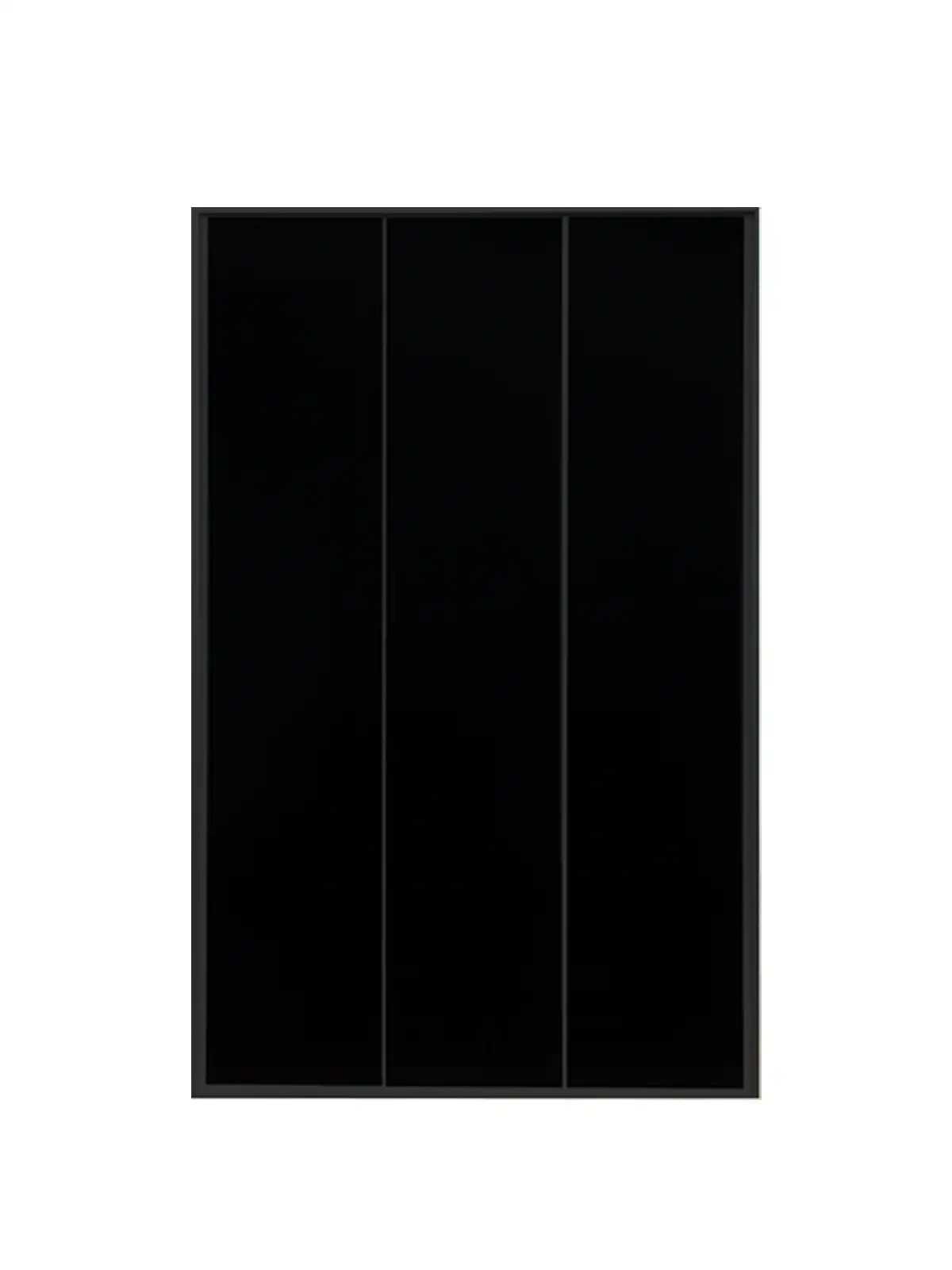

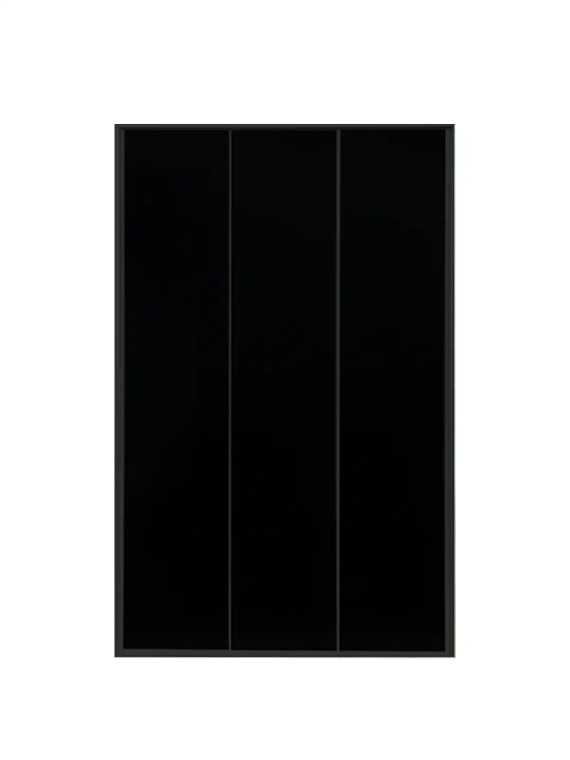

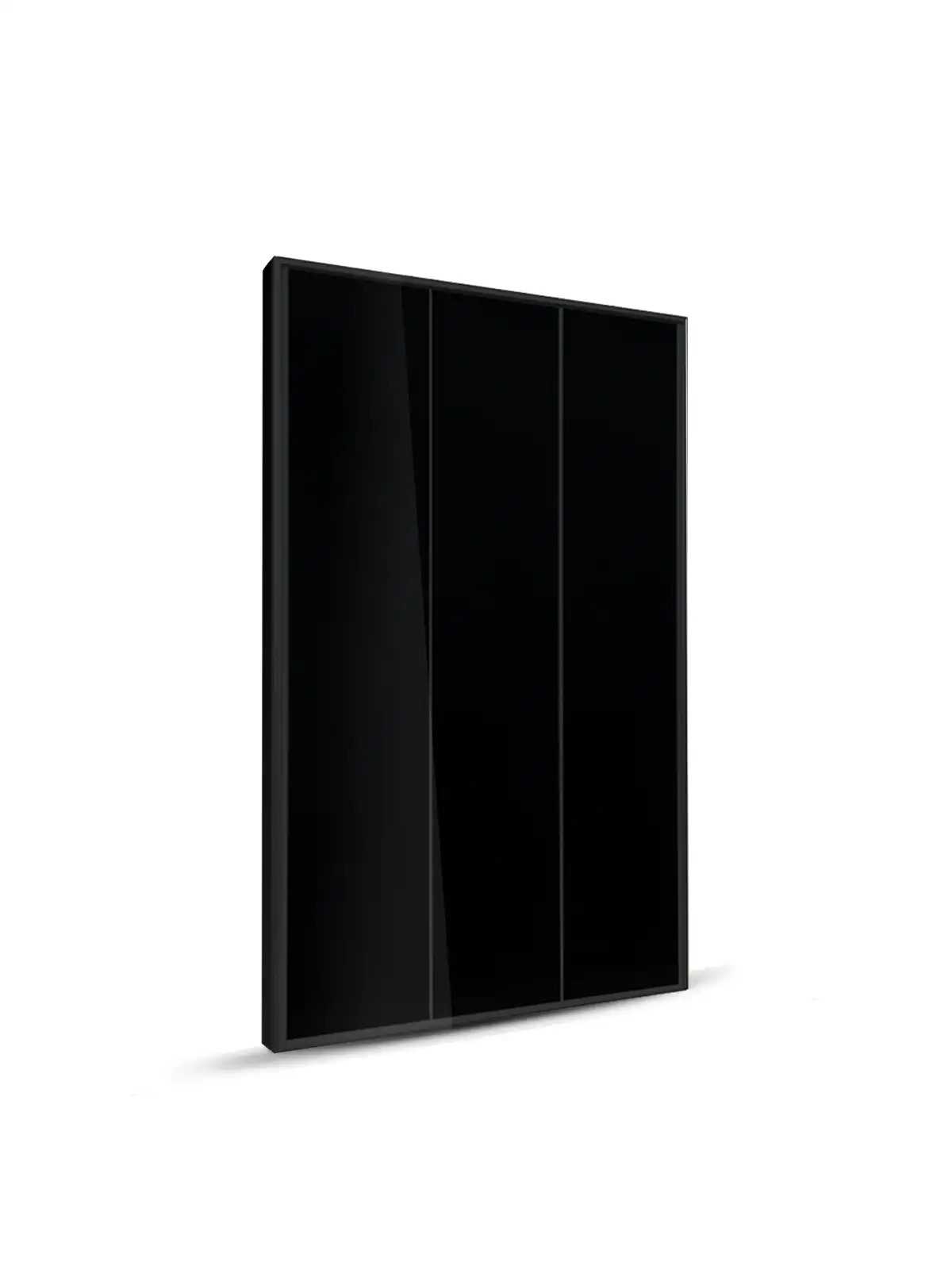

    MX-200 Solar Panel 200Wp
    MX-200 Solar Panel 200Wp
    MX-200 Solar Panel 200Wp

    MX200 Solar Panel 200Wp

    €112.53
    Tax included
    MX-200
    0768563818295

    MX200 Full Black panels

    Dimensions: 1100*890*30mm
    Weight: 10.2 kg.
    Max power: 200 Wp

    100% secure payments

    MX200 Solar Panel 200Wp

    €112.53

    MX200 solar panel



    Guarantee


    5-year manufacturer's warranty


    Manufacture


    • The original cell sorting system ensures the best match of electrical cells. EL test before packaging.
    • 5-year manufacturer's warranty.
    • Complete test of the power of the module.


    Performance


    • Superior module efficiency and compact size. Reduced hot spot effect, reduced module failure rate.
    • Module failure rate and increased stability due to shingle technology.
    • The special connection method reduces internal resistance and ensures better performance than the traditional connection with the bar set.
    • IP67 junction box, reliable cables and standard MC4 connectors improve stability. and standard MC4 connectors improve stability.


    Characteristics



    MX-200
    Mechanical data
    Standard test conditions AM=1.5, E=1000W/m2, TC=25°C
    Rated power200
    Cell typeMonocrystalline
    Cell efficiency22%
    Maximum power current (Impp)11.02A
    Maximum power voltage (Vmpp)18.15V
    Open circuit Voltage (Voc)21.57V
    Current (Isc)11.69A
    Maximum system voltage500V
    Output tolerance3% (+-)
    Cable Type700mm / 2.5mm2
    Connector TypeMC4 / Compatible MC4
    Structure of the module
    Aluminum frame / Glass / EVA /
    Background
    Nominal value of the junction boxIP67
    DiodeV
    Operating temperature-40~+80°C
    Packaging
    Module dimensions1100*890*30mm
    Module weight10.2kGv
    MX-200
    105 Items

    Data sheet

    Max. power - Wp
    200
    Open circuit voltage (Voc)
    21.57V
    Short-circuit current (Isc)
    11.69A
    Max. power voltage (Vmp)
    18.15 V
    Max. power current (Imp)
    11.02 A
    Color
    Full Black
    Cells
    Monocrystalline

    Specific References

    UPC
    768563818295
    EAN13
    0768563818295
    New
