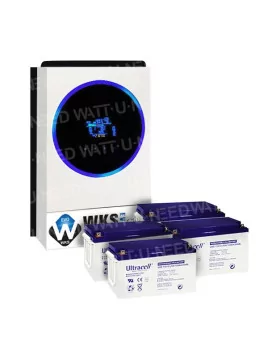

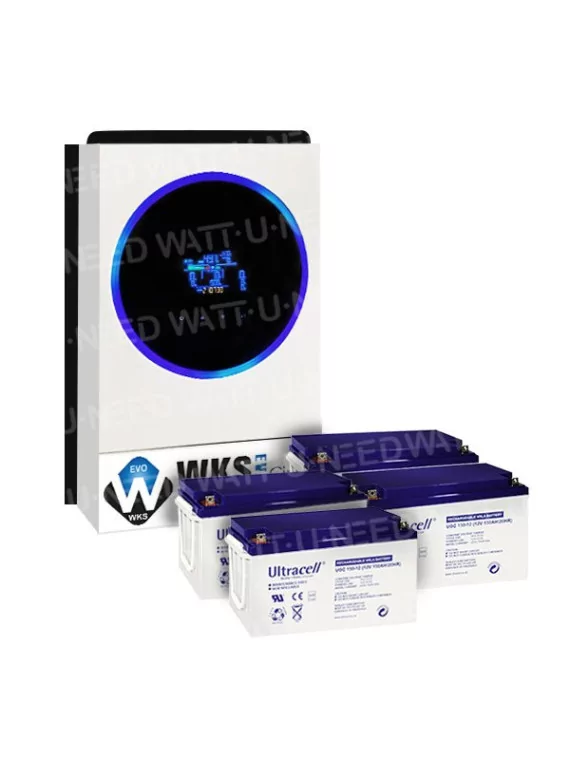

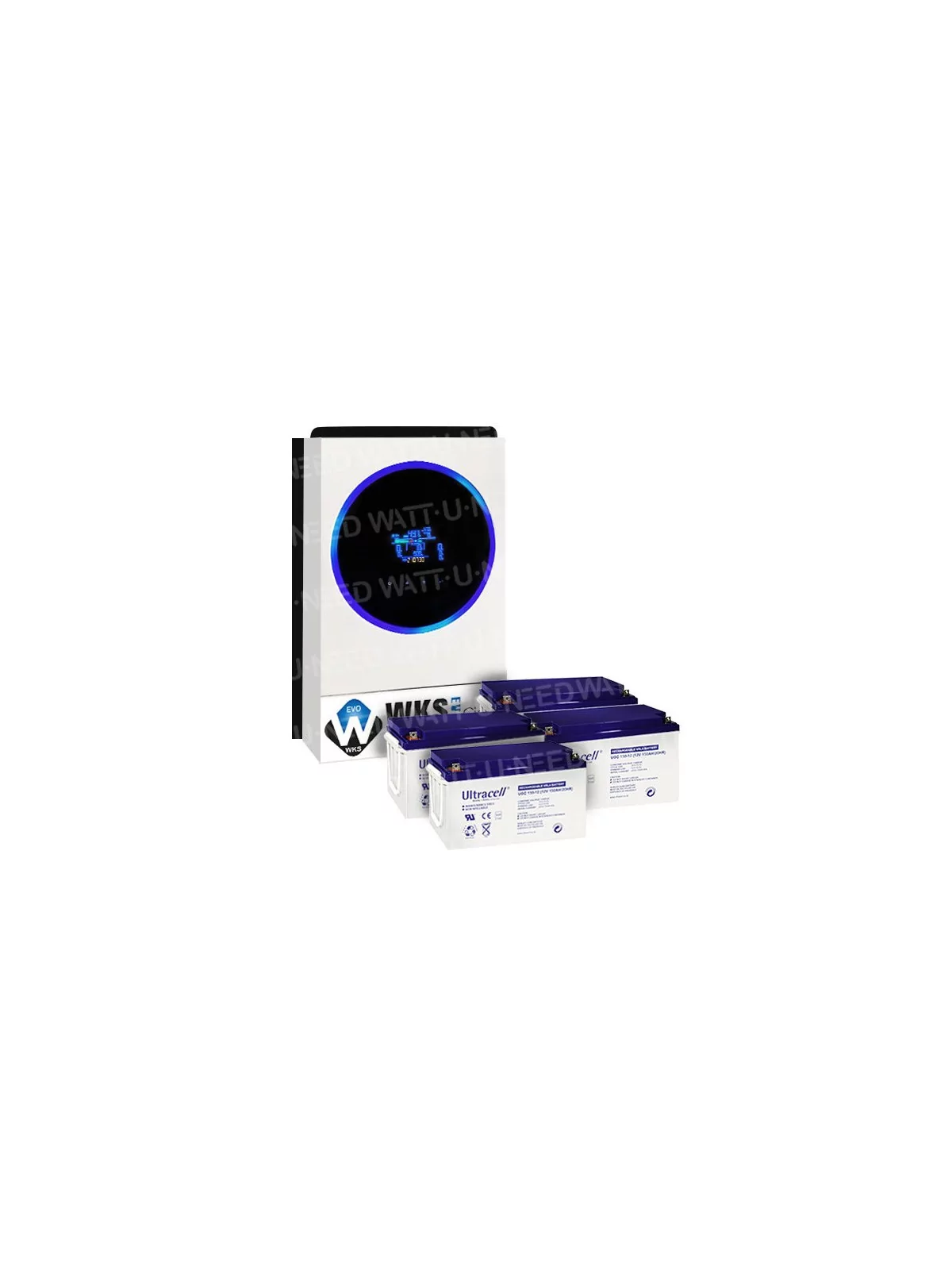

WKS EVO Circle 5.6kVA 48V cut-off protection kit - UPS

Don't worry about power cuts! Your peace of mind is assured, even in the event of a power cut.

This anti-cut-off kit ensures the continuity of your electrical installation in the event of a power failure, guaranteeing uninterrupted operation. More economical than a generator, it's the ideal solution for protection against load shedding.

When the grid is operational, the battery charger keeps your batteries fully charged. In the event of a power cut, the system automatically switches your system to battery power.

As soon as the grid is restored, the inverter instantly switches your system to the grid, and the batteries are automatically recharged, ready for any future power cuts.

Specifications

• Power rating: 5.6 kVA
• Voltage: 48V
• Advanced technology: Incorporates a modern inverter for optimum energy efficiency.
• Compatibility: Perfect for solar systems and other renewable energy sources.
• Easy installation: Comes with a detailed installation guide for quick commissioning.

Benefits

• Maximum safety: Protects your equipment against voltage fluctuations and power cuts.
• Reliability: Designed for long-lasting performance with high-quality components.

Autonomy

* based on a 100 W device

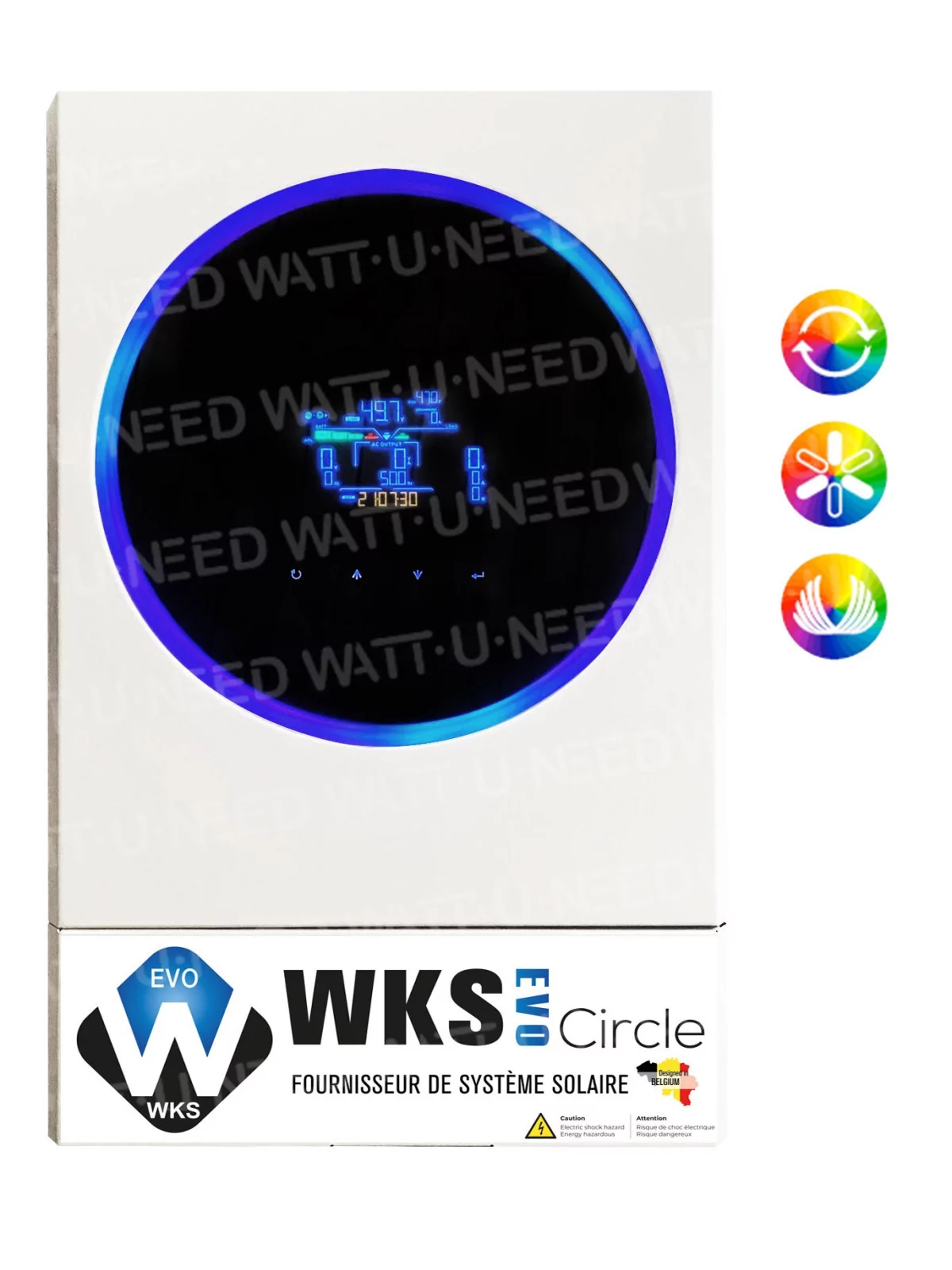

TheWKS Evo Circle 5.6 kVA 48V Hybrid Inverter is an advanced device designed to optimize the use of solar energy while ensuring reliable backup power. Here's a full description of its features and functions:

Key features

• Power and capacity: This inverter offers 5600 VA/5600 W, making it capable of handling large loads.
• It is compatible with a wide range of devices.
• Overload capacity and protection: It has a high overload capacity and offers protection against voltage fluctuations, ensuring power supply safety and reliability
• MPPT technology: Equipped with an MPPT (Maximum Power Point Tracking) solar charge controller, the inverter optimizes the DC power from the solar panels to charge the batteries efficiently, maximizing energy efficiency.
• Pure Sine Conversion: It produces a pure sine wave, guaranteeing a power quality similar to that of the public grid, which is essential for safely powering all types of appliances.
• Monitoring and connectivity features: The inverter integrates a Wi-Fi module for remote monitoring via a mobile application.
• LCD screen and user interface: A 4.3-inch color LCD screen with a touch-sensitive button makes it easy to monitor and manage the system. It displays real-time solar energy production, consumption and system status.

Operating modes

• Hybrid mode: The inverter operates in hybrid mode, using solar power first, then batteries, and finally the grid if necessary. It never feeds power back into the grid.

• Back-up mode: Can be used as an emergency power supply (UPS) without solar panels, protecting sensitive equipment from power cuts.

• Off-grid mode: In off-grid mode, the UPS uses the solar panels to power loads and charge batteries, with the option of adding a generator for back-up power.

Benefits

• Customization and flexibility: Allows fine-tuning of battery charging characteristics, with the option of limiting discharge to extend battery life.
• Energy savings: Economical mode to limit self-consumption and optimize use of energy resources.

Help with battery selection

Lead GEL batteries (gel electrolyte) are ideal for daily discharge of 50% of their capacity, ensuring optimum performance. For example, if your fleet has a capacity of 4.8kWh, it's recommended that you use no more than 2.4kWh per day, to comply with the manufacturer's recommendations. You can, however, allow for a slight margin, as these batteries can withstand faster discharges over shorter periods.

Lithium batteries, on the other hand, offer additional advantages: they can be discharged much faster than lead-acid batteries, and allow you to use up to 90% of their capacity. So you can count on greater flexibility of use with lithium batteries.

To determine the capacity of your battery, simply multiply its capacity (Ah) by its voltage (V). For example, 4 x 100Ah 12V batteries connected in series will give a voltage of 48V and a total capacity of 4.8kWh.

And to make your life easier, our sizing tool will help you calculate your precise battery requirements for your stand-alone solar kit.

Put your trust in our expertise and embark on a tailor-made energy solution!

Our selection

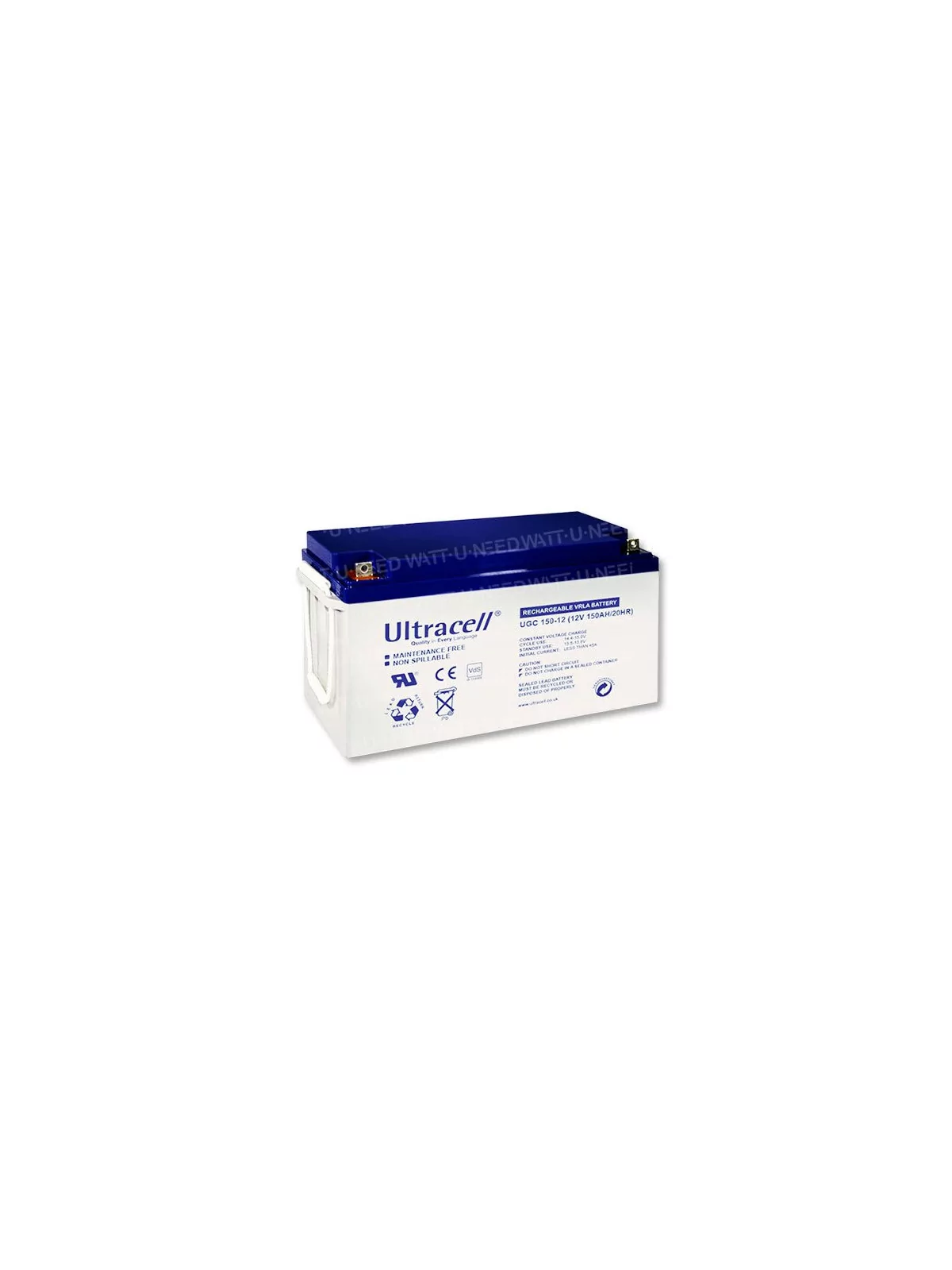

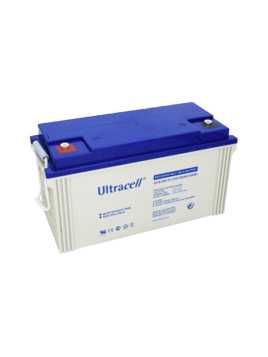

Ultracell 12V 150 Ah gel batteries have several advantages over traditional lead-acid batteries.
They are more watertight, reducing the risk of acid leaks. They are also more resistant to vibration, making them ideal for use in demanding environments such as off-road vehicles.
What's more, they have a longer service life and improved deep-discharge capability.

- 1200 cycles at 50% discharge
- Dimensions: 485 x 170 x 240 mm
- Weight : 43,5 Kg
