12 panel self-consumption/reinjection without storage

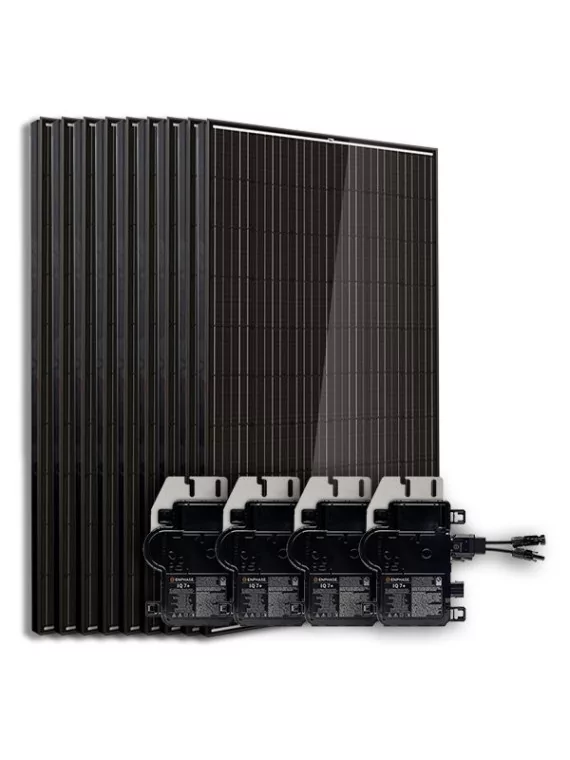

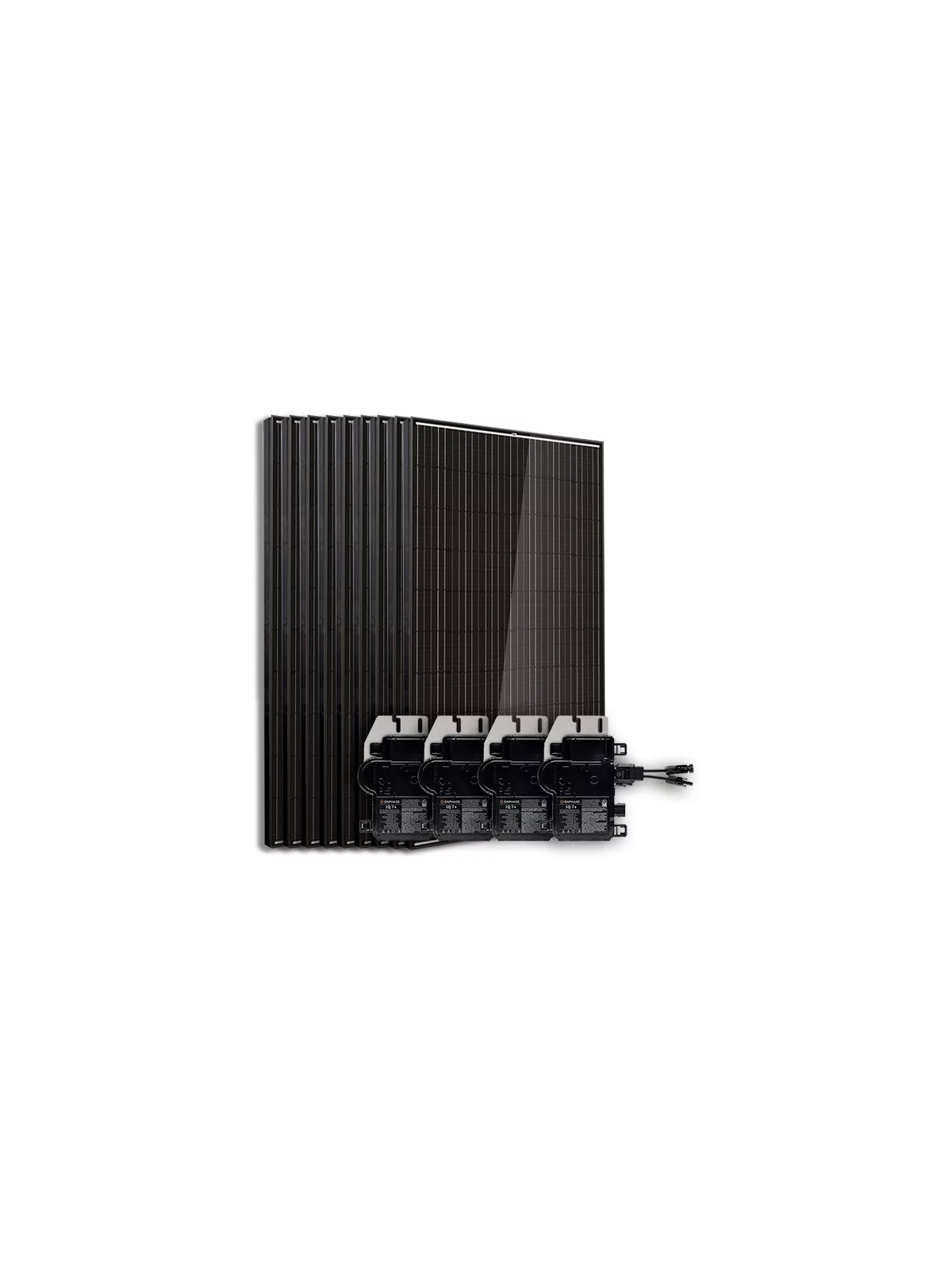

This kit includes
- 12XMULTIWAY Solar panel 435Wp HT54-18X
- 12XEnphase IQ 7+ and IQ 7A microinverters
- 1XSchneider mono 16A circuit breaker
- 1XEnphase Envoy-S Standard communication gateway
- 12XCable Enphase IQ monophase Portrait/Landscape
- 1XEnd cap for Enphase Engage
- 1XEnphase Relay Q (single-phase)
All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to suit the kit to your needs. You can also see the details of the selected products directly below the price.
This kit is sized with the general purpose of being installed with the public network.
The basic composition of the kit contains 12 solar panels, Enphase 310W micro-inverters and all the necessary accessories for an Enphase Engage system, solar cables to connect the inverter panels and the inverter to your electrical array, the panel mounting system is available as an option. (The assembly system as well as the wiring and protections are changeable to meet your needs).
SOLAR PANELS:
In its basic version, this Photovoltaic system will bring you an average of 14.4 Kwh per sunny day. Productions will depend on the seasons (summer/winter) on the geographical position and the inclination of the panels.
We invite you to consult our solar production simulator to determine exactly what your solar production will be.
20-year warranty at 80% of rated power.
INVERTER:
Enphase micro-inverters are installed at the back of the solar panels. Each device then takes care of a single module with a maximum of 310Wc, optimizing its production and efficiency. Keep an eye on your installation's activity with the Envoy gateway that connects the inverters to each other.
CABLE AND CONNECTORS:
All cables and connection are pre-wired in our workshops. Our kits are very easily mounted by 'beginners' in electricity. For those who have some reservations about the technical side, our technical team assists you and helps you every day from 8am to 5pm.
assembly:
The installation of this kit is very simple. Our instructions are clear and allow easy editing without any special knowledge. We answer all your questions before, during and after installing your system.
guarantee:
All products have an individual warranty.
Panels guaranteed 20 years at 80% of rated power.
SolaX inverter guaranteed 5 years.

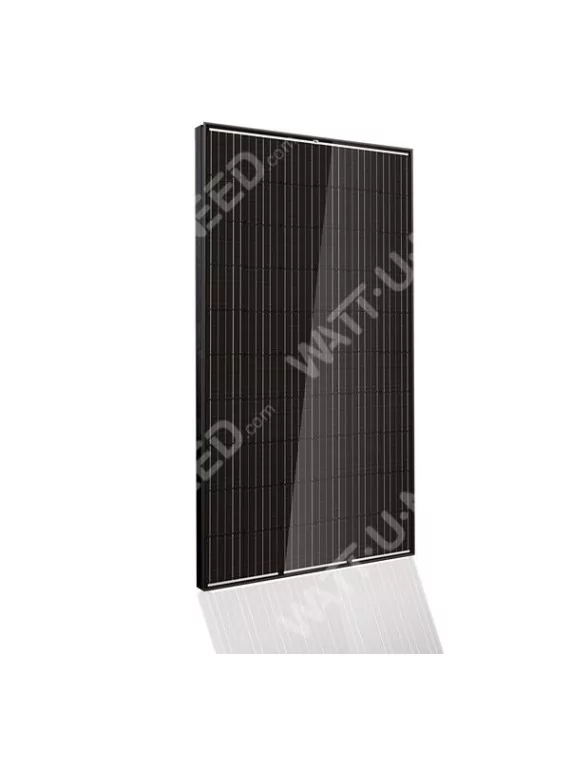

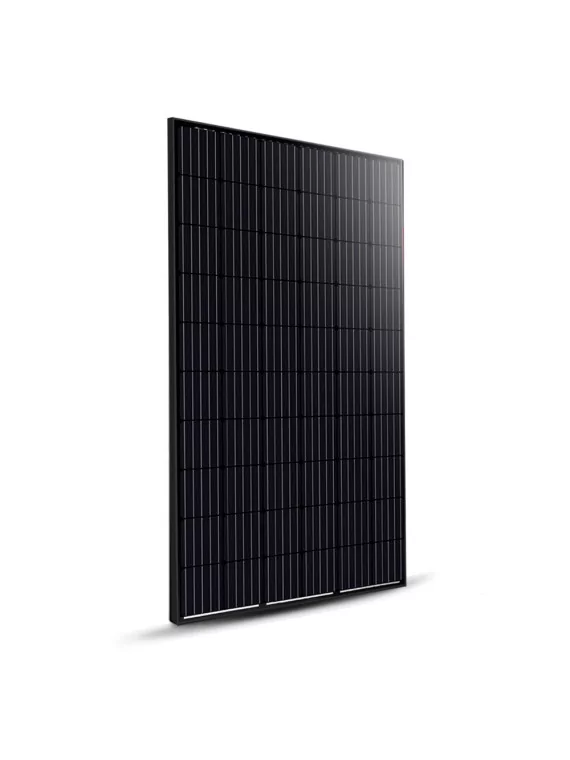

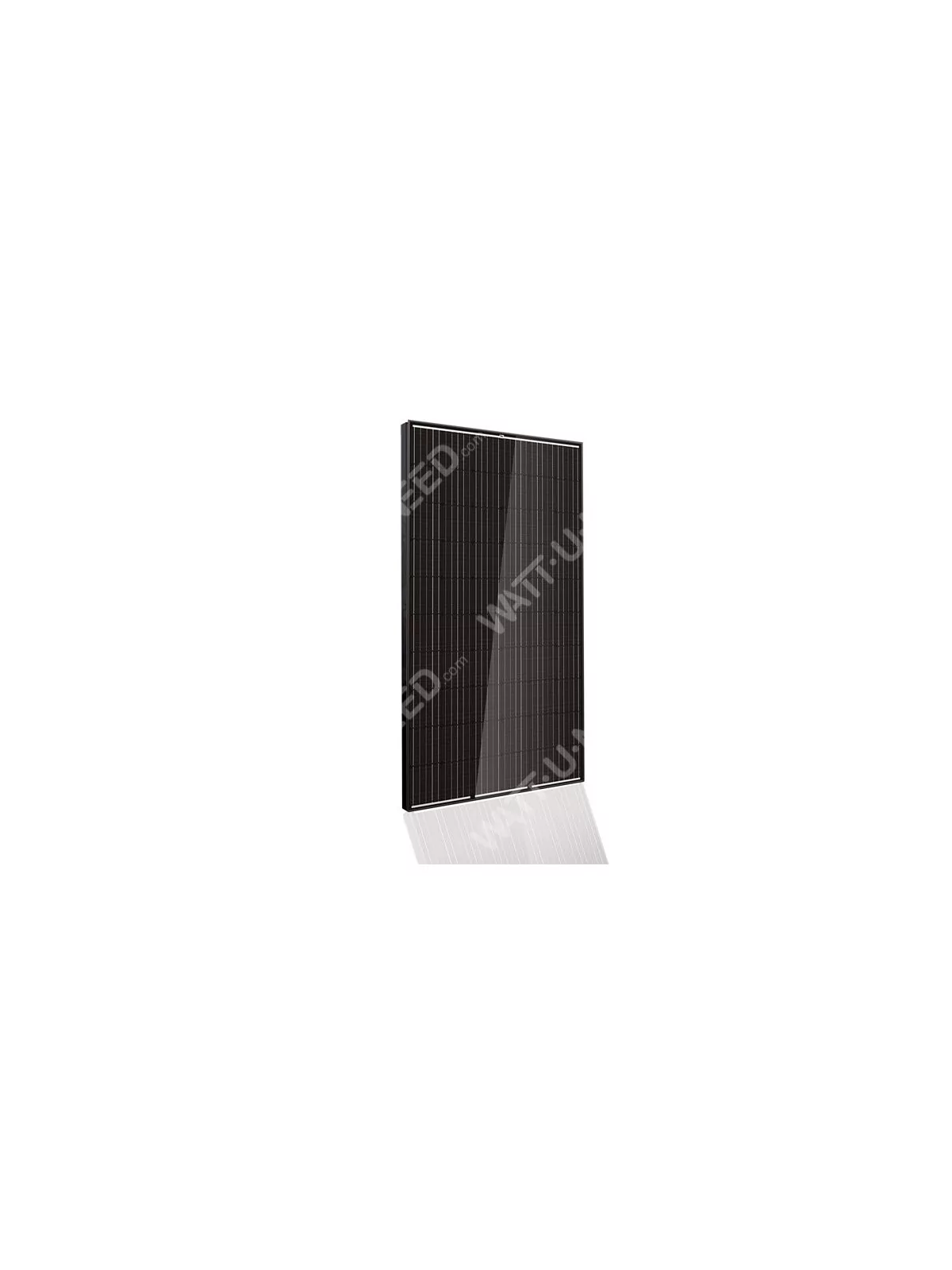

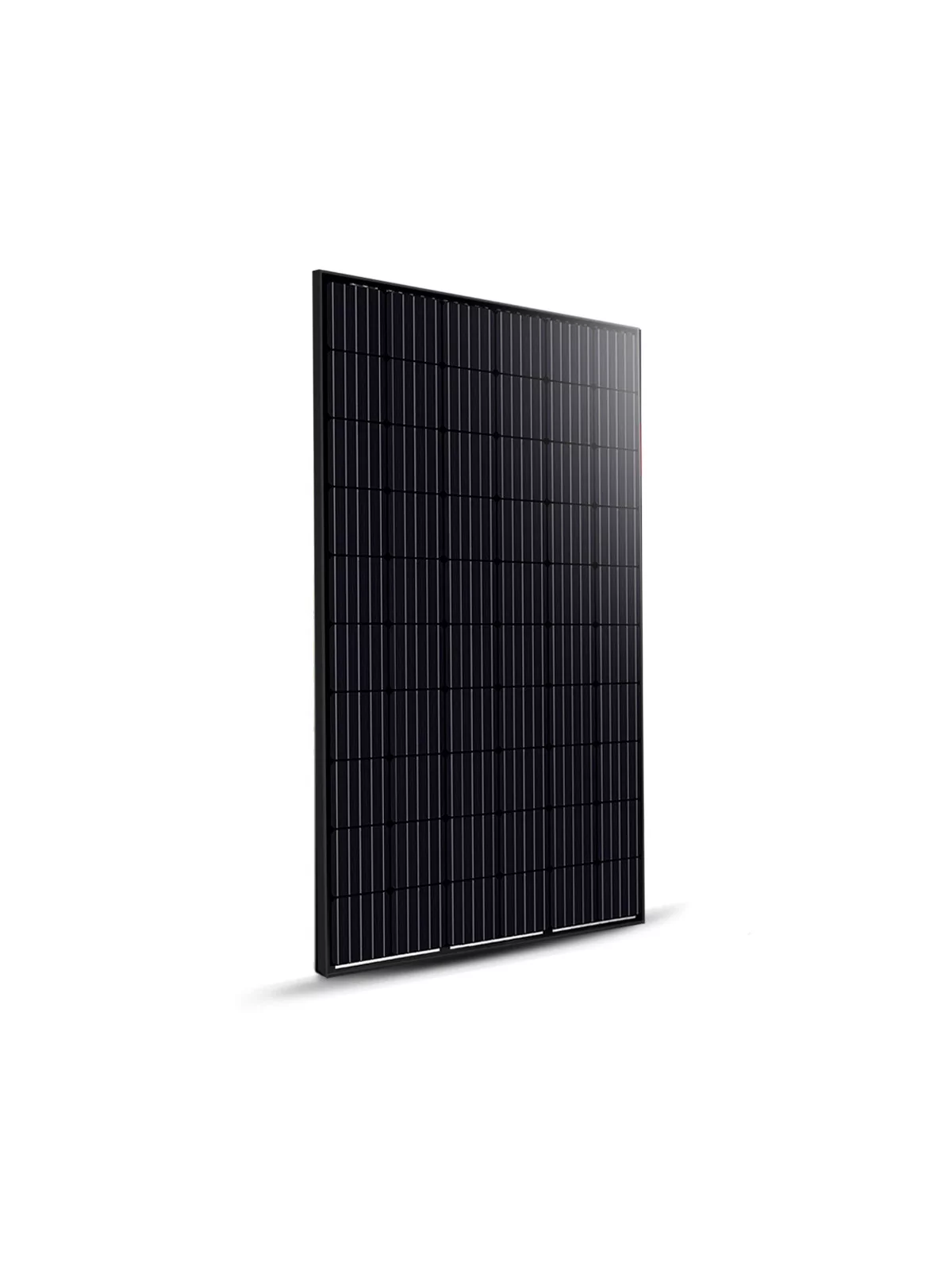

Solar panel
The basic selected panel in this kit has been chosen according to our supplies.
You will find the characteristics of the latter by going to see its product sheet in the panel category.

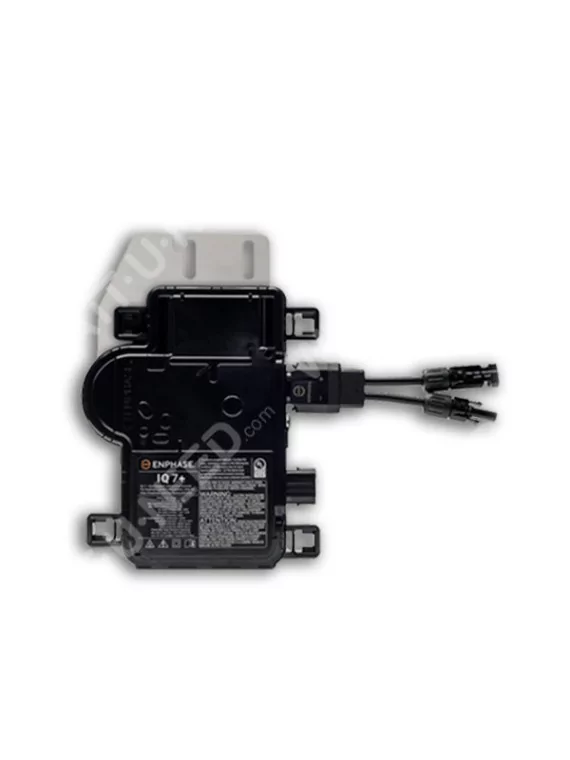

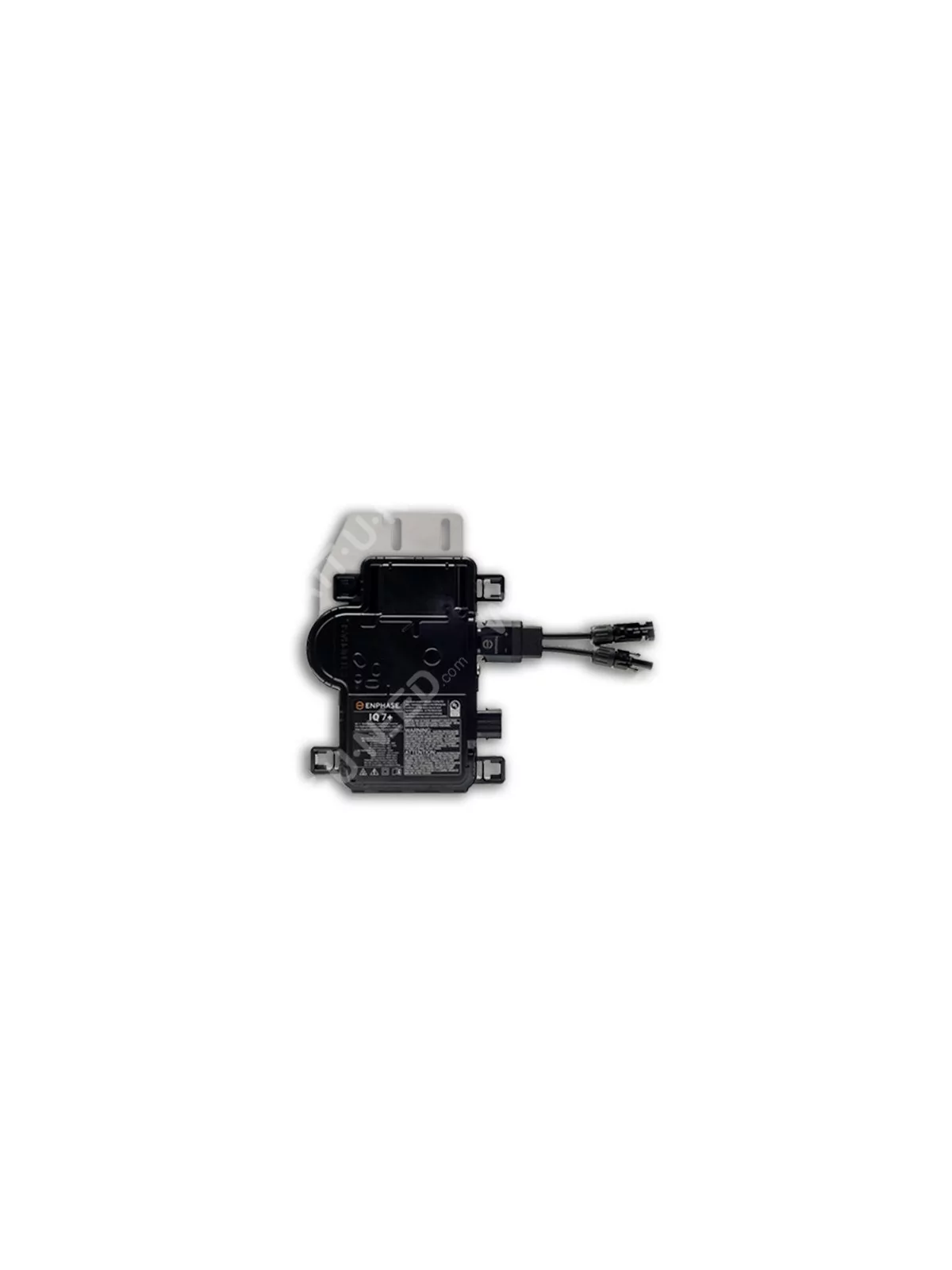

MICRO-inverter IQ7
Micro-inverters revolutionize solar technology high-yield Enphase IQ 7™ and Enphase IQ 7-™ are adorned for Smarts Grids.
An integral part of the Enphase system IQ, IQ 7 and IQ 7 fit seamlessly with the Envoy-S™ and Enphase Enlighten™ monitoring and analysis software. oThis allow you to perform best on each of your panels and follow up in detail.
The IQ 7 micro-inverters and IQ 7 -- exceed the reliability and robustness standards set by previous generations of micro-inverters and undergo more than one million hours of test time in charge, allowing Enphase to offer an outstanding guarantee.
Characteristics
ENTRY DATA | (DC) IQ7-60-2-INT |
Recommended Module Power (STC)1 | 235 W - 350 W |
compatibility | 60-cells only |
Dc max input voltage | 48 V |
MPP voltage range | 27 V - 37 V |
Operating voltage range | 16 V - 48 V |
Start tension min/max | 22 V / 48 V |
DC current max short-circuit | 15 A |
DC power surge class port | Ii |
DC port return under a single fault | 0 A |
Configuration of the PV generator | CA side protection requires a maximum of 20A per bypass circuit |
EXIT DATA (AC) |
Micro-inverter IQ 7 |
Peak output power | 250 VA |
Maximum output power | 240 VA |
Tension/Nominal Voltage Range2 | 230 V / 184-276 V |
Maximum output current | 1.04 A |
Nominal frequency | 50 Hz |
Frequency range | 45 - 55 Hz |
Maximum number of units per branch of 20 A3 | 16 (N-N) |
Power protection class | Iii |
Current return from the CA port | 0 A |
Fixed power factor | 1.0 |
Power factor (adjustable) | 0.7 inductive at 0.7 capacitive |
yield |
'230V' |
Yield in 50530 (EU) | 96.5 % |

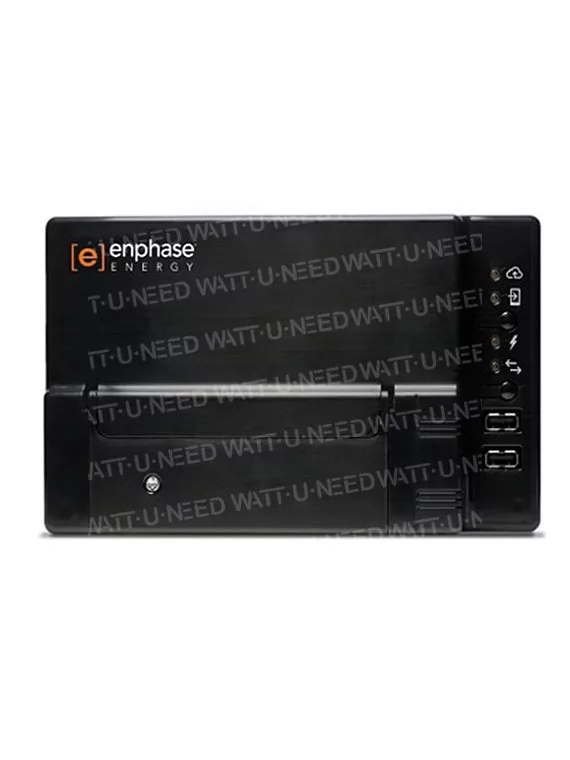

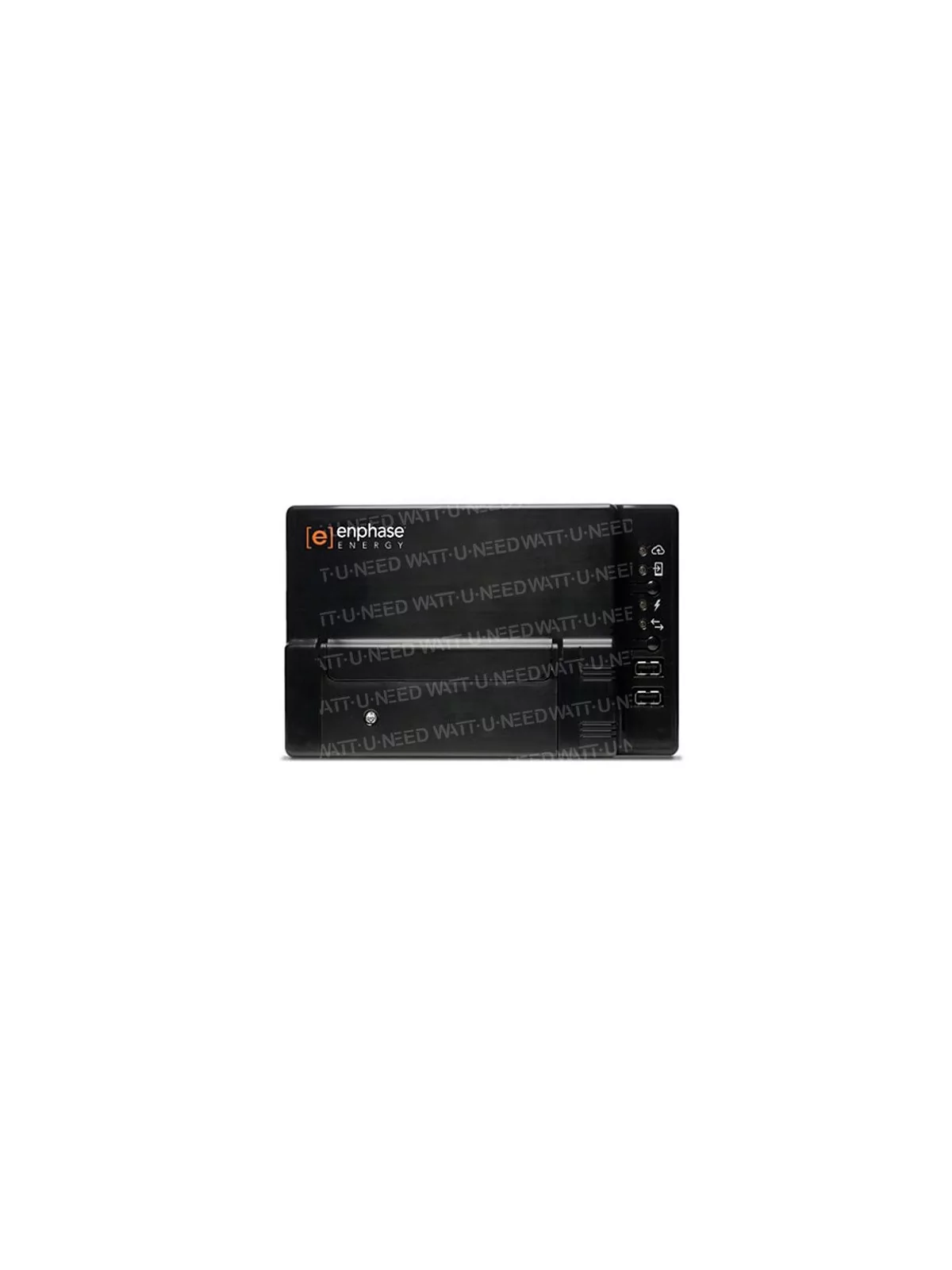

Enphase Envoy-S Standard Communication Gateway
Using production and consumption measurement options, Enphase's Envoy-S is a smart platform for complete energy management.
This micro-inverter does not allow battery in the system.
Characteristics
MODEL REFERENCE | |
Envoy-S Standard ENV-S-WM-230 | Enphase Envoy-S communication bridge with basic monitoring of photovoltaic production (up 5%). |
ACCESSOIRES (to be ordered separately) | |
Mobile Connect Enphase™ CELLMODEM-02 | Industrial-grade Plug- Play modem with a five-year data package for systems with up to 60 micro-inverters. (Available in installation areas, where adequate mobile service is available.) |
CONFIGURATION REQUIRED FOR POWER | |
Connected cord | 230 V CA, 50 Hz. Protection against over-intensities of up to 20 A. required. |
wired | 230 V CA, or 400 Y/230 V CA, 50 Hz. Protection against over-intensities of up to 20 A. required. |
capacity | |
Number of devices detected | Up to 600 micro-inverters |
MECHANICAL DATA | |
Dimensions (L x H x P) | 213 x 126 x 45 mm |
weight | 0.5 kg |

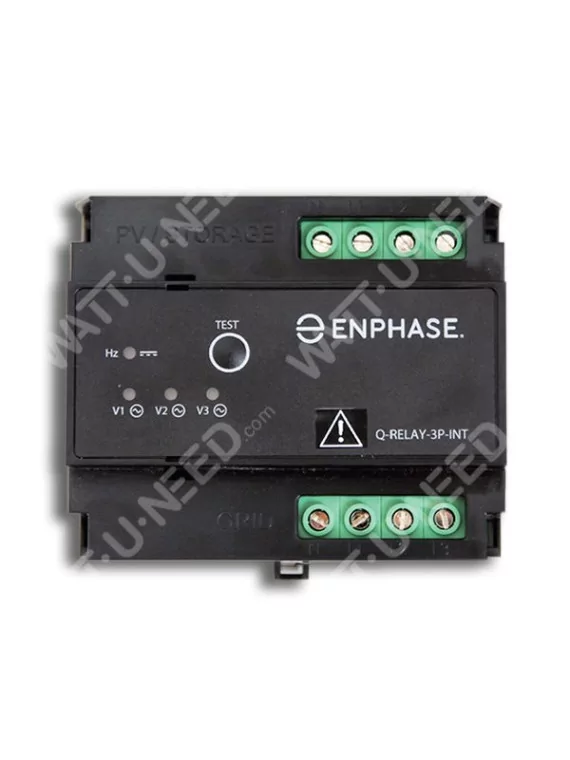

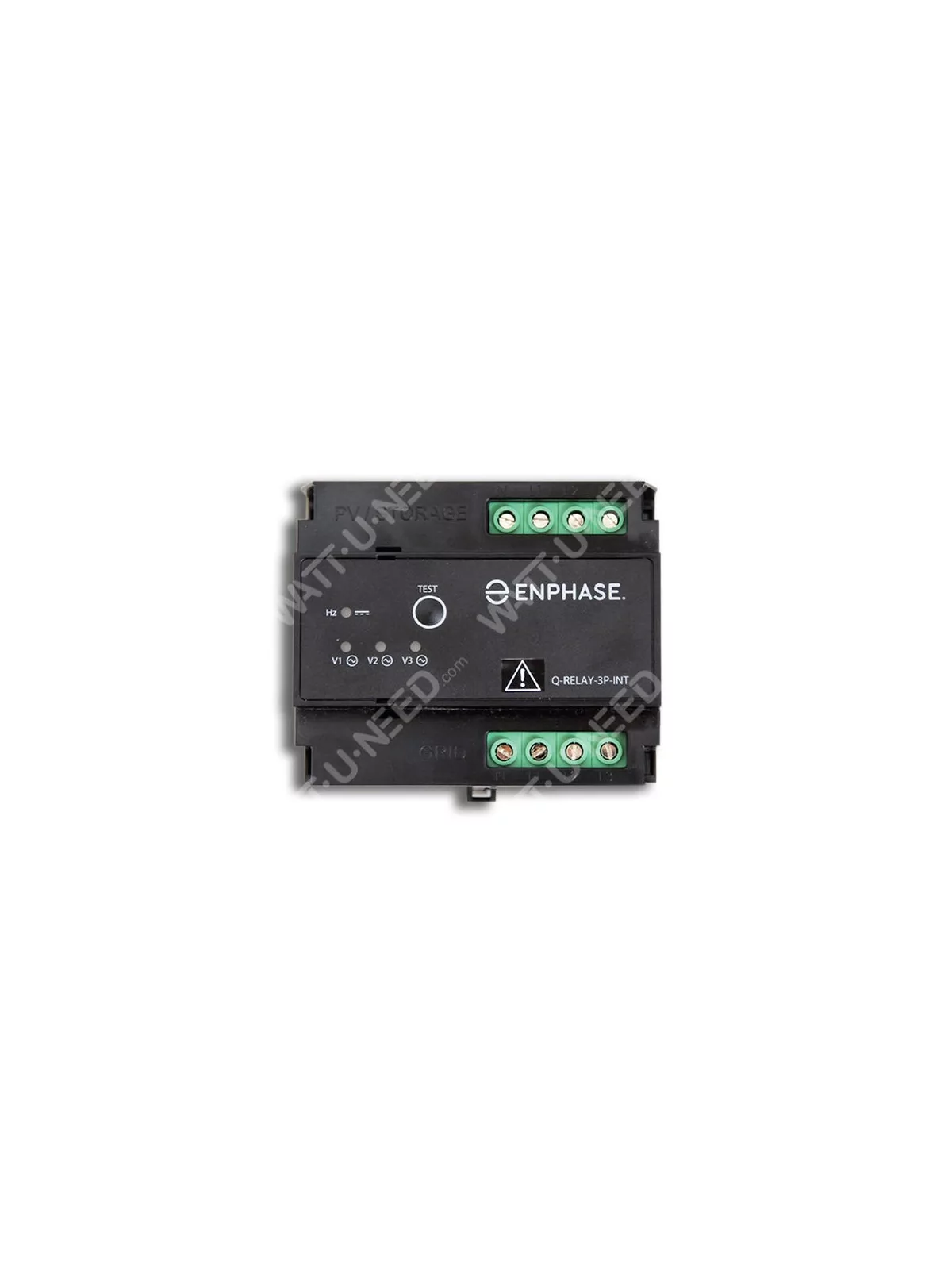

Q Relay Enphase (Multiphase)
In the Enphase IQ facility, the multiphase Q relay works like a device surveillance and disconnection network.
Relay Q Isolates physically micro-trees network IQ series when anomalies are detected or in accordance with network regulations, and it automatically reconnects when valid network conditions are restored.
Relay Q Tetrapolar isolates all live and neutral drivers and works with the bridge Send-S.
Characteristics
PENCIFICATIONS Q-RELAY-3P-INT | Tetrapolar decoupling protection (50Hz) with continuous component injection detection |
Surge category (EN 61010-1) | Iii |
CAT III | GRID terminal is rated for measurement category III. |
Pollution level (EN 61010-1) | 2 |
AC voltage operating range | 85 to 265 Veff |
Nominal input voltage (Vnom) | 230 /240 Veff |
Nominal frequency | 50 Hz |
Time to acquire frequency and voltage values in normal operation | 100 ms (5 line cycles - 50Hz) |
Number of voltage entries protected | Up to 3 |
Number of IQ 7 micro-inverters per phase | Up to 19 micro-inverters Enphase IQ 7 Microinverters or 16 micro-inverters Enphase IQ 7 |
Number of Q Relays per system | Limited to 20 active Q relays per system |
Electrical output type | Normally open tetrapolar relay (L1, L2, L3 and N) |
Exit power | 6 kVA per phase |
Electrical output type | 230 / 240 Veff, 25A |
Empty power consumption | 18 VA |
Leds | Four red/green LEDs: three for surge and surge triggers, one for frequency triggers (min f/max f) and continuous component injection (DC) |
assembly | 35 mm rail DIN rail (standard) |
width | 107 mm |
Surge - L1 N output | Combination (1kV 2) |
Operating temperature range | -40 to 50 degrees Celsius |
IP Protection Index | IP 20 (To be used in a protected environment) |
humidity | 0 to 95 without condensation |
compliance | IEC 61010, 61010-1 |
EMCI Compliance | IEC 61326, BS IN 50065-1 - 2-2, BS IN 61326-1-2, BS IN 61000-3-11-12 |
guarantee | 5 years old |
Data sheet
- Inverter power
- 5000VA
- Kit output voltage
- 230V
- Type of need
- Self-consumption
- Battery storage
- Without storage
- Wind turbine
- Without
- Number of panels
- 12 panels
- Mains re-injection
- With
Specific References
- UPC
- 712971138957
- EAN13
- 0712971138957
