Self-consumption kit - 3 kW-zero injection

Wattuneed

1 992,32 € tax incl.

Add to cart

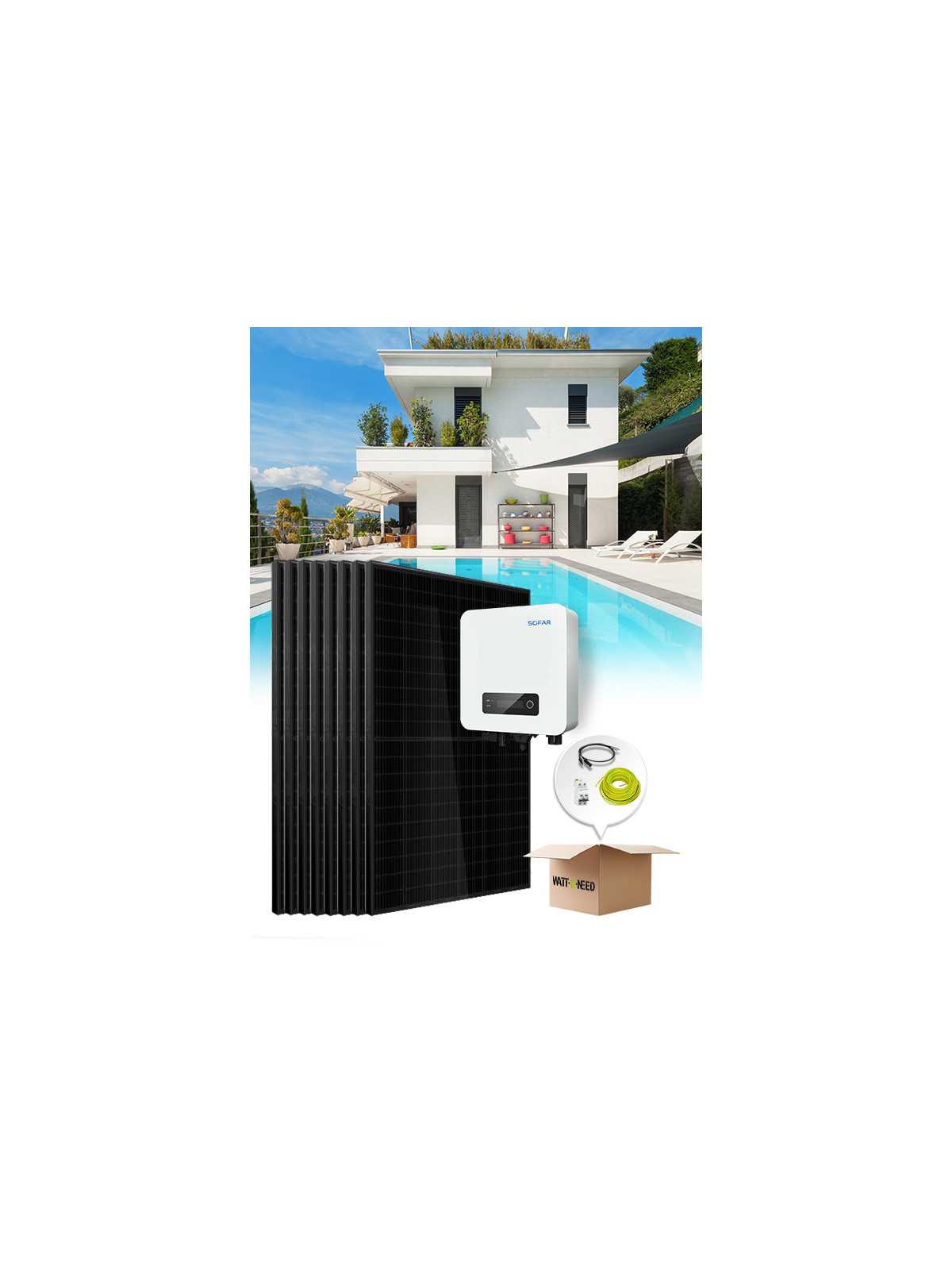

Complete kit containing:

  • 8 panels to choose from from several brands.
  • SolaX X1 Boost 3.0T single-phase inverter
  • Electrical equipment and wiring.

Optional:

  • Assembly system.
  • Electrical protection

All-in-one and ready-to-use kit for your installation and an ideal self-consumption for a small household.

More details

Équipements
Descriptions équipements
Customize

Choice of panels

See product

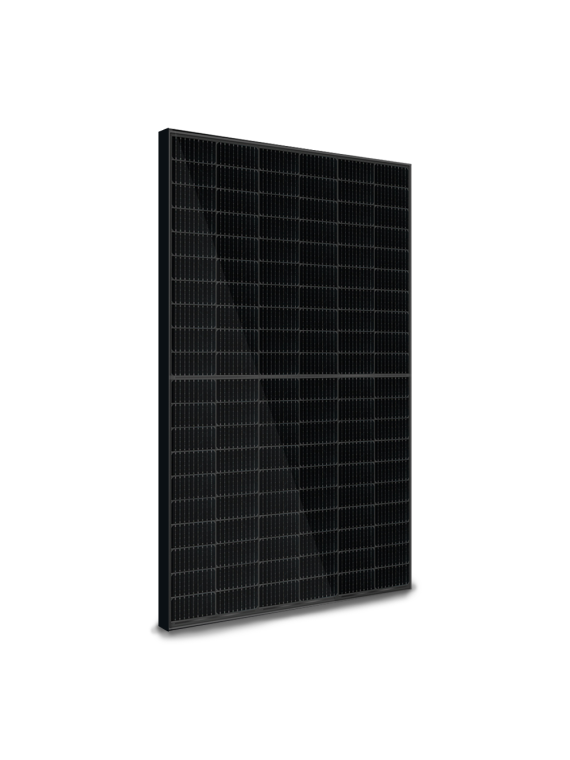

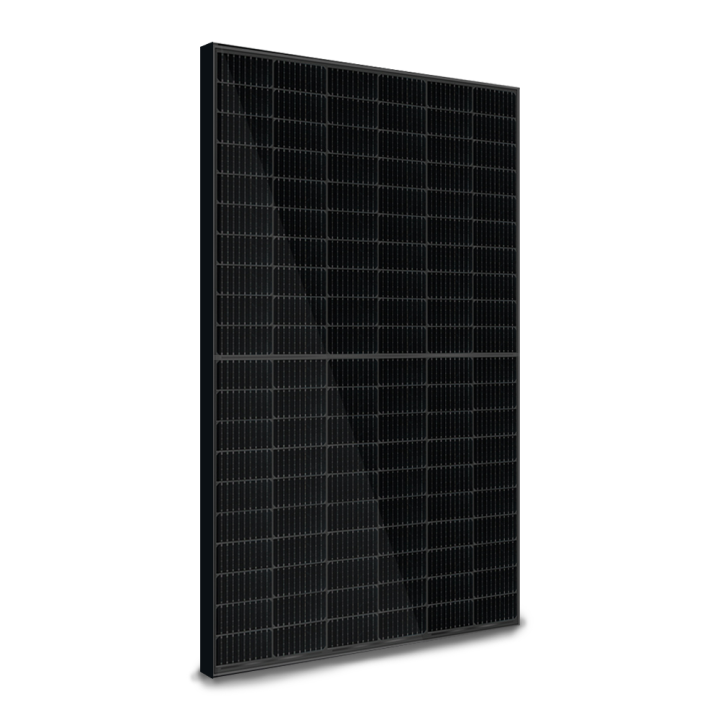

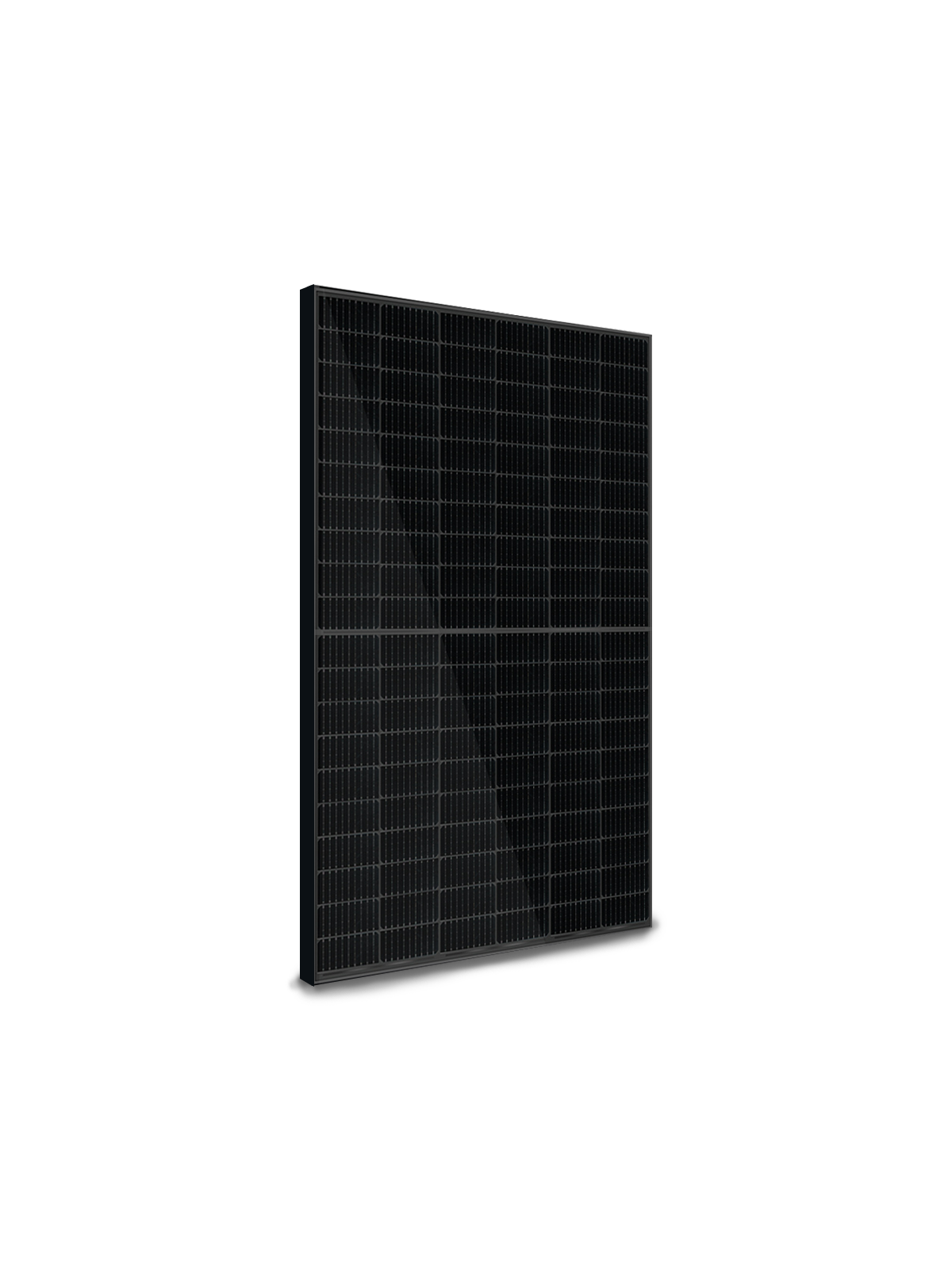

Solar panel JNL Solar monocrystallin 320 Wc full black

config

153,51 €

QTT

PROMO
See product
Solar Panel Q.Cells DUO-G9 330Wc Full Black

config

145,00 €

QTT

157,95 €
See product
Solar panel Q.Cells DUO-G9 335Wc Full Black

config

163,35 €

QTT

See product
Hyundai 345 Wc Full Black Solar Panel

config

205,00 €

QTT

See product
Solar panel JNL Solar monocrystallin 320 Wc full black

config

153,51 €

QTT

See product
Solar panel Q.Cells DUO ML-G9 375Wc monocrystallin

config

220,10 €

QTT

See product
TrinaSolar Vertex 385Wc Full Black Solar Panel

config

194,68 €

QTT

See product
Solar panel Q.Cells DUO- ML-G9 390Wc monocrystallin

config

186,65 €

QTT

See product
TrinaSolar Vertex S 390Wc Full Black Solar Panel

config

204,26 €

QTT

See product
TrinaSolar Vertex S 395Wc Monocrystallin Solar Panel

config

199,74 €

QTT

See product
Hyundai 395 Wc Ultra Black Solar Panel

config

221,15 €

QTT

Choice of inverter

See product
SolaX X1 Boost 3.0T single-phase inverter

config

623,10 €

QTT

See product
SolaX X1 Boost 4.2T single-phase inverter

config

865,80 €

QTT

See product
SolaX X1 Boost 5.0T single-phase inverter

config

902,50 €

QTT

See product
SolaX X1 Air 3.0 single-phase inverter

config

492,60 €

QTT

See product
SolaX X1 Air 2.5 single-phase inverter

config

449,40 €

QTT

See product
SolaX X1 Air 3.3 single-phase inverter

config

518,60 €

QTT

See product

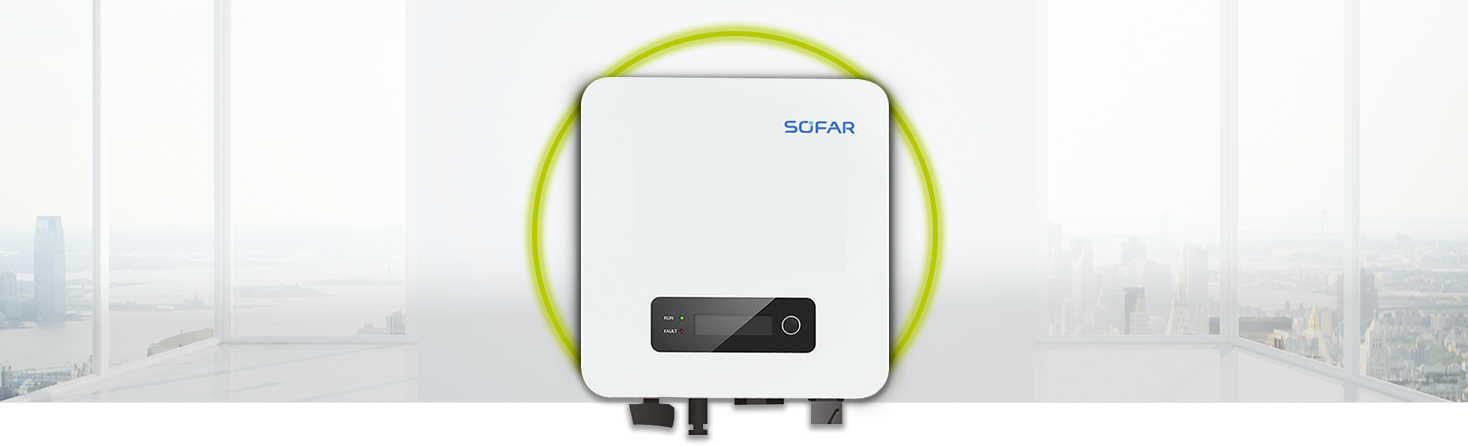

Mono Sofar Solar 1600TL-G3 INverter

config

426,80 €

QTT

See product
Mono Sofar Solar 2200TL-G3 INverter

config

455,90 €

QTT

See product
Mono Sofar Solar 3000TL-G3 INverter

config

478,00 €

QTT

See product
SMA Sunny Boy INverter 1.5

config

802,10 €

QTT

See product
SMA Sunny Boy INverter 2.0

config

947,80 €

QTT

See product
SMA Sunny Boy INverter 3.0

config

1 206,20 €

QTT

See product
SMA Sunny Boy 3.0 - zero injection inverter

config

1 952,90 €

QTT

See product
SMA Sunny Boy 4.0 single-phase inverter

config

1 349,15 €

QTT

See product
SMA Sunny Boy 4.0 single-phase inverter - Zero injection

config

2 184,30 €

QTT

See product
SMA Sunny Boy 5.0 single-phase inverter

config

1 447,15 €

QTT

See product
SMA Sunny Boy 5.0 single-phase inverter - Zero injection

config

2 343,50 €

QTT

See product
3kW hybrid inverter injection network - Multisolar storage
Out of stock Replenishment : 24/08/2021

config

1 593,17 €

QTT

See product
UPS hybrid WKS Plus 3 kVA 48V
Out of stock Replenishment : 08/08/2021

config

675,58 €

QTT

See product
UPS hybrid WKS Evo 3kVA 24V

config

776,40 €

QTT

See product
UPS hybrid WKS Evo 48V 5kVA
Out of stock Replenishment : 09/08/2021

config

949,85 €

QTT

See product
UPS hybrid WKS Evo II 48V 5kVA

config

895,40 €

QTT

CABLING AND CONNECTORS

See product
2X4mm2 solar cable with Type MC4 (sold by the meter - 10m)

config

24,79 €

QTT

See product
Earth cable 1x6 mm2 10m

config

14,50 €

QTT

See product
Earth cable 6mm2 1m

config

1,45 €

QTT

See product
2x4mm² Solar cable extension with 2xMC4-like (by the meter)

config

7,30 €

QTT

See product
2x4mm2 solar cable extension with 2x Type MC4 (10 meters)

config

27,49 €

QTT

See product
XVB 3G2.5 mm - 1m electric cable

config

1,80 €

QTT

See product
Solar cable 1X6mm2 (sold per metre)

config

1,46 €

QTT

See product
1X4mm2 solar cable (sold per metre)

config

1,10 €

QTT

See product
XVB 3G4 mm - 1m electric cable

config

3,55 €

QTT

See product
XVB 5G4 mm - 1m electric cable

config

4,80 €

QTT

See product
XVB 3G6 mm - 1m electric cable

config

4,90 €

QTT

See product
XVB 3G10 mm - 1m electric cable

config

8,50 €

QTT

See product
Male and female MC4-like connectors

config

5,00 €

QTT

See product
Double type MC4-like connector male & female

config

16,00 €

QTT

CHOICE OF MOUNTING SYSTEM

55
Sélectionné

Tile roof attachment kit

37.28
Sélectionné

Tin roof attachment kit

49.1
Sélectionné

Slate roof attachment kit

42.84
Sélectionné

Mounting system for tray roofing

127
Sélectionné

Fixing kit on ground structure

See product
Tile roof attachment kit

config

55,00 €

QTT

See product
Tin roof attachment kit

config

37,28 €

QTT

See product
Slate roof attachment kit

config

49,10 €

QTT

See product
Mounting system for tray roofing

config

42,84 €

QTT

See product
Fixing kit on ground structure

config

127,00 €

QTT

PROTECTIONS AND ACCESSORIES AC

See product
Meter Solax single-phase and three-phase

config

161,33 €

QTT

See product
Schneider mono 16A circuit breaker

config

8,60 €

QTT

See product
Schneider mono 2A circuit breaker

config

14,50 €

QTT

See product
Schneider mono 4A circuit breaker

config

14,50 €

QTT

See product
Schneider mono 6A circuit breaker

config

14,70 €

QTT

See product
Schneider mono 10A circuit breaker

config

17,60 €

QTT

See product
Schneider mono 20A circuit breaker

config

8,60 €

QTT

See product
Schneider single-phase 25A circuit breaker

config

16,00 €

QTT

See product
Schneider mono 40A circuit breaker

config

16,70 €

QTT

See product
Modular change-over switch 2x 25A

config

41,90 €

QTT

See product
Changeover switch 4P 40A

config

109,00 €

QTT

See product
Modular change-over switch 4x 40A and 63A

config

141,00 €

QTT

See product
3kWc Single Phase lightning protection

config

232,42 €

QTT

See product
Three-phase electrical box

config

673,92 €

QTT

See product
AC Parafoudre Box

config

359,37 €

QTT

See product
AC ZJBENY box set with 230V socket

config

140,00 €

QTT

See product
ZJBENY AC 230V Lightning Box

config

125,25 €

QTT

PROTECTIONS AND ACCESSORIES DC

See product
DC 2P 1000V 32A Switch - with enclosure

config

56,00 €

QTT

See product
ZJBENY DC single-surge arrestor box

config

143,00 €

QTT

See product
32A DC double surge protector ZJBENY

config

231,00 €

QTT

See product
DC 500V 40A Switch

config

68,00 €

QTT

See product
DC 500V 32A disconnector box

config

129,00 €

QTT

See product
Lightning protection box with 2 input

config

471,00 €

QTT

See product
Paralleling Box 5 inputs with lightning arrester and switch

config

270,00 €

QTT

See product
PV DC Surge Protection Device - 3P

config

58,40 €

QTT

See product
DC Cut-out and lightning protection box 20A

config

262,85 €

QTT

See product
DC Cut-out and protection box 40A

config

457,03 €

QTT

See product
Double DC Cut-out and lightnin protection box

config

551,98 €

QTT

More info

All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to suit the kit to your needs. You can also see the details of the selected products directly below the price.

This kit is sized with the general purpose of being installed with the public network.

The basic composition of the kit contains 8 320 Wc JNL Solar solar panels, a single-phase SolaX X1 Boost 3.0T inverter, and the solar cable to connect the panels to the inverter. (The assembly system as well as the wiring and protections are changeable to meet your needs).



SOLAR PANELS:

In its basic version, this Photovoltaic system will bring you an average of 9.6 Kwh per sunny day. Productions will depend on the seasons (summer/winter) on the geographical position and the inclination of the panels.
We invite you to consult our solar production simulator to determine exactly what your solar production will be.

20-year warranty at 80% of rated power.



INVERTER:

SolaX has developed a range of single-phase inverters, with no rival in the industry for their quality, reliability and efficiency. SolaX single-phase inverters have a wide range of MPPT voltage that allows you to harvest the maximum energy possible from your photovoltaic system and a maximum input voltage of 600V, with a maximum efficiency of 97.8%.



CABLE AND CONNECTORS:

All cables and connection are pre-wired in our workshops. Our kits are very easily mounted by 'beginners' in electricity. For those who have some reservations about the technical side, our technical team assists you and helps you every day from 8am to 5pm.



assembly:

It takes no more than 2 hours to install this kit. Once the VarioTwin structures are positioned, all you have to do is 'clip' the panels on them. Attach the inverter to the wall and connect it to your electrical panel.



guarantee:

All products have an individual warranty.

Panels guaranteed 20 years at 80% of rated power.


TrinaSolar 330Wp Honey Solar Panel Black (this product is subject to change depending on the product technology and your panel selection)



TrinaSolar 330 Wc Honey Black Solar Panel



High power

  • Up to 335 W of head power and 19.9% module efficiency with half-cutting and MBB (Multi Busbar) technology to achieve more BOS savings,
  • The low strength of the half-cut and the right section of the MBB ensure high power.

High reliability

  • Guarantee of IDP resistance by controlling the cellular process and module hardware,
  • Salt, acid and ammonia-resistant,
  • Mechanical performance: Up to 5400 Pa of positive load and 2400 Pa of negative load.





 Characteristics



MECHANICAL DATA
solar cellMonocristallin
Cell orientation120 cells (6 × 20)
Module dimensions1690 x 996 x 35 mm
weight18 kg
glass3.2 mm, high transmission, heat-reinforced glass with AR coating
frame35 mm anodized aluminum alloy
backWhite and black
J-BoxRanked IP 68
CablesPhotovoltaic technology cable 4.0 mm
Portrait: N 280 mm / P 280 mm
Landscape: N 1200 mm / P 1200 mm
connectorType MC4

SolaX X1 Boost 3.0T single-phase inverter

SolaX X1 Boost 3.0T single-phase inverter



X1 Boost 3.0T single-phase SolaX inverter: maximum efficiency of 97.8%, maximum CC input voltage of 600V and remote control via X-Cloud.

SolaX has developed a range of single-phase inverters, with no rival in the industry for their quality, reliability and efficiency. SolaX single-phase inverters have a wide range of MPPT voltage that allows you to harvest the maximum energy possible from your photovoltaic system and a maximum input voltage of 600V, with a maximum efficiency of 97.8%.





Characteristics



 X1-3.0T
ENTREE (DC)
Recommended Maximum DC Power [W]3250
Max. ENTRY DC voltage [V]600
Max. current entry [A]12/12/21
MPPT [V] voltage range125-580
Start the input/exit voltage [V]110/150
Number of MPP thong per tracker MPP02/01/21
EXIT (AC)
AC[VA] rated power3000
Max. Ca Food [VA]3000
Nominal alternative tension; range [V]220/230/240; 180-280
Ac frequency; range) [Hz]50/60; ±5
Max. Alternative Current [A]14
Power factor (full charge)0.8 advance - 0.8 late
Total harmonic distortion (THD) [%]<2
energy consumption
Watch Power [W]<2
efficiency
MPPT Efficiency [%]99.9
Efficiency by European standards [%]97.0
Max. Efficiency[%]97.8
SECURITY AND PROTECTION
Top-up protectionYes
Protection from over-intensitiesYes
Monitoring CC isolation impedanceYes
Monitoring of the current to the earthYes
Monitoring CC injectionYes
Protection RCDYes
securityIEC62109-1/-2
EmcIN 61000-6-1 / IN 61000-6-2 / IN 61000-6-3
certificationG83/2; G59; AS4777.2-2015; VDE4105; EN50438; CQC; VDE0126
ENVIRONMENTAL LIMIT
Protective classIP65
Operating temperature [C]-20 - 60 (downgrade to 45)
Humidity [%]0-95 (without condensation)
Attitude [m]2000
Storage temperature [C]-20-60
Noise emission [dB]<25
SIZE AND WEIGHT
Dimensions (W - H - D) [mm]420*339*143
Weight (kg)14/06/21
GENERAL DATA
topologyNo transformer
Interface de CommunicationRS485 / WIFI (optional) / DRM / USB / RF (optional) / Meter (optional)
display16-character backlight - 4 characters
Cooling typenatural

Connection scheme



Connection scheme

Specifications

Output Kit voltage230V
Battery storageWithout storage
Type of needSelf-consumption
Wind TurbinWithout
Number of panels8 panels
Inverter power3000VA
Grid reinjectionWith
