Kit 160 self-consumption panels / 50kW reinjection

Wattuneed

34 728,55 € tax incl.

Add to cart

This complete kit contains:

  • Batteries
  • Panneaux

More details

Équipements
Descriptions équipements
Customize

Choice of panels

See product
Solar panel JNL Solar monocrystallin 320 Wc full black

config

167,60 €

QTT

See product
Solar Panel Q.Cells DUO-G9 330Wc Full Black

config

157,95 €

QTT

See product
Solar panel Q.Cells DUO-G9 335Wc Full Black

config

175,45 €

QTT

See product
Solar panel JNL Solar monocrystallin 375 Wc

config

188,95 €

QTT

See product
Solar panel Q.Cells DUO ML-G9 375Wc monocrystallin

config

209,95 €

QTT

See product
TrinaSolar Vertex 385Wc Full Black Solar Panel

config

194,68 €

QTT

See product
Solar panel Q.Cells DUO- ML-G9 390Wc monocrystallin

config

204,26 €

QTT

See product
TrinaSolar Vertex S 390Wc Full Black Solar Panel

config

211,30 €

QTT

See product
TrinaSolar Vertex S 395Wc Monocrystallin Solar Panel

config

214,01 €

QTT

See product
Hyundai 395 Wc Ultra Black Solar Panel

config

228,28 €

QTT

See product
Solar panel Hyundai 400 Wc

config

245,62 €

QTT

Inverter selection

See product
SMA Sunny Tripower Core1

config

6 500,70 €

QTT

Choice of mounting system

49.1
Sélectionné

Slate roof attachment kit

55
Sélectionné

Tile roof attachment kit

127
Sélectionné

Fixing kit on ground structure

82.62
Sélectionné

Système de montage pour toitures plates FlatFix

42.84
Sélectionné

Mounting system for tray roofing

37.28
Sélectionné

Tin roof attachment kit

See product
Slate roof attachment kit

config

49,10 €

QTT

See product
Tile roof attachment kit

config

55,00 €

QTT

See product
Fixing kit on ground structure

config

127,00 €

QTT

See product
Système de montage pour toitures plates FlatFix

config

82,62 €

QTT

See product
Mounting system for tray roofing

config

42,84 €

QTT

See product
Tin roof attachment kit

config

37,28 €

QTT

CABLING AND CONNECTORS

See product
2X4mm² Solar cable with MC4 (by the metre)

config

4,60 €

QTT

See product
2x4mm² Solar cable extension with 2xMC4-like (by the meter)

config

7,30 €

QTT

See product
Male and female MC4-like connectors

config

5,00 €

QTT

See product
Double type MC4-like connector male & female

config

16,00 €

QTT

See product
Triple MC4-like connector male + female

config

24,00 €

QTT

See product
Earth cable 6mm2 1m

config

1,45 €

QTT

See product
Solar cable 4mm² (sold by the meter)

config

12,32 €

QTT

PROTECTIONS AND ACCESSORIES AC

See product
Schneider mono 2A circuit breaker

config

14,50 €

QTT

See product
Schneider mono 4A circuit breaker

config

14,50 €

QTT

See product
Schneider mono 6A circuit breaker

config

14,70 €

QTT

See product
Schneider mono 10A circuit breaker

config

17,60 €

QTT

See product
Schneider mono 16A circuit breaker

config

8,60 €

QTT

See product
Schneider single-phase 25A circuit breaker

config

16,00 €

QTT

See product
Schneider mono 40A circuit breaker

config

16,70 €

QTT

See product
Schneider 16A tetra circuit breaker

config

46,40 €

QTT

See product
Schneider 20A tetra circuit breaker

config

46,40 €

QTT

See product
Schneider 25A tetra circuit breaker

config

46,40 €

QTT

See product
Schneider 40A tetra circuit breaker

config

53,40 €

QTT

See product
Schneider Breaker tetra 50A

config

183,68 €

QTT

See product
50 KVA decoupling cabinet

config

4 530,00 €

QTT

See product
Differential switch type A 2P 63A 300ma

config

69,50 €

QTT

See product
Differential switch type A 4P 40A 300ma

config

82,00 €

QTT

See product
Differential switch type A 2P 63A 300ma

config

119,80 €

QTT

See product
3kWc Single Phase lightning protection

config

232,42 €

QTT

See product
Three-phase electrical box

config

673,92 €

QTT

See product
AC Parafoudre Box

config

359,37 €

QTT

See product
AC ZJBENY box set with 25A 230V socket

config

140,00 €

QTT

See product
ZJBENY AC 25A 230V Lightning Box

config

125,25 €

QTT

PROTECTIONS AND ACCESSORIES DC

See product
Paralleling Box 5 inputs with lightning arrester and switch

config

270,00 €

QTT

See product
DC 500V 32A disconnector box

config

129,00 €

QTT

See product
DC 500V 40A Switch

config

68,00 €

QTT

See product
DC 1000V 125A Isolator Switch

config

222,30 €

QTT

See product
DC 2P 1000V 32A Switch - with enclosure

config

56,00 €

QTT

See product
Double DC Cut-out and lightnin protection box

config

551,98 €

QTT

See product
AC Parafoudre Box

config

359,37 €

QTT

See product
ZJBENY DC single-surge arrestor box

config

143,00 €

QTT

See product
1000V 32A DC double surge protector ZJBENY

config

231,00 €

QTT

See product
DC Cut-out and lightning protection box 20A

config

262,85 €

QTT

See product
DC Cut-out and protection box 40A

config

457,03 €

QTT

See product
Lightning protection box with 2 input

config

471,00 €

QTT

More info

Todos nuestros kits son configurables. En las opciones puede hacer clic en el producto para elegir otro modelo o cambiar las cantidades para adaptar el kit a sus necesidades. Todos nuestros kits son configurables. En las opciones puede hacer clic en el producto para elegir otro modelo o cambiar las cantidades para adaptar el kit a sus necesidades. También puede ver los detalles de los productos elegidos directamente debajo del precio.


JNL SOLAR 300Wp Monocrystalline Solar Panel Full Black (this product is subject to change depending on the product technology and your panel selection)



JNL Solar 300 Wc Monocristallin Full black solar panel



JNL Solar is dedicated to the development, operation, maintenance of solar power plants, the manufacture of research and development rings and the manufacture of solar modules and solar cells.
It has equipped a state-of-the-art professional automatic production line and has state-of-the-art technology and craftsmanship.
JNL Solar has participated in national and international energy investment plans, such as the United States, Germany, France, Spain, Japan, India, South Africa, South Korea, Canada, etc. and all power plants are successful on the grid and production wells.



Characteristics



Peak Power (Pmax)300
Module efficiency18,33%
Max. Power Tension Vmp (V)33,54
Max. Power Current Amplifier (A)8,95
Empty tension Voc (V)39,53
Current short-circuit Isc (A)9,6
Power tolerance-0, 10W
Maximum system voltage (V)DC 1000V
Number of bypass diodes3
Grilled fuse current15A
STC: Irradiance 1000W/m2, Cell temperature 25oC, Air mass AM1.5 Measurement tolerance: -3%
Potentially induced degradation (PID) free, IEC61215, IEC61730, increased snow load up to 5400Pa.
Dimensions [mm]1650x992x35
Weight (kg)18,5
Type of solar cells156.75mm x 156.75mm (5BB)
Junction boxIP67
Mechanical loading5400Pa
FrameworkBlack anodized aluminium
Cables4mm2, 1000mm
ConnectorMC4 or compatible
Glass3.2mm
Operating temperature-40C - 85C
Nominal temperature of the measuring cell47 degrees Fahrenheit

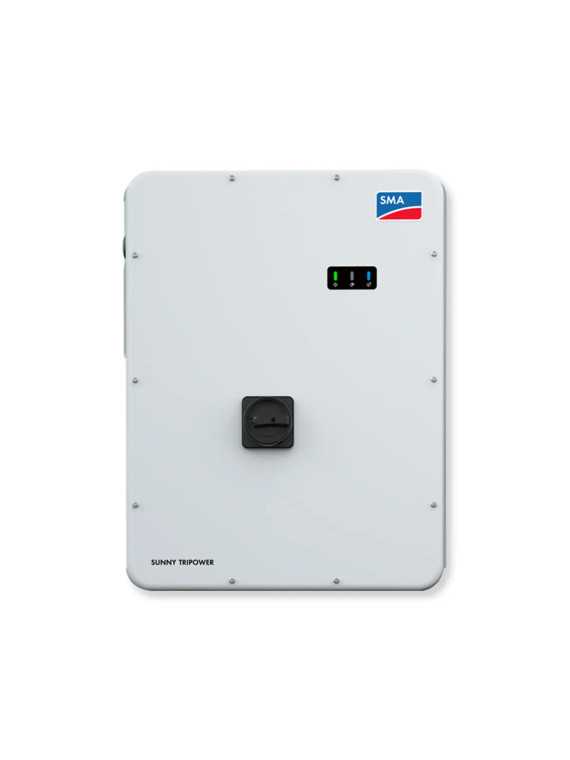

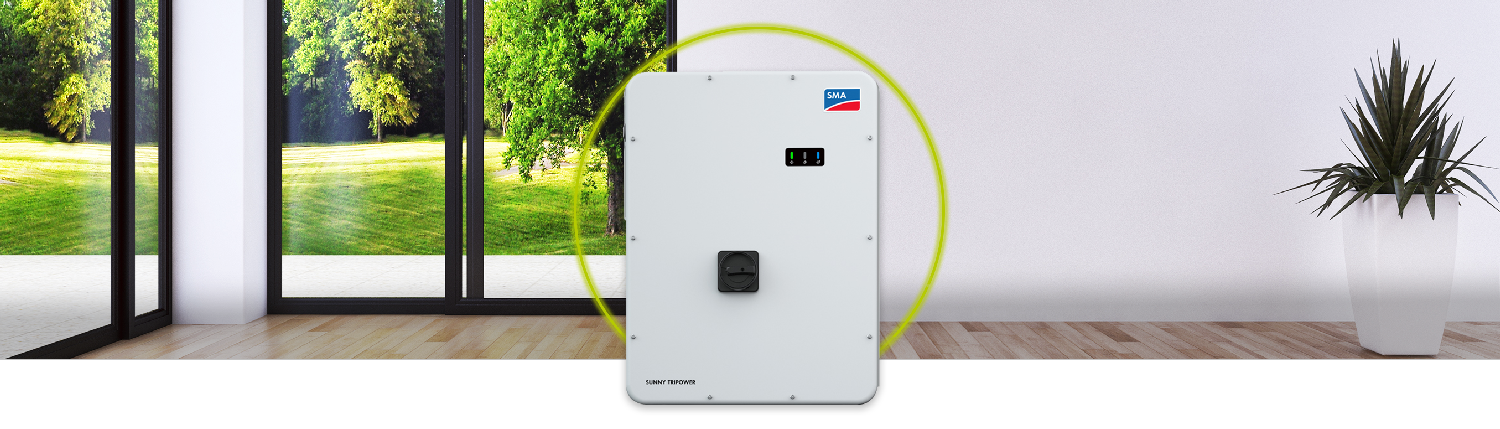

Inverter SMA Sunny Tripower Core1SMA Sunny Tripower Core1



Self-supporting device that's easy to install
Economics
Integrated harmoniously
Maximum production

The First freestanding thong inverter for photovoltaic installations on large roofs, on the ground or in the shade of parking, the Sunny Tripower stands out for its innovative design. As a result, installation is up to 60% faster and costs are reduced.
The third generation of the world-most successful Sunny Tripower inverter, the Sunny Tripower CORE1 is revolutionizing the segment of inverters for large-roofed photovoltaic installations. The Sunny Tripower combines a unique design and an innovative installation concept that significantly reduces installation time. You get the best return on your investment.



Characterizations





Technical featuresSunny Tripower CORE1
Entry (DC)
Maximum power of the photovoltaic generator75000 Wp STC
Maximum input voltage1000 V
MPP voltage range/entry voltage
Assigned
500 V to 800 V / 670 V
Min. input voltage / input voltage
Start
150 V / 188 V
Maximum current / by MPPT120 A / 20 A
Current short-circuit max. by MPP tracker/
by string entry
30 A / 30 A
Number of independent MPPT entries /
thongs per MPPT input
06/02/19
Exit (AC)
Assigned power (for 230V, 50 Hz)50,000 W
Apparent power AC max50,000 VA
AC nominal voltage220 V / 380 V
230 V / 400 V
240 V / 415 V
AC voltage range202 to 305 V
AC/beach network frequency50 Hz / 44 Hz to 55 Hz
60 Hz / 54 Hz to 65 Hz
Assigned network frequency/tension
assigned network
50 Hz / 230 V
Max Output Current/Assigned Output Current72.5 A / 72.5 A
Injection Phases/AC Connection3/3-(N)-PE
Power factor to assigned power/
adjustable phase-shift factor
1/0 inductive to 0 capacitive
Thd3%
Protective devices
D.C. side disconnection device
Ground defect monitoring/monitoring
Network
● / ●
DC/resistance polarity reversal protection
AC/galvanic separation short circuits
● / ● / —
Fault current monitoring unit,
sensitive to all currents
Protective class (according to CIS 62109-1)/
power category (according to 62109-1)
I/ AC: III; DC: II
Parafoudre AC/DC de type II○ / ○
Performance
Max/European return98,1 % / 97,8 %
General features
Dimensions (L/H/P)621 mm / 733 mm / 569 mm (24.4 in / 28.8 in / 22.4 in)
Weight84 kg (185 lbs)
Operating temperature range'20125' at '60 ' C ('201213' F to '140'
Sound emissions (typical)65 dB (A)
Self-consumption (night)4.8 W
Topology/cooling systemNo Transformer / OptiCool
Protection Index (according to IEC 60529)IP65
Climate class (according to IEC 60721-3-4)4K4H
Maximum allowable relative moisture in the air (without condensation100,00%
Equipment/Function/Accessories
DC/AC ConnectionSUNCLIX/Borne screw
Support feet
LED display (state/error/communication)
Interface: Ethernet/WLAN/RS4852 entries /
Data interface: SMA Modbus/SunSpec Modbus/Speedwire, Webconnect● / ● / ●
Multifunction relay/Ports for modules
extension
2 entries
OptiTrack Global Peak/Integrated Plant
Control/Q on Demand 24/7
● / ● / ●
Compatible off-grid/compatible SMA Fuel
Save Controller
● / ●
Guarantee: 5/10/15/20 years● / ○ / ○ / ○
Certifications and approvals (other
request)
It is not valid for all national annexes to
standard EN 50438
ANRE 30, AS 4777, BDEW 2008
C10/11:2012, CE, CE 0-16, CEI 0-21,
IN 50438:2013, G59/3, IEC 60068-2-x,
IEC 61727, IEC 62109-1/2, IEC 62116,
MEA 2016, NBR 16149, NEN 50438,
NRS 097-2-1, PEA 2016, PPC, RD 1699/413,
RD 661/2007, Res. 7:2013, SI4777,
TOR D4, TR 3.2.2, UTE C15-712-1,
VDE 0126-1-1, VDE-ARN 4105, VFR 2014,
P.O.12.3, NTCO-NTCyS, GC 8.9H, PR20,
Dewa
Standard Equipment - Optional Equipment — Not available
Nominal data - version: 07/2017
Type designationSTP 50-40

Specifications

Type of needSelf-consumption
Wind TurbinWithout
Number of panels160 panneaux
Output Kit voltage400V
Battery storageWithout storage
Batterykit without battery
Inverter power50000 W
Grid reinjectionWith
