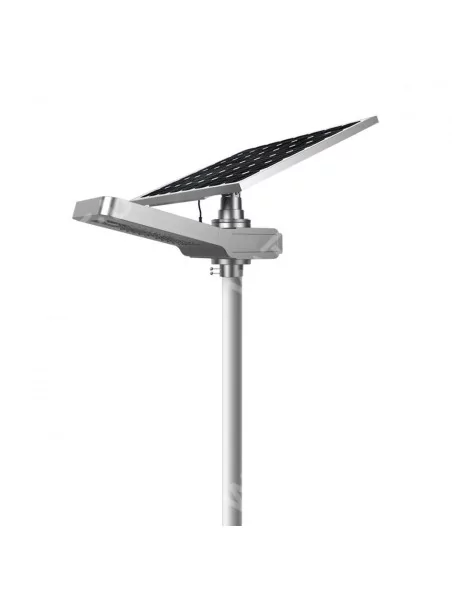

Solar lamp post - LED autonomous WU 20W 18V - Panel 65W
More info
Fully autonomous LED 20W 18V solar lamppost!
His solar 20 Watt power spot is perfect for lighting your yard, parking, driveway or street lighting without recourse to the public electricity grid.
This solar lamp is completely autonomous with its solar panel 50pw and its built-in battery. Practice to inform the non-connected places in the network at lower cost or to save on energy by using solar energy. Ideal to replace your old high consumption spots!
- Charge (in full sun) time: 6 hours
- Lighting time: 3-5 days
- Recommended installation height: 5-8 meters
- Recommended between streetlights distance: 10-30 meters
Beware, the mast is not included in this product! For any request, please contact to info@wattuneed.com
Panel photovoltaic orientable 50pw
A solar panel is integrated on top of the lamppost. The particularity of this Panel is that it is fully adjustable (rotation 360 ° and tilt back and forth), to ensure a correct exposure of the entire surface of the Panel regardless of its locationUnlike some Panel lights fixed.
- Monocrystalline cells
- Power: 50 WP
- Easy and quick to install
- Aluminum frame
- VMP: 18, 0V
- IMP: 2.78 A
- VOC: 21, 6V
- ISC: 3.02 A
- Dimensions: 610 x 541 x 25 mm
Solar spot with a power of 20W
Thanks to the power of 20W LED lamp, it is possible to illuminate parking lots, driveways, streets...
The distance recommended between streetlights is between 10 and 30 meters.
Features:
- Use: street light
- Color temperature: 3000-6500 K
- Light LFlux: 2500-2800 Lm
- LED quantity: 40pcs
- LED chip: Bridgelux
- CIRB: maw 70Ra
- Control voltage: 5V
212 Wh Lithium solar battery
The lamp has a Lithium battery high capacity for storage of the energy accumulated during the day.
Life span: 5-8 years (≥ 2000 cycles of charge and discharge)
High heat resistance
Dimensions of the solar spot and the photovoltaic panel
Description
Type | WU 65 | |
Lamp power | 20 | W |
Solar Panel | 65 | W |
18 | V | |
Lithium battery | 212 | WH |
12.8 | V | |
LiFePo | ||
LED quantity | 40 | PCs |
Luminous flux | 2500-2800 | LM |
Time of loading (in the Sun) | 5.5 | HRS |
LED-mark | Bridgelux | |
Color temperature | 300-6500K | |
CRY | ≥70 | RA |
Light control voltage | 5 | V |
Light distribution | Wing beat with polarized light | |
Lighting time | 2-3 days | |
Distance from the sensor | 5-10 | m |
Time of the sensor | 20-30 | s |
Operating temperature | -20 to + 60 | ° C |
Life | ≥50, 000 | HRS |
Material | Aluminum under pressure of high-quality cast aluminum alloy | |
The pole diameter | 76 | mm |
Mounting height | 5-10 | m |
Installation spacing | 10-30 | m |
Example usage of the solar lamp 20W
Data sheets and documentation
Specifications
With storage | |
1 panel | |
Self-Use Lighting Kits | |
Without | |
Spot LED | |
Kit éclairage autonome | |
12V | |
20W | |
Lithium | |
Rigids | |
Monocrystalline | |
65 Wc | |
21.6 V | |
3.02 A | |
2.78 A | |
18 V | |
Kit with battery |
