10-panel self-consumption kit 6.5 kW with storage and installation in France

Control your energy?
Our All-in-One Kit with installation in France, for worry-free energy autonomy!

Discover our turnkey solution to generate your own electricity using solar power. Our basic kit includes 10 high-performance solar panels, a WKS Evo Circle hybrid inverter, and a Pylontech US5000 lithium battery, a mounting system suitable for tiled roofs, and all the necessary components for installation. We select the most efficient products for you to optimize the energy production of your installation.

Why choose solar energy?

By opting for a solar installation, you choose to:

• Reduce your electricity bill
• Lower your carbon footprint
• Increase the value of your property
• Become more energy-independent

A personalized quote for your project

We offer a customized study to determine the ideal configuration for your installation. By sending us a few photos of your roof and providing your electricity consumption details as well as the type of connection (single-phase or three-phase), we can provide you with an accurate quote.

Fast and professional installation

Once your project is approved, our qualified installers will set up your solar system as quickly as possible. We guarantee a meticulous installation that complies with current standards.

The advantages of choosing Wattuneed

• Expertise: Benefit from our expertise to achieve a successful project.
• Quality: High-performance materials and professional installation.
• Simplicity: A turnkey solution to make your life easier.
• Warranty: We provide follow-up on your installation. and the installer provides a ten-year warranty.

An offer tailored to your needs

Our offer is valid for installations accessible without the use of major lifting equipment at ground level or R+1 (1st floor). For projects requiring more complex access conditions, we will discuss the best technical and economic solution together. It is possible that there may be adjustments to the budget and materials, depending on the criteria mentioned earlier. Access to the property must be straightforward and on an unprotected site. Travel expenses are covered for the first 50 km. Beyond that, a mileage fee of €1 will apply.

Want to know more?

Feel free to contact us for a free and personalized quote: info@wattuneed.com

Take the step towards energy independence!

Solar panels

Inverters

Choose the best partner to convert your solar energy.

If you want to maximize the use of your photovoltaic solar energy, the hybrid inverter in combination with domestic storage may be the ideal solution for you.

We've selected the WKS range for their performance and excellent value for money.
It's perfectly possible to install several inverters in the same system to increase the power available.

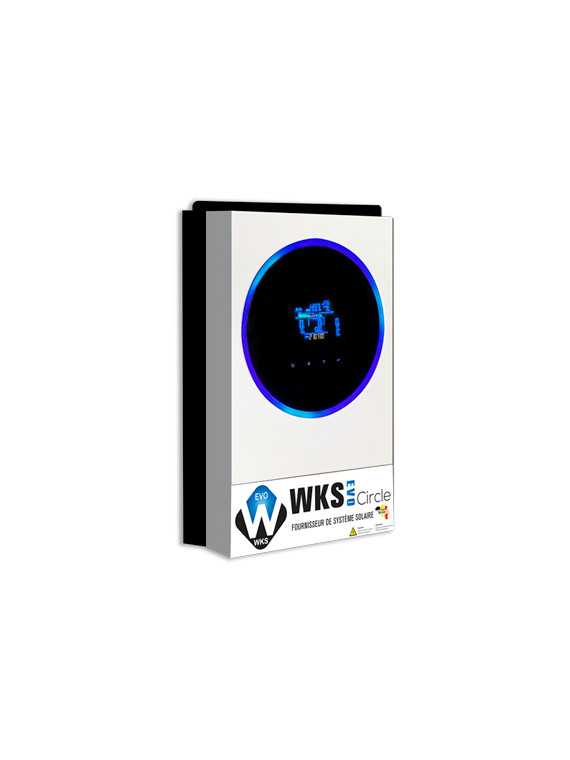

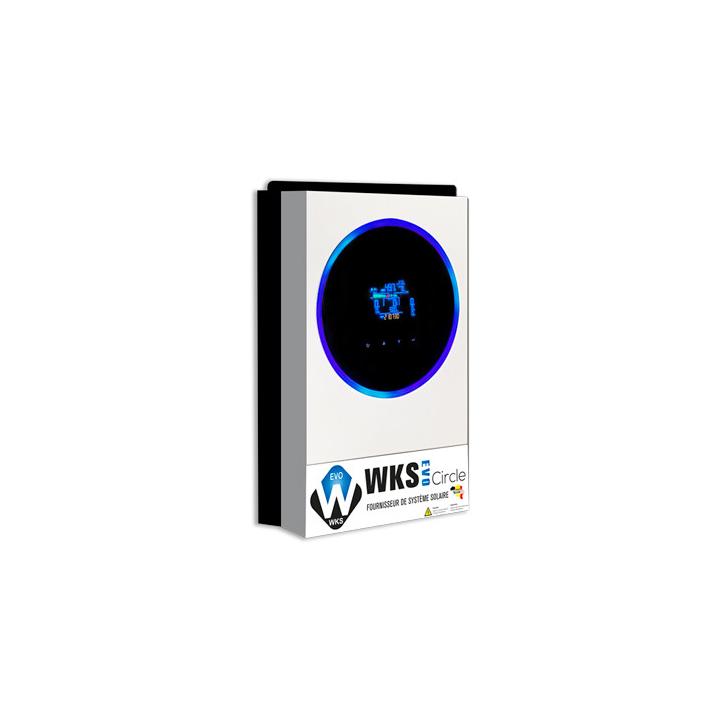

Hybrid inverter WKS EVO Circle

Hybrid inverter WKS EVO MAX II

1 MPPT

-> 9 Inverters

2 MPPT

-> 6 Inverters

Rated power 5600 VA - 5600W

Battery voltage 48 VDC

Rated power 10000 VA - 1000W

Battery voltage 48 VDC

Maximum PV load current 120 A

Maximum AC load current 120 A

Maximum PV load current 150 A

Maximum AC load current 150 A

Key benefits Intuitive design: Customizable LED ring, 4.3-inch color LCD screen, touch button. Flexibility: Option to choose operating mode via timer. Connectivity: Built-in Wi-Fi, USB On-The-Go port, BMS communication port. Performance: High-performance MPPT controller, wide DC input range. Reliability: Transformerless design, parallel operation up to 9 units. Notable technical features Power: 5.6 kVA MPPT Solar Charger: 120A LCD Screen: Color, 4.3 inches Wi-Fi: Built-in Parallel Operation: Up to 9 units LED Ring: Customizable with RGB effects

Key benefits Energy flexibility: maximum self-consumption, storage, grid injection. High performance: Two independent MPPT trackers, high efficiency. Reliability and durability: microprocessor control, robust construction. Ease of use: Intuitive LCD display, communication options. Safety: Overload and short-circuit protection. Environment: Clean energy, reduced carbon footprint. Notable technical features Power: 10kW Two independent MPPT trackers: Optimization of solar production Communication: Several options for home automation integration Environmentally-friendly: Solar energy

Our battery selection

Optimize your installation by choosing a suitable, high-performance storage solution.
Store your surplus solar production for later use to get rid of the grid.

We chose Pylontech lithium batteries for many reasons:
- 7 to 10-year product warranty;
- Fast charge/discharge speed;
- Possibility of upgrading capacity whenever you want;
- No technical capacity limits.

We offer two different capacities. They are compatible with each other.

Battery storage Pylontech US3000C

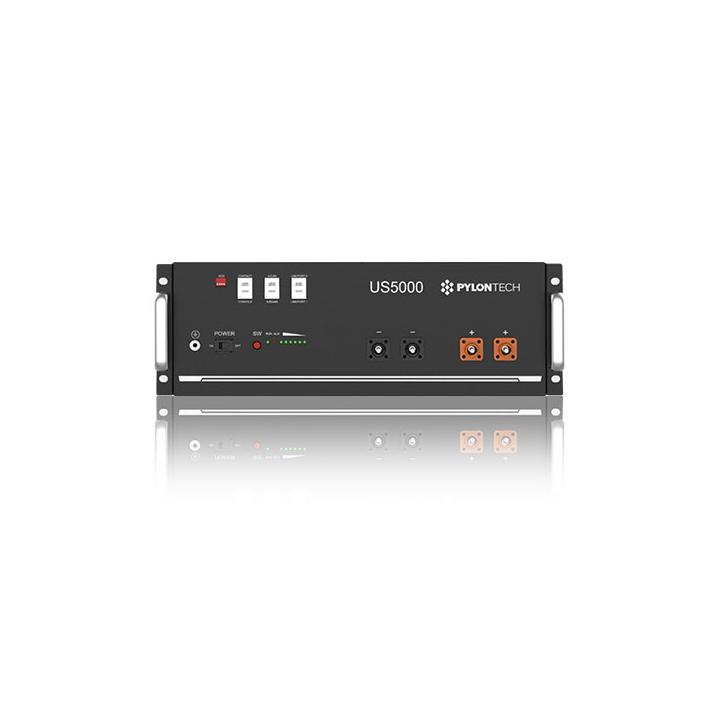

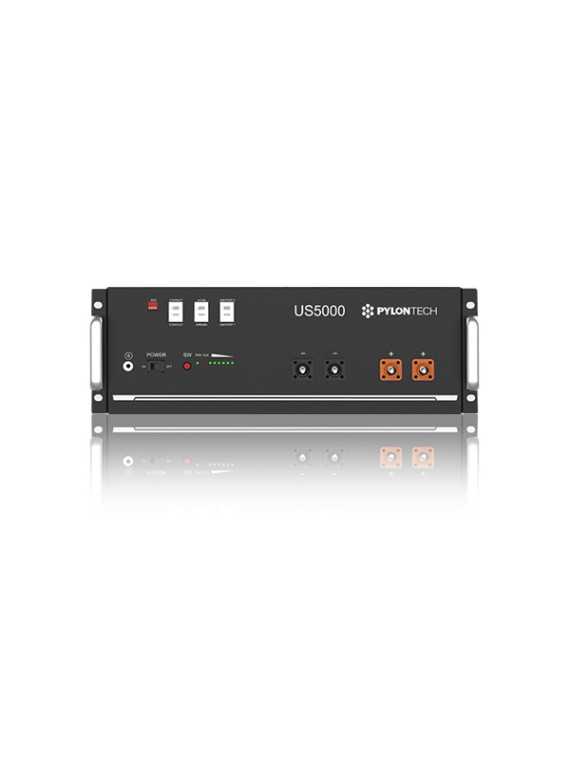

Battery storage Pylontech US5000

Rated capacity 74 Ah

DOD 95%

Rated capacity 100 Ah

DOD 95%

Tension 48 VDC

Charge/discharge 37 Ah (recommended) 37 Ah@ (Maximum)

Tension 48 VDC

Charge/discharge 80 Ah (recommended) 120 Ah@ 15min (Max.)

Cycle >6000, 25°C

Upgradable -> 16 batteries

Cycle >6000, 25°C

Upgradable -> 16 batteries

Benefits • Over 6000 cycles at 95% discharge • Compact modular design for easy capacity expansion • Supplies up to 3.552KW  • Useful capacity of 4560Wh • Short current/time duration of <2000A/1ms • TüV CE UN38.3 safety certificate  • Price per kwh: 0.08 cent

Benefits • Over 6000 cycles at 95% discharge • Compact modular design for easy capacity expansion • Supplies up to 4.8KW  • Useful capacity of 3374Wh • Short current/time duration of <4000A/2ms • TüV CE UN38.3 safety certificate • Price per kwh: 0.08 cent

Single-phase connection diagram

Connection to
WKS EVO Circle inverter
