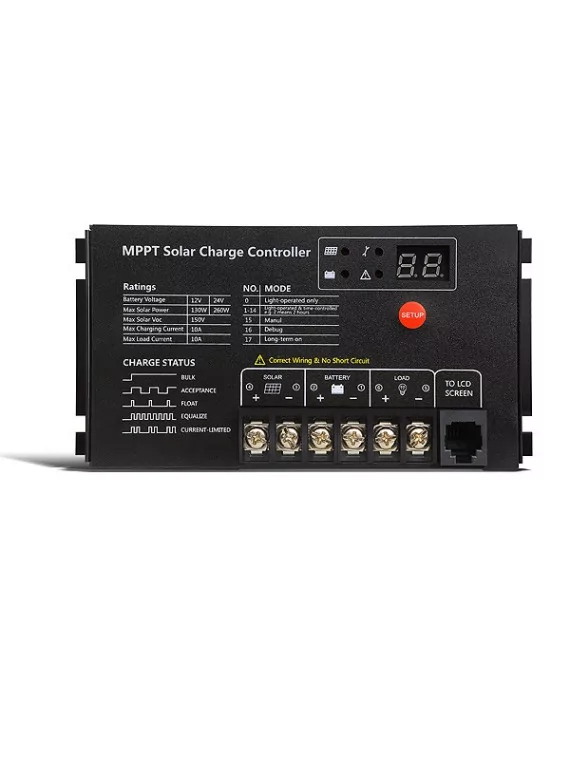

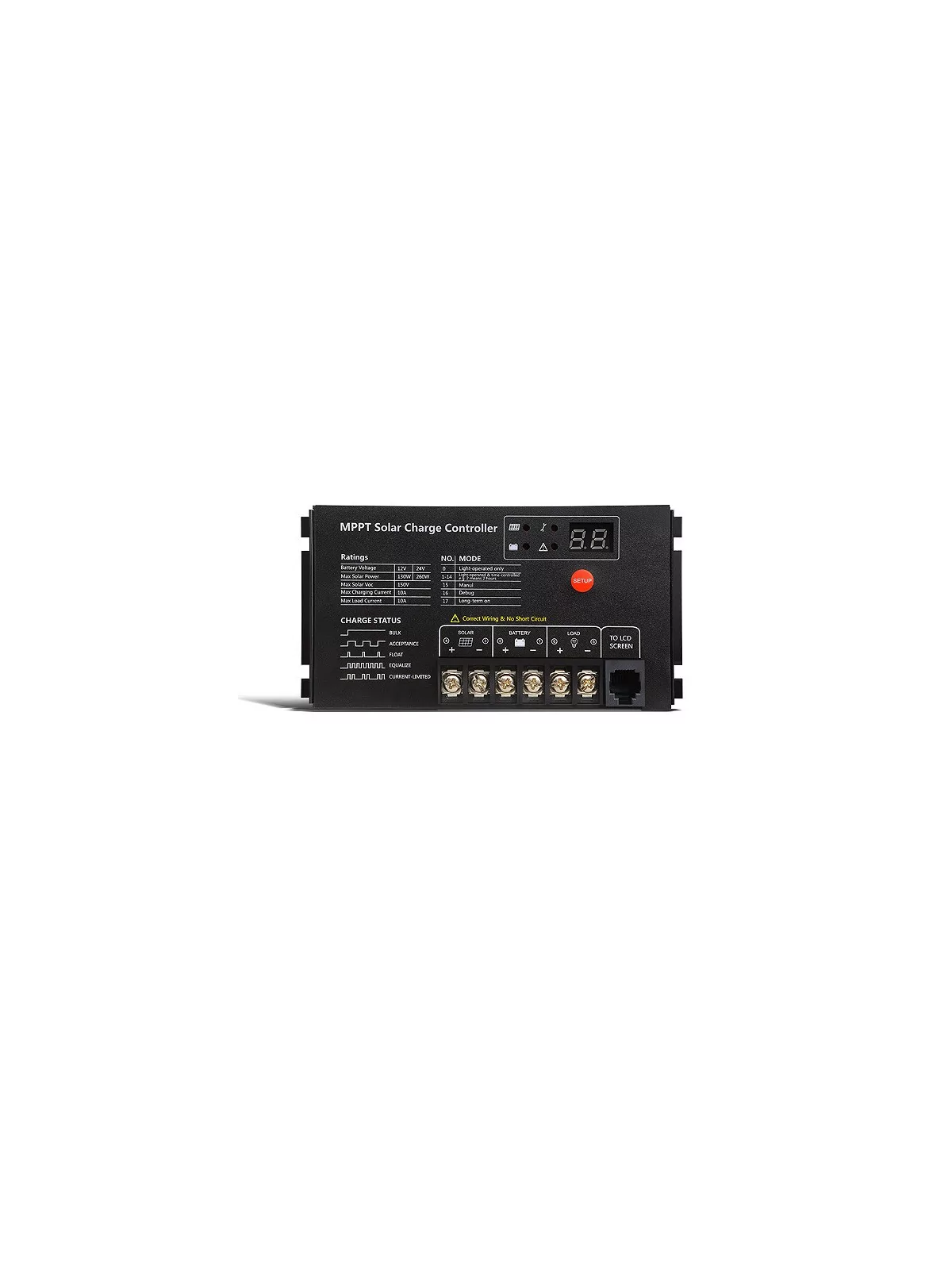

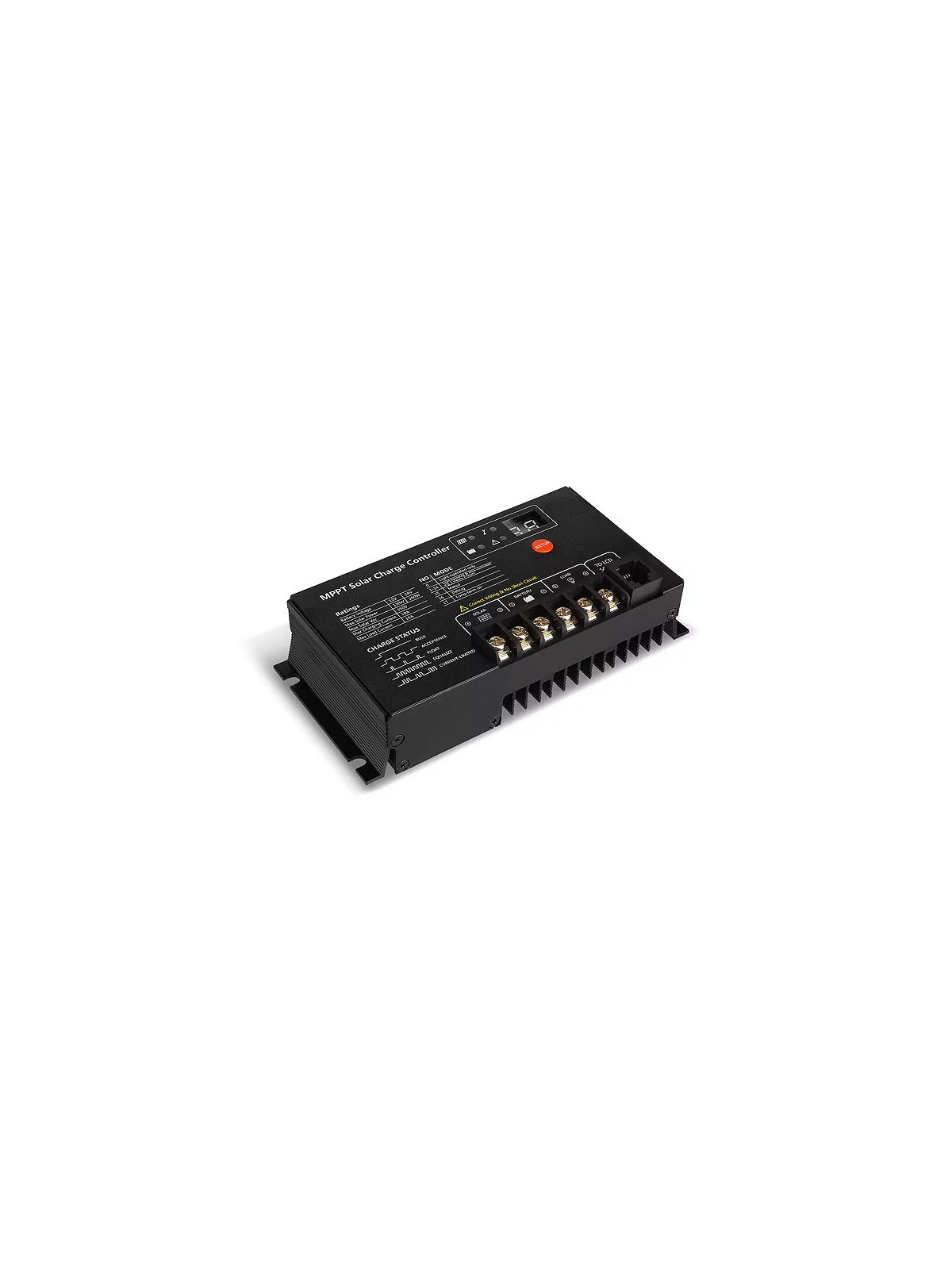

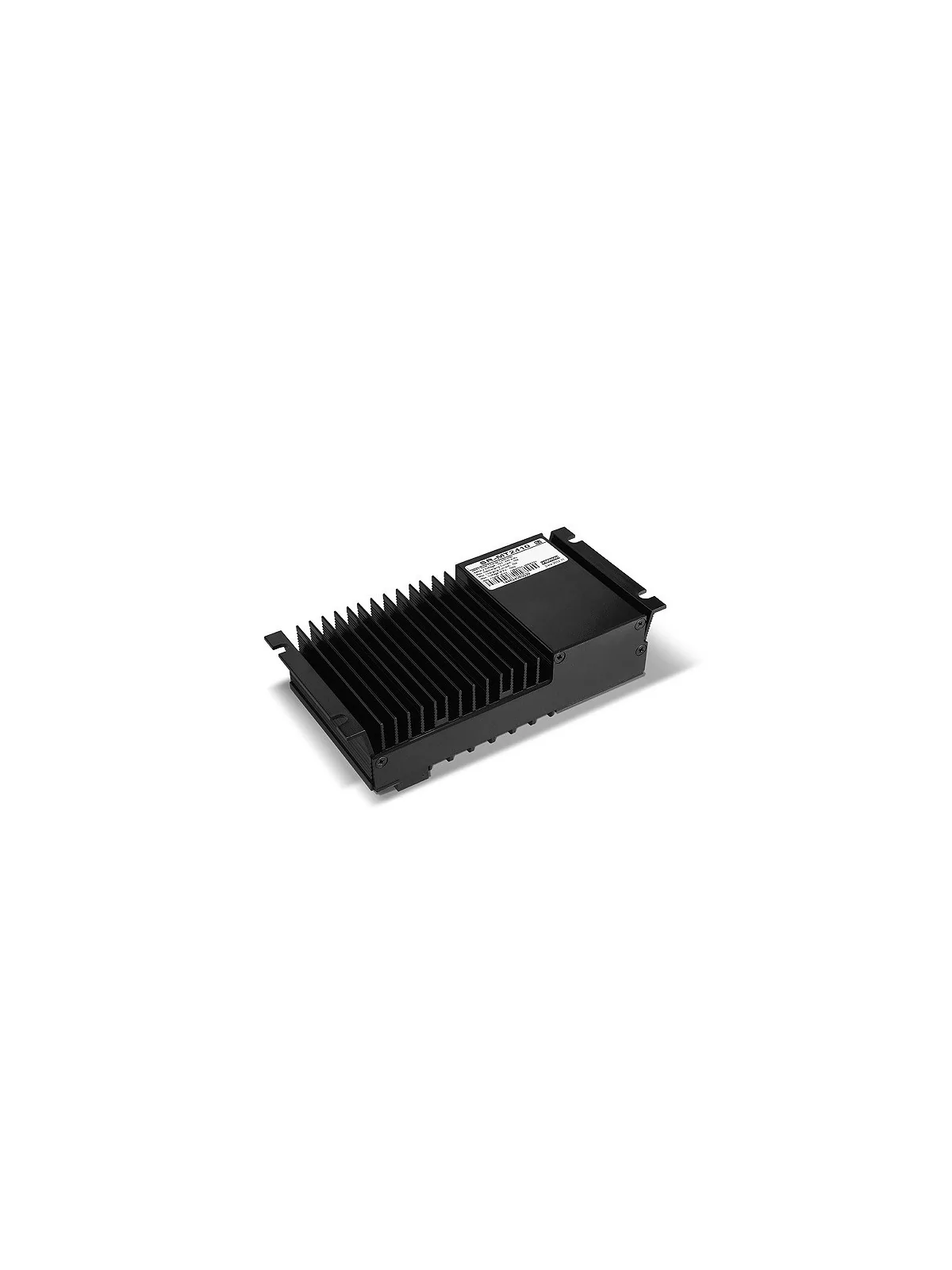

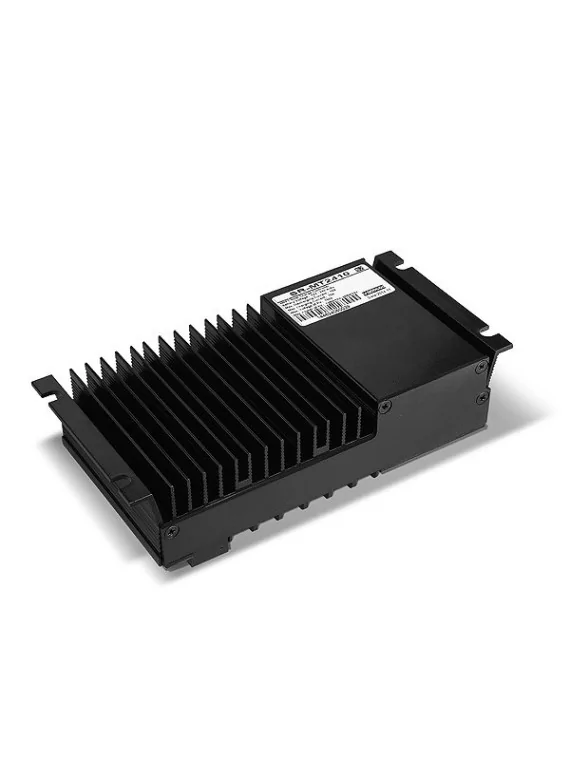

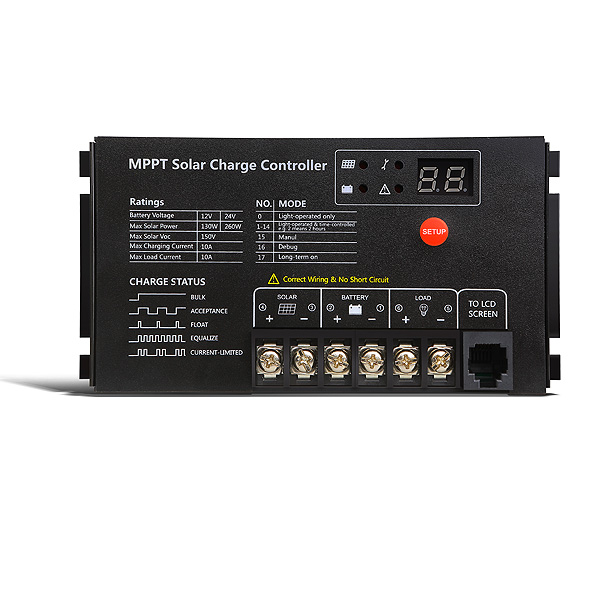

    Solar controller MPPT 10A SRNE - MT2410

    $54.7
    MT2410
    0712971136601

    The new SRNE range of solar controllers offers optimum MPPT tracking efficiency of 99.9%, as well as load efficiency 15-20% higher than PWM.

    Compatible with RM1 display

    40 item(s) left in Stock!

    Solar controller MPPT 10A...

    $54.7

    SRNE MPPT 10A

    SRNE MT2410 MPPT solar controller: Maximum efficiency and precise monitoring

    Adoption of a double-peak or multiple-peak tracing technique, used for the condition when part of the solar panel is in shadow or parts of the solar panel are damaged.

    Built-in maximum power point tracking algorithm promotes pv system energy use efficiency. Charging efficiency is 15% ~ 20% higher than in PWM mode.

    It can find the best working point of the I-V curve in 1 minute. MPPT efficiency can reach 99.9%.

    Adopts advanced digital power supply techniques that make energy conversion efficiency reach 97%.


    SRNE MPPT 10A

    Four load levels: MPPT - equalizing load - boosting load - floating load.

    Current-limiting charging mode: when the solar panel's power is oversized, the controller automatically reduces the charging load, allowing the system to operate below the rated charging current.

    Indicates fault codes in the event of anomalies, helping the user to confirm system failure.

    Various load control methods. Automatic day/night cycle recognition.

    Various system protection functions, including overcurrent, overdischarge, overload, overtemperature, reverse battery connection and short-circuit protection, etc.

    Compatible with RM1 display


    ModelMT2410
    System voltage12V
    Maximum solar panel input power130W
    Transfer efficiency≤ 96%
    Flow load / discharge current10A
    Load loss< 15mA
    Maximum solar panel input voltage< 150V
    MPPT tracking efficiency> 99%
    Overvoltage protection16.5V
    Limited charging voltage15.5V
    Equalize charging voltage15.2V
    Equalize charging interval30 days
    Increase charging voltage14.4V
    Floating charge voltage13.8V
    Excessive discharge recovery voltage12.5V
    Over discharge voltage11.0V
    Boost charge timehours
    Equalization charging timehour
    Overheating protectionYes
    Luminous voltage (on)
    Luminous voltage (deactivated)
    Functional delay timemin
    Operating temperature~ +65°C
    Weight430g
    Altitude≤ 3000m
    Dimension143*71*37.4 (mm)
    Installation dimension139*48 (mm)
    Overload protectionLoad current ≥1.25 times rated current, switch off load within 10 seconds; Load current ≥1.5 times rated current, switch off load within 5 seconds
    ProtectionsReverse polarity. 2. Excessive interior temperature. 3. PV input terminal voltage higher than value. 4 Charging 5 Reverse charging protection at night 6 Protection against TVS rays 7. Waterproof: IP 64
    MT2410

    Data sheet

    Charging power
    10A
    Voltage
    12V / 24V
    MPPT/PWM
    MPPT
    Video Youtube 1 - ID
    GXvxzPA7aBI

    Specific References

    New

    Download

    Manuel SRNE MPPT SRMT 10A FR

    Download (3.24MB)

    Manual SRNE MPPT SRMT 10A EN

    Download (1.44MB)
