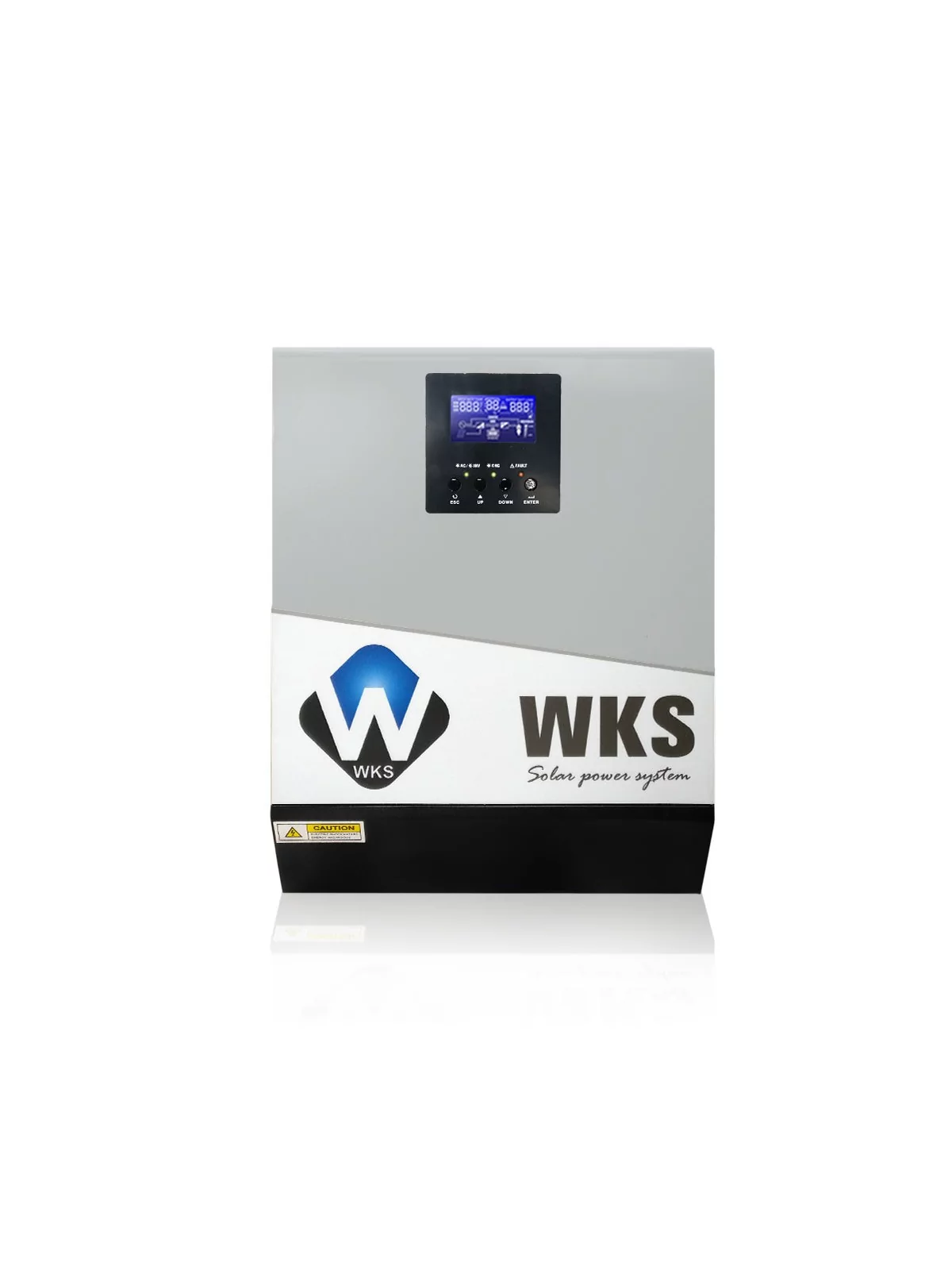

WKS 1 kVA 24V hybrid inverter

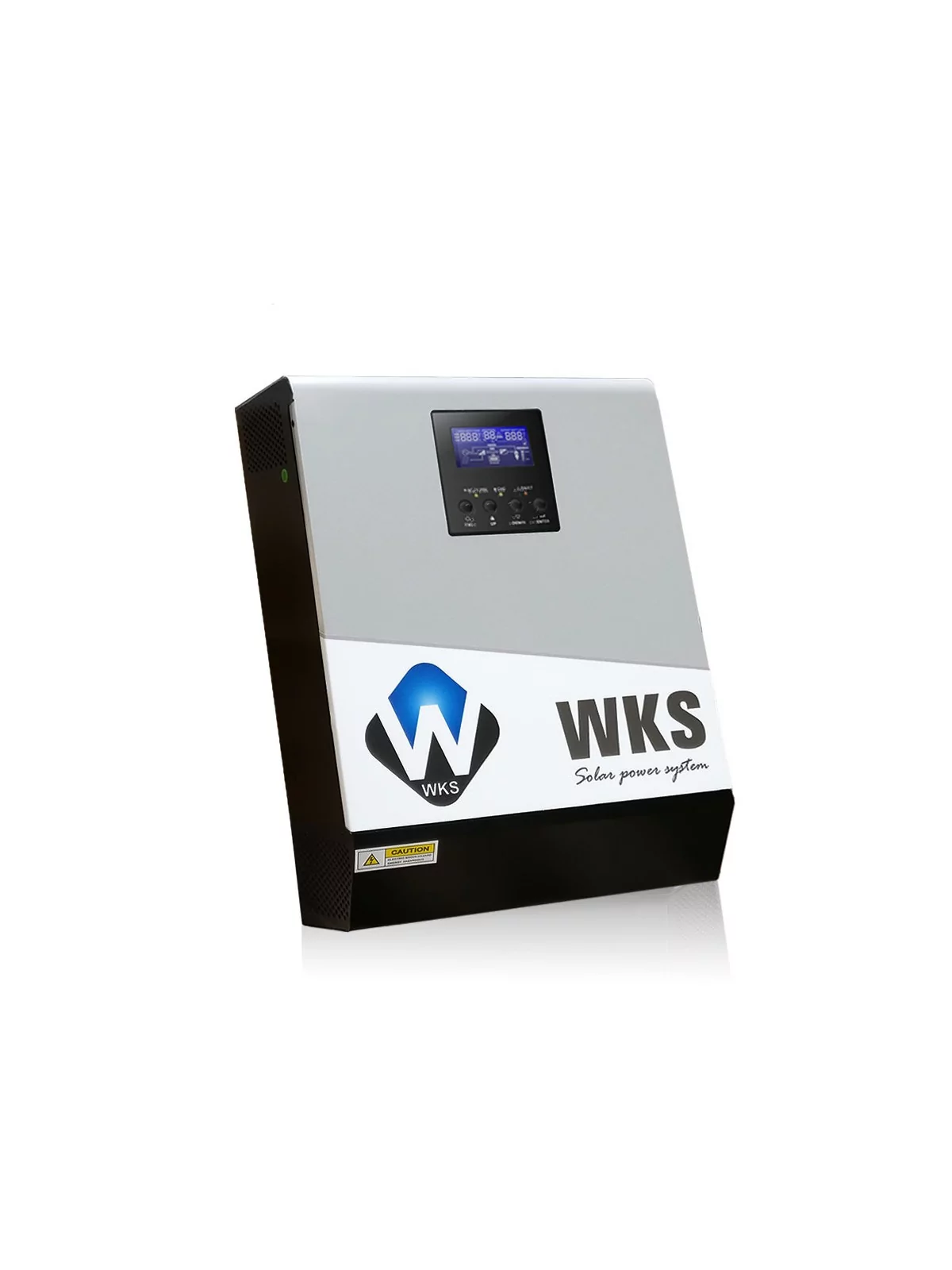

WKS 1 kVA 24V hybrid inverter

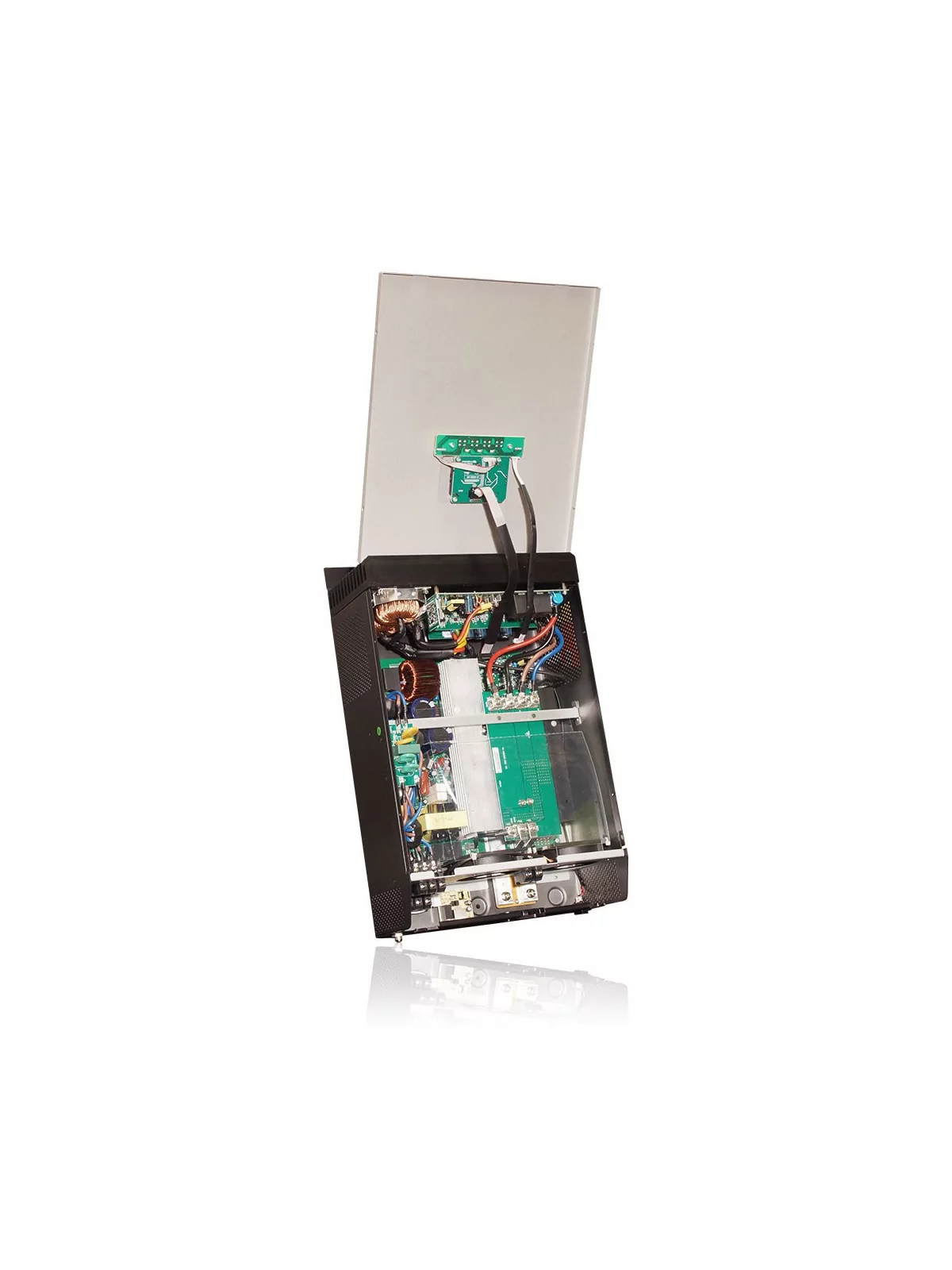

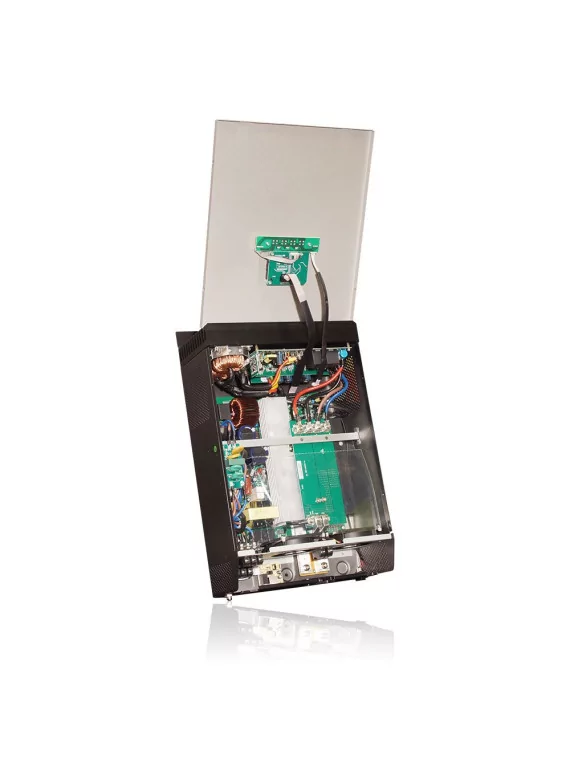

Inverter interior

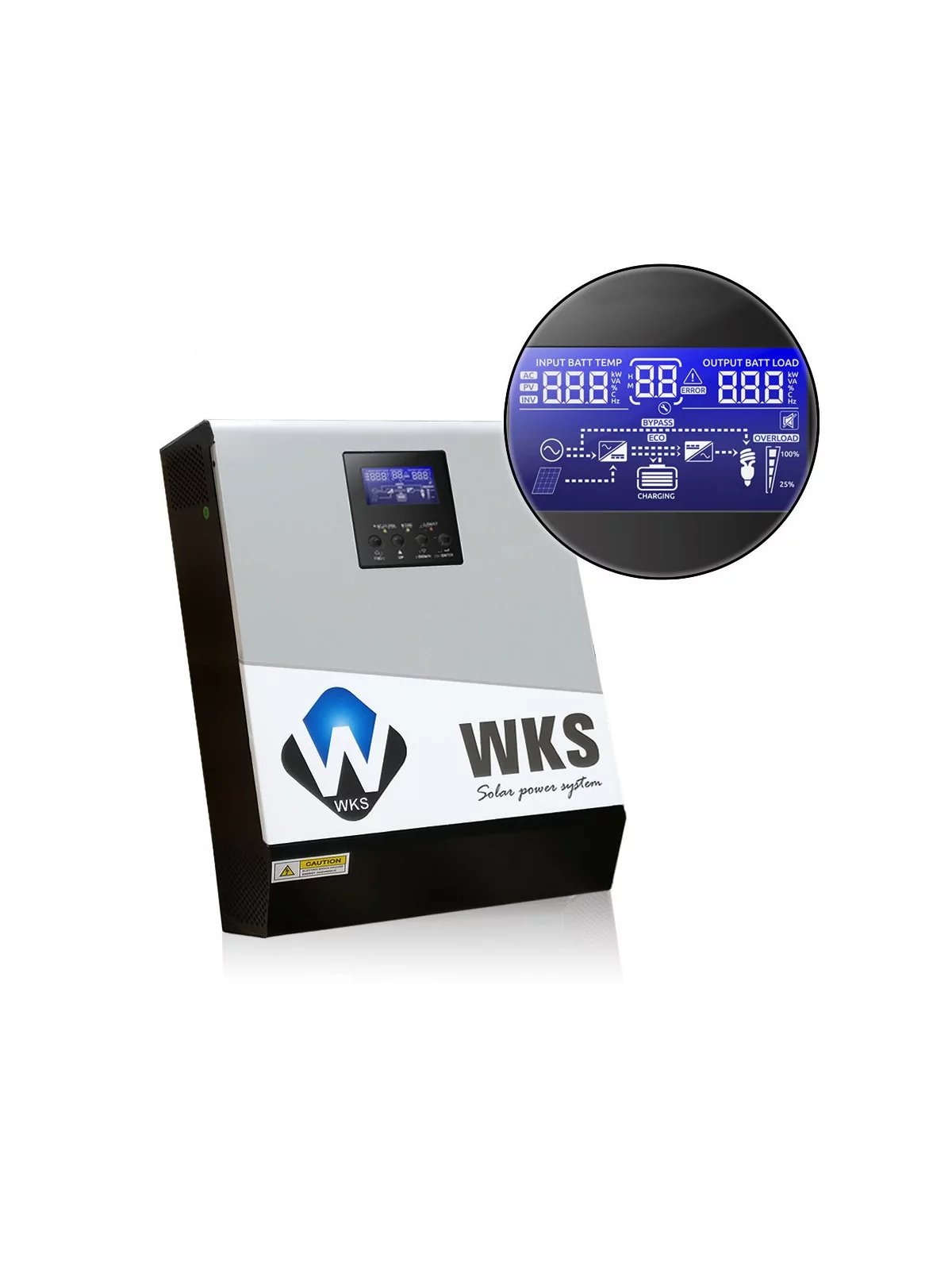

Digital display

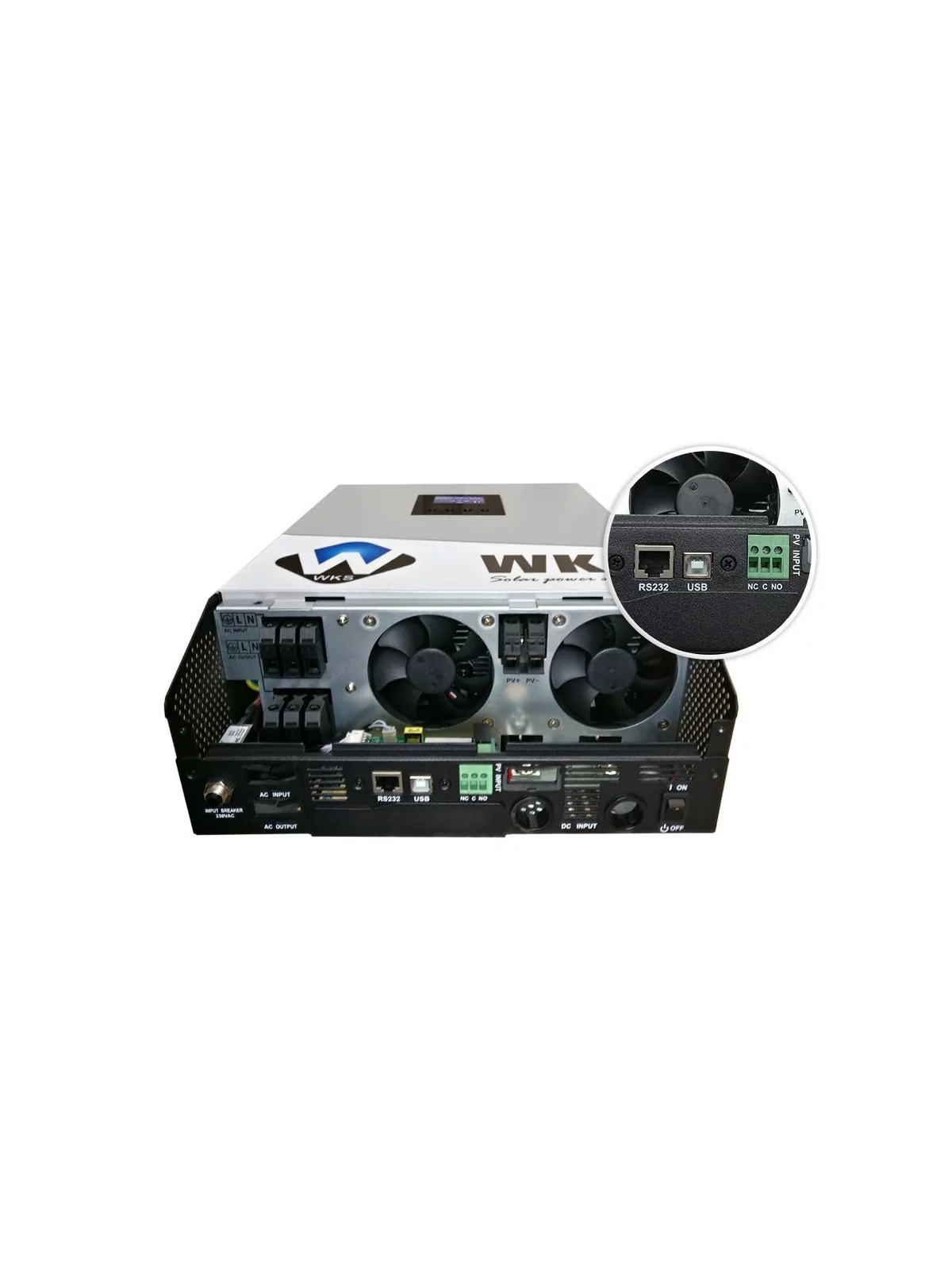

Wiring

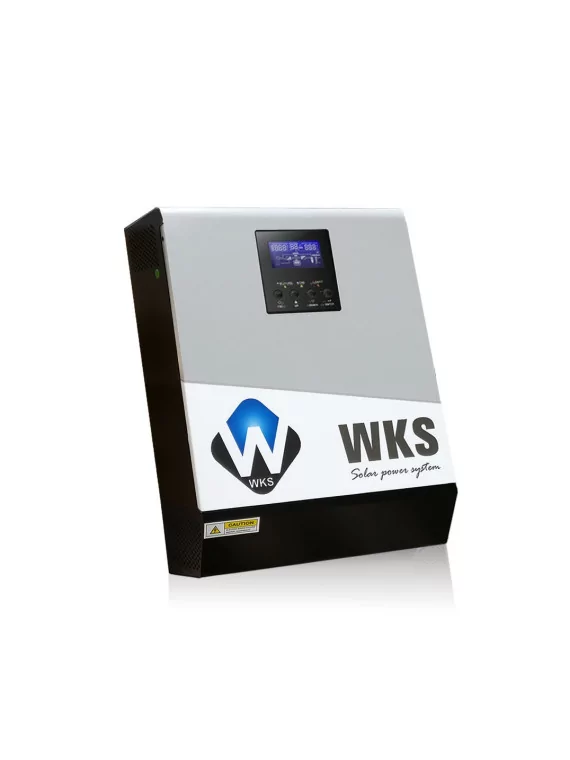

WKS 1 kVA 24V hybrid inverter
WKS 1 kVA 24V hybrid inverter
WKS 1 kVA 24V hybrid inverter
Inverter interior
Digital display
Wiring
WKS 1 kVA 24V hybrid inverter
WKS 1 kVA 24V hybrid inverter

WKS 1 kVA 24V hybrid inverter

€465.85
Tax included
WUN-WKS-0524
0712971127371

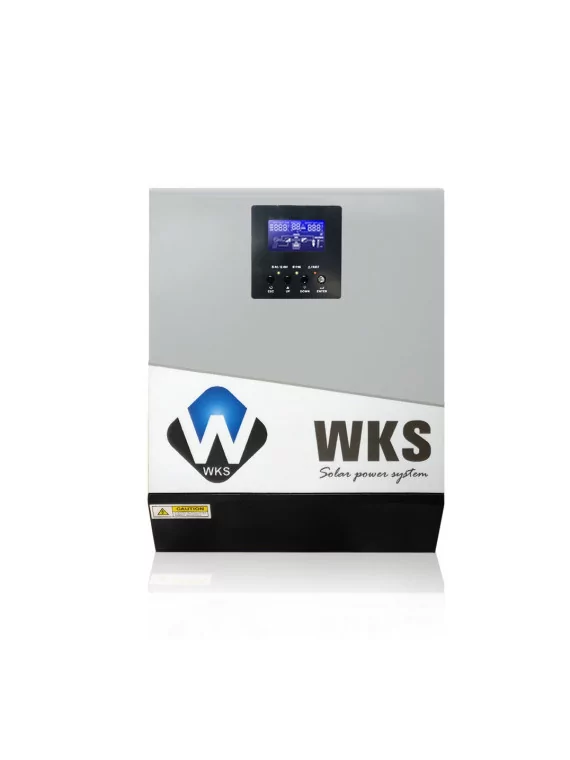

WKS Plus 1 kVA 24V hybrid inverter

WKS hybrid inverters are the ideal solution for supplying self-consumption power to a home, or making an isolated site self-sufficient
This inverter can supply power to consumers up to 800W.
The integrated 25A MPPT charge regulator provides 650 Wattsof charging power with panels
Can be connected to the public grid or a generator to recharge batteries

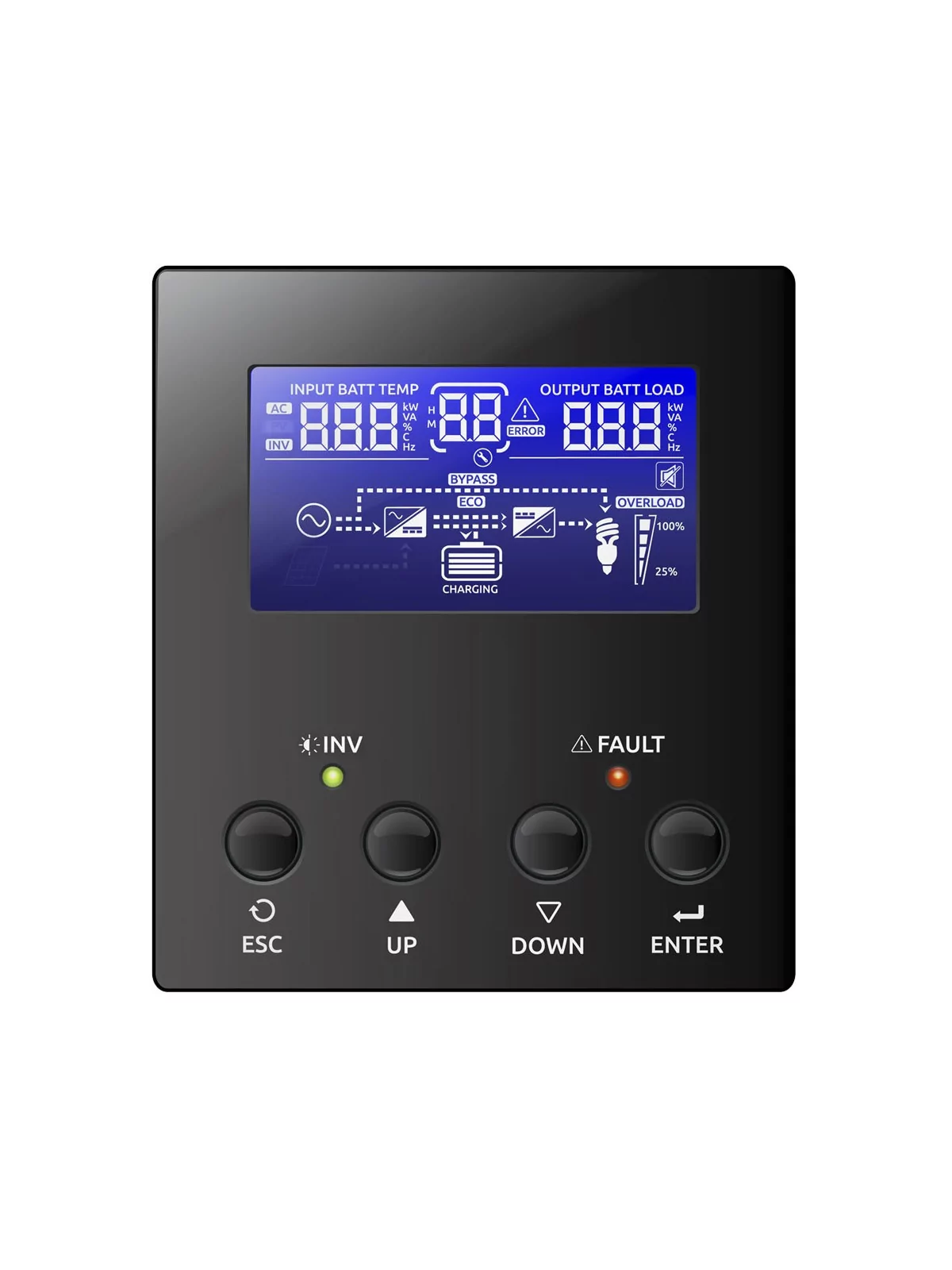

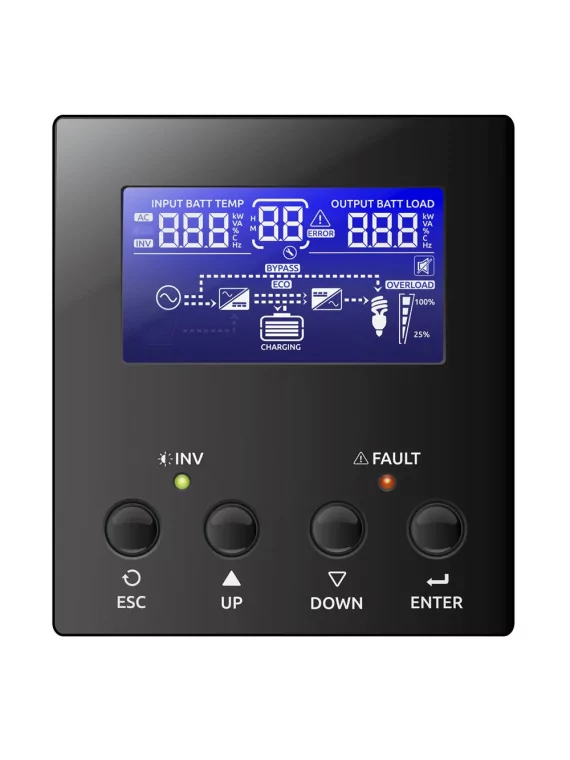

Fully configurable via the inverter's LCD screen
In-house after-sales service, spare parts available

2 item(s) left in Stock!

WKS 1 kVA 24V hybrid inverter

€465.85

The new-generation inverter

Benefit from continuous, reliable power, whether the grid is available or not. The energy produced by WKS inverters is directed and used intelligently for optimum performance. All priorities can be set by the user: use of batteries, solar or AC source (grid or generator). In self-consumption, the energy produced by your panels fluctuates and does not correspond to consumption. The WKS inverter stores part of the solar output in the batteries for later use during the evening or night. On isolated sites, the WKS inverter can be connected to a generator to charge the batteries if they are empty and solar output is insufficient. This inverter is capable of working with several different energy sources, such as :

  • public grid
  • photovoltaic panels
  • thermal generator
  • batteries

Microprocessor-based management directs energy according to production, consumption requirements and battery state-of-charge. Real-time monitoring can be carried out locally or remotely. The WKS inverter does not feed power back into the grid.

schema fonctionnement onduleur hybride WKS


3 operating modes

  • Solar priority
  • Backup
  • Solar and grid
- Battery charging current adjustment
- Possibility of limiting or prohibiting charging via the network
- Input voltage from 90 to 280V (useful for fluctuating networks)
- Economy mode (self-consumption limitation)
- Fine-tuning of battery charging characteristics
- Automatic restart in the event of overload or overtemperature
- Possibility of limiting battery discharge to preserve battery life
- Configurable return voltage to battery mode
- Overload bypass (to switch to mains supply in the event of peak consumption)
- Low battery protection
- USB port

Multi-power supply

Example: for a consumption requirement of 1kW, you could have a configuration:

  • 0.5 kW supplied by solar power 0
  • .5 kW supplied by batteries

This multi-supply technique greatly reduces the number of batteries required, and extends their lifespan.
This inverter accepts up to 750 Wp of photovoltaic panels, and can be connected to the grid or to another renewable energy source if solar production is insufficient.

Applications :

  • Residential, commercial and telecommunications
  • Areas with unstable electricity supplies
  • Areas not connected to the grid

Use in back-up modeUtilisation en mode back-up

The inverter can be used as a "back-up" without photovoltaic panels. In this mode, the inverter acts as a UPS, protecting your appliances from grid outages.

The UPS protects computers and audio-visual equipment, or any other sensitive load, by supplying a stable current. It guarantees uninterrupted power supply to consumers.
The electricity produced by these pure sinusoidal inverters is stable.

You can protect one or more rooms in your home via the distribution box.


Utilisation en mode Off-grid (hors réseau)

Off-grid operation

In this configuration, the inverter uses the panels to power consumers and charge batteries when the sun is shining. The inverter draws power from the batteries to ensure energy distribution at night.

A generator can be added to the inverter's AC input to provide emergency power.


Hybrid operationUtilisation en mode hybride

The inverter takes power from the grid only if the batteries are empty and solar production was not sufficient to cover consumption.

The inverter does not feed power back into the grid.

As with the "back-up" mode, you can connect only part of your domestic installation to the inverter. Consumers connected to the inverter will still be powered, even in the event of a mains power cut. What's more, they'll be supplied free of charge!

The WKS 4.0 and 5.0 models (rated at 4 and 5 kVA respectively) can be connected in parallel, adding up to their power. You can connect up to 4 devices in parallel, for a total output of 20 kVA.


Convertisseur Pure Sinus

Pure Sinus converter

The WKS is a pure sinusoidal voltage inverter that reproduces a power quality similar to that of the public grid. It can be used to power all types of appliance.


MPPT controllerRégulateur MPPT

The WKS also features MPPT (Maximum Power Point Tracking) technology, i.e. it constantly searches for the maximum power point, enabling maximum performance from photovoltaic panels. As well as boosting the energy output of an installation, it optimizes battery charging and extends battery life. It scans the panel voltage to find the maximum power output point, and is able to adapt the voltage supplied by the panel to align it with the voltage the battery can receive.

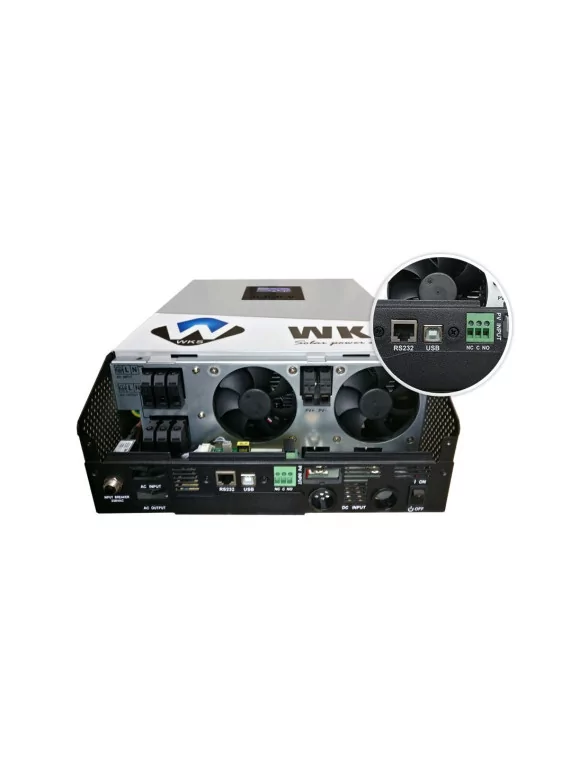

WKS 1KVA vue du dessous de l'appareil

Not compatible with remote display.


Specifications

POWER 1000VA / 800W
AC INPUT
Voltage 120 or 230 VAC
Voltage range 90-140 or 170-280 VAC (>
computer)
65-140 or 90-280 VAC (> residential)
Frequency 50 Hz/60 Hz
AC
AC voltage regulation (Batt.
Mode) 110 / 120 VAC ±5 % or 230 VAC ±5 %
Peak power (5 sec) 2000 VA
Efficiency 93%
Transfer time 10 ms (for computers) ;
20 ms (for residential applications)
output Pure Sine
BATTERY AND AC CHARGER
Nominal battery voltage 24 VDC
Battery types AGM, GEL,
open (configurable)
Charging algorithm
steps
Floating voltage 27 VDC (configurable)
Overcharge protection 31 VDC
Maximum charging current 20A
SOLAR CHARGER
Power
nominal PV
600 W
MPPT operating range 30 ~ 66 VDC
Maximum PV open circuit voltage 75 VDC
Max. charging current 25 A
Max. efficiency 98%
Standby power consumption
W
PHYSICS
Dimension,
D x W x H (mm) 100 x 272 x 355
Weight (kgs)
.8
ENVIRONMENT
Humidity 5% to 95%
Operating temperature

-10°C

- 50°C
Storage temperature

-15°C

- 60°C

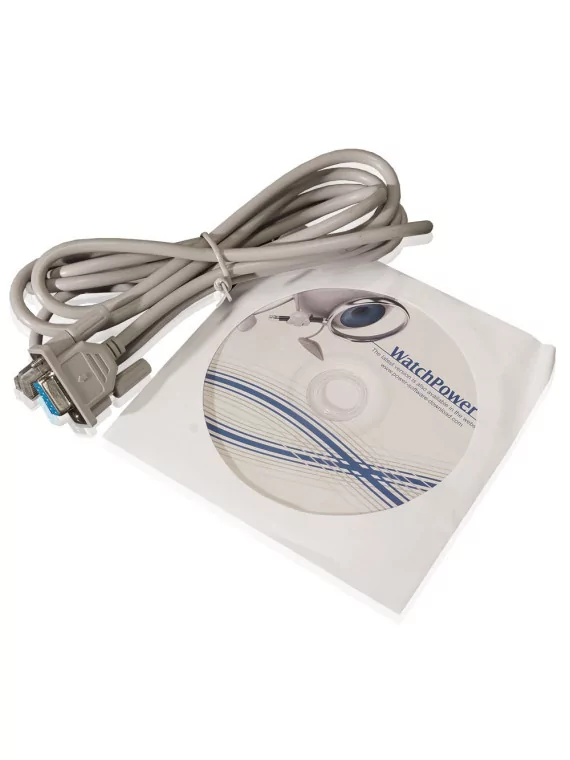

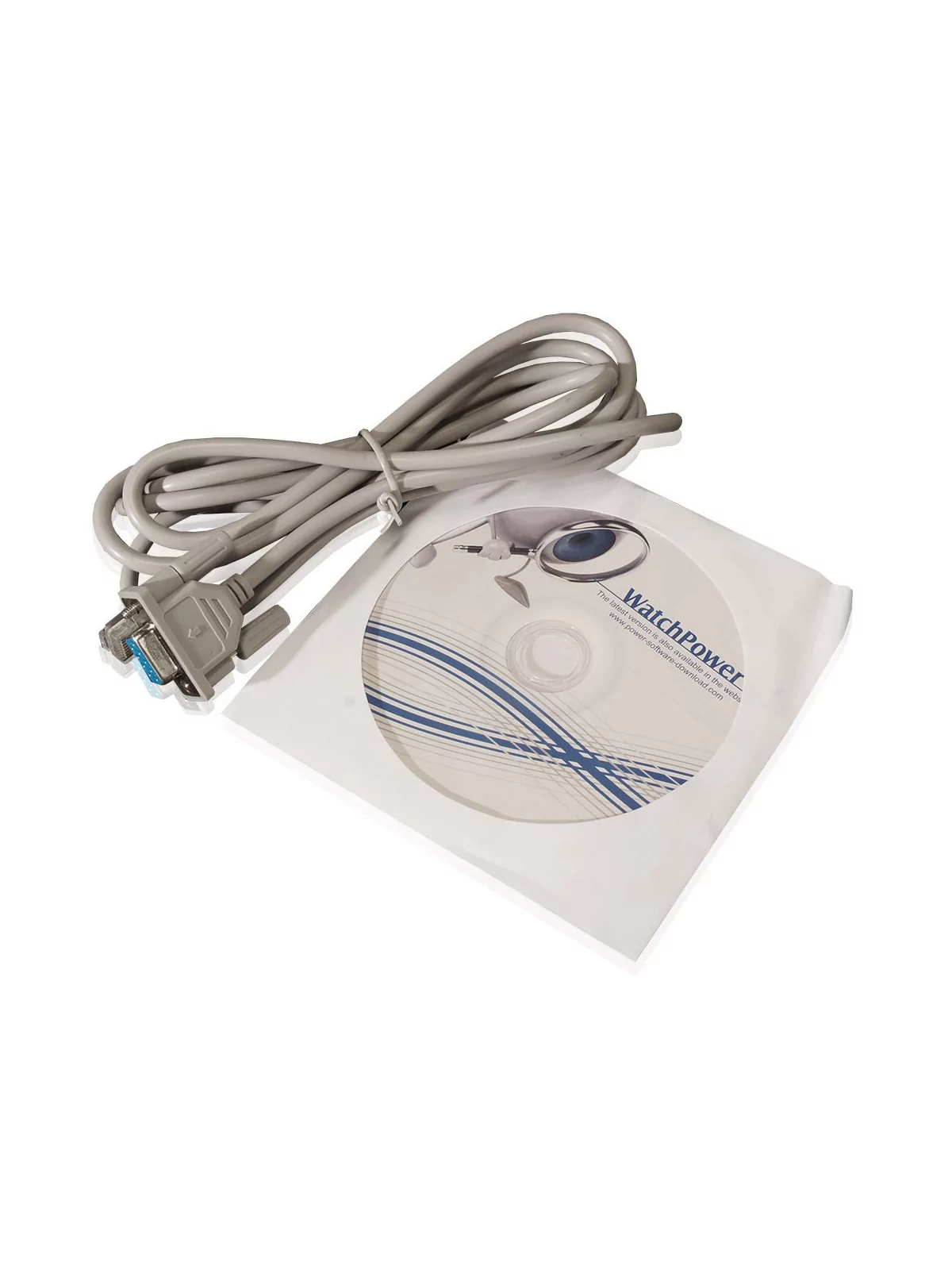

  • Software

    WatchPower 1.14

WUN-WKS-0524

Data sheet

Inverter power
1000VA
Voltage
24V
Power
1000 VA
Phase
Monophasé

Specific References

New

Download

Manuel logiciel WatchPower FR

Download (4.86MB)

Datasheet onduleur WKS FR

Download (1.89MB)

User manual WKS EN

Download (4.11MB)

Manuel utilisateur WKS FR

Download (5.95MB)
