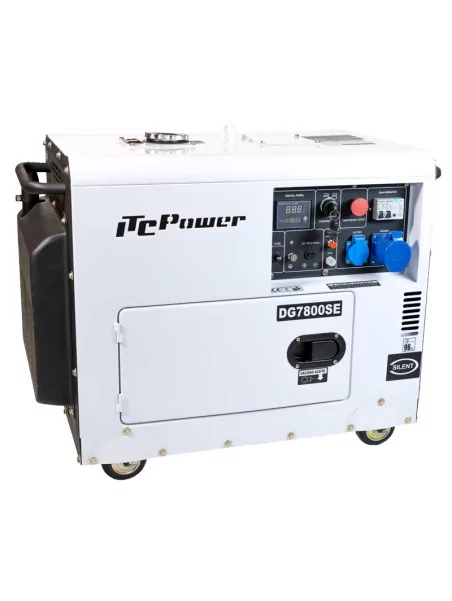

Soundproof generator 6,5kW mono with ATS DG-7800SE

Wattuneed

1 742,40 € tax incl.

Soundproof 6.5kW single-phase electric starter diesel generator.

We provide the necessary wiring to drive the start-up of the group with our hybrid inverters equipped with a relay, thus enabling the automation of the ignition of the latter.

More details

More info

DG-7800SE

Soundproof 6.5kW single-phase electric starter diesel generator.

We provide the necessary wiring to drive the start-up of the group with our hybrid inverters equipped with a relay, thus enabling the automation of the ignition of the latter.

Its advantages

4-stroke, air-cooled diesel engine with direct injection of a single cylinder.
Low oil level alarm with automatic engine shutdown.
Double base to reduce vibration.
Large storage tank.
Ideal for industrial applications

Frequency (Hz)50
Rated voltage (V)230
Rated current (A)28
Nominal power in watts6000 W
Maximum power (W)6500W
PhaseSingle
Outlets2 x 16A 230V DC
1 x 8,3A 230V AC
Startup generatorEasy to use thanks to its preheating function
Power factor (Ø cos)1
AVR (Voltage Regulator)Yes
Panel TypeLED
Alternator5,5KVA 190L-140 / D50
Fuel Tank Capacity14 L
50% charge consumption13 hours autonomy
Noise level77,5 dBA
Net Weight111kg
Dimensions (length x width x height)720 x 480 x 600 mm
Start SystemAutomatic or Manual
FuelDiesel
Engine modelD500E
Nominal motor power12CV
Displacement498

Specifications

Monophasé / TriphaséMonophasé

Data sheets and documentation
