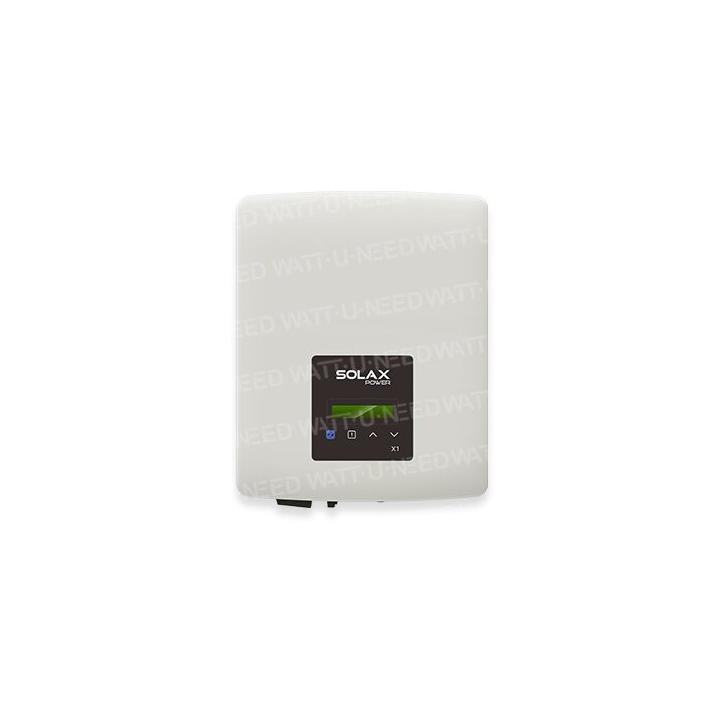

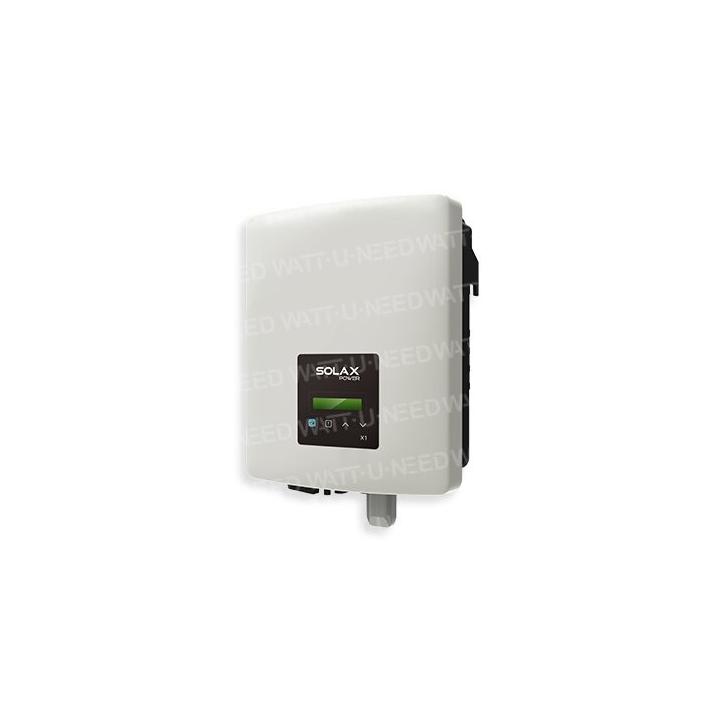

SolaX X1 Mini 1.5 single-phase inverter
SolaX X1 Mini 1.5 single-phase inverter
SolaX X1 Mini 1.5 single-phase inverter
SolaX X1 Mini 1.5 single-phase inverter

Single-phase inverter SolaX X1 Mini 1.5 X1-1.5-S-D

€494.67
Tax included
X1-1.5-S-D
0712971136649

SolaX X1 Mini 1.5 kVA: The Compact Heart of Your Solar Installation

Designed for small photovoltaic installations, the SolaX X1 Mini inverter offers an efficient and discreet solution. With its exceptional 98% efficiency and compact design, it optimizes your solar energy production, even in the tightest spaces.

Why choose the SolaX X1 Mini?

  • Maximum performance: Benefit from high energy efficiency to optimize your production.
  • Easy installation: Compact and lightweight, it installs quickly and effortlessly.
  • Flexibility: Suitable for a wide range of solar panel capacities.
  • Durability: IP66 certified, it withstands the elements for both indoor and outdoor use.
  • Discreet: Its small size and silent operation make it a discreet piece of equipment.

Key advantages:

  • Ideal for small spaces: Perfect for small roof areas or complementary installations.
  • High efficiency: Maximize your solar electricity production.
  • Simplified installation: Ready to use.
  • Durability: Resists outdoor conditions thanks to IP66 certification.

Ideal for:

  • Individuals looking to start with self-consumption.
  • Installations that complement larger systems.
  • Users seeking a discreet and efficient solution.

Choose simplicity and efficiency with the SolaX X1 Mini.

1 item(s) left in Stock!

Comments (0)

No customer reviews for the moment.

SolaX X1 Mini: The energy giant in a compact format

Solax X1 Mini

Perfect for small photovoltaic panels

The X1 Mini inverter is the perfect solar solution for small photovoltaic panels ranging from 0.6 kW to 3.6 kW. With a maximum efficiency of 98%, it is one of the most efficient small inverters available on the market today.

Small, light and silent

The X1 Mini has been designed to fit into the smallest of spaces, with a footprint of just 35cm and weighing just 7kg, the X1 Mini is small but not lacking in performance.

Indoor or outdoor installation

The X1 Mini is IP66-rated, which means it can be installed indoors or outdoors, giving you the choice of where to install the system.

Features

Password to enter parameters: 2014

INPUT
Max. power of photovoltaic panels (Wp) 2250
Max. DC voltage (V) 450
Nominal DC operating voltage (V) 360
Max. input current (A) 14
Max. short-circuit current.
(A) 16
MPPT voltage range (V) 50-430
Start-up operating voltage (V) 50
MPP/MPPT tracking

1

Chains p
er MPP/MPPT tracking
AC
Nominal AC power (VA) 1500
(VA) 1650
Nominal mains voltage (AC voltage range) 220/230/240; 180~280
Nominal mains frequency/range (Hz) 50/60; ±5
Nominal AC current (A)
,52
Max. AC current.
(A)
.20
Displacement power factor
.8 capacitive - 0.8 inductive
THDi, nominal power(%) <3
MPPT efficiency (%) 99.9
European efficiency (%) 96.0
Max. efficiency. (%) 98,0
ABSORBED POWER
Standby power consumption (night) (W)
STANDARDS
Overvoltage protection Yes
Overcurrent protection Yes
resistance monitoring
resistance
Yes
Ground fault current monitoring Yes
DC injection monitoring Yes
Earth leakage circuit breaker protection Yes
Safety IEC 62109-1/-2
EN 61000-6-2,
EN 61000-6-3, EN 61000-3-2, EN 61000-3-3
Certification EN62109-1/-2;
G98; AS/NZS 4777,2; VDE4105; EN50438
ENVIRONMENTAL LIMITS
Degree of protection (according to IEC 60529) IP66
Operating temperature range (°C)
to + 60 (derating to 45)
Max. operating altitude.
(m
<2000
Humidity(%)
to 100 (condensation)
Storage temperature (°C
~ 70
Typical noise level (dB) <25
DIMENSIONS AND WEIGHT
Dimensions (L x W x D) (mm
267 x 328 x 116
Weight (kg
Cooling type Natural
Topology Non-insulated
Communication interfaces RS485
DRM
Fi
LAN
(optional)
USB
LCD display Yes
Standard warranty (years) 10
X1-1.5-S-D

Data sheet

Inverter power
1500VA
MPPT/PWM
MPPT
Phase
Monophasé
Number of MPPT
1 MPPT
Width
267 mm
Height
328 mm
Thickness
116 mm
IP protection
IP 66
Inverter type
Grid
Weight
6 kg

Specific References

UPC
712971136649
EAN13
0712971136649
New
