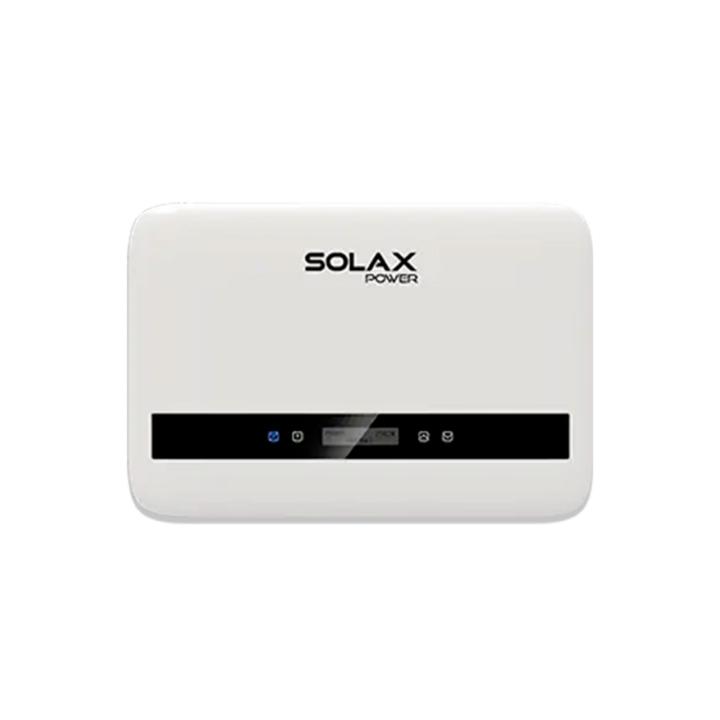

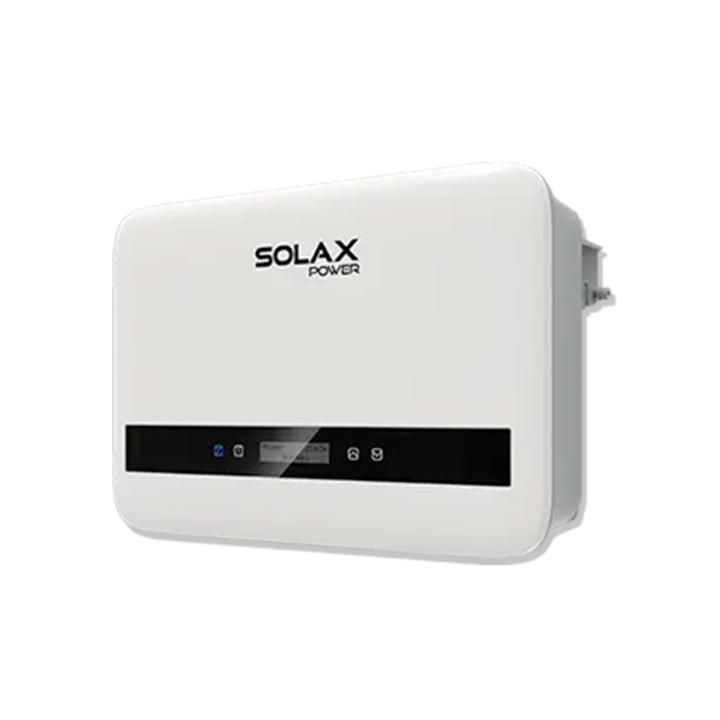

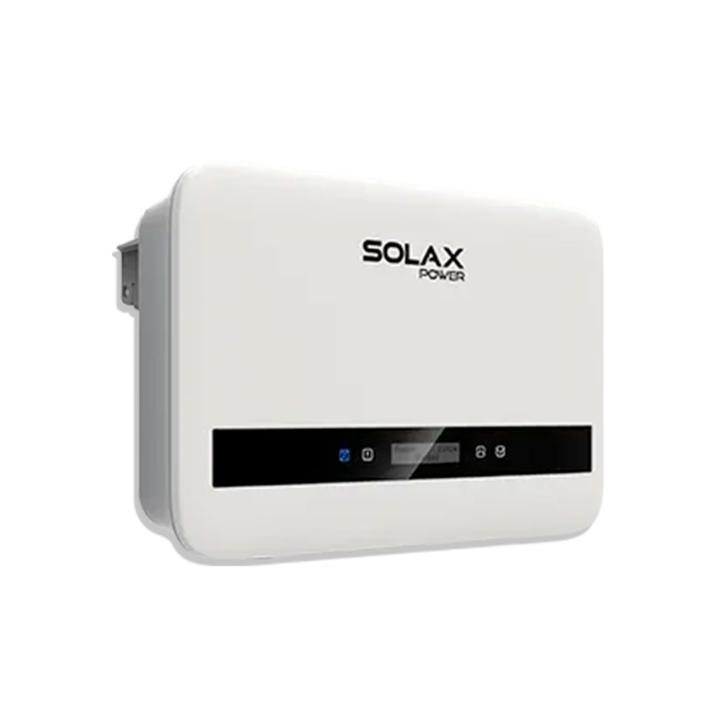

Single-phase inverter SolaX X1 Boost 5 kVA - X1-BOOST-5K-G4
Single-phase inverter SolaX X1 Boost 5 kVA - X1-BOOST-5K-G4
Single-phase inverter SolaX X1 Boost 5 kVA - X1-BOOST-5K-G4
Single-phase inverter SolaX X1 Boost 5 kVA - X1-BOOST-5K-G4
Single-phase inverter SolaX X1 Boost 5 kVA - X1-BOOST-5K-G4
Single-phase inverter SolaX X1 Boost 5 kVA - X1-BOOST-5K-G4

Single-phase inverter SolaX X1 Boost 5 kVA - X1-BOOST-5K-G4

€1,057.33
Tax included
X1-BOOST-5K-G4
0712971136533

SolaX X1 Boost 5 kVA Inverter: Revolutionize Your Solar Energy Production

Discover the future of solar energy with the SolaX X1 Boost 5 kVA inverter. Designed to optimize your electricity production and adapt to your evolving needs, this compact and powerful inverter is the ideal solution for connected residential installations.

Why choose the SolaX X1 Boost 5 kVA inverter?

  • Maximum efficiency: 200% DC, global MPP scanning.
  • Total flexibility: Electric vehicles, heat pumps, microgrids.
  • Easy installation: Quick and intuitive setup.
  • Connected monitoring: Mobile app.
  • Enhanced safety: Type II SPD, external RSD.

Key benefits:

  • Increase your solar energy production: Maximize the yield of your solar panels.
  • Simplify your installation: Easy and intuitive configuration.
  • Adaptability: Fits your needs and environment.
  • Reliability: Robust design for long-lasting performance.
  • Connectivity: Easily integrates into your energy ecosystem.

Ideal for:

  • Individuals looking to optimize self-consumption.
  • Connected residential photovoltaic installations.
  • Users seeking a flexible and high-performance solution.

Discover the difference with the SolaX X1 Boost 5 kVA inverter.

Request your personalized quote now and choose excellence in solar energy.

2 item(s) left in Stock!

SolaX X1 Boost 5 kVA solar inverter: The champion of energy efficiency



Discover the revolutionary performance of the X1-BOOST G4 inverter, an essential companion for your energy system. Designed to excel, this compact, lightweight UPS redefines standards with its wide power range, cutting-edge intelligence and unrivalled versatility.

With advanced features such as compatibility with domestic electric vehicle chargers, heat pump heating solutions and microgrids, the X1-BOOST G4 offers an all-in-one solution to meet your most demanding energy needs.

Benefit from real-time monitoring and transparent configuration for smarter-than-ever energy management. Thanks to its dual MPPT, global MPP sweep and I-V curve diagnostics, this inverter guarantees optimum performance and maximum efficiency, enabling you to live a more connected, energy-efficient life.

Don't settle for the ordinary. Choose excellence with the X1-BOOST G4 inverter and transform your energy experience today.



Superior performance

  • DC input: 200% oversizing, 16A current, 50V start-up voltage
  • Global MPP sweep for improved integrated efficiency



Easy-to-use monitoring

  • 10-second data update interval (optional new Wi-Fi dongle required)
  • Quick and easy configuration (Wi-Fi&APP)



Guaranteed safety and reliability

  • Integrated type II AC/DC SPD (optional) and I-V curve diagnostics supported
  • Optional external RSD (Rapid Shutdown) and integrated DC AFCI protection (optional
    • )
  • Integrated export control function



Excellent adaptability

  • Home EV Charger and Heat Pump Adaptable solution
  • Mass management and extensive expansion via Datahub
  • Master/slave parallel solution via Modbus supported



X1-BOOST-5K-G4

Data sheet

Inverter power
5000VA
MPPT/PWM
MPPT
Phase
Monophasé
Number of MPPT
2 MPPT
Max. recommended PV input power
10000 Wc
Tension DC max.
600 V
Rated DC operating voltage
360 V
Max. input current
16/ 16 A
Max. short-circuit current (A)
22 / 22 A
MPPT voltage range
40~560
Starting voltage
50 V
Rated AC power
5000W (4600W for VDE4105 standard)
Max. AC power
5000 VA (4600 for VDE4105 standard)
Nominal mains voltage
220/230/240; 180~280
Rated mains frequency
50/60; ±5 Hz
Rated AC current
21,7 A
Max. AC current
21,7 V
Displacement power factor
0.8 capacitive - 0.8 inductive
Max. efficiency
98 %
Standby consumption (night)
+ 3W
Protection against overvoltage and overcurrent
Yes
Monitoring of DC insulation resistance, earth fault current, DC injection
Yes
Protection by differential circuit breaker
Yes
Safety
IEC 62109-1/-2
EMC
EN 61000-6-1/2/3/4, EN 61000-3-2/3/11/12
Certification
IEC61727, EN50549, G98/G99, AS 4777.2, VDE4105, CEI 0-21, RD1699, UNE 206007-1, VFR
Degree of protection (in accordance with IEC 60529)
IP66
Typical noise level (dB)
25
Type of cooling
Natural
Communication interfaces
RS485/DRM/USB, Optional: CT/Meter
LCD screen
2 x LED + LCD (16 x 2) / APP
Optional monitoring dongle
Pocket WiFi/LAN/4G
Weight
11 kg
Dimensions (L x W x D)
404 × 274 × 146 mm

Specific References

UPC
712971136533
EAN13
0712971136533
