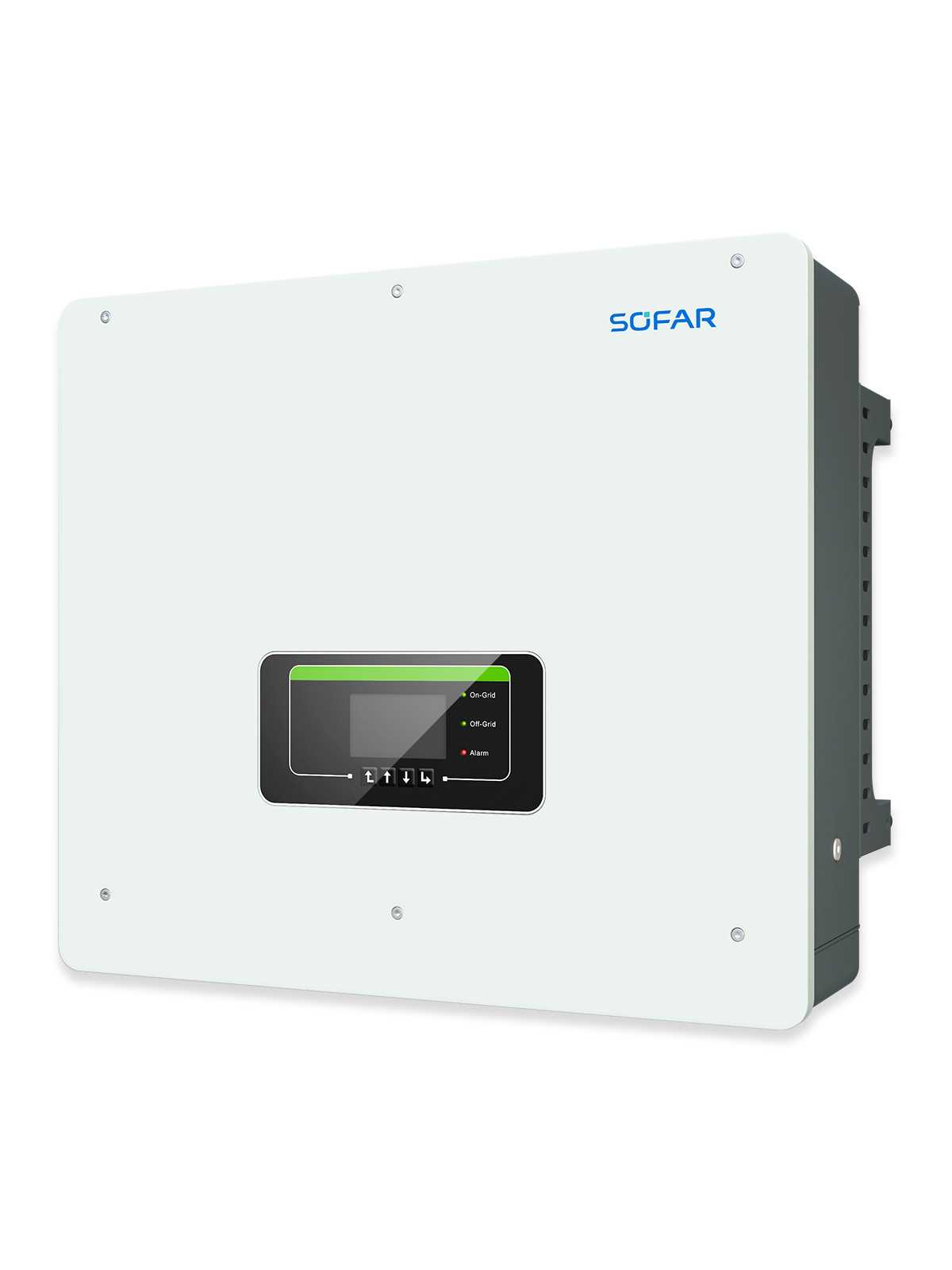

    Three-phase inverter Sofar Solar 6 kVA - ME 6KTL-3PH

    €1,855.56
    ME 6KTL-3PH
    0768563819896

    Three-phase battery inverter, the ideal ally for optimizing energy storage in your photovoltaic system, offering features suitable for both on-grid and off-grid installations

    100% secure payments

    Three-phase inverter Sofar...

    €1,855.56

    Three-phase inverter Sofar Solar 6 kVA - ME 6KTL-3PH


    - Compact design with LCD display

    - Flexible switching between grid-connected and energy storage mode

    - Wide battery voltage range (180 - 800 V)

    - One or two battery input channels supporting a maximum charge and discharge current of 50 A (depending on model)

    - Off-grid and on-grid outputs can supply an unbalanced load

    - Maximum battery charge/discharge efficiency 97.8%.


    Three-phase battery inverter


    The perfect solution for integrating energy storage into your PV system, whether on- or off-grid.


    The ME 5K...20KTL-3PH is a high-voltage, three-phase battery inverter designed for integrating storage into existing PV systems, or systems with a high demand for battery charging. In the event of a grid failure, it can provide up to 20 kW of unbalanced three-phase emergency power supply (EPS) in just 10 ms, thanks to its integrated EPS port.

    Equipped with two MPPTs and two independent battery ports (available on models 10K to 20KTL), this UPS allows different battery capacity configurations. In particular, it is compatible with SOFARSOLAR's HT (high voltage) battery series (GTX 3000-H and BTS battery storage system).

    Up to 10 inverters can be connected in parallel on the EPS and AC ports, making it an ideal choice for both on-grid and off-grid microgrid installations.

    The integrated energy management system offers a variety of user-friendly modes, optimizing the user experience, including an automatic self-use mode. Users can also define different time slots and/or dates, as well as rules for each day of the week.

    All modes are easily configured via the large LCD display. What's more, a Wi-Fi key is supplied with the UPS, enabling easy connection to the SOFAR View monitoring portal.




    Operating diagram

    Schéma d'utilisation


    Standard display

    The display shows all relevant inverter information.

    affichage écran onduleur Sofar Solar


    Wiring and connection

    - 1 Battery input terminals

    - 2 Charging connection port

    - 3 Network connection port

    - 4 USB/WiFi port

    - 5 Distributed resource managers (DRMs)

    - 6 COM port (serial port)

    - 7 Link port 1

    - 8 Link port 0

    - 9 Current transformer (CT)

    - 10 LCD display

    ME 6KTL-3PH

    Data sheet

    Phase
    Triphasé
    Width
    586.6 mm
    Height
    515 mm
    Thickness
    261.2 mm
    Nominal mains voltage
    3/N/PE, 230/400Vac
    Rated mains frequency
    50/60 Hz
    Type of cooling
    Natural
    THDi (Nominal power)
    inférieur à 3 %
    Battery Type
    Lithium-ion & lead-acid
    Battery Voltage Range
    180V-800V
    Protection Degree
    IP65
    Operating temperature range
    -30°C~60°C
    Weight
    30 kg
    Rated output power
    6000 W
    Rated output current
    8,7 A
    Power factor
    1 par défaut (+/- 0,8 réglable)
    Max. Apparent output power
    6600 VA
    Max. Output current
    10 A
    Nombre de canaux d'entrée de la batterie
    1
    Maximum charge/discharge power
    6000 W
    Maximum apparent output power, time
    9000 VA, 60s
    Max. output current
    10 A
    Switching time
    less than 10 ms
    DC switch
    Yes
    Protection contre l'inversion de la connexion PV
    Yes
    Reverse battery connection protection
    Oui
    Output short-circuit protection
    Yes
    Output overcurrent protection
    Yes
    Output overvoltage protection
    Yes
    Insulation impedance detection
    Yes
    Residual current detection
    Oui
    Anti-islanding protection
    Oui
    Overvoltage protection
    Yes
    Relative humidity range
    5%~95%
    Maximum operating altitude
    below 4000 m
    Self-consumption in standby mode
    less than 20W
    Topology
    Transformerless
    Installation method
    Wall mounting

    Specific References

    UPC
    768563819896
    EAN13
    0768563819896
