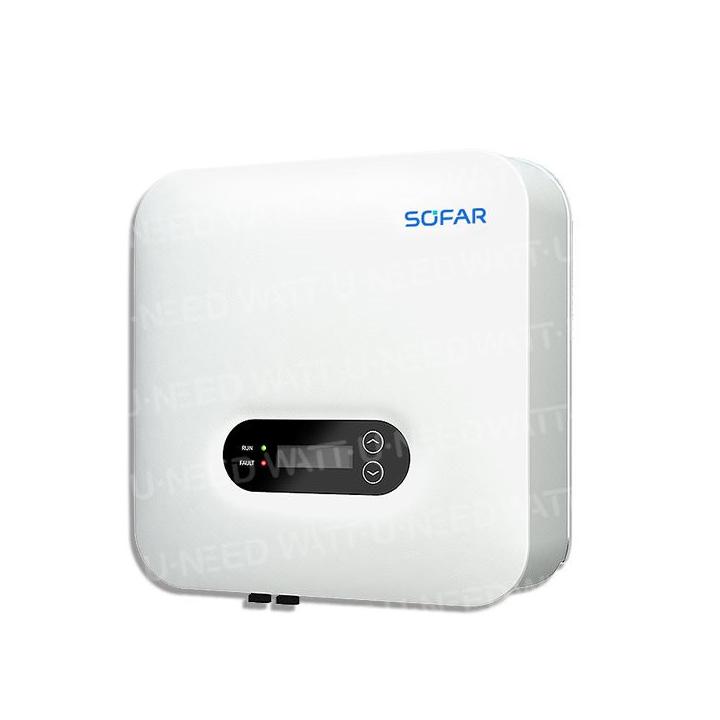

Sofar Solar Mono 5 kW Grid Inverter – 5KTLM-G3-A
€549.20
Tax included
Sofar-5KTLM-G3-A
0768563819841
Single-Phase Inverter Sofar Solar 5KTLM-G3-A: Optimize Your Solar Energy Production
The Sofar Solar 5KTLM-G3-A inverter is designed for demanding residential photovoltaic installations. With its dual MPPT trackers, it maximizes energy production even in variable shading conditions. Its compact and silent design, combined with simplified installation, makes it an ideal choice for individuals concerned about their energy consumption.
Why Choose the Sofar Solar 5KTLM-G3-A Inverter?
- Maximum Efficiency: 98.4% efficiency.
- Total Flexibility: Adapts to all configurations.
- Easy Installation: Plug & Play, IP65.
- Connected Monitoring: Track your production in real-time.
- Enhanced Safety: Optimal protection with optional AFCI.
Key Advantages:
- Optimized Self-Consumption: Maximize the use of produced solar energy.
- Reliability: Robust and durable design.
- Silent and Discreet: Discreet installation with natural cooling.
Ideal for:
- Residential photovoltaic installations with complex configurations (shading, different orientations).
- Individuals looking to maximize their solar energy production.
Simplify your solar installation with the Sofar Solar 5KTLM-G3-A inverter.
Request your personalized quote today and choose a high-performance, durable solar energy solution.
4
items in stock!
Sofar 5KTLM-G3-A solar inverter: Silence, performance and durability
The new G3 single-phase inverter with 2 MPPT trackers for residential PV systems
SOFAR 3K...6KTLM-G3 is the upgraded version of SofarSolar's residential inverter series. With its elegant IP65 design and natural cooling for silent operation, the inverter is perfectly suited to small residential installations.
The inverter is also equipped with two MPPT trackers and an integrated I-V curve scanning function, making it possible to realize more complex installations, for example those with shading problems or different roof orientations.
A WiFi key is supplied with the inverter, for easy connection to the SofarSolar monitoring portal.
High efficiency
- Maximum efficiency of 98.4%.
- Precise real-time MPPT algorithm for maximum utilization
- Wide input voltage operating range
All in one. Flexible, cost-effective system solution
- Free choice of location thanks to IP65 rating
- Plug & Play" connection for easy installation and maintenance
- Interface selection - Wi-Fi / RS485
- LCD + LED display
- Integrated zero export function (optional)
Low maintenance costs
- Detachable lid for easy installation
- Stainless aluminum covers
- A flexible control solution
Intelligent grid management
- Reactive power capacity
- Automatic power reduction in the event of overfrequency
- Remote control of active/reactive power limit
Specifications
| DC INPUT |
| PV input power max. | |
| Recommended | 7500 Wp |
| Max. power. | |
| DC power per MPPT | 3750 W |
| Number of MPP trackers |
| Number of DC inputs |
| for each MPPT |
| Max. input voltage | 600 |
| Starting voltage | 90 V |
| Nominal input voltage | 380 V |
| MPPT operating voltage range | 80 - 550 V |
| Max. input MPPT current | 15 / 15 A |
| Max. input short-circuit current. | |
| er MPPT | 22.5 / 22.5 A |
| AC output |
| Rated power | 5000 W |
| Max. power. | |
| In AC | 5000 VA |
| Max. output current | 21.7 |
| A |
| Nominal mains voltage |
| / N / PE, |
| 230 Vac |
| Mains voltage range | 180 - 276 Vac (according to local standards) |
| Nominal mains frequency | 50 Hz / 60 Hz |
| Mains frequency range | 45 - 55 Hz / 55 - 65 Hz (according to local standards) |
| Adjustable active power range |
| - 100 % |
| THDi | < |
| 3% |
| Power factor |
| default (adjustable +/-0.8) |
| PERFORMANCE |
| Max. efficiency. | 98,40% |
| Weighted European efficiency | 97.50% |
| PROTECTION |
| Protection against polarity reversal in direct current | Yes |
| DC switch | Yes |
| Safety protection | Anti-islanding, |
| leakage current detection, earth fault monitoring |
| Surge arrester | PV: Type III, AC : |
| Type III |
| COMMUNICATION |
| Standard communication mode | RS485 / Wi-fi |
| GENERAL |
| Ambient temperature range |
| 30°C to 60°C |
| Night-time power consumption | <1 W |
| Topology | Transformerless |
| Degree of protection | IP65 |
| Permissible relative humidity range |
| - 100% |
| Max. altitude. |
| Operating |
| 4000 m |
| < |
| 5 dB |
| Weight | 10 kg |
| Cooling | Natural |
| Dimensions | 349 x 344 x 164 mm |
| Display | LCD, |
| App via Bluetooth |
| Warranty | 10 years |
| Standards |
| (electromagnetic compatibility) | EN 61000-6-2, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3, |
| EN 61000-3-11, EN 61000-3-12 |
| Safety standards | IEC 62109-1/2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1,2,14,30) |
| Network standards |
| 4105, VDE V 0126-1-1, V 0124-100, IEC 0-21, G98 / G99, C10/11, EN 50549, RD1699 |
