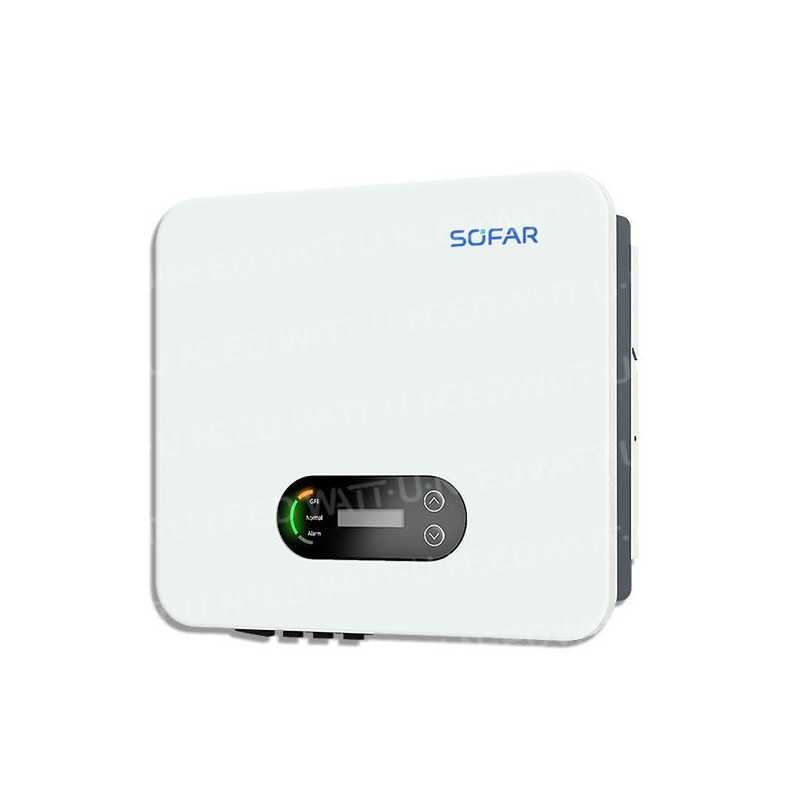

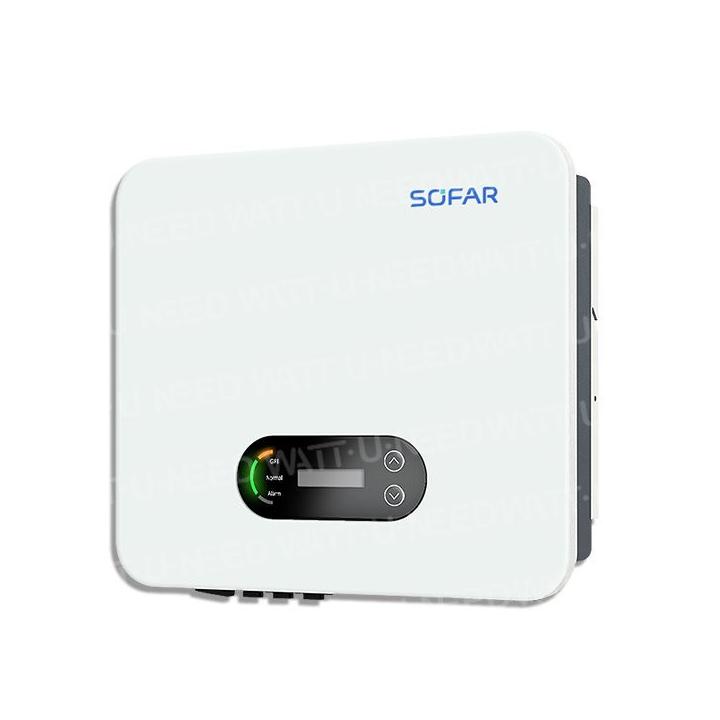

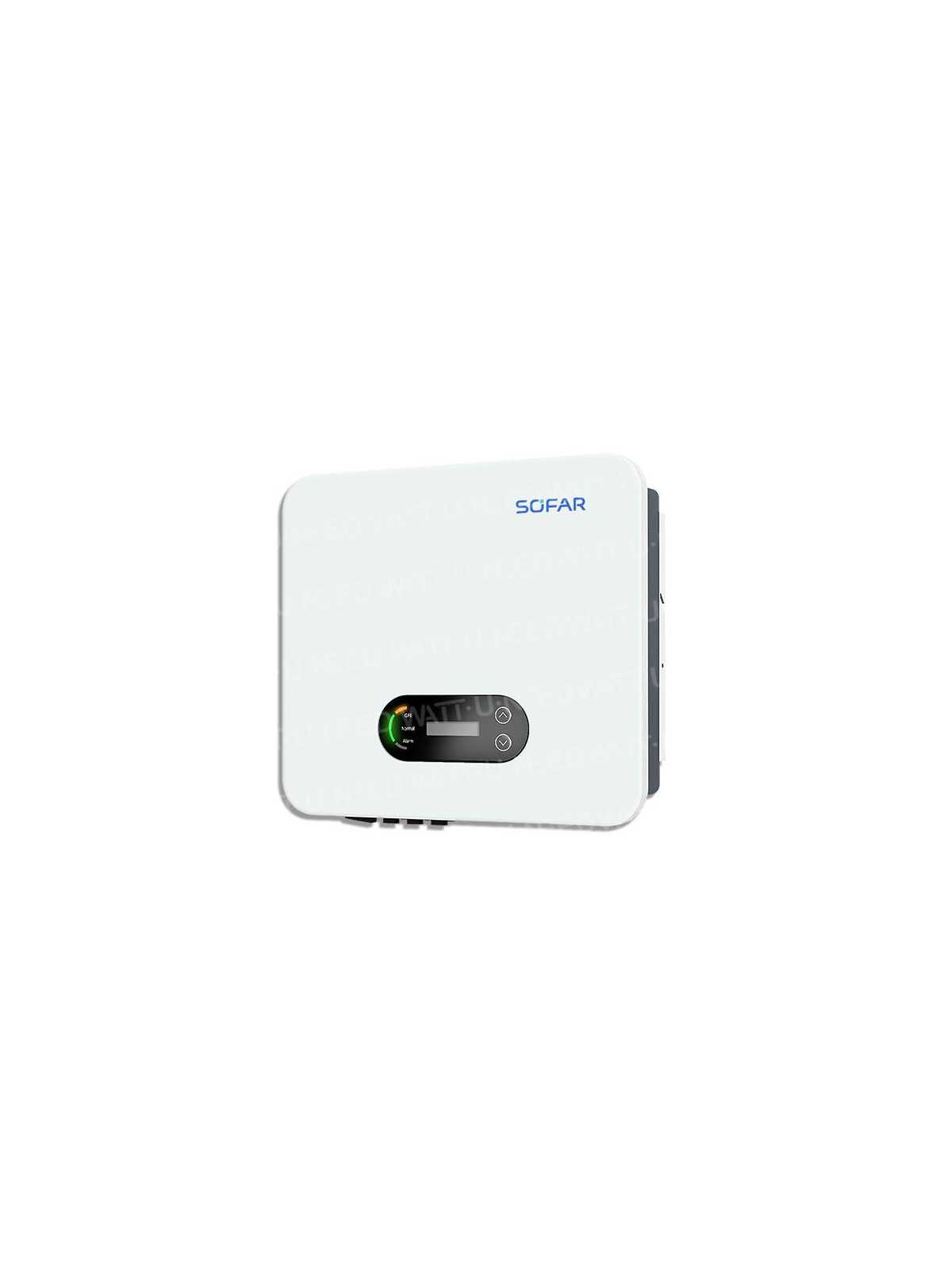

Three-phase inverter Sofar Solar 3.3kTLX-G3

€765.10
Tax included
Sofar-3.3kTLX-G3
0768563820229

Sofar Solar 3 kVA Three-Phase Inverter: The Compact and Efficient Solution for Your Solar Installation

The Sofar Solar 3 kVA 3.3kTLX-G3 three-phase inverter is designed to optimize the performance of your solar panels, even in small installations. With its exceptional efficiency of 98.6% and advanced features, it offers a complete and reliable solution for generating your own energy.

Why choose the Sofar Solar 3 kVA inverter?

  • Maximum efficiency: 98.6% efficiency and precise MPPT algorithm for optimized production.
  • Easy installation: "Plug & Play" connection and simplified configuration.
  • Reliability: Enhanced protection and silent operation thanks to natural cooling.
  • Flexibility: Adapts to various configurations with multiple connection options.

Key advantages:

  • Optimized self-consumption: Maximize your solar energy usage.
  • Reliability and durability: Benefit from a high-quality product designed to last.
  • Simplified installation: Quick and easy installation thanks to its compact design.
  • Remote monitoring: Monitor your system's performance in real-time with the SOFAR View platform.

Sofar Solar 3 kVA: The ideal choice for clean and cost-effective energy production.

4 item(s) left in Stock!

Comments (0)

No customer reviews for the moment.

Sofar Solar 3 kVA inverter: Silent, efficient and easy to install

The new G3 three-phase inverter for residential PV systems

The SOFAR 3.3K-12KTLX-G3 inverter series is the upgraded version of SOFARSOLAR's three-phase residential inverter series. The 3rd generation version is equipped with two MPP trackers and features eight different power classes to meet the demands of PV installations of different sizes.

The inverter features 4 digital input ports and one CT input port for power control, enabling easy configuration to meet grid codes in many countries.

A WiFi stick is supplied with the inverter, for easy connection to the SOFAR View monitoring portal.

High efficiency

- Maximum efficiency of 98.4%.
- Precise real-time MPPT algorithm for maximum utilization
- Wide input voltage operating range

All in one. Flexible, cost-effective system solution

- Free choice of location thanks to IP65 rating
- Plug & Play" connection for easy installation and maintenance
- Interface selection - Wi-Fi / RS485 /GPRS
- LCD + LED display
- Integrated zero export function (optional)

Low maintenance costs

- Detachable lid for easy installation
- Stainless aluminum covers
- A flexible control solution

Intelligent grid management

- Reactive power capacity
- Automatic power reduction in the event of overfrequency
- Remote control of active/reactive power limit

Features

DC INPUT
PV input power max.
Recommended 4500 Wp
Max. power.
DC power per MPPT 4500 W
Number of MPP trackers
Number of DC inputs
/ 1
Max. input voltage 1100
V
Starting voltage 160 V
Nominal input voltage 650 V
MPPT operating voltage range 140 - 1000 V
Full MPPT power in voltage range 160 - 850 V
Max. MPPT input current 15
/ 15 A
Max. input short-circuit current
By MPPT 22.5 / 22.5 A
AC output
Rated power 3000 W
Max. power.
In AC 3300 VA
Max. output current
A
Mains voltage
/ N / PE,
230 / 400
Mains voltage range 310 - 480 Vac (according to local standards)
Nominal mains frequency 50 Hz / 60 Hz
Mains frequency range 45 - 55 Hz / 55 - 65 Hz (according to local standards)
Adjustable active power range
- 100 %
THDi <
3%
Power factor
default (adjustable +/-0.8)
PERFORMANCE
Max. efficiency. 98,40%
Weighted European efficiency 97.50%
PROTECTION
Protection against polarity reversal in direct current Yes
DC switch Optional
Safety protection
Anti-islanding,
leakage currents, ground fault monitoring, monitoring of individual strings, anti-reverse function
Lightning arrester input/output PV:
Type II standard, AC: Type II standard
COMMUNICATION
Standard communication mode RS485 / Wi-fi / Bluetooth, optional :
Ethernet
GENERAL
Ambient temperature range
30°C to 60°C
Night-time power consumption <1 W
Topology Transformerless
Degree of protection IP65
Permissible relative humidity range
-
Max. altitude.
Operating
4000 m
<

4

0 dB
Weight 17 kg
Cooling Natural
Dimensions 430 x 375 x 179 mm
Display LCD,
App via Bluetooth
Warranty 10 years
Standards
(electromagnetic compatibility)
EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3, EN 61000-3-11,
EN 61000-3-12
Safety standards IEC 62109-1/2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1,2,14,30)
Network standards
4105, VDE V 0126-1-1, V 0124-100, CEI 0-21/CEI 0-16, UNE206 007-1, G98 / G99, EN 50549, EN 50530
Sofar-3.3kTLX-G3

Data sheet

Inverter power
3300VA
MPPT/PWM
MPPT
Phase
Triphasé
Number of MPPT
2 MPPT

Specific References

UPC
768563820229
EAN13
0768563820229
