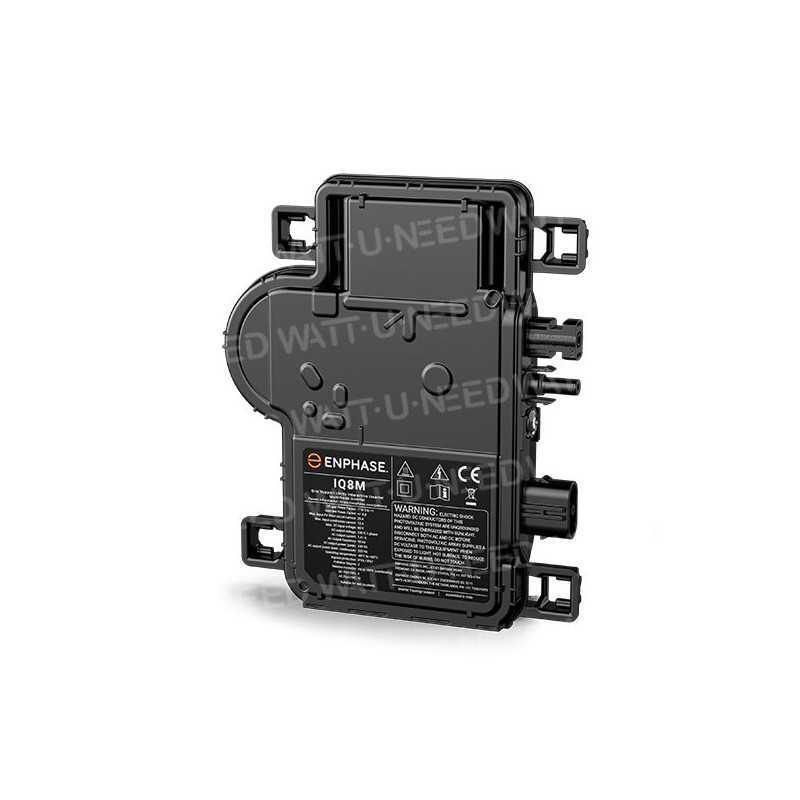

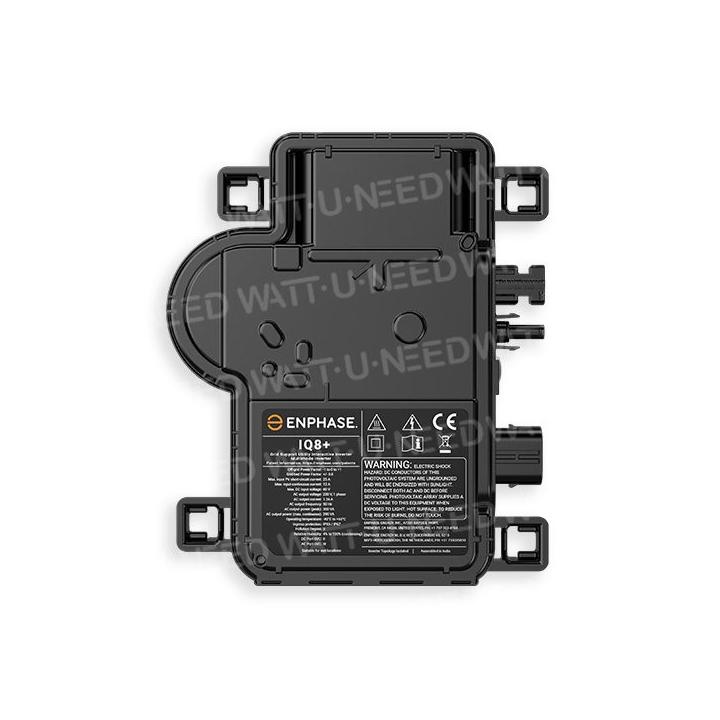

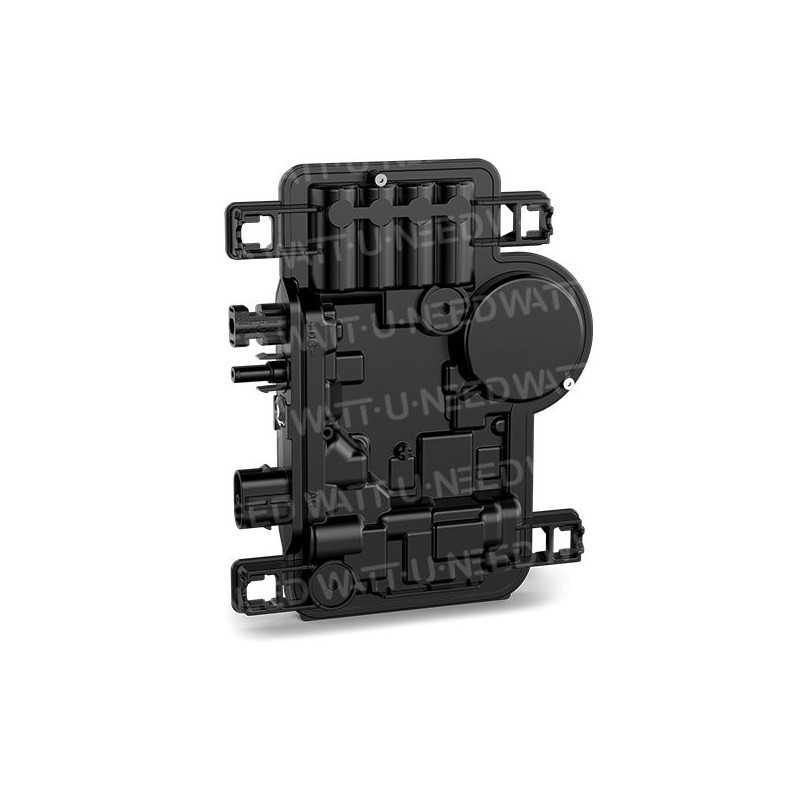

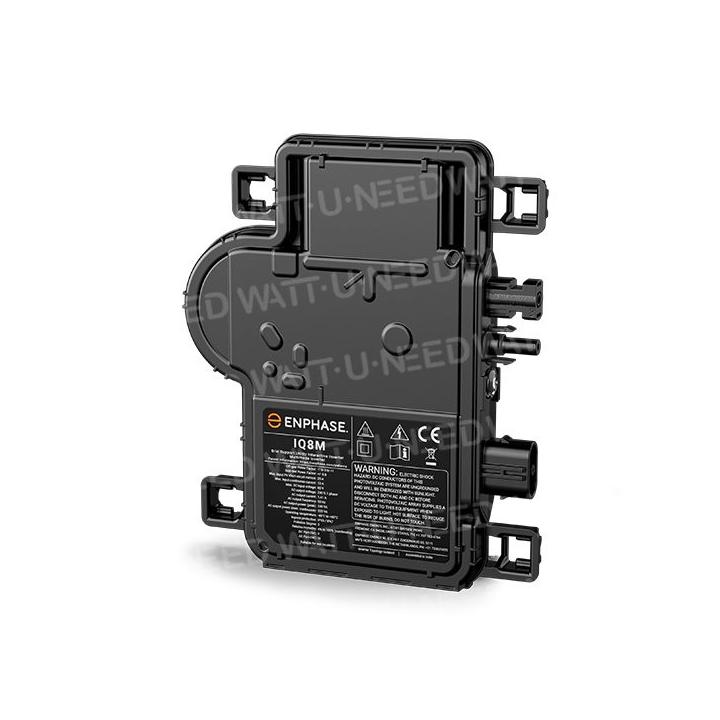

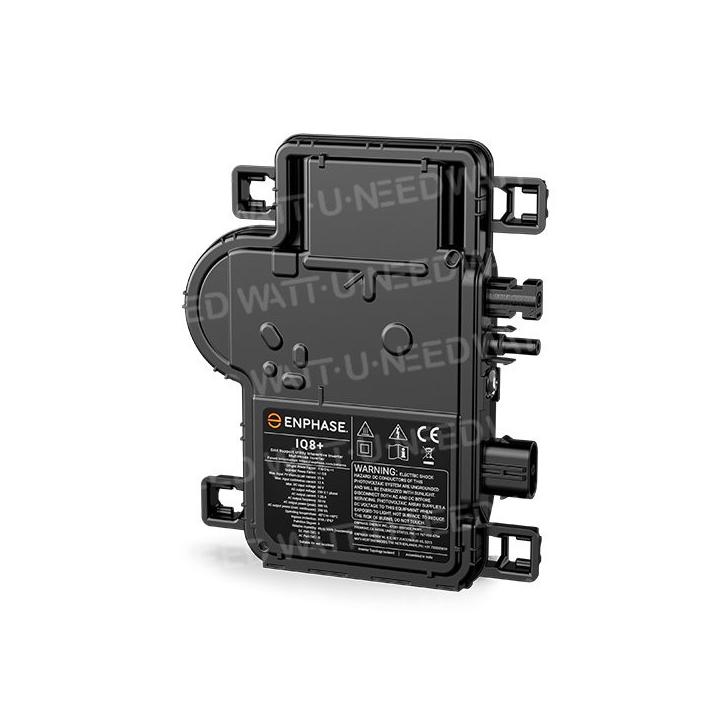

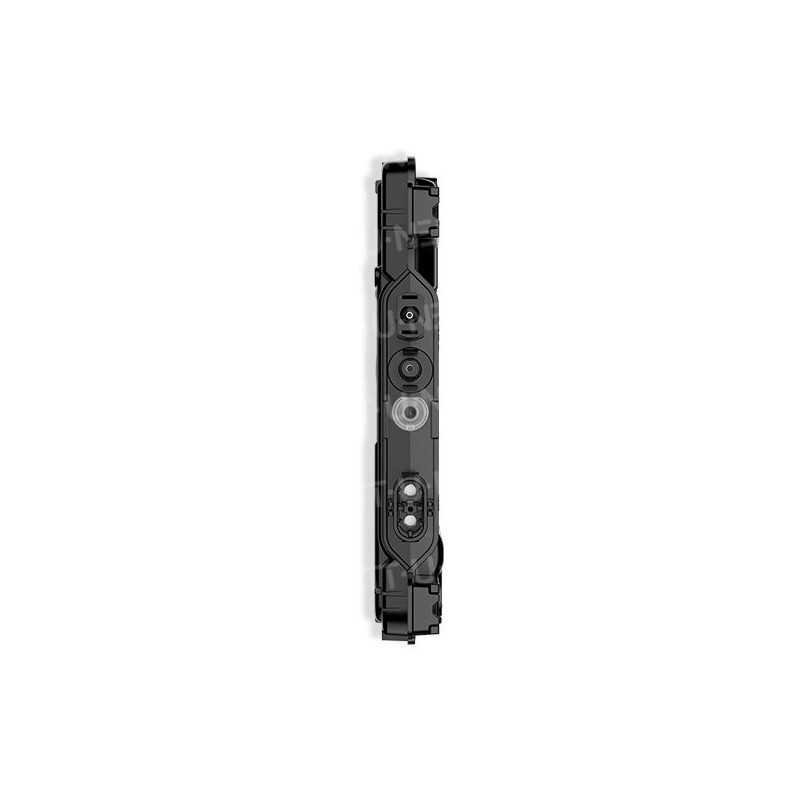

Enphase IQ8M and IQ8+ IQ8-72-M-INT microinverters

€164.11
Tax included
IQ8-72-M-INT
0712971131248

Enphase IQ8 Microinverter: Intelligent Solar Energy, Simplified

The Enphase IQ8 microinverter is the ideal solution to optimize your solar energy production. Thanks to its advanced technology, it ensures maximum efficiency, even in challenging conditions.

Why choose Enphase IQ8?

  • Easy installation: Plug & Play for quick commissioning.
  • Exceptional reliability: Robust design with a 25-year warranty.
  • Maximum efficiency: MPPT technology for optimal performance.
  • Enhanced safety: CE certified and compliant with the strictest standards.
  • Smart connectivity: Remote monitoring and control via the Enphase app.

Key benefits:

  • Optimized production: Each panel operates at its maximum potential.
  • Flexibility: Adapts to all types of installations.
  • Safety: Low-voltage direct current for safe installation.
  • Durability: Weather-resistant and built to withstand extreme conditions.

How does it work?

Each microinverter converts the energy produced by a solar panel into usable alternating current. MPPT technology ensures constant optimization, even in case of shading or differences between panels.

Ready to switch to smart solar energy? Discover Enphase IQ8 and enjoy clean, sustainable energy production.

Comments (0)

No customer reviews for the moment.

IQ8 microinverter: Intelligent, high-performance solar energy

The most intelligent microinverter to date.

The latest IQ8 microinverters are compatible with Smart Grids and designed for the latest generation of high-efficiency photovoltaic modules.

IQ8 microinverters have the highest power output and reliability in the industry and, thanks to their quick-stop functionality, meet the most stringent safety standards.

IQ8 microinverters are CE-certified and comply with various legislation only when installed in accordance with the manufacturer's instructions.

Safety first and foremost

By design, the microinverter is the safest choice for solar power. Unlike systems incorporating a central inverter, photovoltaic solar alone never contains high-voltage direct current (DC), eliminating the risk of fire.

Certified performance, rain or shine


All IQ8 microinverters are weatherproof, with IP67 certification. With their corrosion-resistant, double-insulated polymer casing, they are designed to withstand almost anything nature can throw at them.

Even greater performance


Get free remote software updates that bring innovative new features to your system and the Enphase App.

Energy in the palm of your hand


Find out how much energy you're producing, consuming and saving in real time, or view reports over a period of time. Change your system settings and get important service messages, all from a single user interface.

A responsive and responsible system


Enphase Energy Systems feature a quick-stop function so that, in the event of an emergency, solar power can be cut off easily and instantly, ensuring the safety of utility workers and first responders.

A system ready for today and tomorrow


The solar photovoltaic system is plug-and-play.
As your household's energy needs grow over the years, an installer can simply plug in more solar panels and microinverters.

A bright idea, even in low-light conditions


If shadows or clouds hang over your home, Enphase IQ8 Series microinverters use revolutionary Burst Mode technology to capture more energy in low-light conditions.

IQ Gateway (optional)


IQ8 Series microinverters integrate with IQ Gateway to keep your system fully connected to the Enphase Cloud network for remote monitoring via Enphase Apps.

IQ8 Series with integrated Type MC4 connectors


Quickly and easily connect PV modules to IQ8 Series with integrated Type MC4 connectors.

IQ Cables (optional)


Install microinverters quickly and safely with IQ Cable. With 3P IQ Cable, the installed capacity is automatically distributed evenly over the three phases.

Limited warranty


IQ microinverters are covered by an industry-leading 25-year limited warranty*.

*Valid only if an IQ Gateway connected to the Internet is installed.

How Enphase IQ microinverters work


The Enphase microinverter maximizes energy production using a sophisticated algorithm, the Power Delivery Optimizer (MPPT). Each Enphase microinverter is individually connected to a PV module in your field. This configuration allows an MPPT to control each PV module. In this way, the maximum power available from each PV module is exported to the grid without being influenced by the performance of other PV modules in the field. Even if some PV modules in the field are shaded, dirty, misaligned or mismatched, each Enphase microinverter guarantees optimum performance of its associated PV module.

Comment fonctionnent les Enphase IQ Microinverter Series ?

Features

I

DATA (DC)
UNIT IQ8PLUS-72-M-INT IQ8M-72-M-INT
Maximum input power
480
Module compatibility 54 cells/108 half
60 cells/120 half-cells, 66 cells/132 half-cells, 72 cells/144 half-cells

No DC/AC ratio imposed and no maximum input power.
Modules can be combined as long as the maximum input voltage is not exceeded and the maximum input current
of the inverter at the lowest and highest temperature is respected.

M

inimum / maximum input voltage
/ Uccmax
16/60
Start-up input voltage
22
Nominal input voltage
,n
36,0 37.5
Minimum / maximum MPP voltage Umppmin / Umppmax
27/45 30/45
Minimum / maximum operating voltage
/ Uopmax
16/49
Maximum input current
12
Maximum short-circuit DC input currentcircuit Iscmax
25
Maximum module Isc Iscmax
20
OUTPUT
(AC)
Maximum apparent power Sca,max VA 300 330
Rated power
,

n

290 325
Nominal mains voltage1
230
Minimum / maximum mains voltage
/ Ucamax
184/276
Maximum output current
,30
,43
Nominal frequency
Hz 50
Minimum / maximum frequency
/ fmax Hz 45/55
Maximum number of units per single-phase / multiphased 20 A 16 A / I camax
12 (P+N) / 36 (3P+N) 11 (P+N) / 33 (3P+N)
According to IEC60364, using an IQ Cable with a cross-section of 2.5mm², a safety factor of 1.25 is applied to the maximum permissible current. The maximum current then allowed in the IQ Cable is 16A.
The safety factor applied may vary depending on local regulations and also on the overcurrent protection device selected.
Maximum number of units per IQ Cable section single-phase / multi-phase
(P+N) / 21 (3P+N)
(P+N) / 18 (3P+N)
Center Feeding is best practice
This design recommendation keeps voltage rise and resistance inside the IQ Cable within acceptable limits. In areas subject to high network voltages, it may be necessary to reduce the number of microinverters per IQ Cable by up to 50%.

P

rotection class (all ports)
II
Total harmonic distortion
<

5

Power factor setting
Power factor range
.8 leading - 0.8 lagging
Maximum inverter efficiency ηmax
97.9 97.8
Weighted efficiency according to European standard ηEU
97.1 97,

2

Inverter topology
Isolated (HF transformer)
Night-time power loss
50
MECHANICAL
Ambient air temperature range

4

0°C to +60°C
Relative humidity range 4% to 100% (condensing)
Surge class AC port III
Number of DC input connectors (pairs) per single MPP tracker
Type of
AC connector Enphase IQ wiring (refer to separate datasheet for cable and accessories)
DC connector type Stäubli MC4
Dimensions (H x W x D) 212 mm x 175 mm x 30,2 mm (without mounting bracket)
Weight (with mounting bracket)
.1 kg
Cooling Natural convection - no fan
Housing Corrosion-resistant, double-insulated polymer housing, Class II
Degree of protection (IP) Outdoor - IP67
Maximum altitude <
2600 m
Calorific
37,5 MJ/unit
NORMES
Mains compliance (with IQ Relay) EN 50549-1
Safety EN IEC 62109-1, EN IEC 62109-2
EN IEC 61000-3-2, 61000-3-3,
61000-6-2, 61000-6-3, EN IEC 50065-1, 50065-2-1, EN55011 2
Product marking CE
Advanced network functions 3 Power export limitation (PEL),
Phase imbalance management (PIM),
Phase loss detection (LOP), Power factor control Q (U), cos (phi) (P
Microinverter communication Power line communication (PLC) 110 - 120 kHz (Class B), Narrow band 200 Hz
(2) At STC in MPP range.
(3) Some of these functions require the installation of an IQ Gateway Metered with current transformers and/or IQ Relay.
IQ8-72-M-INT

Data sheet

Inverter type
Micro-inverter

Specific References

UPC
712971131248
EAN13
0712971131248
