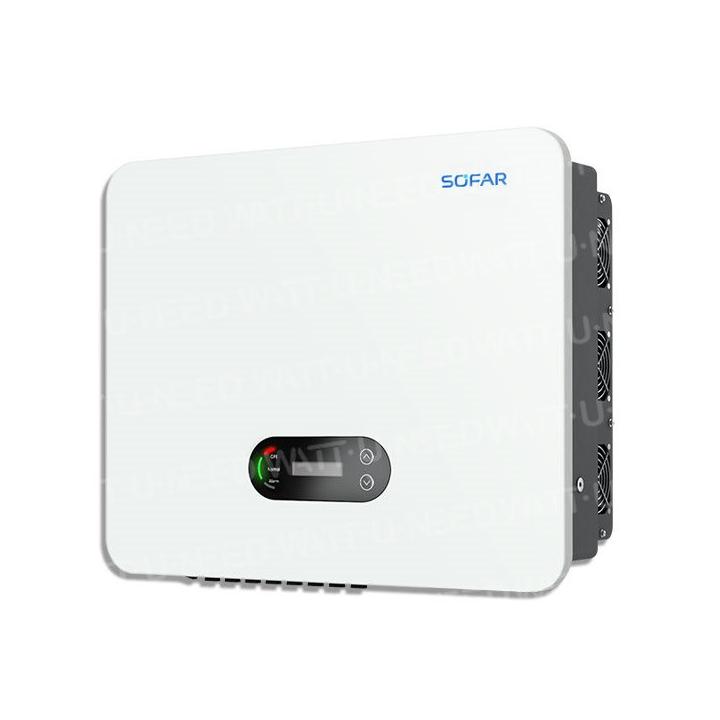

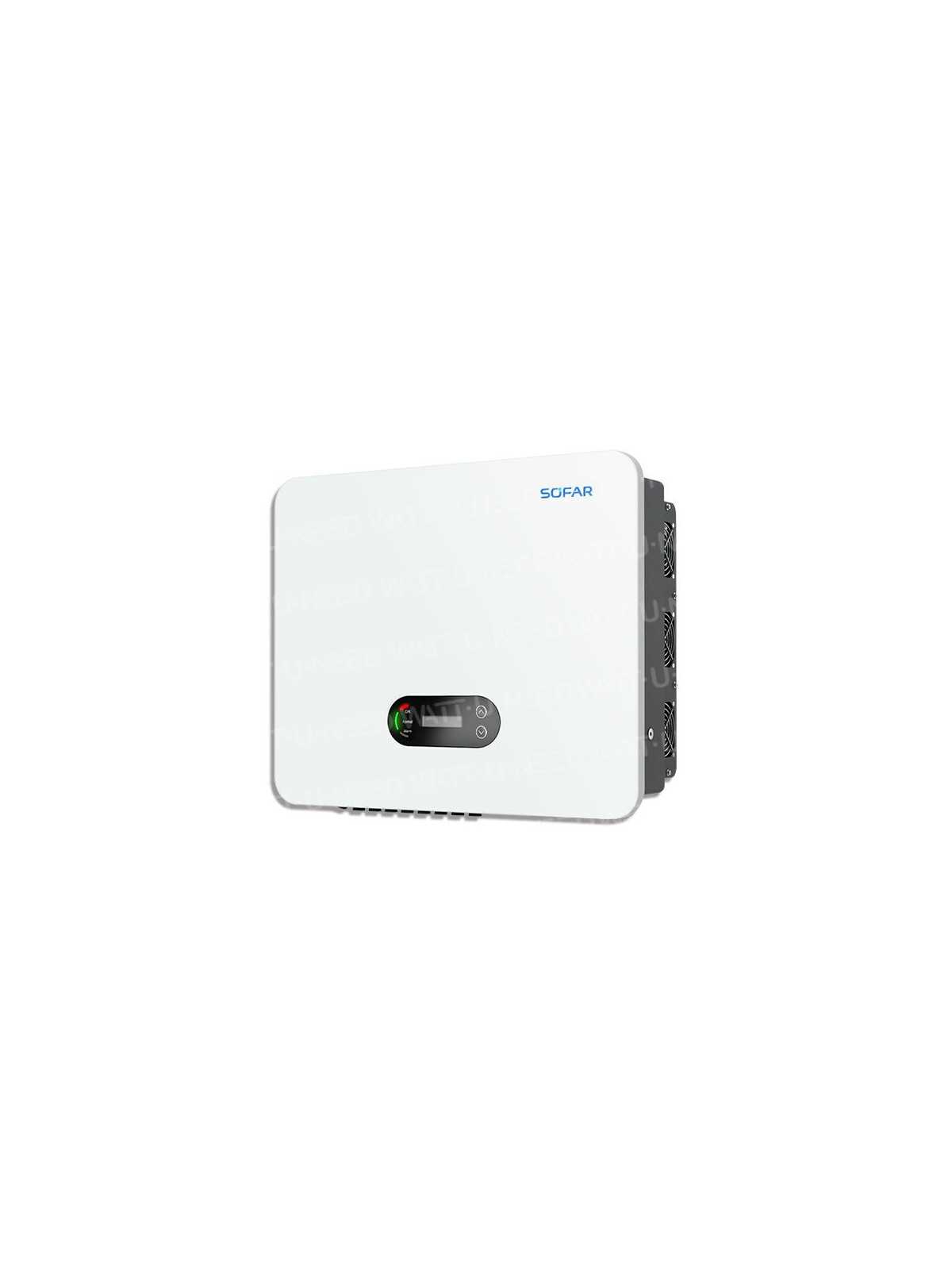

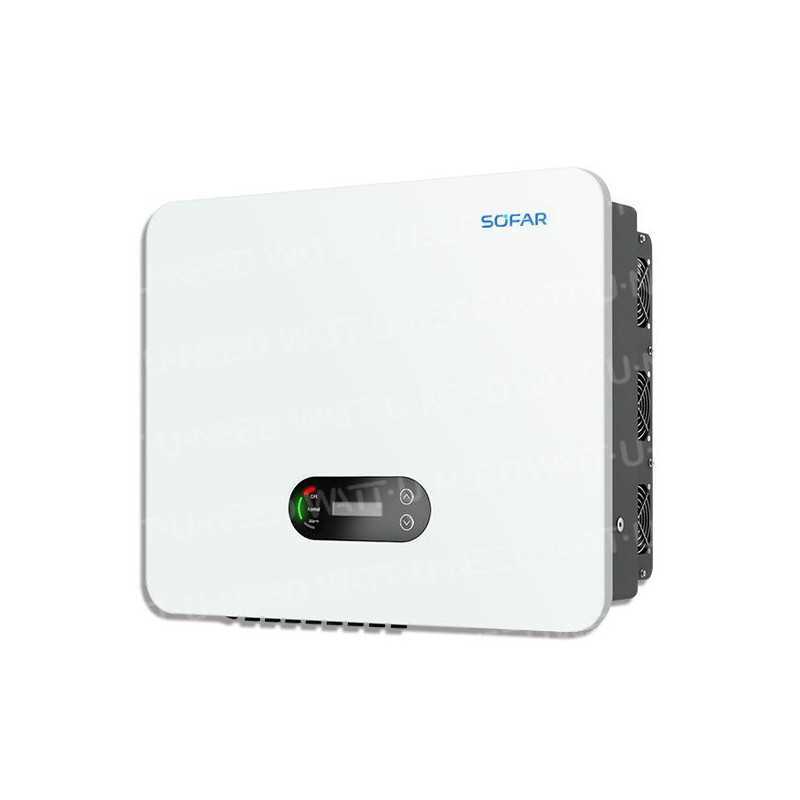

    Three-phase inverter Sofar Solar 25KTLX-G3

    Three-phase inverter Sofar Solar 25KTLX-G3

    $1,861.5
    Sofar-25KTLX-G3
    0768563820052

    Sofar Solar 25 kVA Three-Phase Inverter: Maximize Your Solar Energy Production for Commercial Installations

    The Sofar Solar 25 kVA 25KTLX-G3 three-phase inverter is designed to meet the specific needs of medium-sized commercial photovoltaic installations. With an exceptional efficiency of 98.9% and multiple advanced features, it optimizes solar energy production and offers unparalleled flexibility.

    Why choose the Sofar Solar 25 kVA inverter?

    • Maximum efficiency: 98.9% efficiency and precise MPPT algorithm for optimized production.
    • Flexibility: Up to 3 MPPTs and a wide input voltage range to adapt to different configurations.
    • Reliability: Enhanced protection with type II SPD and overload capacity.
    • Smart monitoring: Remote operation and real-time tracking via SOFAR View.

    Key advantages:

    • Production optimization: Maximize the output of your solar installation with MPPT technology.
    • Reliability and durability: Benefit from a high-quality product designed to last.
    • Simplified installation: Quick and easy installation thanks to its compact design.

    Flexibility of use:

    Adapt to different configurations with its multiple features.

    Sofar Solar 25 kVA: Invest in a high-performance and durable solar solution.

    Sorry, there are no more items in stock.

    Three-phase inverter Sofar...

    $1,861.5

    Sofar Solar 25 kVA inverter: Maximise your solar production with 3 MPPT

    New G3 three-phase inverter for small commercial PV installations

    The SOFAR 25K-30KTLX-G3 inverter series is the upgraded version of SOFARSOLAR's three-phase C&I inverter series. The 3rd generation version is equipped with up to three MPPTs and features nine different power classes to meet the demands of medium-sized PV installations.

    The inverter features 4 digital input ports and one CT input port for power control, enabling easy configuration to meet grid codes in many countries. For additional protection, the inverter is equipped with integrated type II surge arresters on the DC and AC sides.

    A WiFi stick is supplied with the inverter, for easy connection to the SOFAR View monitoring portal.


    High efficiency

    - Maximum efficiency of 98.9%.
    - Precise real-time MPPT algorithm for maximum utilization
    - Wide input voltage operating range


    All in one. Flexible, cost-effective system solution

    - Free choice of location thanks to IP65 rating
    - LCD + LED display
    - Integrated zero export function (optional)


    Low maintenance costs

    - Detachable lid for easy installation
    - Stainless aluminum covers
    - A flexible control solution


    Intelligent grid management

    - Reactive power capacity
    - Automatic power reduction in the event of overfrequency
    - Remote control of active/reactive power limit


    Specifications

    DC INPUT
    PV input power max.
    Recommended37500 Wp
    Max. power.
    DC power per MPPT25000 W
    Number of MPP trackers
    Number of DC inputs
    for each MPPT
    Max. input voltage1100
    Starting voltage200 V
    Nominal input voltage620 V
    MPPT operating voltage range180 - 1000 V
    Full MPPT power in voltage range480 - 850 V
    Max. MPPT input current
    x 40 A
    Max. input short-circuit current.
    By MPPT
    x 50 A
    AC output
    Rated power25000 W
    Max. power.
    In AC28000 VA
    Max. output current42,4
    A
    Nominal mains voltage
    / N / PE,
    230 / 400 Vac
    Mains voltage range310 -
    480 Vac (depending on local standards)
    Nominal mains frequency50 Hz / 60 Hz
    Mains frequency range45 - 55 Hz / 55 - 65 Hz (depending on local standards)
    Adjustable active power range
    - 100%
    THDi<
    3%
    Power factor
    default (adjustable +/-0.8)
    PERFORMANCE
    Max. efficiency
    98,60%
    Weighted European efficiency98.20%
    PROTECTION
    Protection against polarity reversal in DCYes
    Anti-reverse power function and DC switchOptional
    Safety protectionAnti-islanding protection, leakage current protection, ground fault monitoring, PV array line fault monitoring, reverse power limitation, DC switch.

    L

    ightning arrester input/outputPV: type II standard, AC: type II standard
    COMMUNICATION
    Standard communication mode

    RS485 / Wi-Fi / Bluetooth

    Optional :

    Ethernet

    GENERAL
    Ambient temperature range
    30°C to 60°C
    Night-time power consumption<3 W
    TopologyTransformerless
    Degree of protectionIP65
    Permissible relative humidity range
    - 100%
    Max. altitude.
    Operating
    4000 m
    <

    6

    0 dB
    Weight36 kg
    CoolingFan
    Dimensions
    x 480 x 220 mm
    DisplayLCD, App via Bluetooth
    Warranty10 years
    Standards
    (electro-magnetic compatibility)EN 61000-6-1, EN 61000-6-2, EN 61000-6-3,
    EN 61000-6-4
    Safety standardsIEC 62109-1/2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1,2,14,30),
    IEC 60255
    Network standards
    V 0124-100, V 0126-1-1, VDE-AR-N 4105, CEI 0-21 / CEI 0-16, UNE 206 007-1, EN 50549, G98 / G99, EN 50530
    Sofar-25KTLX-G3

    Data sheet

    Inverter power
    25000VA
    MPPT/PWM
    MPPT
    Phase
    Triphasé
    Number of MPPT
    3 MPPT
