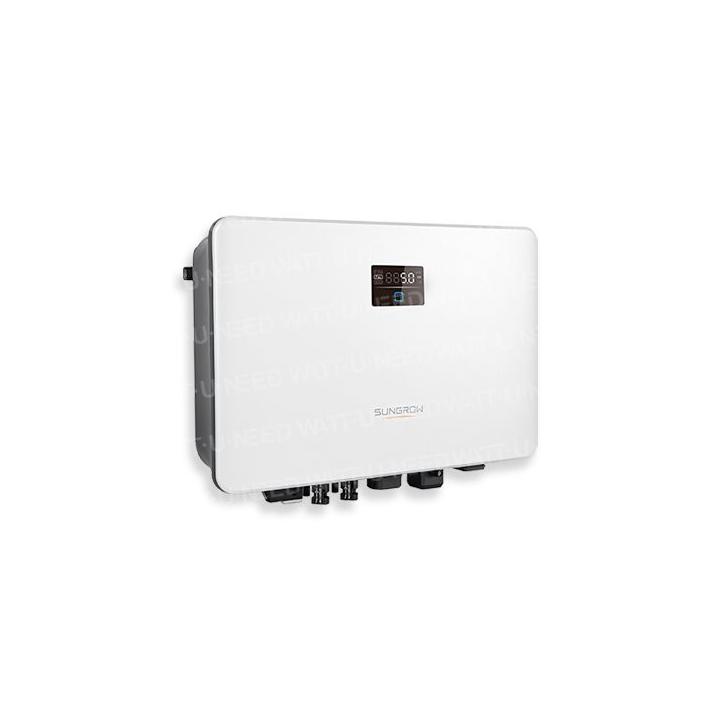

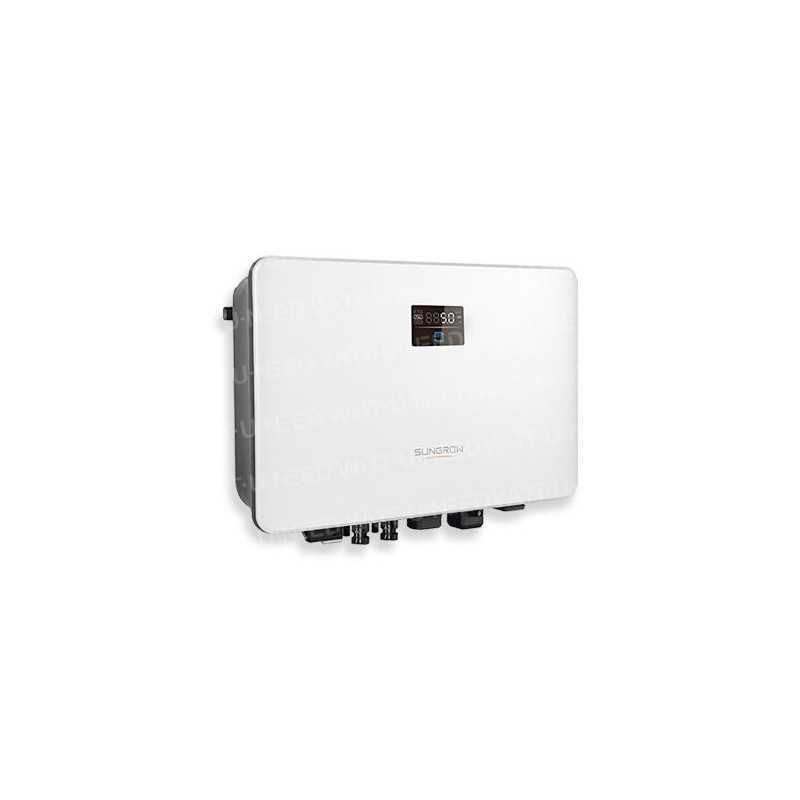

Single-phase inverter SunGrow 5.0 SG5.0RS

€1,556.40
Tax included
SG5.0RS
0768563819827

SunGrow SG5.0RS Single-Phase Inverter: Solar Energy at Your Fingertips

Choose excellence with the SunGrow SG5.0RS single-phase inverter, the result of Sungrow’s global expertise in solar solutions. Designed to maximize your energy production, this inverter combines performance, simplicity, and reliability. With its advanced technology and intuitive installation, it allows you to fully enjoy solar energy.

Why choose the SunGrow SG5.0RS inverter?

  • Maximum efficiency: Benefit from high efficiency thanks to advanced technology that optimizes your energy production.
  • Simplified installation: Quick commissioning with intuitive setup.
  • Proven reliability: Built to last, it comes with integrated protections.
  • Smart monitoring: Track your installation’s performance in real-time through IsolarCloud.

Key advantages of the SunGrow SG5.0RS inverter:

  • Compatible with high-power PV modules for maximum flexibility.
  • Rugged construction and high protection rating for outdoor use.
  • Intuitive user interface for easy management.

Trust Sungrow, a major player in solar energy. Benefit from 25 years of experience and recognized expertise for a high-performance, durable solar solution.

Sorry, there are no more items in stock.

Comments (0)

No customer reviews for the moment.

Sungrow SG5.0RS solar inverter: Power and reliability for your solar installation

Sungrow Power Supply Co, Ltd ("Sungrow") is the world's most bankable inverter brand, with over 269 GW installed worldwide by June 2022. Founded in 1997 by university professor Cao Renxian, Sungrow is a leader in solar inverter research and development with the industry's largest dedicated R&D team and a broad product portfolio offering PV inverter solutions and energy storage systems for utility, commercial and industrial, and residential applications, as well as internationally recognized floating PV power plant solutions, NEV driving solutions, EV charging solutions and renewable hydrogen production systems. With 25 years' experience in the photovoltaic field, Sungrow products supply power to over 150 countries worldwide.

Offering a wide range of solutions and services, Sungrow is committed to providing clean energy for all and continues its efforts to become the world leader in clean energy conversion technology.

High efficiency

  • Compatible with high-power PV modules
  • Lower start-up and wider MPPT voltage range
  • Intelligent PID recovery function

User-friendly configuration

  • Plug-and-play installation
  • One-click access to the IsolarCloud monitoring platform
  • Lightweight and compact, with optimized heat dissipation

Safe and reliable

  • Integrated arc fault circuit interrupter
  • Integrated type II DC&AC SPD
  • Corrosion protection rating to C5

Intelligent management

  • Real-time data
  • 24/7 live monitoring via integrated display
  • Online IV curve analysis and diagnostics

Features

DC INPUT
PV input power max 7500 W
PV input voltage max V
PV operating voltage min.
/ Start-up input voltage 40 V / 50 V
Nominal PV input voltage 360 V
MPP voltage range 40 - 560 V
Number of
of independent MPP inputs
Default number of PV strings per MPPT
Max PV input current 32 A (16A /16A)
Short-circuit currentcircuit max 40A (20A/20A)
AC
Nominal AC output power 5000 W
AC output power supply max 5000VA
Nominal AC output current (a 230V) 21,8 A
Max AC output current 22,8 A
Rated AC voltage 220 / 230 / 240 V
AC voltage range 154 - 276 V
Rated grid frequency
Grid frequency range		 50 Hz / 45 - 55 Hz
60 Hz / 55 - 65 Hz
Harmonic (THD) <3% (at rated power)
Power factor at rated power / adjustable power factor >
0.99 / 0.8 leading - 0.8 lagging
Supply phases / Connection phases
- 1
EFFICIENCY
Maximum efficiency 97.9%
European efficiency 97,3%
PROTECTION
Grid monitoring Yes
DC polarity reversal protection Yes
short-circuit protectioncircuits Yes
Leakage current protection Yes
Overvoltage protection DC type II / AC type
II
DC switch Yes
PV string current monitoring Yes
Arc fault circuit switch Optional
Function
recovery
Yes
GENERAL
Dimensions (l x h x d) 410 x 270 x 150 mm
Weight 10 kg
Mounting Mounting
Wall mounting
Topology Transformerless
Degree of protection IP65
Operating ambient temperature range
25 to 60 °C
Permissible relative humidity range (non-condensing)
- 100%
Cooling method Natural cooling
Max. operating altitude 4000 m
Display Digital LED display and
LED indicator
Communications Ethernet / WLAN / RS485 / DI (ripple control and DRM)
DC connection type MC4 type (Max 6mm²)
AC connection type Plug and play connector (max 6mm²)
Conformity IEC/EN62109-1/2, IEC/EN62116, IEC/EN61727, IEC/EN61000-6-2/3, EN50549-1, AS4777.2, ABNT NBR 16149,
ABNT NBR 16150, UNE 217002:2020, NTS V2 TypeA, IEC 0-21:2019, VDE0126-1-1/A1 (VFR-2019), UTE C15-712,
, G98/G99
Grid support Active and reactive power control and power ramp speed control
SG5.0RS

Data sheet

Inverter power
5000VA
MPPT/PWM
MPPT
Phase
Monophasé
Number of MPPT
2 MPPT
Width
410 mm
Height
270 mm
Thickness
150 mm
IP protection
IP65
Weight
10 kg

Specific References

UPC
768563819827
EAN13
0768563819827
