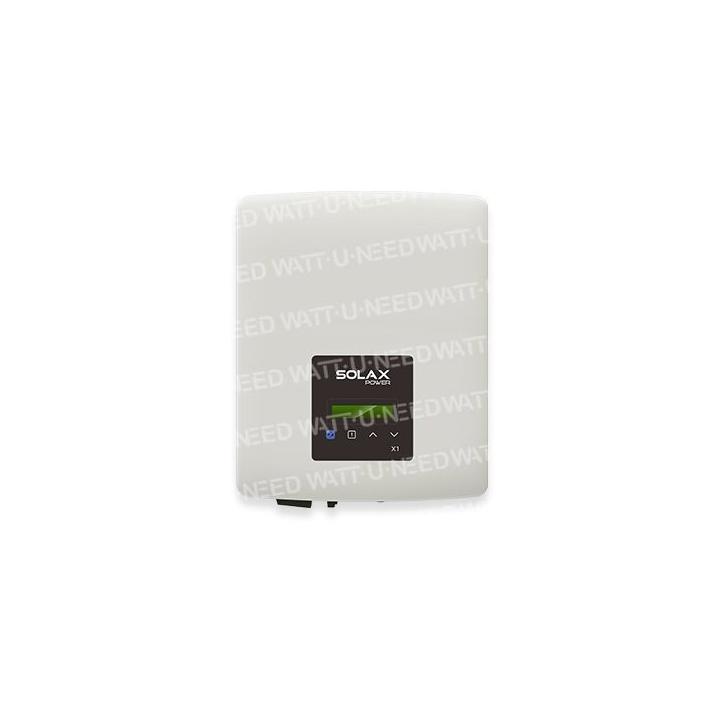

SolaX X1 Mini 1.1 single-phase inverter
SolaX X1 Mini 1.1 single-phase inverter
SolaX X1 Mini 1.1 single-phase inverter
SolaX X1 Mini 1.1 single-phase inverter

Single-phase inverter SolaX X1 Mini 1.1 X1-1.1-S-D

€443.14
Tax included
X1-1.1-S-D
0712971138698

SolaX X1 Mini 1.1 kVA Inverter: The Compact and Efficient Solar Solution

The SolaX X1 Mini is the ideal inverter for small photovoltaic installations. With its exceptional 98% efficiency and compact design, it allows you to maximize your solar energy production, even in the tightest spaces.

Why choose the SolaX X1 Mini?

  • Optimal performance: Benefit from high energy efficiency for maximum production.
  • Simplified installation: Compact and lightweight, it installs easily indoors or outdoors.
  • Reliability: Robust IP66 certified design for long-lasting performance.
  • Discreet: Silent and space-saving, it integrates seamlessly into your environment.

Key benefits:

  • Ideal for small installations: Perfect for small roof spaces.
  • High efficiency: Maximize your solar energy production.
  • Easy installation: Ready to use.
  • Discreet: Compact and silent design.

Ideal for:

  • Individuals new to self-consumption.
  • Installations as a complement to larger systems.
  • Users seeking a discreet and efficient solution.

Discover the difference with the SolaX X1 Mini.

Request your personalized quote now and choose performance and simplicity.

Sorry, there are no more items in stock.

Comments (0)

No customer reviews for the moment.

SolaX X1 Mini solar inverter: The all-in-one solar solution for small systems

Solax X1 Mini

Perfect for small photovoltaic panels

The X1 Mini inverter is the perfect solar solution for small photovoltaic panels ranging from 0.6 kW to 3.6 kW. With a maximum efficiency of 98%, it is one of the most efficient small inverters available on the market today.

Small, light and silent

The X1 Mini has been designed to fit into the smallest of spaces, with a footprint of just 35cm and weighing just 7kg, the X1 Mini is small but not lacking in performance.

Indoor or outdoor installation

The X1 Mini is IP66-rated, which means it can be installed indoors or outdoors, giving you the choice of where to install the system.

Features

Password to enter parameters: 2014

INPUT
Max. power of photovoltaic panels (Wp) 1650
Max. DC voltage (V) 450
Nominal DC operating voltage (V) 360
Max. input current (A) 14
Max. short-circuit current
(A) 16
MPPT voltage range (V) 45-430
Start-up operating voltage (V) 50
MPP/MPPT tracking

Channels p
er MPP/MPPT tracking
AC
Nominal AC power (VA) 1100
(VA) 1210
Nominal mains voltage (AC voltage range) 220/230/240; 180~280
Nominal mains frequency/range (Hz) 50/60; ±5
Nominal AC current (A)
,78
Max. AC current.
(A)
.30
Displacement power factor
.8 capacitive - 0.8 inductive
THDi, nominal power(%) <3
MPPT efficiency (%) 99.9
European efficiency (%) 95.5
Max. efficiency. (%) 98,0
ABSORBED POWER
Standby consumption (night) (W)
STANDARDS
Overvoltage protection Yes
Overcurrent protection Yes
Monitoring of DC insulation resistance
resistance
Yes
Ground fault current monitoring Yes
DC injection monitoring Yes
Earth leakage circuit breaker protection Yes
Safety IEC 62109-1/-2
EN 61000-6-2,
EN 61000-6-3, EN 61000-3-2, EN 61000-3-3
Certification EN62109-1/-2;
G98; AS/NZS 4777,2; VDE4105; EN50438
ENVIRONMENTAL LIMITS
Degree of protection (according to IEC 60529) IP66
Operating temperature range (°C)
to + 60 (derating to 45)
Max. operating altitude.
(m
<2000
Humidity(%)
to 100 (condensation)
Storage temperature (°C
~ 70
Typical noise level (dB) <25
DIMENSIONS AND WEIGHT
Dimensions (L x W x D) (mm
267 x 328 x 116
Weight (kg
Cooling type Natural
Topology Non-insulated
Communication interfaces RS485
DRM
Fi
LAN
(optional)
USB
LCD display Yes
Standard warranty (years) 10
X1-1.1-S-D

Data sheet

Inverter power
1100 VA
MPPT/PWM
MPPT
Phase
Monophasé
Number of MPPT
1 MPPT
Width
267 mm
Height
328 mm
Thickness
116 mm
IP protection
IP 66
Inverter type
Grid
Weight
6 kg

Specific References

UPC
712971138698
EAN13
0712971138698
