    WKS EVO Circle 16.8kVA 48V hybrid inverters + 3 communication kits
    WKS EVO Circle 16.8kVA 48V hybrid inverters + 3 communication kits
    WKS EVO Circle 16.8kVA 48V hybrid inverters + 3 communication kits
    WKS EVO Circle 16.8kVA 48V hybrid inverters + 3 communication kits
    WKS EVO Circle 16.8kVA 48V hybrid inverters + 3 communication kits

    WKS EVO Circle 16.8kVA 48V hybrid inverters + 3 communication kits

    $2,822.4
    WKS-EVO-Circle+3Kits-Com.
    0712971139824

    The WKS Evo Circle 16.8kVA hybrid inverter is the ideal solution for large-capacity solar installations that require maximum flexibility.

    • Flexibility: Adapts to all configurations, from residential to commercial, thanks to its modularity and ability to operate in three-phase mode.
    • Performance: Advanced MPPT technology to maximize captured solar energy and store it efficiently.
    • Monitoring: Intuitive interface and mobile app for real-time tracking of your installation.
    • Reliability: Robust design and high-quality components for long-lasting performance.

    Key advantages:

    • Multifunctional: Works as an inverter, charger, and UPS to meet all your needs.
    • Custom configuration: Adapt the inverter to your installation with numerous configurable settings.
    • Safety: Protection against overloads and overheating for secure use.
    • Aesthetic: Modern design with a customizable LED ring.

    WKS Evo Circle 16.8kVA: Solar energy at your service, with simplicity.

    For availability of the WKS EVO Circle 5.6 Kva 48V, please refer to available stock by clicking here.

    WKS EVO Circle 16.8kVA 48V...

    $2,822.4

    Intelligent solar inverter: easy to install and use

    The pack contains :

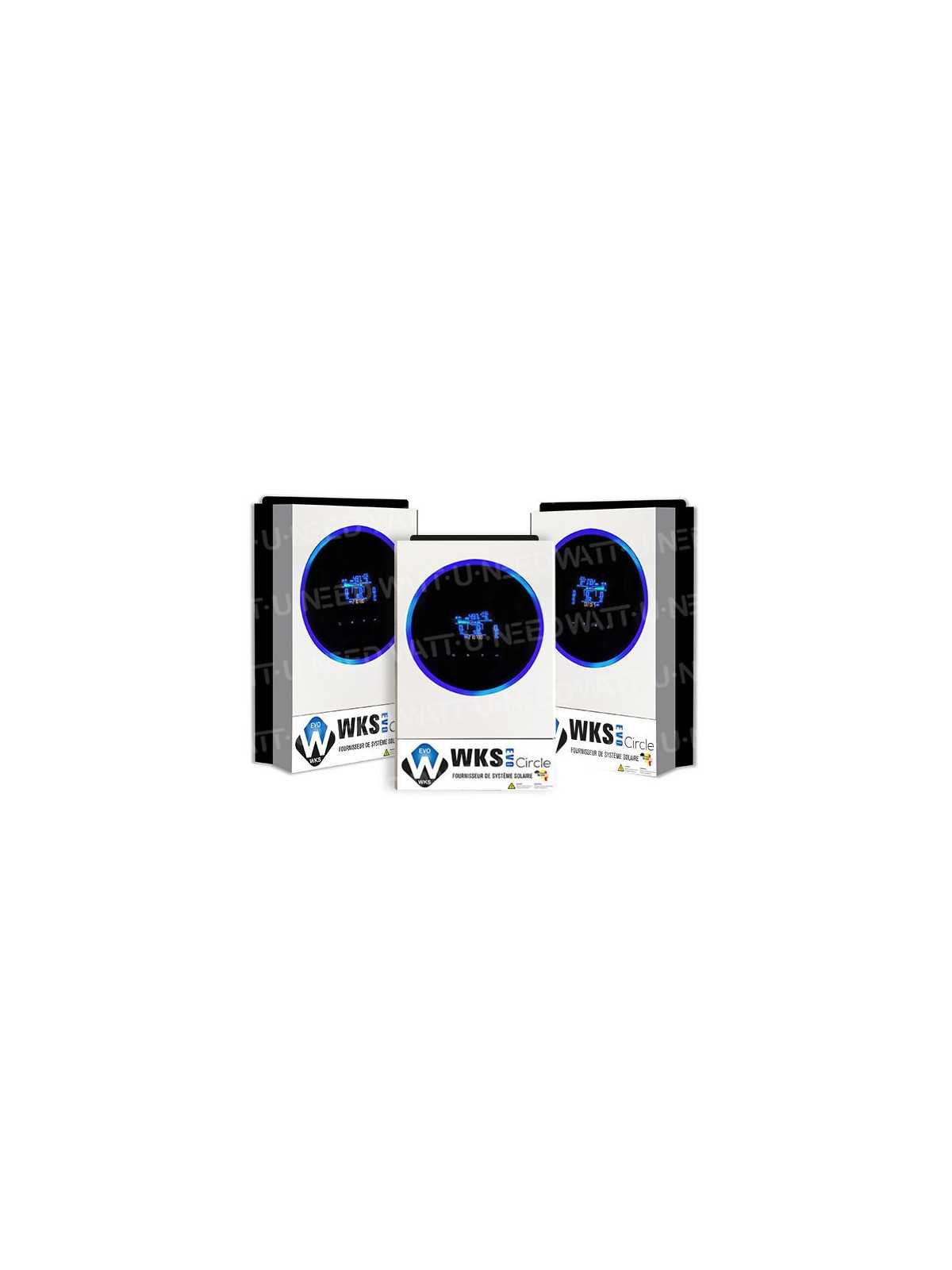

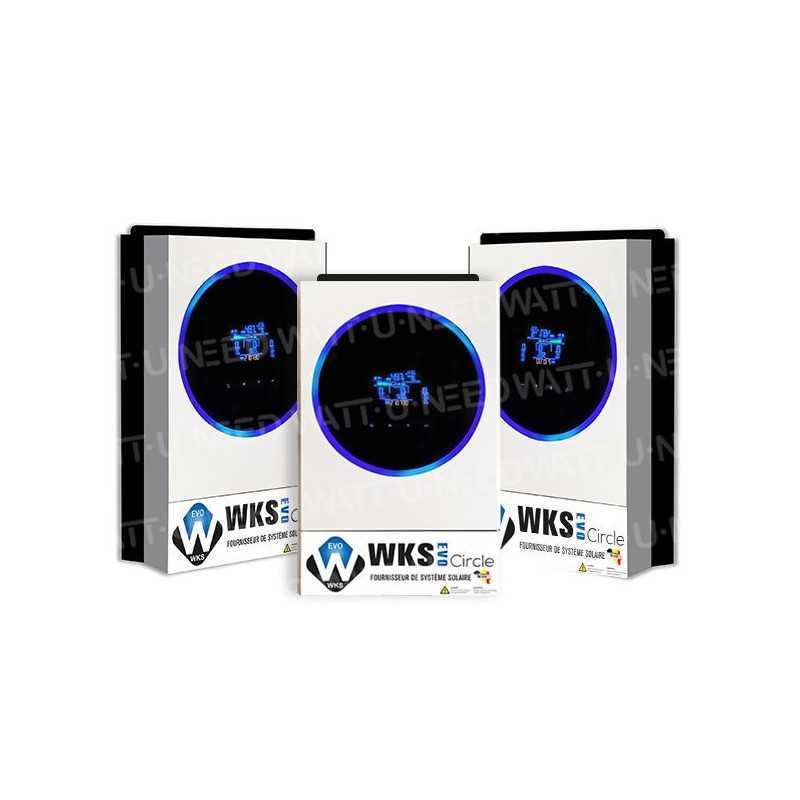

    • 3 hybrid inverters WKS EVO 5 kVA - 48V 3
    • communication kits: paralleling - three-phase

    The pack allows you to connect 3 WKS EVO in parallel. It also enables three-phase operation.


    Composition

    Onduleur Hybride WKS EVO Circle3X WKS Evo Circle 5.6 kVA 48V hybrid inverter

    The WKS EVO Circle features an MPPT solar charge controller that maximizes and regulates the DC power of the solar panel to charge your battery bank.
    The transformerless design enables reliable power conversion in a compact format. The new generation of WKS features integrated Wi-Fi, so mobile monitoring can be carried out via mobile applications. Data can be viewed and stored in the inverter, which is convenient for tracking the inverter's operating status. It also supports USB On-The-Go for easy rewriting of internal settings, data downloads and software updates.

    - Pure sine wave MPPT solar inverter
    - Customizable status LED ring with RGB lights
    - Touch button with 4.3" color LCD display
    - Wide DC input range
    - Data log events stored in the inverter
    - Integrated Wi-Fi for mobile monitoring (app available)
    - Dedicated communication port for BMS
    - Parallel operation with up to 9 units
    - Choice of operating mode via timer
    - 27 Amp output

    Features

    Model
    Power rating5600VA/5600W
    Input voltage AC170-280 VAC (for personal computers)
    Selectable voltage range90-280 VAC (for household appliances)
    Frequency range50Hz/60Hz (automatic detection)
    Output
    AC voltage regulation (Batt. mode.)230 VAC +/- 5
    Overload capacity
    load;10s@110%~150% load; 100ms @ >/=200% load
    Efficiency (peak)93%
    Transfer time10 ms (for personal computers) ;
    20 ms (for household appliances)
    WaveformPure sine wave
    AC output voltage24,3A
    Battery
    Battery voltage48 VDC
    Floating charge voltage54 VDC
    Overload protection66 VDC
    Solar charger and AC charger
    Type of solar chargerMPPT
    Maximum generator power
    PV6000W
    MPPT range at operating voltage120~430VDC
    Maximum PV open circuit voltage450VDC
    Maximum solar charging current120A
    Maximum AC charging current120A
    Physics
    Dimension,
    D x W x H (mm)140x295x468
    Net weight (kgs)11.0 12.0
    Communication interfaceUSB/RS232/RS485/Wifi/Dry contact
    Operating environment
    Humidity5% to 95%a Relative humidity (non-condensing)
    Operating temperatureFrom -10°C to 50°C
    Storage temperature-15°C to 60°C

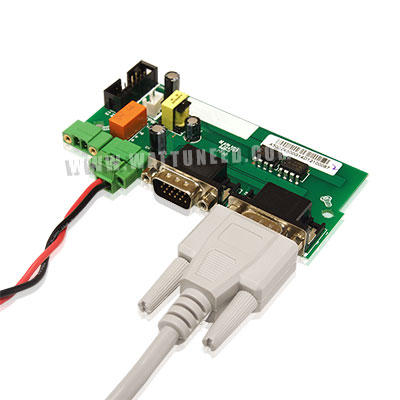

    Kit de communication - mise en parallèle / triphasé

    3x Parallel / three-phase communication kit

    The WKS 5KVA can be connected in parallel using this communication kit, in various ways:

    up to 20 KVA single-phase

    Several devices (max4) can be connected in series, to create systems with up to 20 KVA output power.

    12 or 15 KVA three-phase

    One inverter per phase. 3 WKS can be connected to obtain up to 15 KVA three-phase output.

    Kit includes board, power cable and communication cable.


    Software

    WatchPower 1.17SP1



    WatchPower 1.17SP3

    WKS-EVO-Circle+3Kits-Com.

    Data sheet

    Inverter power
    15000VA
    Voltage
    48V
    Power
    15000 VA
    Phase
    Monophasé

    Specific References

    New

    Download

    FicheT WKS EVO Circle 5/48V-FR

    Download (375.05KB)

    Manual WKS EVO Circle-EN

    Download (8.51MB)

    Parametrage Ond Circle - FR

    Download (4.89MB)
