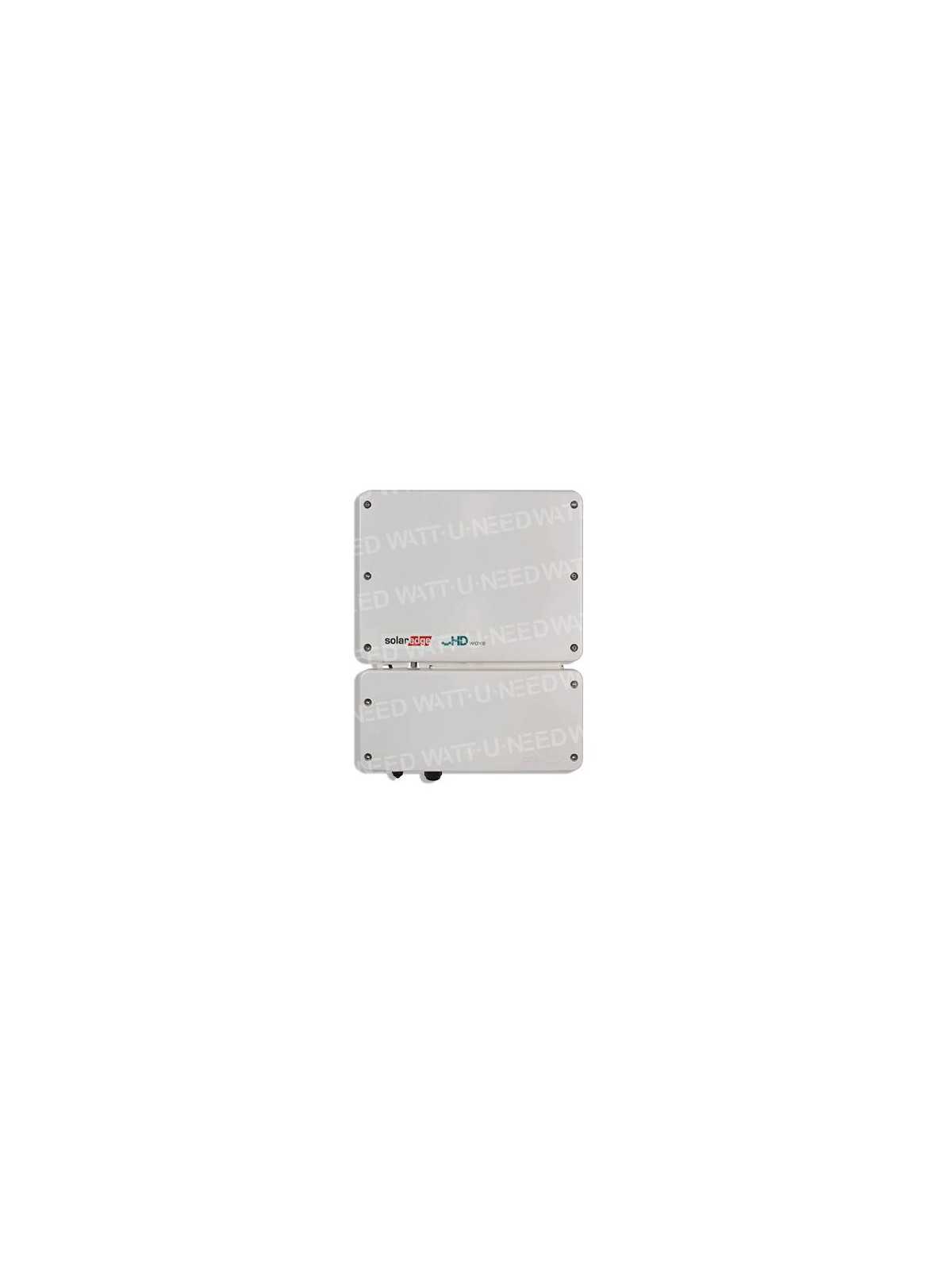

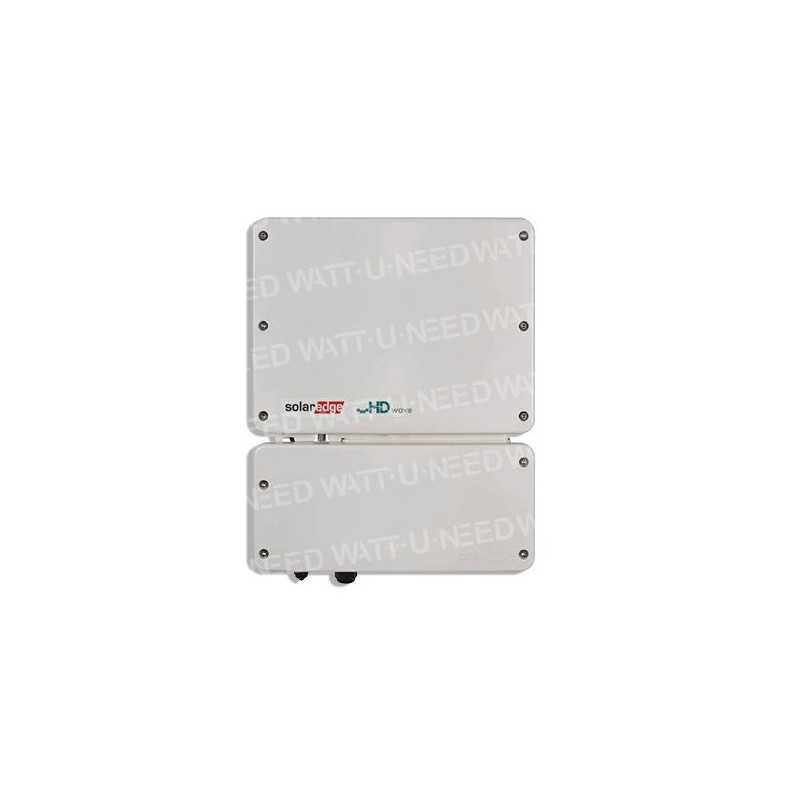

SolarEdge SE2200H to 6000H-RWS HD-WAVE hybrid inverter

Solar inverter SolarEdge HD-Wave : Maximum energy autonomy

SolarEdge's single-phase inverter with HD-Wave technology breaks the pattern of traditional inverters. Winner of the prestigious Intersolar Award 2016 and the renowned Edison Awards 2018, the single-phase inverter is specially designed to work with SolarEdge power optimizers and offers a standard 12-year warranty, extendable to 20 or 25 years.

Optimized for grid applications

- A single unit to manage photovoltaics, household consumption and battery power
- Simple installation and inventory management
- Allows connection of battery suppliers such as LG Chem RESU
- Quick and easy inverter commissioning directly from a smartphone with the SolarEdge SetApp
- Record efficiency
- High reliability
- Integrated module-level monitoring
- Designed to eliminate DC voltage and current during installation, maintenance or fire-fighting
- Fixed-voltage inverter for long strings
- Indoor and outdoor installation

Innovative SolarEdge inverter topology

Because MPPT and voltage management are managed separately for each module, the inverter manages only DC/AC conversion. This makes the SolarEdge inverter simpler, more economical and more reliable. Fixed string tension ensures optimum operation at all times, regardless of string length or temperature.
In addition to its DC-optimized inverter functionality, the single-phase inverter also manages battery and system energy as part of SolarEdge's StorEdge solution.

HD-Wave technology: a new era for PV inverters

SolarEdge's latest generation of single-phase inverters is designed to use a new power conversion technology based on distributed switching and powerful DSP processing. The single-phase inverter is capable of synthesizing a clean sine wave, leading to a dramatic reduction in magnetic components and heavy cooling elements. As a result, only one person is needed to install this compact, lightweight inverter, which is also easy to transport and store. The record 99% energy production efficiency ensures a better return on investment.

Easy commissioning with SetApp

SolarEdge single-phase inverters now feature a new, intelligent commissioning method. Inverter commissioning is carried out directly via a smartphone using the intuitive SetApp mobile application. Switch to the new standard for inverter commissioning. Find out more about SetApp.

Inverter features

- Solar inverters specially designed to work with SolarEdge power optimizers
- Inverter range from 2.2 kW to 6 kW
- 99% weighted efficiency (33% - 50% less losses than the market standard)
- Small, lightweight and easy to install
- Up to 155% oversizing permitted
- Advanced safety features including arc fault protection
- Standard 12-year warranty (extendable to 20 or 25 years)
- Integrated supervision receiver at module level
- Internet communication via Ethernet or wireless connection (using optional Wi-Fi, ZigBee® or cellular plug-ins)
- Manages PV production, battery storage and smart energy products
-IP65 - outdoor and indoor installation

Technical data
