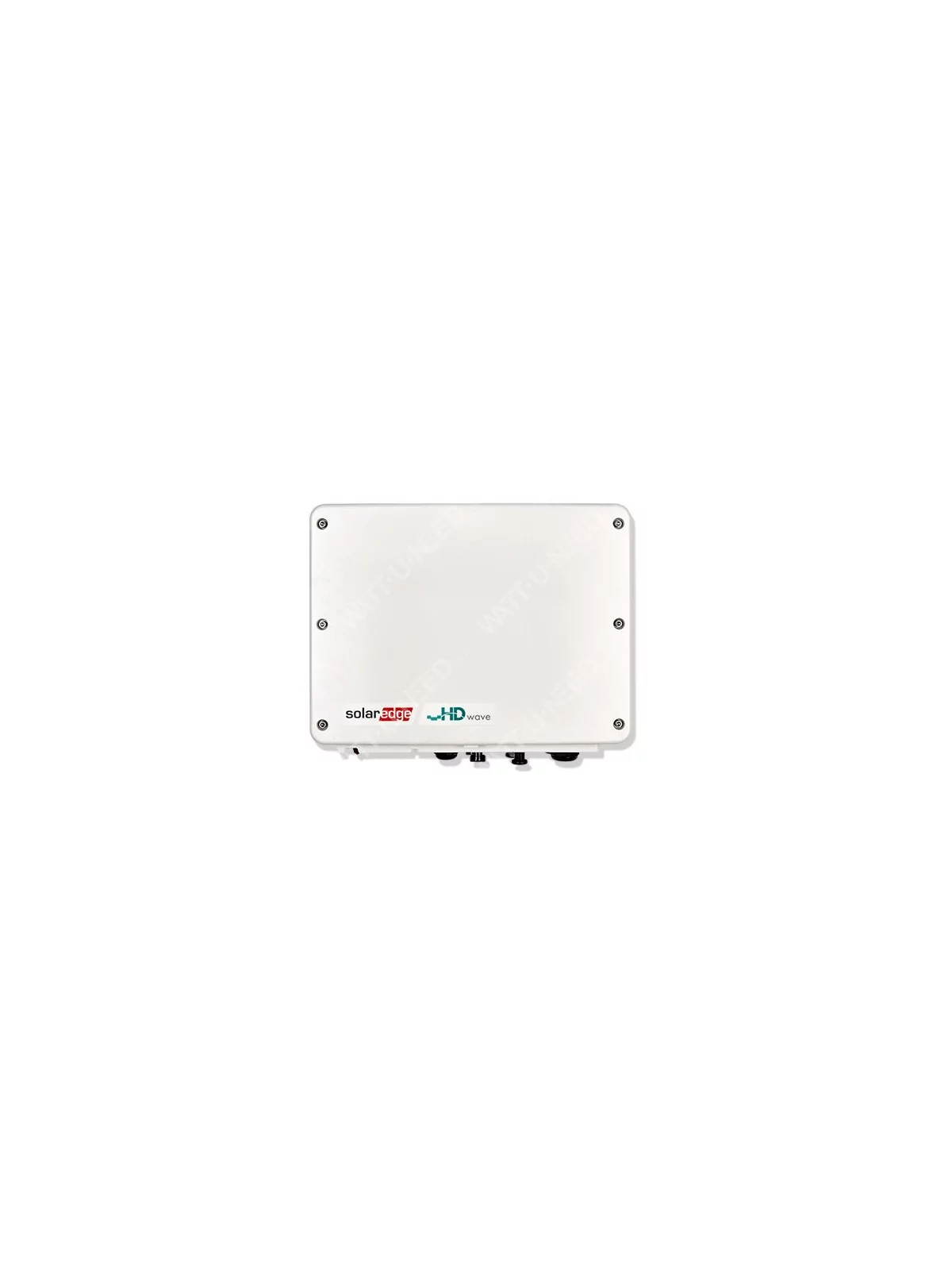

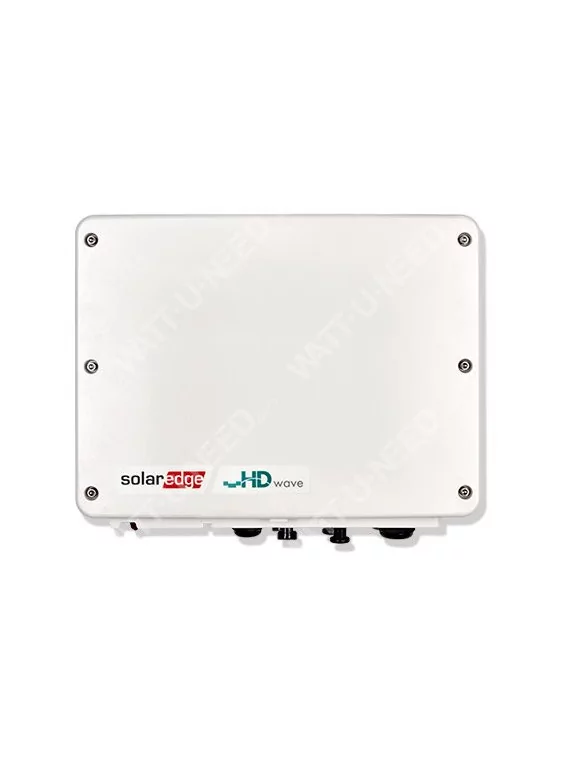

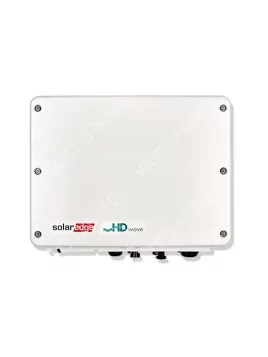

SolarEdge SE2200 to SE6000H HD Wave inverter

SolarEdge SE2200 at SE6000 HD-Wave


SolarEdge's single-phase inverter with HD-Wave technology breaks the pattern of traditional inverters. Winner of the prestigious 2016 Intersolar Award and the renowned Edison Awards 2018, the single-phase inputer is specially designed to work with SolarEdge power optimizers and offers a standard warranty of 12 years, expandable to 20 or 25 years.


Due to the global component crisis, the lead time for this model of SolarEdge inverter is 5 to 8 months. For more precise delivery times, you can contact us by chat or by email.

100% secure payments
SolarEdge Inverter: SE2200H HD-Wave SETAPP

SolarEdge SE2200 at SE6000...


Single-phase inmoner HD-Wave

Single-phase inmoner HD-Wave


The innovative topology of SolarEdge inverters

Because the MPPT and voltage management are managed separately for each module, the inforeer only manages the DC/AC conversion. It is therefore a simpler, more economical and more reliable solar inletor. Fixed chain voltage ensures its optimum operation at all times, regardless of the length and temperature of the chain.
In addition to its DC-optimized inmontor functionality, the single-phase inmoner also manages battery and system energy as part of SolarEdge's StorEdge solution.

HD-Wave technology: A new era for PV inverters

SolarEdge's latest generation of single-phase inverters is designed to use a new power conversion technology based on distributed switching and powerful DSP processing. The single-phase inlar is capable of synthesizing a clean sine wave that leads to a dramatic reduction in magnetic components and heavy cooling elements. As a result, only one person is enough to install this compact, lightweight inlent, which also allows for simplified transport and storage. The record 99% return on energy production allows for a better return on investment.

Easy commissioning with SetApp

SolarEdge single-phase inverters now have a new intelligent commissioning method. The inunr is put into service directly via a smartphone using the intuitive SetApp mobile app. Switch to the new standard for commissioning your inverters.

Features of the inundor

Solar inverters specially designed to work with SolarEdge power optimizers
2.2 kW to 6 kW inverter range
99% weighted efficiency (33% - 50% less losses than the market standard)
Small, light and easy to install
Up to 155% oversize allowed
Advanced security features including protection against arc defects
Standard 12-year warranty (extendable to 20 or 25 years)
Integrated supervision receiver at the module level
Internet communication via an Ethernet or wireless connection (using optional Wi-Fi, ZigBee® or cellular plug-ins)
Manages PV production, battery storage and smart energy products
IP65 - Outdoor and indoor installation




Technical features


model SE2200H SE3000H SE3500H SE3680H SE4000H SE5000H SE6000H value
AC output rated power 2200 3000 3500 3680 4000 5000 6000 Will
Maximum AC output power 2200 3000 3500 3680 4000 5000 6000 Will
AC output voltage (nominal) 220/230 V CA
AC exit voltage range 184 to 264.5 V CA
AC frequency (nominal) 50/60 - 5 Hz
Maximum continuous output intensity 10 14 16 16 18,5 23 27,5 Has
Harmonic distortion rate (THD) 3 %
Power factor 1, adaptable from -0.9 to 0.9
Control of electricity generation, islet protection, configurable national thresholds yes
Maximum DC power 3400 4650 5425 5700 6200 7750 9300 W
Without trasnformateur, without grounding yes
Maximum entry tension 480 V CC
DC rated input voltage 380 V CC
Maximum entry current. 6,5 9 10 10,5 11,5 13,5 16,5 At CC
Protection from reverse polarity yes
Detection of defect insulation to the ground Sensitivity of 600 k
Maximum return. From the indutor 99,2 %
Weighted European return 98,3 98,8 99 %
Nocturnal electricity consumption 2.5 W
Additional features
Supported communication interfaces RS485, Ethernet, Wi-Fi (optional), cellular (optional), Zigbee (optional)
Smart energy management Export limitation
Putting the inlecoy into service With the SetApp mobile app with a built-in local Wi-Fi connection
Electric arx detection Integrated, user-configurable (according to UL1699B)
Compliance with standards
safety IEC-62109-1/2
Network connection standards IEC61727, IEC62116, EN 50438, VDE-AR-N-4105, VDE 0126-1-1, UTE-C-15-712, G83/2, G59/3, CEI-021, 'NORM, TF3.2.1, C10-11, NRS-09
Emissions CEI61000-6-2, CEI61000-6-3, CEI61000-3-11, CEI61000-3-12, FCC Part 15 Class B
Installation specification
AC Output - Supported Cable Diameter 9-16 Mr
AC - Supported Cable Section 1-13 Mm ²
DC Entrance 1 x MC4
Dimensions (HxLxP) 280 x 370 x 142 Mr
weight 7,8       Kg
noise 25 Dba
cooling Natural convection
Operating temperature range -40 to 60 lbs
Protection index IP - Indoors and outdoors

Data sheet

Monophasé / Triphasé
370 mm
280 mm
142 mm
AC output rated power
2 200VA; 3 000VA; 3 500VA; 3 680VA; 4 000VA; 5 000VA; 6 000VA
Maximum DC power
3400W; 4650W; 5425W; 5700W; 6200W; 7750W; 9300W
10,6 kg
