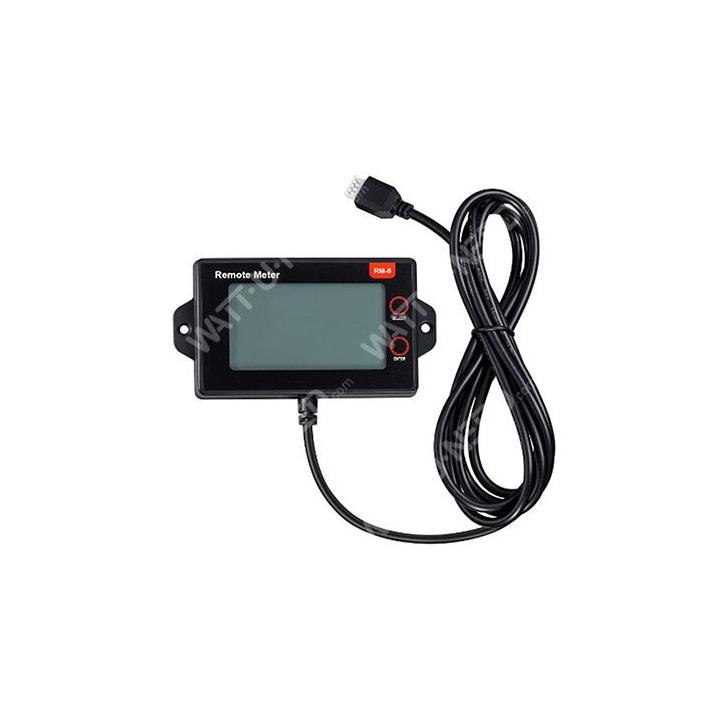

    RM-6 LCD display for SRNE MPPT controller

    RM-6 LCD display for SRNE MPPT controller

    €28.85
    RM-6-SRNE
    0768563816895

    For real-time monitoring of controller data and operating status.

    Compatible with SRNE "MC" model controllers

    - MC2420N10 CONTROLLERS;

    - MC2430N10;

    - MC2440N10;

    - MC2450N10.

    100% secure payments

    RM-6 LCD display for SRNE...

    €28.85

    RM-6 LCD display unit

    LCD graphic main menu

    For real-time monitoring of controller data and operating status.

    Two-button design

    - For menu display and parameter setting;

    - Easy to use.

    No external power supply required


    The LCD unit can be powered by connecting it to the controller via a communication cable.

    Integrated installation


    Industrial-grade design for use in a variety of harsh environments


    Ecran RM-6 et régulateur SRNE

    Only compatible with SRNE controllers

    MC2420N10 - MC2430N10 - MC2440N10 - MC2450N10


    Dimensions

    Dimensions SRNE RM-6


    Features

    M
    odelRM-6
    Apply controller modelsMC2420N10/MC2430N10/MC2440N10/MC2450N10
    Input voltage
    Standby power consumption <0.03W
    Operating power consumption<0.04W
    Fixed baud rate 9600bps
    Communication modeTTL
    Interface typePH2.0
    Connection cable length
    5M
    Operating temperature
    / +65°C
    IP ratingIP32
    Device weight 90g
    Altitude≤ 3000M
    Dimensions104.5X55.5X11.8 mm
    RM-6-SRNE

    Data sheet

    Width
    104,5 mm
    Height
    55,5 mm
    Thickness
    11,8 mm
    Weight
    0,9 kg

    Specific References

    UPC
    768563816895
    EAN13
    0768563816895
    New

    Download

    RM-6 User Manual - EN

    Download (1.21MB)
