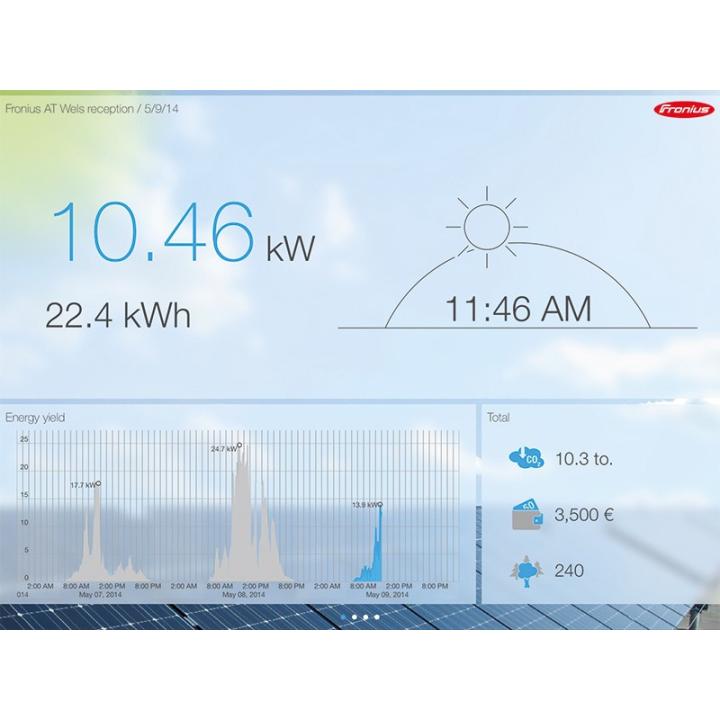

Solar.web Fronius interface
Solar.web Fronius application
Inverter Fronius Symo 17.5-3-M (2MPPT) Tri
Solar.web Fronius interface
Solar.web Fronius application

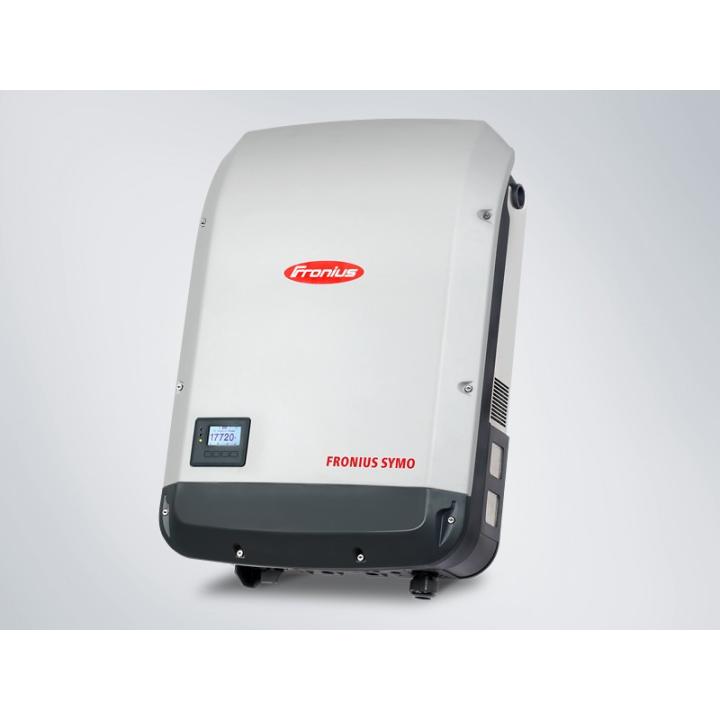

Three-phase inverter Fronius Symo Advanced 17,5 kVA - 17.5-3-M

€3,037.10
Tax included
Symo Advanced 17.5-3-M
0712971130104

Fronius Symo Advanced 17.5 kVA: The Intelligent Heart of Your Solar Installations

The Fronius Symo Advanced 17.5 kVA is a high-performance three-phase inverter, designed to optimize the electricity production of your photovoltaic system. With cutting-edge technologies and proven reliability, it offers a tailored solution for demanding professionals and individuals.

Why choose it?

  • Maximum safety: Protect your investment with Fronius Arc Guard, an intelligent safety system that instantly detects and neutralizes the risk of electrical arcs.
  • Unmatched flexibility: Adapt your installation to any roof configuration with SuperFlex Design. Fewer constraints, more freedom.
  • Optimized performance: Maximize your energy production, even in shaded conditions, thanks to Dynamic Peak Manager.
  • Easy installation: Enjoy fast and simple installation with SnapINverter technology.

Key benefits of Fronius Symo Advanced:

  • Peace of mind: Sleep soundly with enhanced protection.
  • Energy autonomy: Reduce your dependence on the electrical grid and save on your bills.
  • Custom installation: Adapt your system to your specific needs and roof configuration.
  • Durability: Invest in a long-lasting solution for the future of your energy.

Fronius Symo Advanced: The future of solar energy, starting today.

Comments (0)

No customer reviews for the moment.

Fronius Symo Advanced 17,5: Power and performance for your solar projects



A safe evolution

The Fronius Symo Advanced opens a new chapter in the Fronius SnapINverter range. Performance proven millions of times over, combined with new safety technology. This makes Fronius Symo Advanced more than ever a forward-looking choice for installers and their customers.

More safety included

Detect, intervene, learn: that's how the new Fronius Arc Guard technology protects against dangerous arcs. The algorithm developed by Fronius reliably detects arcs and switches off the photovoltaic system before a fire can break out. Fronius Arc Guard is continuously refined by the manufacturer to refine arc detection and optimize system protection.

Infinite freedom

Simple planning of complex roofs: it's possible with SuperFlex Design. Solar modules can be aligned and connected in a highly flexible way, as the Fronius Symo Advanced handles a wide range of input voltages and very high PV module currents.

Optimum performance right from the factory

Maximum yield, even when solar modules are partially shaded: that's what Fronius Symo Advanced achieves with Dynamic Peak Manager. The intelligent software-based shading management is factory-installed and requires no additional components.

Efficiency

Schémas de rendement des différents modèle Fronius Symo Advanced

Symo Advanced 17.5-3-M

Data sheet

Inverter power
17000VA
Phase
Triphasé
Number of MPPT
2 MPPT
Width
510 mm
Height
725 mm
Thickness
225 mm
IP protection
IP 66
Type of cooling
Active cooling technology
Humidity
0 à 100 %
Weight
44.96 kg
Ambient temperature
-20°C～60°C
Max. input current (Idc max
33.0 A (MPPT1) - 27.0 A (MPPT2)
Max. useful input current (Idc max MPPT 1+2)
51,0
Max. short-circuit current of MPP1/MPP2 photovoltaic generator (Isc pv)
68 (MPPT1) - 55,7 (MPPT2)
DC input voltage range (Udc min - Udc max)
200 À 1 000
Injection start voltage (Udc start)
200
Useful MPP voltage range
200 À 800
MPP voltage range (at rated power) (Umpp min - Umpp max)
370 V À 800 V
Number of DC connectors
3/3
Max. PV generator power (Pdc max)
26,300 Wp
Rated AC power (Pac,r)
17 500 W
Max. output power / apparent power
17 500 VA
AC output current (Iac nom)
26.5 A (380 VAC) - 25.3 A (400 VAC)
Mains coupling (voltage range)
3-NPE 400 V / 230 V ou 3~NPE 380 V / 220 V (+20 % / -30 %)
Frequency (frequency range)
50 / 60 (45 - 65) Hz
Harmonic distortion rate
est inférieur à 1,5
Power factor (cos φac,r)
0 – 1 ind. / cap.
Protection class
1
Overvoltage category (DC / AC)
2/3
Night-time consumption
less than 1 W
Inverter concept
Transformerless
Assembly
Montage intérieur et extérieur
Max. height above sea level
2 000 / 3 400 m
DC connector technology
Bornes à vis 2,5 à 16 mm² 6x DC+ et 6x DC
AC connector technology
AC screw terminals 2.5 to 16 mm2 5-pole

Specific References

UPC
712971130104
EAN13
0712971130104
New
