    Inverter Fronius Symo 12.5-3-M (2MPPT) Tri

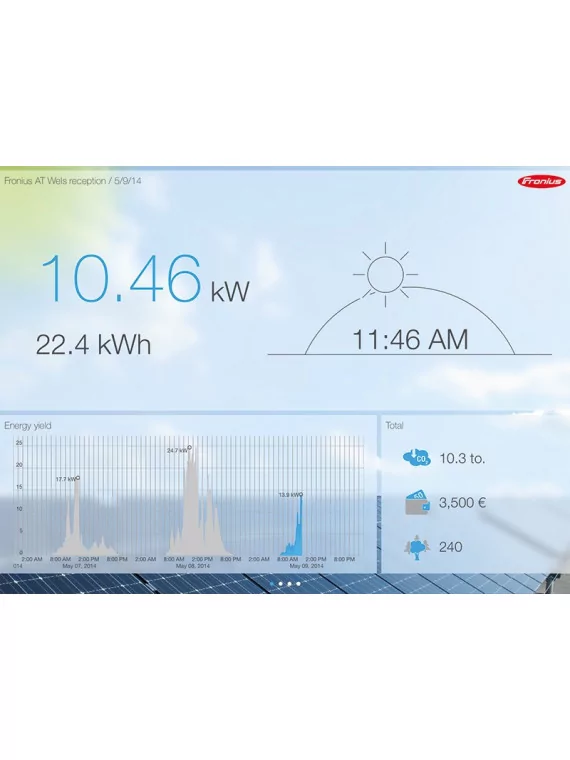

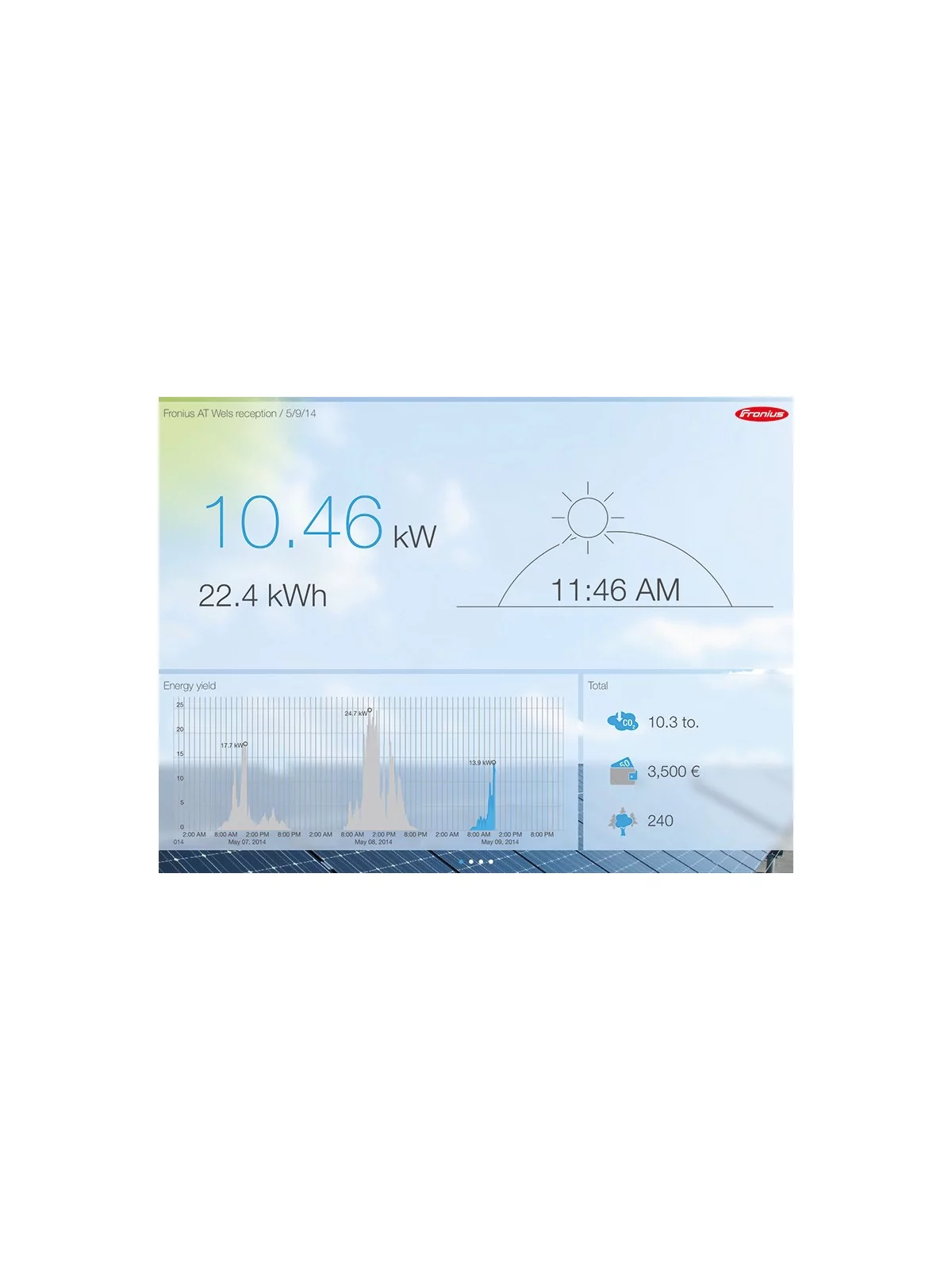

    Solar.web Fronius interface
    Solar.web Fronius application
    Solar.web Fronius interface
    Solar.web Fronius application

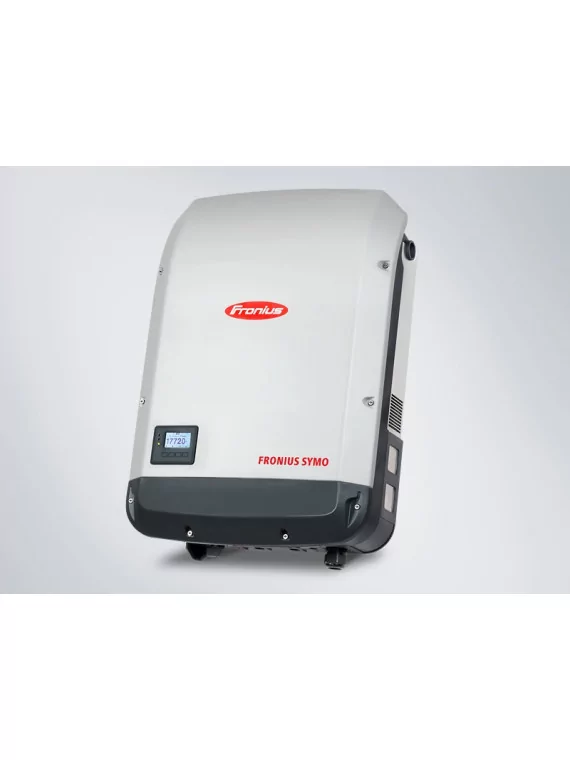

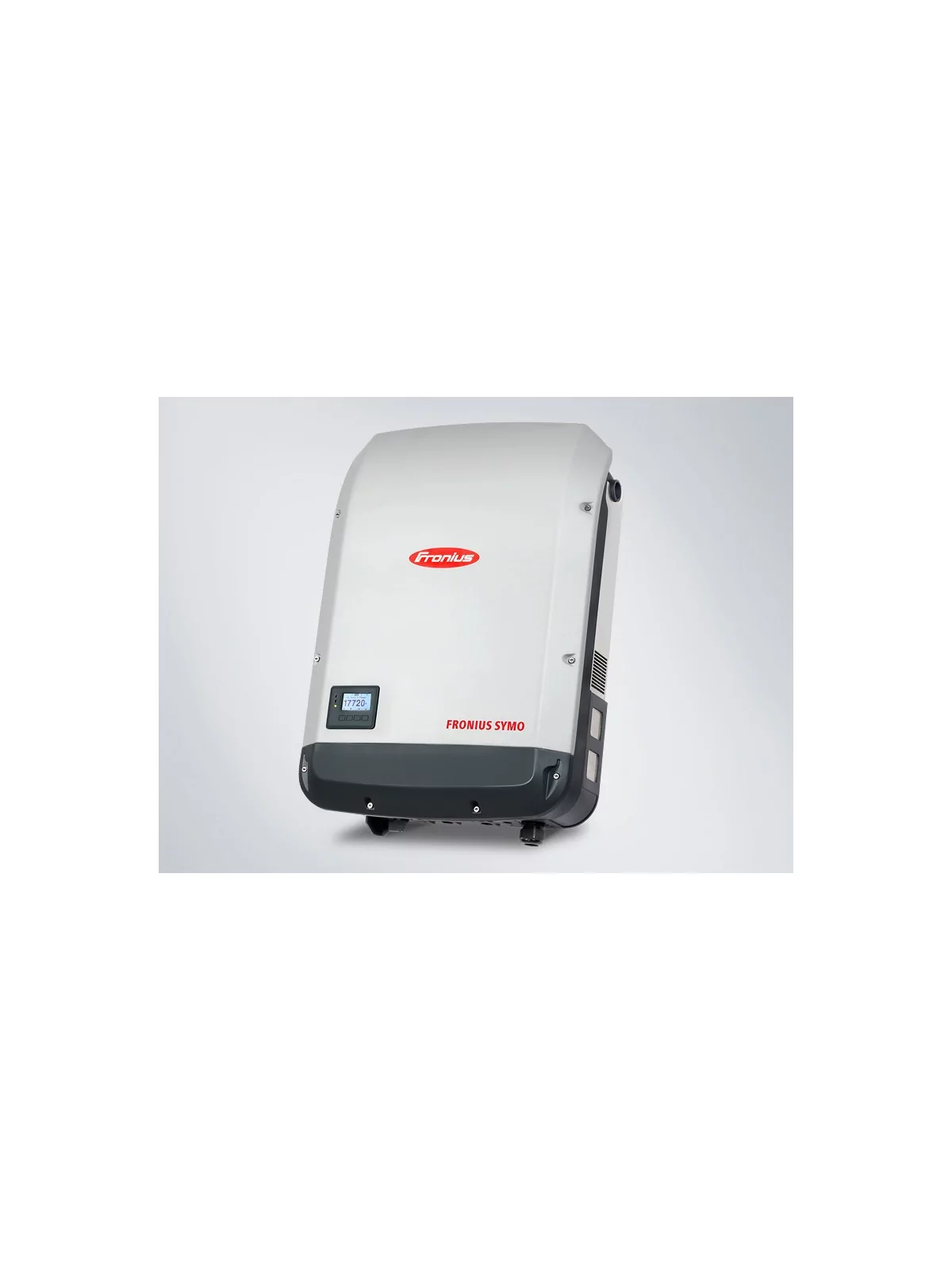

    Three-phase inverter Fronius Symo Advanced 12,5 kVA - 12.5-3-M

    $2,472.5
    Symo Advanced 12.5-3-M
    0712971130081

    Fronius Symo Advanced 12.5 kVA: Intelligence at the Service of Your Solar Energy

    The Fronius Symo Advanced 12.5 kVA is a high-performance three-phase inverter, designed to optimize the electricity production of your photovoltaic installation. With its innovative technologies and proven reliability, it offers a tailored solution for demanding professionals and individuals.

    Why choose it?

    • Maximum safety: Protect your investment with Fronius Arc Guard, an advanced safety system that detects and instantly neutralizes electrical arc risks.
    • Unmatched flexibility: Adapt your installation to any roof configuration with SuperFlex Design. No more constraints, more freedom.
    • Optimized performance: Maximize your energy production, even in shaded conditions, thanks to Dynamic Peak Manager.
    • Easy installation: Enjoy fast and easy installation with SnapINverter technology.

    Key advantages of the Fronius Symo Advanced:

    • Peace of mind: Sleep soundly with enhanced protection.
    • Exceptional energy efficiency: Reduce your electricity bills and increase your energy autonomy.
    • Tailor-made installation: Adapt your system to your specific needs and roof configuration.
    • Durability: Invest in a lasting solution for the future of your energy.

    Fronius Symo Advanced: The future of solar energy, starting today.

    Symo Advanced model: Symo Advanced 12.5-3-M

    Three-phase inverter...

    $2,472.5

    Fronius Symo Advanced: Simplify your solar installations with unrivalled flexibility



    A safe evolution

    The Fronius Symo Advanced opens a new chapter in the Fronius SnapINverter range. Performance proven millions of times over, combined with new safety technology. This makes Fronius Symo Advanced more than ever a forward-looking choice for installers and their customers.


    More safety included

    Detect, intervene, learn: that's how the new Fronius Arc Guard technology protects against dangerous arcs. The algorithm developed by Fronius reliably detects arcs and switches off the photovoltaic system before a fire breaks out. Fronius Arc Guard is continuously improved by the manufacturer to refine arc detection and optimize system protection.


    Infinite freedom

    Simple planning of complex roofs: it's possible with SuperFlex Design. Solar modules can be aligned and connected in a highly flexible way, as the Fronius Symo Advanced handles a wide range of input voltages and very high PV module currents.


    Optimum performance right from the factory

    Maximum yield, even when solar modules are partially shaded: that's what Fronius Symo Advanced achieves with Dynamic Peak Manager. The intelligent software-based shading management is factory-installed and requires no additional components.


    Efficiency

    Schémas de rendement des différents modèle Fronius Symo Advanced

    Symo Advanced 12.5-3-M

    Data sheet

    Inverter power
    12000VA
    Phase
    Triphasé
    Number of MPPT
    2 MPPT
    Width
    510 mm
    Height
    725 mm
    Thickness
    225 mm
    IP protection
    IP 66
    Type of cooling
    Active cooling technology
    Humidity
    0 à 100 %
    Weight
    38.4 kg
    Ambient temperature
    -20°C~60°C
    Max. input current (Idc max
    27.0(MPPT1) - 16.5 (MPPT2)
    Max. useful input current (Idc max MPPT 1+2)
    43,5
    Max. short-circuit current of MPP1/MPP2 photovoltaic generator (Isc pv)
    55.7 (MPPT1) - 34 (MPPT2)
    DC input voltage range (Udc min - Udc max)
    200 À 1 000
    Injection start voltage (Udc start)
    200
    Useful MPP voltage range
    200 À 800
    MPP voltage range (at rated power) (Umpp min - Umpp max)
    320 À 800
    Number of DC connectors
    3
    Max. PV generator power (Pdc max)
    18,800 Wp
    Rated AC power (Pac,r)
    12 500 W
    Max. output power / apparent power
    12 500 VA
    AC output current (Iac nom)
    18.9 A (380 VAC) - 18 (400 VAC)
    Couplage au réseau (plage de tension)
    3-NPE 400 V / 230 V ou 3~NPE 380 V / 220 V (+20 % / -30 %)
    Frequency (frequency range)
    50 / 60 (45 - 65) Hz
    Harmonic distortion rate
    est inférieur à 2,0
    Power factor (cos φac,r)
    0 – 1 ind. / cap.
    Protection class
    1
    Overvoltage category (DC / AC)
    2/3
    Night-time consumption
    less than 1 W
    Inverter concept
    Transformerless
    Assembly
    Montage intérieur et extérieur
    Max. height above sea level
    2 000 / 3 400 m
    DC connector technology
    Bornes à vis 2,5 à 16 mm² 6x DC+ et 6x DC
    AC connector technology
    AC screw terminals 2.5 to 16 mm2 5-pole
