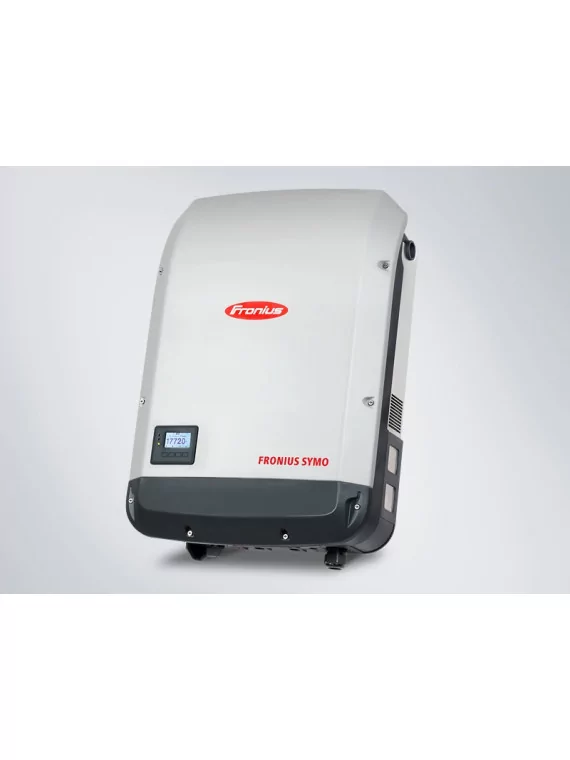

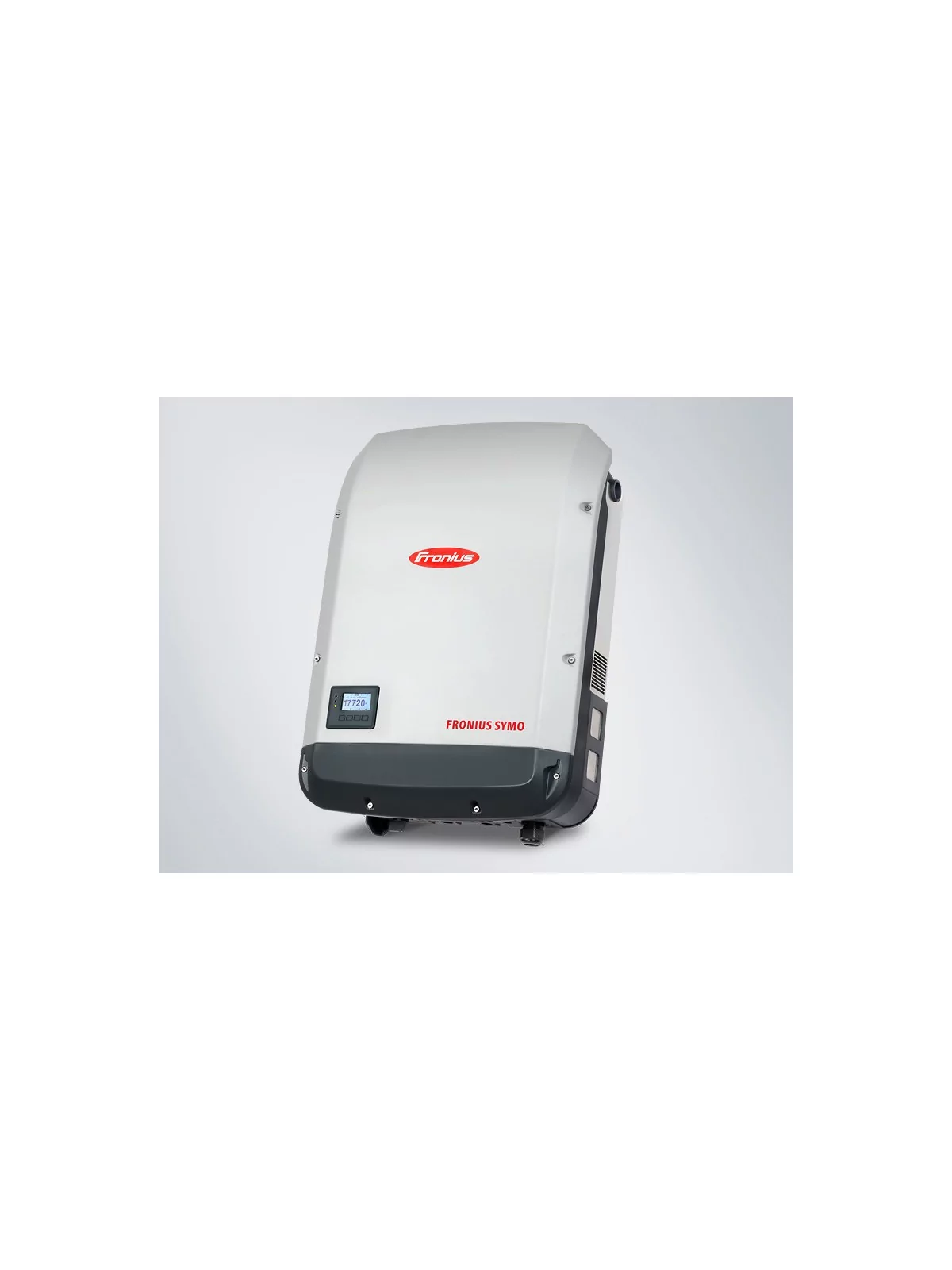

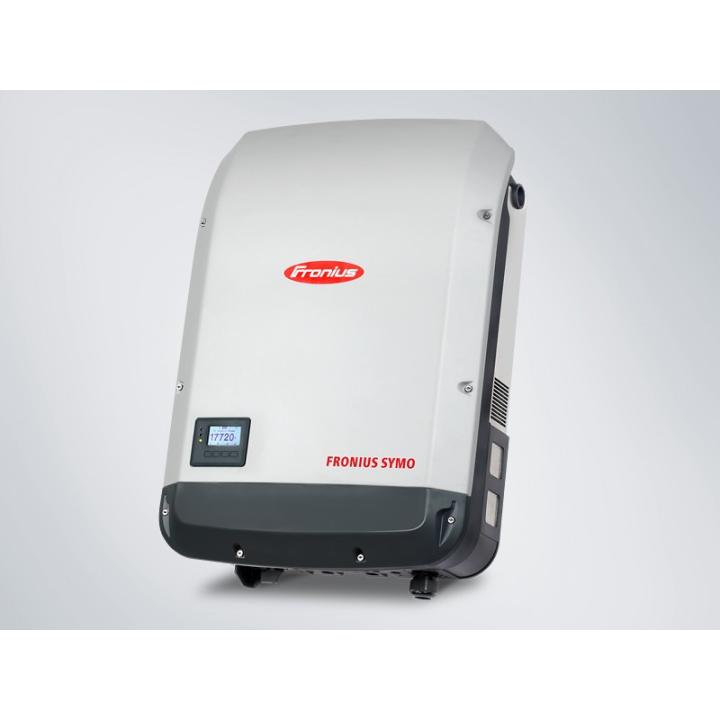

Inverter Fronius Symo 10.0-3-M (2MPPT) Tri

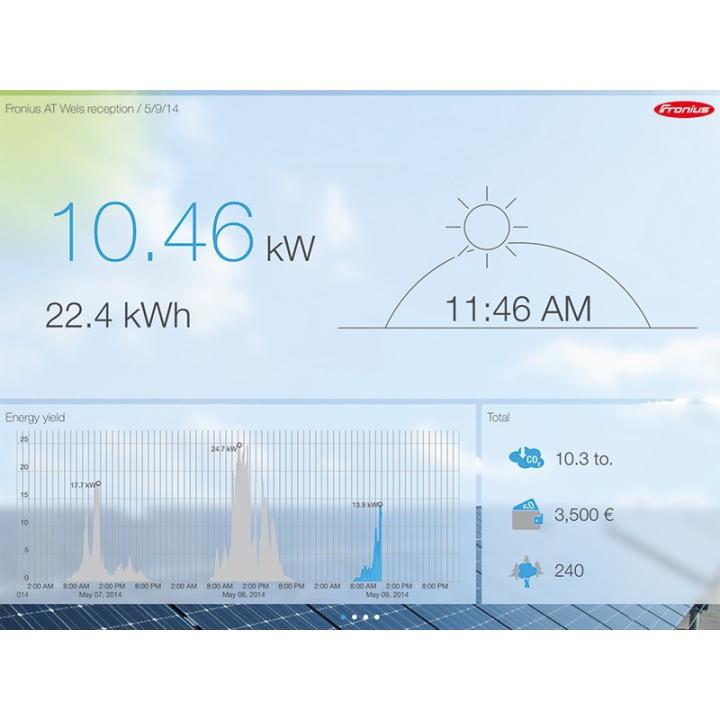

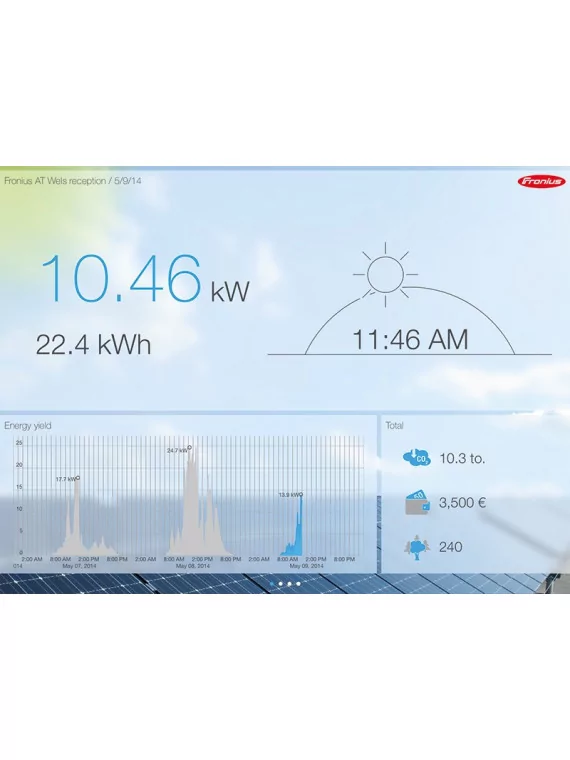

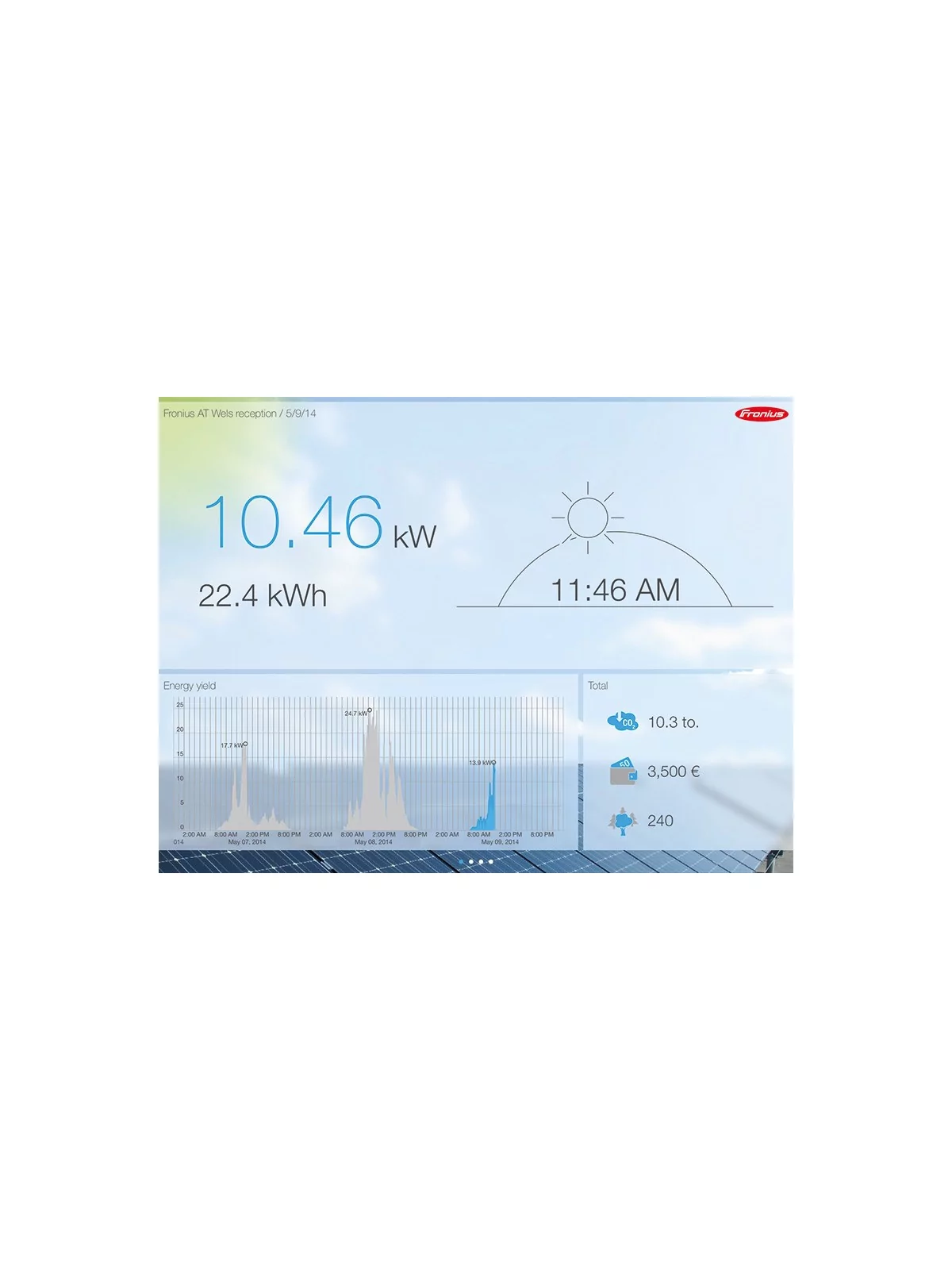

Solar.web Fronius interface
Solar.web Fronius application
Inverter Fronius Symo 10.0-3-M (2MPPT) Tri
Solar.web Fronius interface
Solar.web Fronius application

Three-phase inverter Fronius Symo Advanced 10 kVA - 10.0-3-M

€2,414.87
Tax included
Symo Advanced 10.0-3-M
0712971130074

Fronius Symo Advanced 10 kVA: The Benchmark in Solar Inverters

The Fronius Symo Advanced is a high-performance three-phase inverter, designed to optimize the energy production of your photovoltaic system. With its cutting-edge technologies and proven reliability, it is the ideal choice for professionals and individuals looking to maximize their return on investment.

Why choose the Fronius Symo Advanced?

  • Enhanced safety: Protect your installation with the innovative Fronius Arc Guard technology, which detects and instantly shuts down electrical arcs.
  • Unmatched flexibility: Adapt your system to any roof configuration with the SuperFlex Design, for a custom installation.
  • Optimized performance: Maximize your energy production, even in partial shading conditions, thanks to the Dynamic Peak Manager.
  • Durability: Invest in a reliable and long-lasting solution designed to withstand the test of time.

Key benefits:

  • Peace of mind: Benefit from optimal protection against fire risks.
  • Energy autonomy: Reduce your dependence on the electrical grid and save on your bills.
  • Simplified installation: Enjoy quick and easy installation with SnapINverter technology.
  • Future-proof: Be ready for the future with a scalable inverter compatible with the latest technologies.

Fronius Symo Advanced: The future of solar energy in your hands.

Comments (0)

No customer reviews for the moment.

Three-phase solar inverter with Fronius Arc Guard: Maximum safety and optimum performance

An evolution under the sign of safety

The Fronius Symo Advanced opens a new chapter in the Fronius SnapINverter range. Performance proven millions of times over, combined with new safety technology. This makes Fronius Symo Advanced more than ever a forward-looking choice for installers and their customers.

More safety included

Detect, intervene, learn: that's how the new Fronius Arc Guard technology protects against dangerous arcs. The algorithm developed by Fronius reliably detects arcs and switches off the photovoltaic system before a fire can break out. Fronius Arc Guard is continuously improved by the manufacturer to refine arc detection and optimize system protection.

Infinite freedom

Simple planning of complex roofs: it's possible with SuperFlex Design. Solar modules can be aligned and connected in a highly flexible way, as the Fronius Symo Advanced handles a wide range of input voltages and very high PV module currents.

Optimum performance right from the factory

Maximum yield, even when solar modules are partially shaded: that's what Fronius Symo Advanced achieves with Dynamic Peak Manager. The intelligent software-based shading management is factory-installed and requires no additional components.

Efficiency

Schémas de rendement des différents modèle Fronius Symo Advanced

Symo Advanced 10.0-3-M

Data sheet

Inverter power
10000 VA
Phase
Triphasé
Number of MPPT
2 MPPT
Width
510 mm
Height
725 mm
Thickness
225 mm
IP protection
IP 66
Type of cooling
Active cooling technology
Humidity
0 à 100 %
Weight
38.4 kg
Ambient temperature
-20°C～60°C
Max. input current (Idc max
27.0(MPPT1) - 16.5 (MPPT2)
Max. useful input current (Idc max MPPT 1+2)
43,5
Max. short-circuit current of MPP1/MPP2 photovoltaic generator (Isc pv)
55.7 (MPPT1) - 34 (MPPT2)
DC input voltage range (Udc min - Udc max)
200 À 1 000
Injection start voltage (Udc start)
200
Useful MPP voltage range
200 À 800
MPP voltage range (at rated power) (Umpp min - Umpp max)
270 À 800
Number of DC connectors
3
Max. PV generator power (Pdc max)
15,000 Wp
Rated AC power (Pac,r)
10 000 W
AC output current (Iac nom)
15.2 A (380 VAC) - 14.4 A (400 VAC)
Mains coupling (voltage range)
3-NPE 400 V / 230 V ou 3~NPE 380 V / 220 V (+20 % / -30 %)
Frequency (frequency range)
50 / 60 (45 - 65) Hz
Harmonic distortion rate
is less than 1.75%.
Power factor (cos φac,r)
0 – 1 ind. / cap.
Protection class
1
Overvoltage category (DC / AC)
2/3
Night-time consumption
less than 1 W
Inverter concept
Transformerless
Assembly
Montage intérieur et extérieur
Max. height above sea level
2 000 / 3 400 m
DC connector technology
Bornes à vis 2,5 à 16 mm² 6x DC+ et 6x DC
AC connector technology
AC screw terminals 2.5 to 16 mm2 5-pole

Specific References

UPC
712971130074
EAN13
0712971130074
