    Fronius Primo 6.0-1 (2MPPT) Mono

    $1,683.9
    Fronius Primo 6.0-1
    0712971129894

    Fronius Primo 6.0-1: Maximize Your Solar Energy Production

    Choose the Fronius Primo 6.0-1, a single-phase solar inverter designed to optimize your energy independence. With its 6 kW power and innovative technologies, it allows you to get the most out of your photovoltaic system. Easy to install and ultra-efficient, it is the ideal solution for households looking to reduce their energy consumption.

    Why choose the Fronius Primo 6.0-1?

    • Quick and Easy Installation: The SnapINverter mounting system revolutionizes solar installation.
    • Maximum Efficiency: The DynamicPeakManager algorithm continuously optimizes energy production.
    • Flexibility: The 2 independent MPPT inputs adapt to all panel configurations.
    • Proven Reliability: Benefit from a 5-year warranty and long lifespan.

    Key Benefits:

    • Compact and Lightweight: Fits easily into all spaces.
    • State-of-the-Art Technology: Transformerless for increased efficiency.
    • Durable: Designed to withstand outdoor conditions.
    • Connectivity: Smart management of your installation via Wi-Fi (optional).

    Specifications:

    • Power: 6 kW
    • Phase: Single-phase
    • Number of MPPTs: 2
    • Dimensions: 645x431x204 mm
    • Weight: 21.50 kg

    Ideal for:

    • Single-family homes
    • Small collectives
    • Energy renovation projects

    Ready to become energy-independent?
    Contact us to discuss your project and receive personalized advice.

    Product warranty: 5 years

    Fronius Primo 6.0-1 (2MPPT)...

    $1,683.9

    Fronius Primo Mono

    Fronius single-phase inverter: Maximise your solar energy production


    General information

    With power classes ranging from 3.0 to 8.2 kW, the Fronius Primo is the perfect addition to the new generation of SnapINverter inverters. This transformerless, single-phase inverter is perfectly suited to domestic use. The innovative SuperFlex Design allows maximum flexibility in installation design, while the SnapINverter mounting system simplifies installation and maintenance.

    - Main features of the Fronius Primo 6.0-1:

    • Easy installation thanks to the SnapINverter mounting system
    • Two independent mppt inputs enabling strings of panels with two different orientations to be connected
    • high-speed mppt
    • for real-time energy conversion and increased energy recovery
    • Transformerless
    • Wide input voltage range ( 200 - 800 V )
    • DynamicPeakManager (shade management): a new algorithm capable of dynamically searching for the best mppt

    - Brand: Fronius

    - Model: Primo 6.0-1

    - Power: 6 kW

    - Dimensions WxHxD: 645x431x204 mm

    - Weight: 21.50 kg

    - Warranty: 5 years


    Quick, easy and efficient assembly

    Montage simple, rapide et efficace

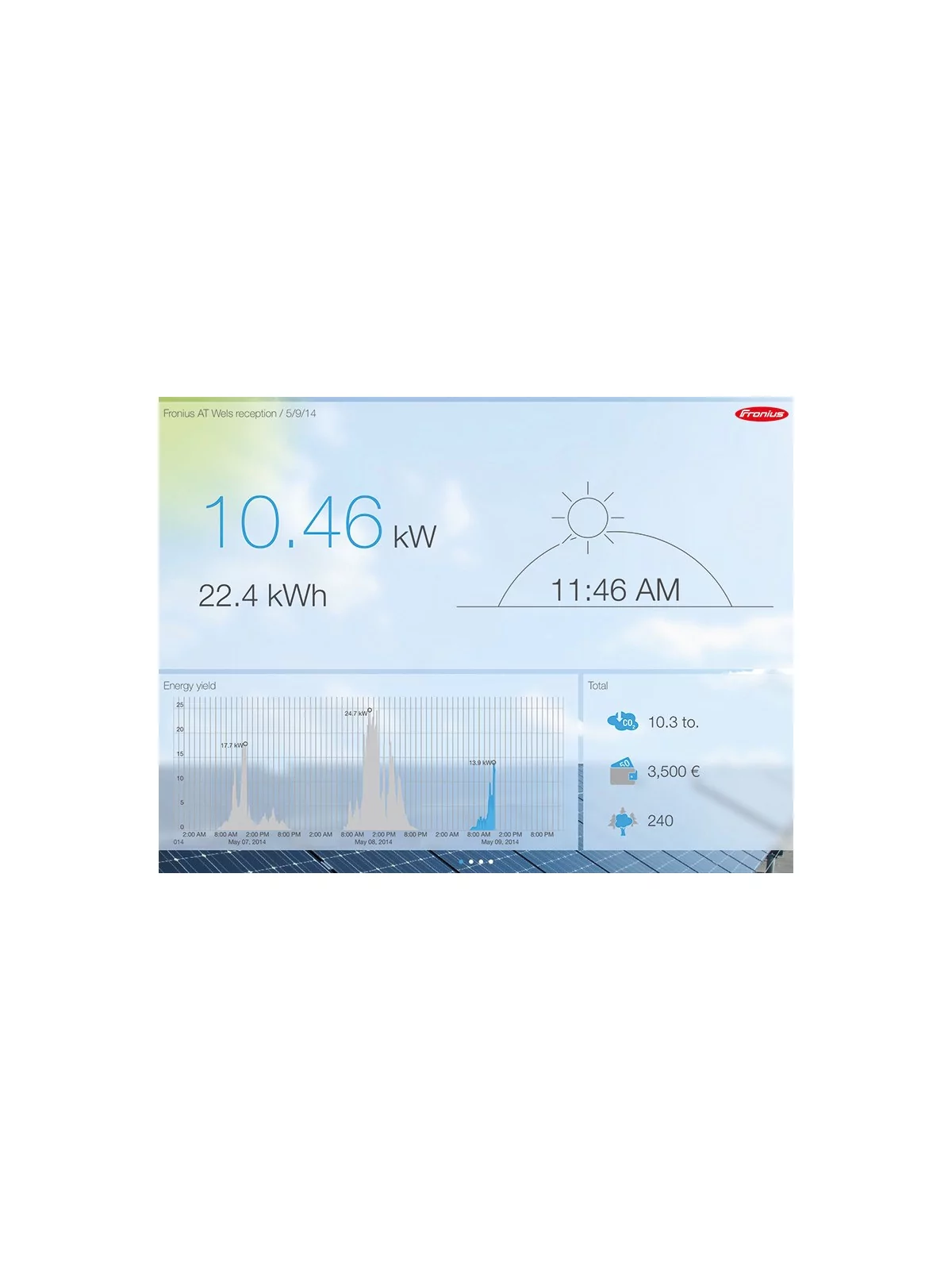

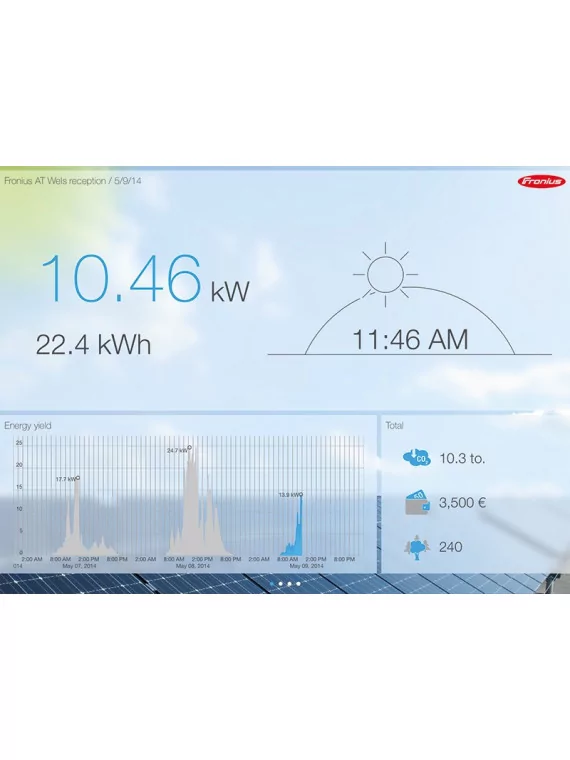

    Manage your production with SolarWeb

    Gérez votre production avec SolarWeb


    Shade management with DynamicPeakManager

    Gestion des ombrages avec le DynamicPeakManager

    Chimney shading: 1-2% additional gain per year for 1 hour of morning and evening shading

    Frame shading: 2-4% additional gain per year for 1 hour of morning and evening shading

    DynamicPeakManager energy consumption: ~ 0.05% of annual gain


    Residential solutions


    WiFi surveillance system installation


    General commissioning of Fronius inverters


    SnapINverter technology


    Technical data

    INPUT DATAFronius Primo 6.0-1
    Max. input current
    (Idc max1 / Idc max2)
    18.0 A / 18.0 A
    Max. short-circuit current.
    of the field of
    modules (MPP1 / MPP2)
    27.0 A / 27.0 A
    Min. input voltage (Udc min)80 V
    Injection start voltage
    (Udc start)
    80 V
    Nominal input voltage (Udc,r)
    V
    Max. input voltage

    (

    Udc max)
    ,000 V
    MPP voltage range
    (Umpp min - Umpp max)
    240 - 800 V
    Number of MPP trackers
    Number of DC connectors
    + 2
    OUTPUT
    Rated AC power (Pac,r)
    ,000 W
    Max. output power
    .000 VA
    AC output current (Iac max)26.1 A
    Mains coupling (voltage range)
    ~ NPE 220 V / 230 V (180 V - 270 V)
    Frequency (frequency range)50 Hz / 60 Hz (45 - 65 Hz)
    Harmonic distortion<
    5%
    Power factor(cos φac,r)
    ,85 - 1 ind. / cap.

    G

    ENERAL DATA
    Dimensions
    (height x width x depth)
    x 431 x 204 mm
    Weight21,5 kg
    Protection classIP 65
    Protection class
    Overvoltage category (DC / AC)1)
    / 3
    Night-time consumption<
    1 W
    Inverter conceptTransformerless
    CoolingRegulated air cooling
    MountingIndoor and outdoor mounting
    Ambient temperature range
    40 °C - +55 °C
    Permissible air humidity0% - 100%
    Max. height.above sea level.000 m
    DC connection technology2x DC+1, 2x DC+2 and 4x DC- screw terminals 2.5 - 16 mm²
    AC connection technologyAC screw terminals 2,5 - 16 mm² 3-pole
    Certificates and standards complianceDIN V VDE 0126-1-1/A1, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 4777-2, AS 4777-3, G83/2, G59/3, IEC 0-21.

    Y

    ield
    Max. yield98.0
    %
    European yield (ηEU)97.3 %
    to 5 % Pac,r2)84.6 / 86.5 / 86.0 %
    to 10 % Pac,r2)90.5 / 95.5 / 94.6 %
    to 20 % Pac,r2)94.0 / 97.2 / 96.8 %
    to 25 % Pac,r2)94.7 / 97,4 / 97.0%
    to 30% Pac,r2)95.1 / 97.6 / 97.3%
    to 50% Pac,r2)96.0 / 97.9 / 97.8%
    to 75% Pac,r2)96.2 / 98.0 / 98.0%
    to 100% Pac,r2)96.2 / 98.0 / 97.
    MPP efficiency>
    99.9%
    PROTECTIVE DEVICES
    DC insulation measurementYes
    Overload capacityDynamic operating point displacement,
    power limiting
    DC disconnect switchYes
    INTERFACES
    WiFi / Ethernet LANFronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
    digital inputs and 4 digital inputs/outputsConnection to operating information exchange device
    USB (type A connector)3)Datalogging,
    inverter update via USB stick
    x RS422 (RJ45 connector)3)Fronius Solar Net
    Signalling output3)Energy management (zero potential relay output)
    Datalogger
    and Web serverIntegrated
    Datalogger and Web server3)S0 meter connection / surge protection input
    RS485Modbus RTU SunSpec or meter connection

    1 ) According to IEC 62109-1.
    2) And for Umpp min / Udc,r / Umpp max
    3) Also available in light.. version.


    Subject to change without notice.

    Fronius Primo 6.0-1

    Data sheet

    Inverter power
    6000 VA
    Max. solar input voltage
    1000 V
    Phase
    Monophasé
    Number of MPPT
    2 MPPT
