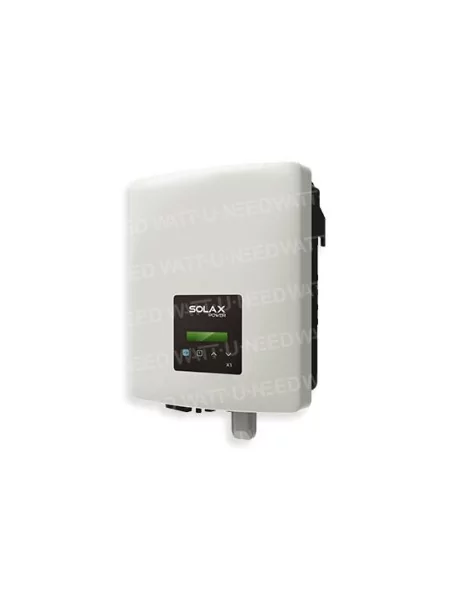

Single-phase inverter SolaX X1-3.3K-S-D MINI G3.1

Solax

790,10 € tax incl.

• Small and compact size
• Oversizing by 150% and overload by 110%.
• Max. DC 14A input per string
• Low boot voltage and wide MPPT range
• CT/Meter compatibility
• Built-in SPD on ac and DC sides
• Remote update and maintenance

More details

More info

SINGLE-PHASE SOLAX X1 MINI

Solax X1 Mini



The Solax X1 Mini range of inverters is designed for small photovoltaic generators. With a starting voltage of 50V and a maximum efficiency of 98%, the mini promises unparalleled performance, allowing you to harvest as much energy as possible from your PV system.


Petit onduleur, grande performance





Small inverter, great performance

Perfect for small photovoltaic panels
Our X1 Mini inverter is the perfect solar solution for small photovoltaic solar panels ranging from 0.6KW to 3.6KW. With a maximum efficiency of 98%, it is one of the most efficient small inverters available on the market today.












Power without compromise


Small, light and quiet

The X1 Mini has been designed to be installed in the smallest spaces, with a start of only 32.8cm and a weight of only 6kg, the X1 mini is small but does not lack performance.


Protection évaluée IP66

IP66 rated protection



Install indoors or outdoors

The x1 Mini is rated IP66, which means it can be installed indoors or outdoors.








Characteristics

ModelX1-3.3K-S-D MINI G3.1
DC INPUT
PV Generator Input Power [Wc]4950
Max DC input voltage DC input voltage [V] max.550
Starting voltage [V]70
Rated input voltage [V]360
MPP Tracker Voltage Range [V]55~530
Number of MPP trackers / Cords per MPP tracker1/1
Maximum Input Current [A]14
Maximum short-circuit current [A]16
AC OUTPUT
AC Output Rating [W]3300
Ac Output Rated Current [A]14.3
Maximum apparent power output [VA]3300
Apparent output power max. AC Output Current [A]14.3
Rated voltage AC [V]220/230/240;180 ~ 280
Nominal network frequency / Network frequency range [Hz].50/60;±5
Displacement power factor0.8 in the lead ~ 0.8 in late
THDi (Rated Power) [%]<3
SYSTEM DATA
Max efficiency Eciency [%]98
Euro. Ecience [%] Euro.96.5
Standby [W] power consumption @Nuit0
Degree of protectionIP66
Operating temperature [°C]-25~+60 (downgrade to 45)
Maximum altitude of use [m]≤2000
Humidity [%]0~100 (condensation)
Typical noise emissions [dB]30
Storage temperature [°C]-30~+70
Dimensions (WxHxD) [mm]267 x 328 x 126
Net weight [kg]8.3
Cooling conceptNatural cooling
Communication interfacesRS485 / DRM / Pocket WiFi / (Optional: Pocket LAN/4G) / USB/ (Optional: CT/Meter

Specifications

MPPT/PWMMPPT
Monophasé / TriphaséMonophasé
Inverter power1100 VA
Protection IPIP 66
