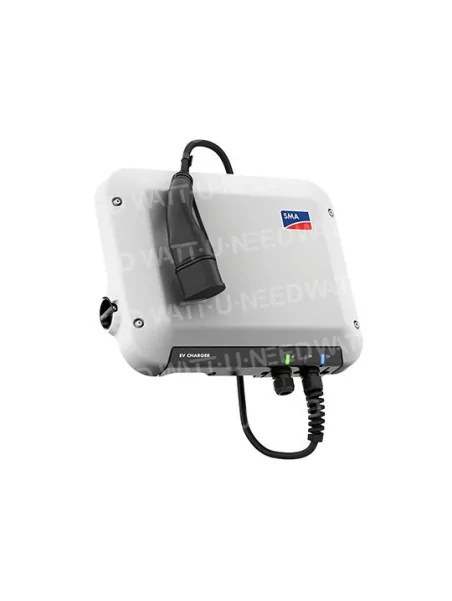

EV-CHARGER-7.4 and 22 SMA charger View full size

EV-CHARGER-7.4 and 22 SMA charger

SMA

1 959,50 € tax incl.

Options

Thanks to the SMA EV Charger, owners of photovoltaic installations can charge their electric vehicle in an intelligent, economical and sustainable way. Indeed, they minimize their need for energy from the grid.

To know the delivery times, you can contact us by chat, email or phone.





More details

More info

SMA EV-CHARGER-7.4 et 22

With the SMA EV Charger, owners of photovoltaic installations charge their electric vehicles in a smart and sustainable way. Charging electric vehicles with solar energy minimizes purchase costs via the grid.


Universal


Whether your system is new or has been in use for some time, the SMA EV Charger is very flexible and compatible with all common electric vehicles thanks to its permanent connection with a Type 2 charging cable. Thanks to the SMA Energy System Home, users get solutions from a single supplier.

• Compatible with all standard electric vehicles
• Can be integrated into new and existing solar installations
• Everything from one supplier


EV Charger 7.4 / 22Speed and simplicity



The control is simply done via the rotary switch on the device or via the SMA Energy mobile app. The "Boost" function allows charging almost twice as fast as with conventional charging stations. Even in low pv power, automatic switching from single-phase charging mode to three-phase mode makes it possible to make the most of the available power.

• Charging up to 22 kW
• "Boost" function allowing single-phase charging, compatible with the network up to 7.4 kW
• Control and visualization via the SMA Energy mobile application


Application mobile SMA Energy

We take care of everything




Thanks to the SMA Energy mobile application, installation owners have access to all information about their system at any time. They benefit from more transparency thanks to real-time information about the charging process and maximum control since they can configure the charging mode.

Ultimate convenience: Users simply indicate when the car should be ready for use and the mobile app takes care of automatically starting charging at the right time.






Total serenity

Sérénité totale


The intelligent system systematically takes into account all consumer devices during the charging process and prevents any overloading of the household connection socket. Automatic adjustment of charging power, even when multiple consumer devices are operating in parallel, allows worry-free operation at all times. Users always charge with the maximum available power allowed by the domestic connection socket and the vehicle. With SMA Smart Connected, SMA is the first manufacturer to offer free and automatic monitoring of the charging station, which allows the PV installer to provide fast and targeted services to his customer.

• Safety thanks to protection against power failures
• Reduced installation costs thanks to built-in DC fault monitoring
• Investment security thanks to the new and free integrated SMA Smart Connected service


Characteristics



ModelsSMA EV Charger 7.4
SMA EV Charger 22
Inputs and Outputs (AC)
Chage Power (Mode 3)1.3 kW to 7.4 kW (configurable)
1.3 kW to 22 kW (configurable)
Rated voltage230V400V
Rated frequency50 Hz
Rated current32 A max. single-phase
Connection section3 x 6 mm² / 3 x 10 mm² (rigid)
5 x 6 mm² / 5 x 10 mm² (rigid)
Vehicle connectionModel sheet 2
Communication
Ethernet / WLAN•/•
Interface with the network operatordigital input
Protective devices
Integrated monitoring of DC faults6 mA
Protection against power outages
Operating ambient conditions
Room temperatureAmbient temperature −25 °C to +40 °C (−13 °F to +104 °F)
Storage temperature range−25 °C to +70 °C (−13 °F to +158 °F)
Protection rating (according to IEC 60529) / Impact resistanceIP 65 / IK 08
Protection class (according to IEC 62103) / surge categoryI/ III
Maximum permissible value of relative humidity (non-condensing)100 %
Height above mean sea level0 m to 2,000 m
General characteristics
Dimensions (L/H/D)460 / 357 / 122 mm (18.1 / 14.1 / 4.8 inches)
Weight8.0 kg (17.6 lbs)
Ground connection diagramsTN / TT
DisplayLED display, SMA Energy mobile app
Self-consumption in standby< 6.5 W
Equipment
1.3 kW to 7.4 kW (configurable)5 m
Integrated energy meterMID compliant
Guarantee5 years
Certifications and approvals (other on request)IEC 61851, DIN IEC / TS 61439-7
System Compatibility (Release: February 2020)SMA Sunny Home Manager 2.0
SMA Smart Connected Country of AvailabilityAU, AT, BE, CH, DE, ES, FR, IT, LU, NL, UK
● Standard equipment ○ Optional equipment — Not available
Data for nominal conditions, version: February 2020
Type designation
Type designationEVC7.4-1AC-10EVC22-3AC-10
