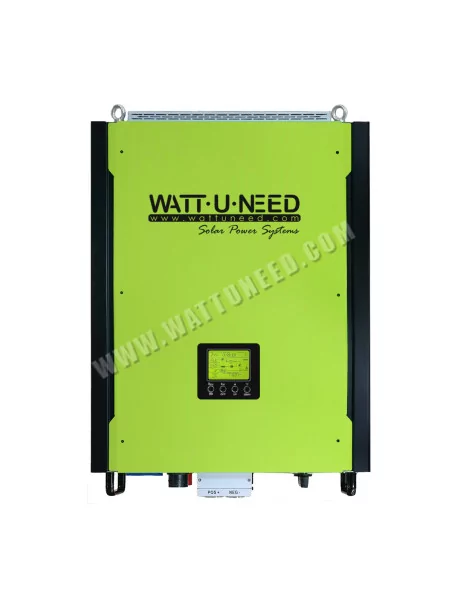

    MultiSolar 10kW three-phase hybrid inverter
    MultiSolar 10kW three-phase hybrid inverter
    MultiSolar 10kW three-phase hybrid inverter
    Bottom of inverter
    MultiSolar 10kW three-phase hybrid inverter
    MultiSolar 10kW three-phase hybrid inverter
    Bottom of inverter

    Multisolar 10kW grid-injection-storage hybrid inverter

    €3,507.32
    Tax included
    0586
    0712971128019

    - AC output power: 10000W
    - AC output Pur Sinus
    - Microprocessor-controlled
    - Independent MPPT trackers: 2
    - Backlit LCD display

    100% secure payments

    Multisolar 10kW...

    €3,507.32

    Onduleur hybride 10kW injection réseau - stockage MultisolarMultiSolar: Store the bare minimum in your batteries and feed it back into the grid, provided the batteries are full.

    Conversely, use the grid to make up for the shortfall in winter production, and top up the batteries when it rains.

    Optimize your production to the maximum and never worry about a power cut again.

    Connect up to 14850Wp to the PV input of the Hybridinverter.

    Store and use your solar-generated electricity at a later date.

    Courbe de production


    Onduleur hybride 10kW injection réseau - stockage MultisolarDescription

    High-performance three-phase MultiSolar inverter for hybrid power systems.

    Connect solar panels, batteries and, optionally, a grid input to power your system.

    Enjoy top performance thanks to two independent integrated mppt trackers, as well as user-friendliness thanks to its compact design and intuitive LCD display.

    • Pure sine wave output signal: 10kW
    • Max PV input power: 14850Wp
    • AC input: 3-phase
    • AC output: 3-phase
    • Microprocessor-controlled for greater stability
    • Multiple operations:
    • Grid-connected, off-grid and grid-connected with backup power
    • Integrated mppt solar charger (two independent inputs)
    • Backlit LCD display for simple, interactive operation
    • Multiple means of communication
    • "Green" alternative to generators
    • User-adjustable battery charging current, up to 200A

    Bottom of the inverter

    General features

    Power rating10000W
    Physical characteristics
    Dimension (mm)167.5 x 500 x 622
    Weight (kg)45
    Interface
    Communication portRS 232/USB
    Environment
    Humidity
    - 90%
    Operating temperature
    - 50° C
    Altitude
    - 1000 m

    On-grid operation

    PV input (DC)
    Nominal DC voltage - Max. voltage720 V DC - 900 V DC
    Starting voltage320 V DC- 350 V DC
    MPPT voltage range400 V DC - 800 V DC
    Max. input current
    x 18.

    6

    A
    AC input
    Nominal input voltage230 VAC (P-N) / 400 VAC (P-P)
    Input voltage range184 - 265 V AC per phase
    Max input current25 A
    Efficiency
    Maximum efficiency>
    96%
    Rated power efficiency> 95%

    Off-grid operation

    PV input (DC)

    Max voltage

    900 V DC

    Voltage range mppt

    400 V DC - 800 V DC

    Max current

    x 18.

    6

    A

    AC output battery mode

    Nominal output voltage

    230 VAC (P-N) / 400 VAC (P-P)

    Output signal

    Pure Sine

    Efficiency (DC to AC)

    91%


    Hybrid operation

    PV input (DC)
    Rated voltage DC - max voltage720 V DC - 900 V DC
    Starting voltage320 V DC - 350 V DC
    Max current
    x 18.6A
    Voltage range mppt400 V DC - 800V DC
    AC output
    Rated output voltage230 VAC (P-N) / 400 VAC (P-P)
    Output voltage range184 V DC - 264.5 V DC per phase
    Max. current14.
    A per phase
    AC input
    AC start-up voltage120 V AC - 140 V AC per phase / 180 VAC per phase
    Input voltage range170-280 VAC per phase
    Max input current40 A
    AC output battery mode
    Output voltage230 VAC (P-N) / 400 VAC (P-P)
    Efficiency (DC to AC)91%
    Battery and charger
    Nominal voltage48 V DC
    Max. charging current100- 200 A

    Remote control and UPS configuration

    Connect the UPS to your computer using the USB cable supplied.

    SolarPower software enables control and monitoring of multiple devices via LAN, Internet or USB.

    Alert notifications, pop-up screen, sms and email.

    Software

    SolarPower 1.17SP7

    Configuration des paramètres

    0586
    3 Items

    Data sheet

    Inverter power
    10000 VA
    Phase
    Triphasé
    Number of MPPT
    2 MPPT
    Width
    500 mm
    Height
    622 mm
    Thickness
    176 mm
    Weight
    45 Kg

    Specific References

    UPC
    712971128019
    EAN13
    0712971128019
