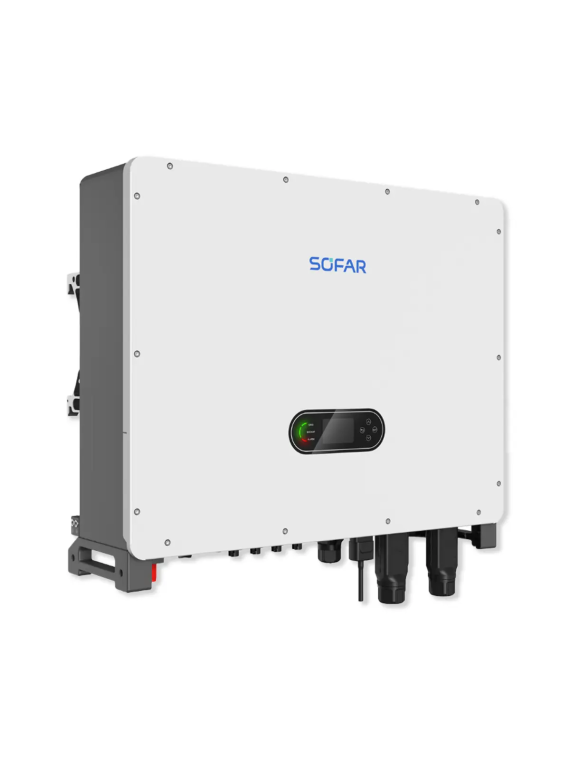

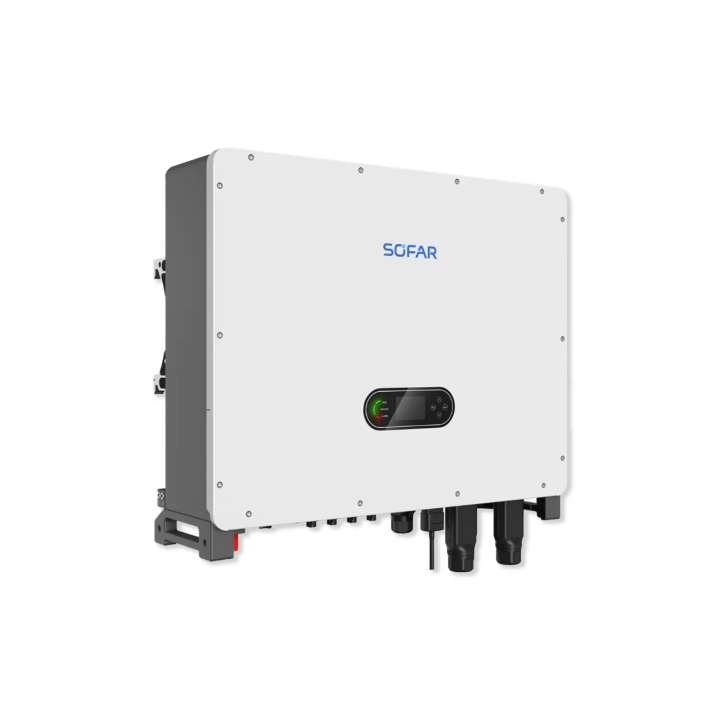

Sofar Solar 60 kVA Three-Phase Hybrid Inverter - HYD-60K-T1

Sofar Solar HYD-60K-T1 — The professional three-phase hybrid inverter for reliable and efficient energy

Discover the Sofar Solar HYD-60K-T1, thethree-phase hybrid inverter of 60 kW designed for demanding professional photovoltaic installations. It integrates solar production, high voltage battery storage and a emergency output (AC-Backup) robust, ensuring maximum reliability and optimal energy autonomy.

Ideal for tertiary buildings, industrial sites, large condominiums or micro-grids, it secures your three-phase supply while maximizing self-consumption. Its compatibility with a generator and its exceptional efficiency make it the complete and scalable solution for critical sites requiring absolute continuity of service.

Key features of the Sofar HYD-60K-T1

• High performance and robustness: Supports up to 200% PV oversizing, 40A per MPPT (ideal for bi-facial modules), 100% unbalanced loads in output and 150% AC overload for 10 seconds.
• Advanced integrated security: Protection IP66 (outdoor installation), integrated DC SPD Type I+II and AC SPD Type II protections, and AI-based arc detection (AFCI) for active fire prevention.
• Maximum flexibility: Parallel connection of several inverters (up to 10 units), easy integration with a generator and intelligent control of non-critical loads.
• Simplified installation and management: Optimized design, quick commissioning via LCD screen or the SOFAR mobile app, and complete remote monitoring.

Typical uses with the Sofar HYD-60K-T1

Main features

• Operating modes: Automatic and ultra-fast switch (< 4 ms) between autonomous mode (off-grid) and network connected mode (on-grid).
• Battery optimization: Programmable charge and discharge management to optimize self-consumption or take advantage of peak/off-peak rates.
• Generator integration: Compatible with a generator (connection on the AC-Backup or AC-Grid port) for total resilience.
• Scalability: Possibility of parallel connection for larger systems and increased power.
• Compliance: Complies with all current European standards for network connection.

Technical characteristics

The Sofar Solar HYD-60K-T1 is a complete, robust and flexible solution for professional sites wishing to combine solar production, storage and energy security. Thanks to its high efficiency, intelligent connectivity and IP66 design, it is a strategic choice for any installation three-phase photovoltaic of 60 kW.

SolarMan Smart - Remote monitoring and control

SofarSolar redefines the energy future with smart inverters. The HYD-60K-T1 does not by default include the WiFi Stick (Logger) for smooth connectivity to the monitoring platform SolarMan. Transform each installation into a connected, intelligent and sustainable experience.

Apple Store - Solarman Smart

Android - Google Play - Solarman Smart

Configuration steps :

1. After starting the application, register or log in to your SOLARMAN account.
2. Create a new system and fill in the necessary data.
3. Scan the barcode of the logger stick to associate the inverter.
4. Configure the recorder in the newly created system.
5. Press the WiFi key button for 1 second to activate WPS mode.
6. Select your local WiFi network and enter your password.
7. The WiFi key is now configured.

FAQ — Sofar Model HYD-60K-T1

1. Can the HYD-60K-T1 operate without a battery?
Yes, it can operate as a standard grid-tied (on-grid) inverter. Adding batteries activates hybrid and backup functions.

2. What type of battery is compatible?
This inverter is designed for high voltage (HV) batteries. SofarSolar maintains an official compatibility list.

3. Is it compatible with a generator?
Yes, the inverter has a dedicated port or can be configured to integrate with a generator, ensuring continuous power supply even in case of prolonged outage.

4. Should the three-phase loads be balanced on the emergency exit?
No. This is one of its strong points: the AC-Backup output supports up to 100% unbalanced load between phases, which is crucial for tertiary buildings.

5. Can we put several inverters in parallel?
Yes, the system is designed for parallel connection (up to 10 units) in order to create high power plants (up to 400 kW) with storage and backup function.

6. How to monitor production and consumption?
Via the platform SolarMAN Cloud (mobile application or web interface), accessible thanks to the optional Wi-Fi logger, allowing real-time monitoring of production, consumption and battery status.
